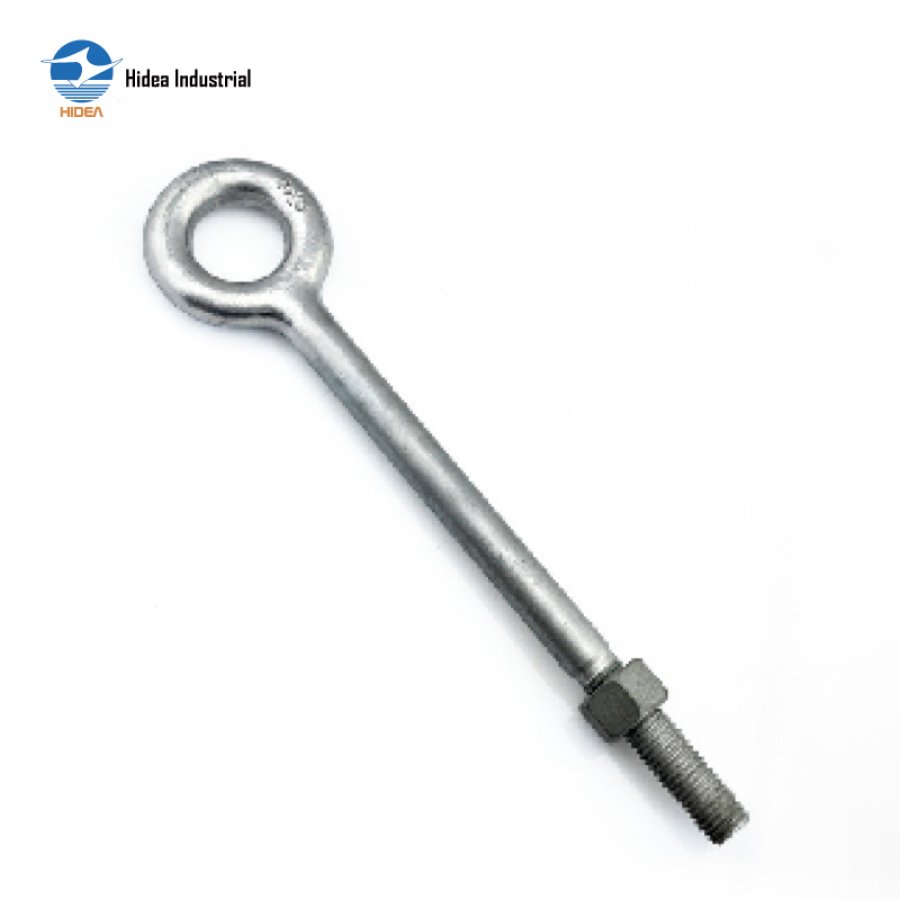

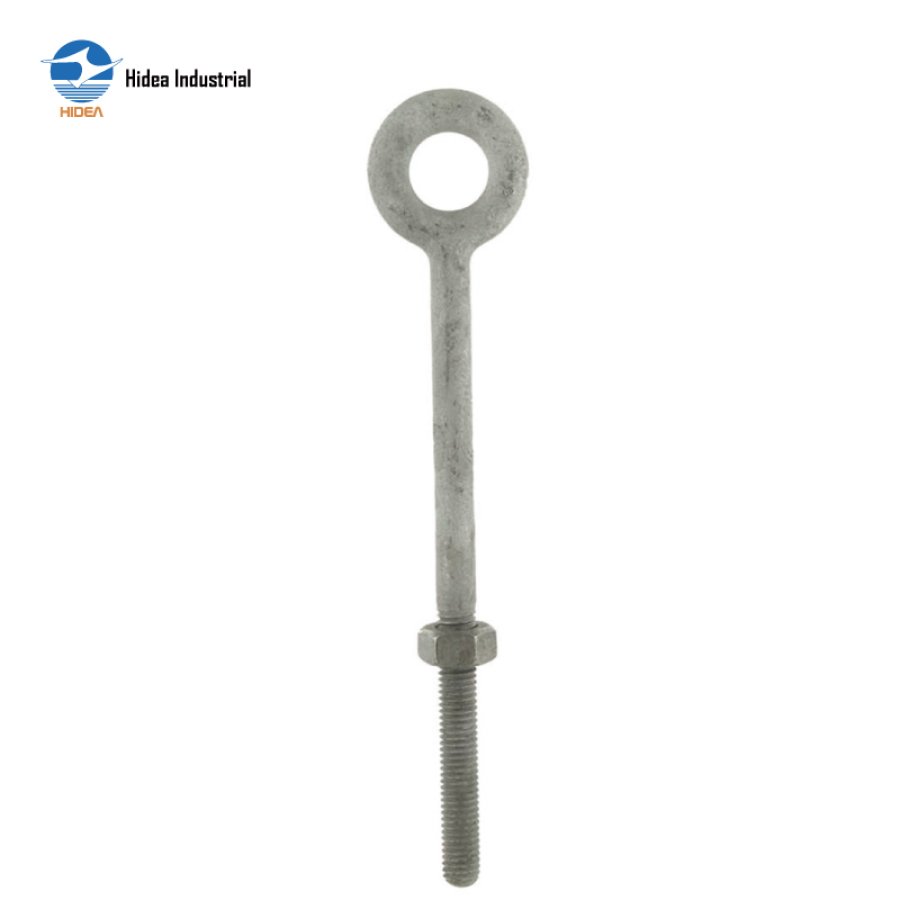

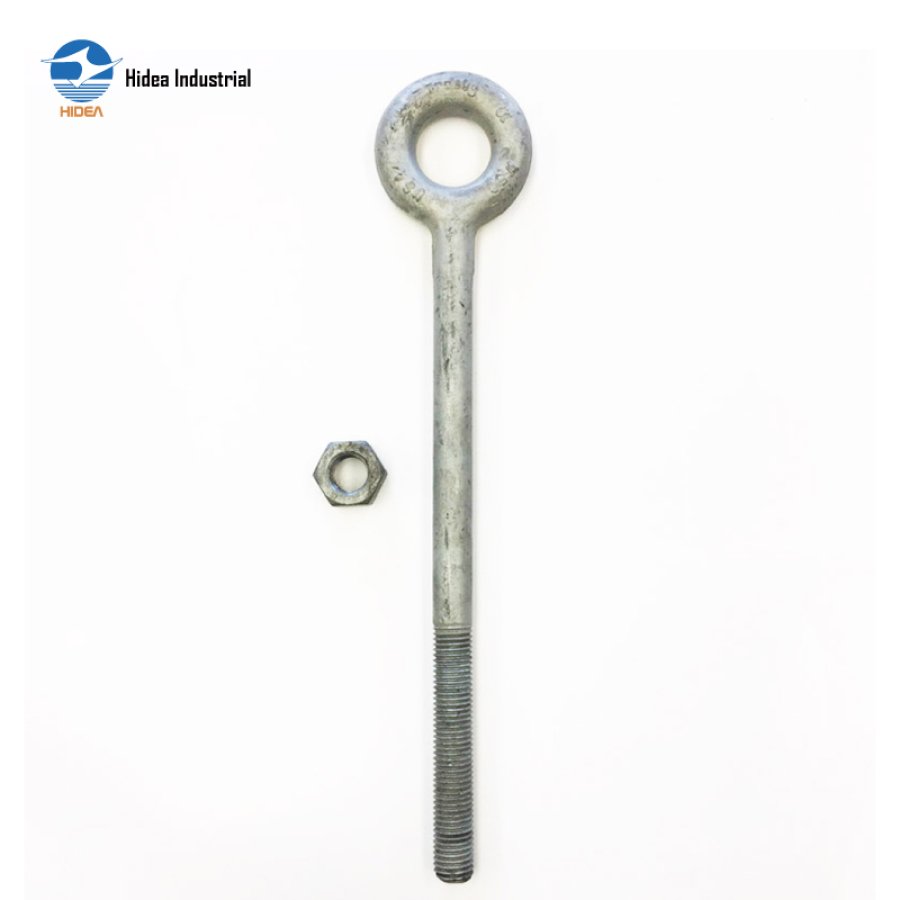

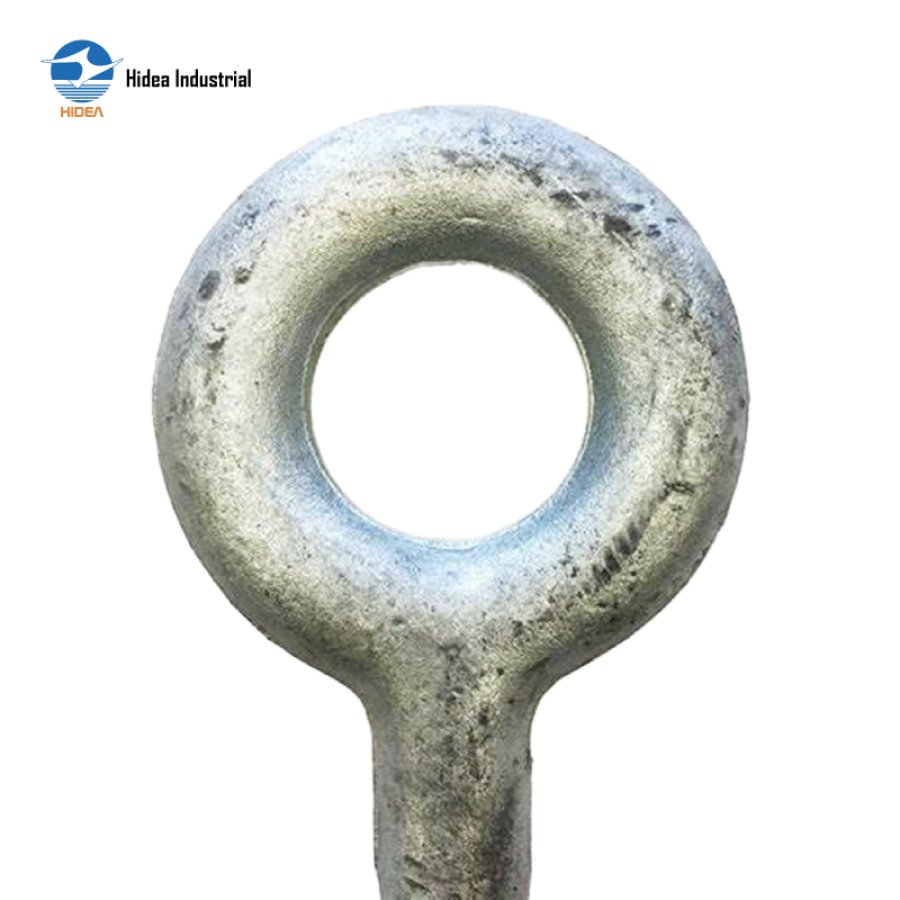

REGULAR EYE BOLTS G-291

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available
Surface hot dip galvanized, Electro Galv., Electro Galv. / zinc plated OR as requested
G-291 Regular Nut Eye Bolts,meets or exceeds all requirements of ASME B30.26

Inquire Now

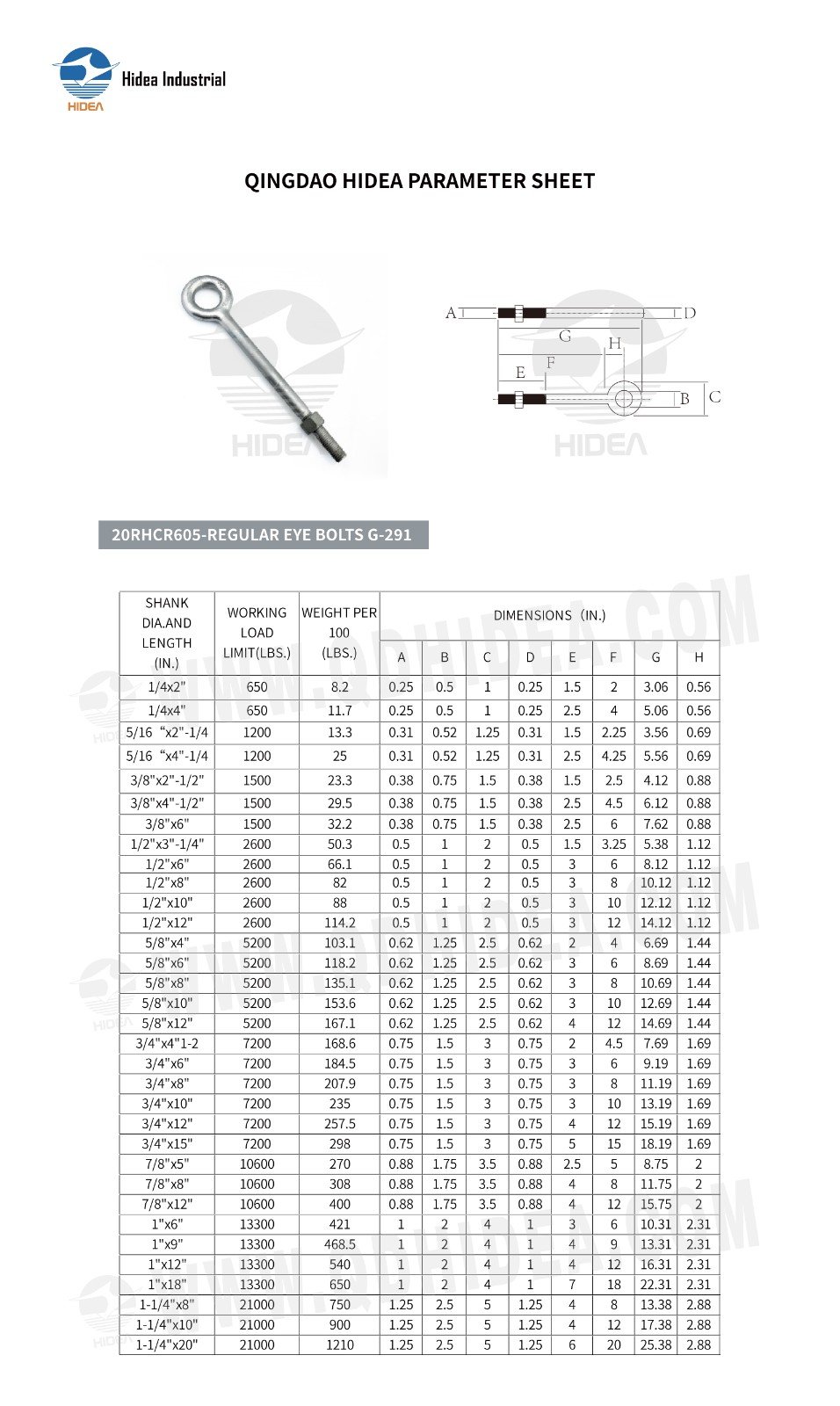

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR605-REGULAR EYE BOLTS G-291

SHANK DIA.AND LENGTH (IN.)	WORKING LOAD LIMIT(LBS.)	WEIGHT PER 100 (LBS.)	DIMENSIONS(IN.)
SHANK DIA.AND LENGTH (IN.)	WORKING LOAD LIMIT(LBS.)	WEIGHT PER 100 (LBS.)	A	B	C	D	E	F	G	H
1/4x2"	650	8.2	0.25	0.5	1	0.25	1.5	2	3.06	0.56
1/4x4"	650	11.7	0.25	0.5	1	0.25	2.5	4	5.06	0.56
5/16 "x2"-1/4	1200	13.3	0.31	0.52	1.25	0.31	1.5	2.25	3.56	0.69
5/16"x4"-1/4	1200	25	0.31	0.52	1.25	0.31	2.5	4.25	5.56	0.69
3/8"x2"-1/2"	1500	23.3	0.38	0.75	1.5	0.38	1.5	2.5	4.12	0.88
3/8"x4"-1/2"	1500	29.5	0.38	0.75	1.5	0.38	2.5	4.5	6.12	0.88
3/8"x6"	1500	32.2	0.38	0.75	1.5	0.38	2.5	6	7.62	0.88
1/2"x3"-1/4"	2600	50.3	0.5	1	2	0.5	1.5	3.25	5.38	1.12
1/2"x6"	2600	66.1	0.5	1	2	0.5	3	6	8.12	1.12
1/2"x8"	2600	82	0.5	1	2	0.5	3	8	10.12	1.12
1/2"x10"	2600	88	0.5	1	2	0.5	3	10	12.12	1.12
1/2"x12"	2600	114.2	0.5	1	2	0.5	3	12	14.12	1.12
5/8"x4"	5200	103.1	0.62	1.25	2.5	0.62	2	4	6.69	1.44
5/8"x6"	5200	118.2	0.62	1.25	25	0.62	3	6	8.69	1.44
5/8"x8"	5200	135.1	0.62	1.25	2.5	0.62	3	8	10.69	1.44
5/8"x10"	5200	153.6	0.62	1.25	2.5	0.62	3	10	12.69	1.44
5/8"x12"	5200	167.1	0.62	1.25	2.5	062	4	12	14.69	1.44
3/4"x4"1-2	7200	168.6	0.75	1.5	3	0.75	2	4.5	7.69	1.69
3/4"×6"	7200	184.5	0.75	1.5	3	0.75	3	6	9.19	1.69
3/4"x8"	7200	207.9	0.75	1.5	3	0.75	3	8	11.19	1.69
3/4"x10"	7200	235	0.75	1.5	3	0.75	3	10	13.19	1.69
3/4"x12"	7200	257.5	0.75	1.5	3	0.75	4	12	15.19	1.69
3/4"x15"	7200	298	0.75	1.5	3	0.75	5	15	18.19	1.69
7/8"x5"	10600	270	0.88	1.75	3.5	0.88	2.5	5	8.75	2
7/8"x8"	10600	308	0.88	1.75	3.5	0.88	4	8	11.75	2
7/8"x12"	10600	400	0.88	1.75	35	0.88	4	12	15.75	2
1"×6"	13300	421	1	2	4	1	3	6	10.31	2.31
1"x9"	13300	468.5	1	2	4	1	4	9	13.31	2.31
1"x12"	13300	540	1	2	4	1	4	12	16.31	2.31
1"x18"	13300	650	1	2	4	1	7	18	22.31	2.31
1-1/4"x8"	21000	750	1.25	2.5	5	1.25	4	8	13.38	2.88
1-1/4"x10"	21000	900	1.25	2.5	5	1.25	4	12	17.38	2.88
1-1/4"x20"	21000	1210	1.25	2.5	5	1.25	6	20	25.38	2.88
