HIDEA Semi Enclosed Synthetic Rope Thimble: Strong, Durable, and Reliable for Synthetic Rope

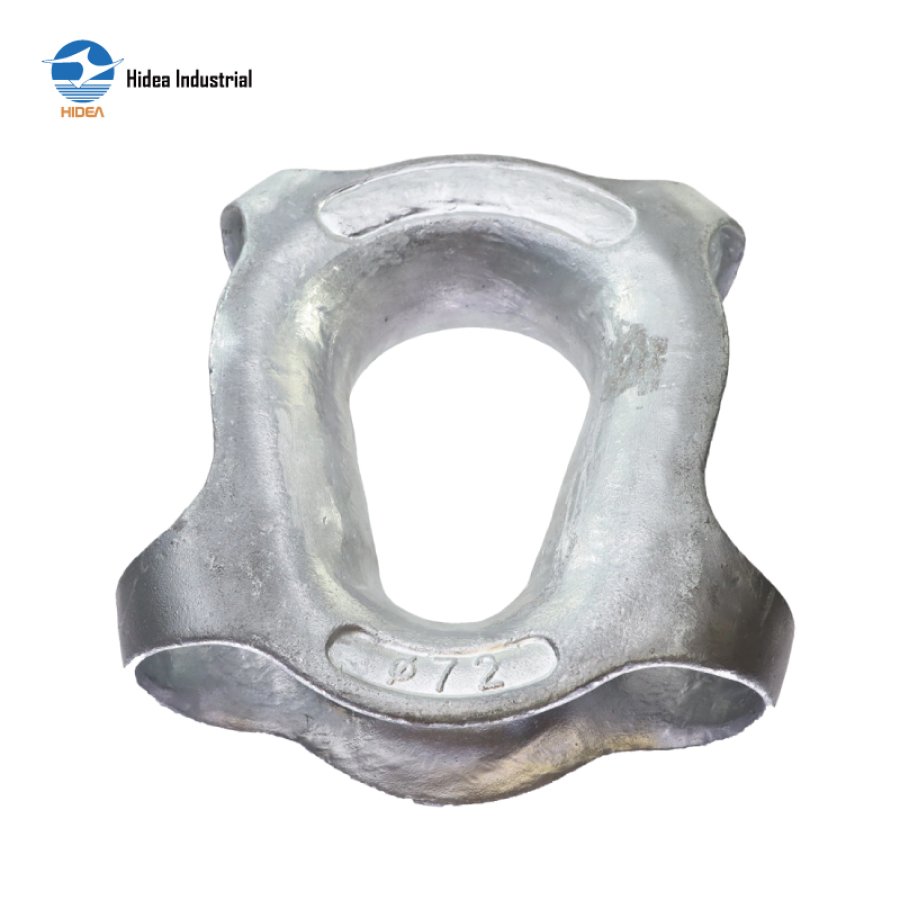

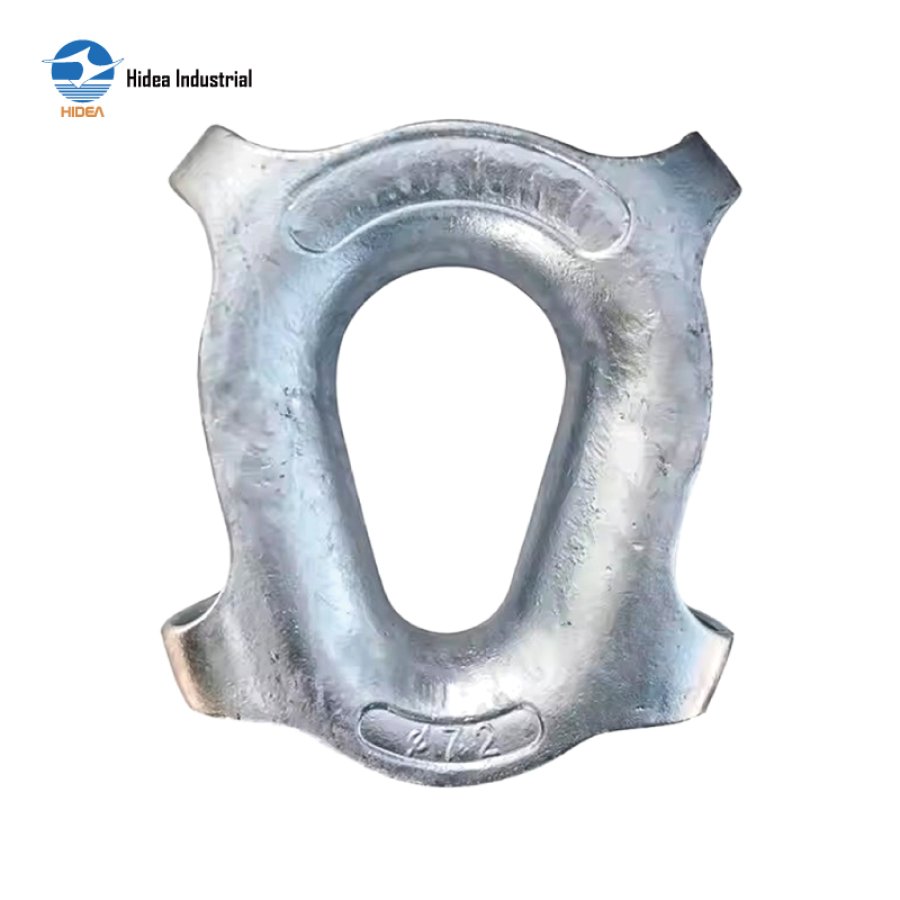

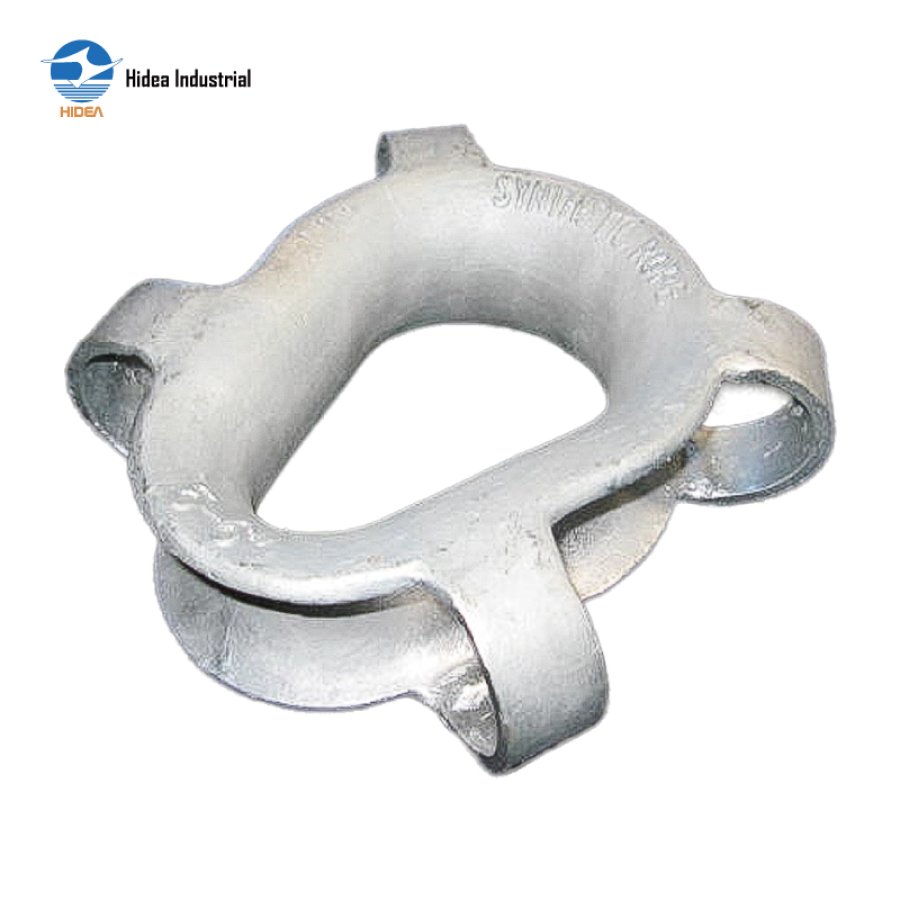

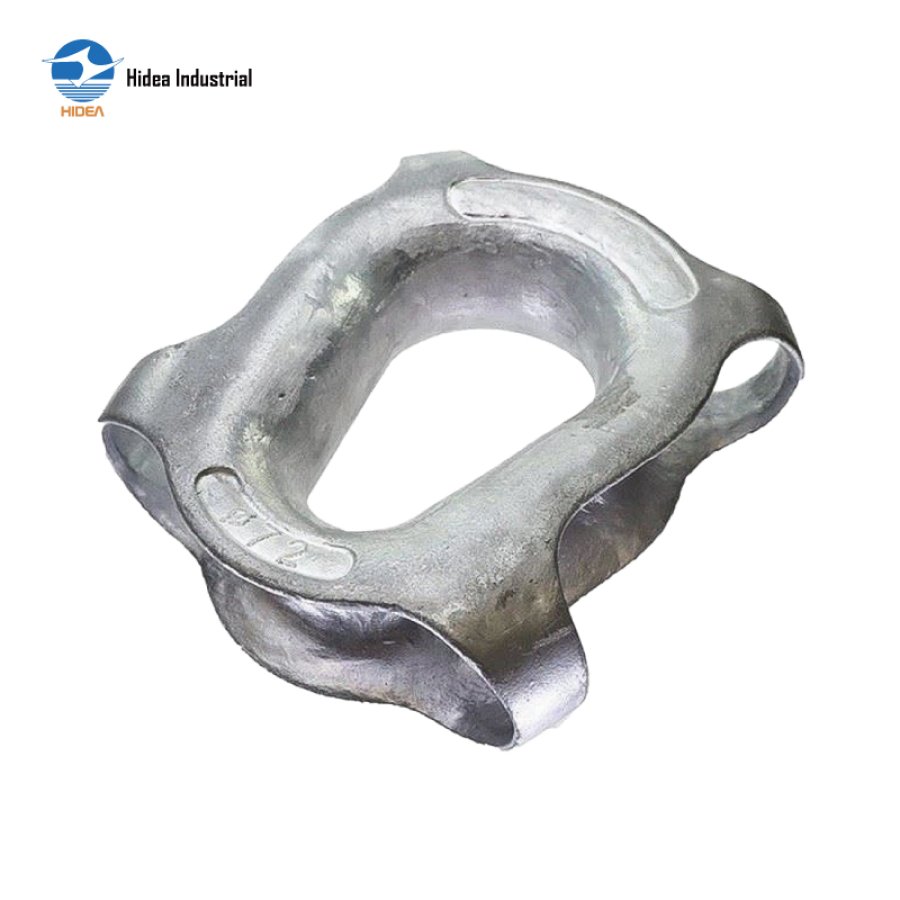

SEMI ENCLOSED SYNTHETIC ROPE THIMBLE

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
Semi Enclosed Synthetic poly fibre Rope Thimbles, Hawser Thimbles

Inquire Now

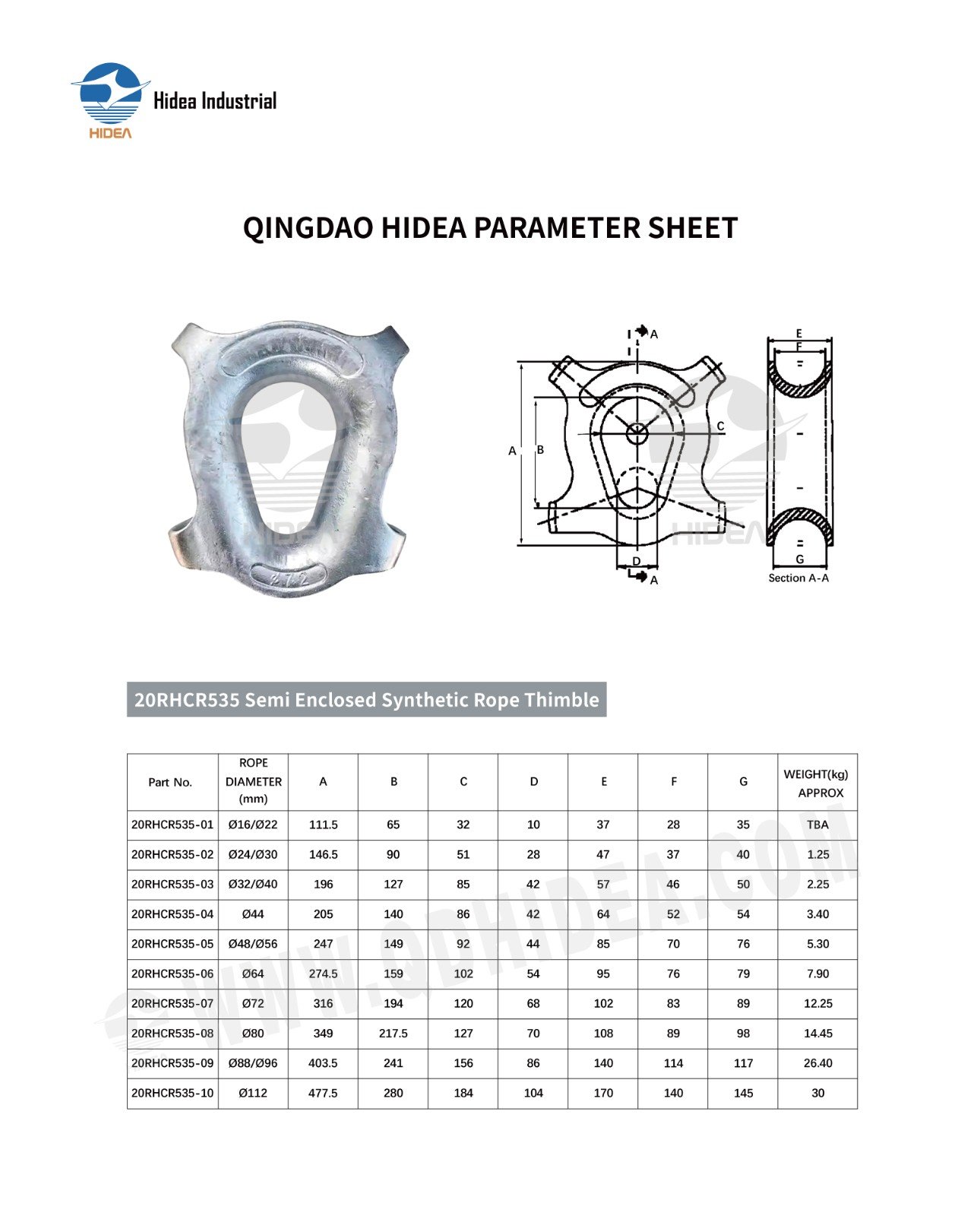

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR535 Semi Enclosed Synthetic Rope Thimble

Part No.	ROPE DIAMETER (mm)	A	B	C	D	E	F	G	WEIGHT(kg) APPROX
20RHCR535-01	∅16/∅22	111.5	65	32	10	37	28	35	TBA
20RHCR535-02	∅24/∅30	146.5	90	51	28	47	37	40	1.25
20RHCR535-03	∅32/∅40	196	127	85	42	57	46	50	2.25
20RHCR535-04	∅44	205	140	86	42	64	52	54	3.40
20RHCR535-05	∅48/∅56	247	149	92	44	85	70	76	5.30
20RHCR535-06	∅64	274.5	159	102	54	95	76	79	7.90
20RHCR535-07	∅72	316	194	120	68	102	83	89	12.25
20RHCR535-08	∅80	349	217.5	127	70	108	89	98	14.45
20RHCR535-09	∅88/∅96	403.5	241	156	86	140	114	117	26.40
20RHCR535-10	∅112	477.5	280	184	104	170	140	145	30
