Heavy-Duty Lifting Made Easy with Hidea G80 Clevis Chain Clutch with Pin

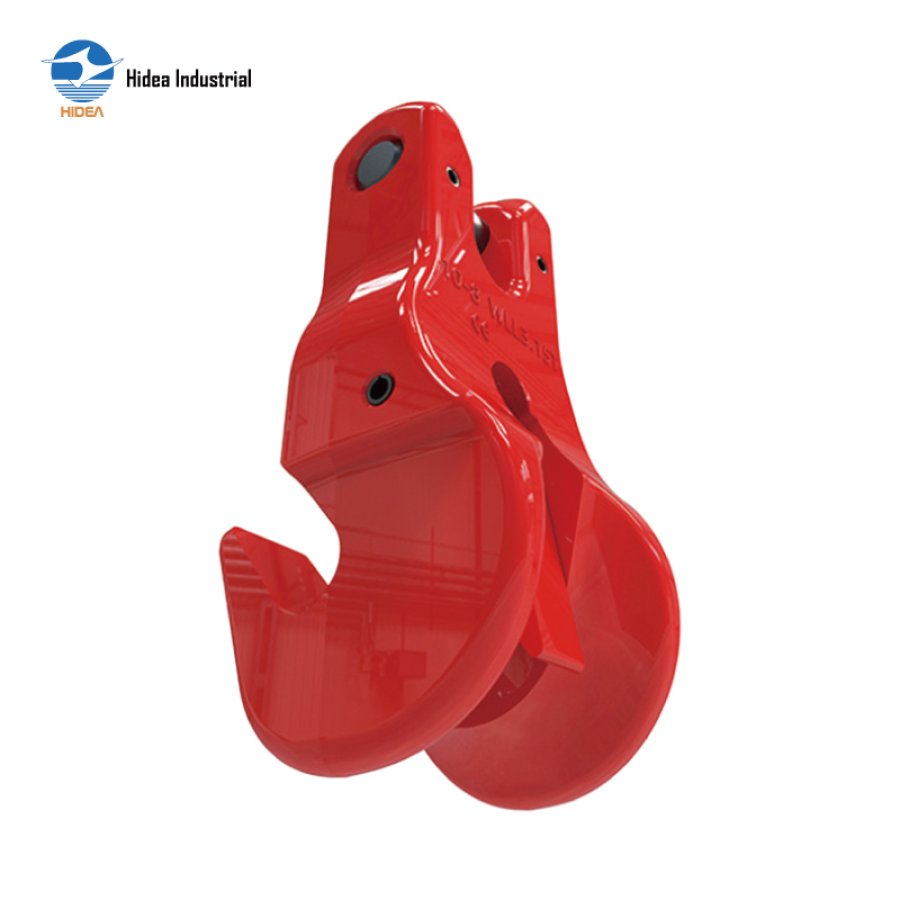

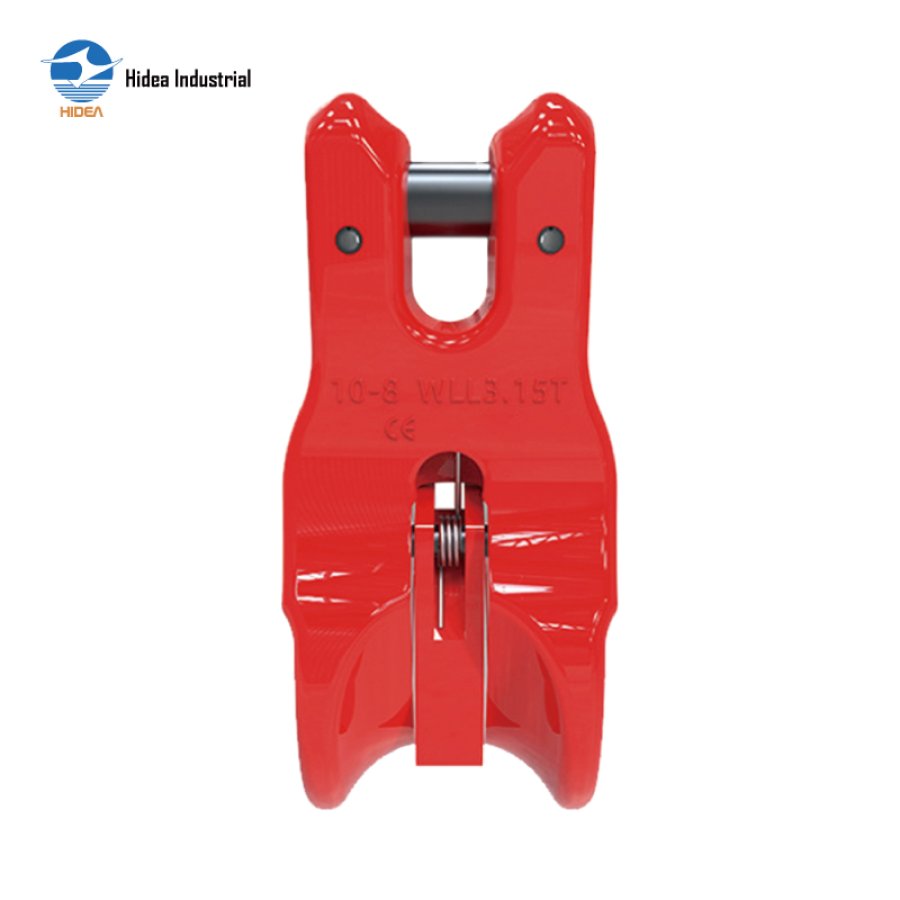

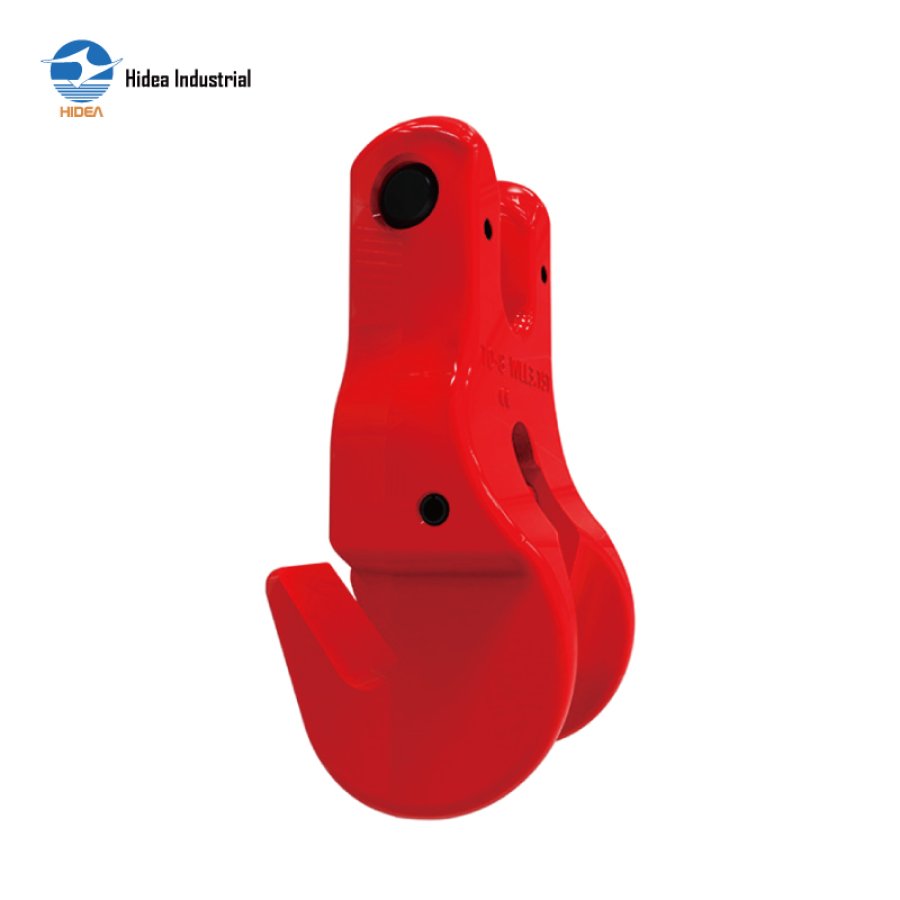

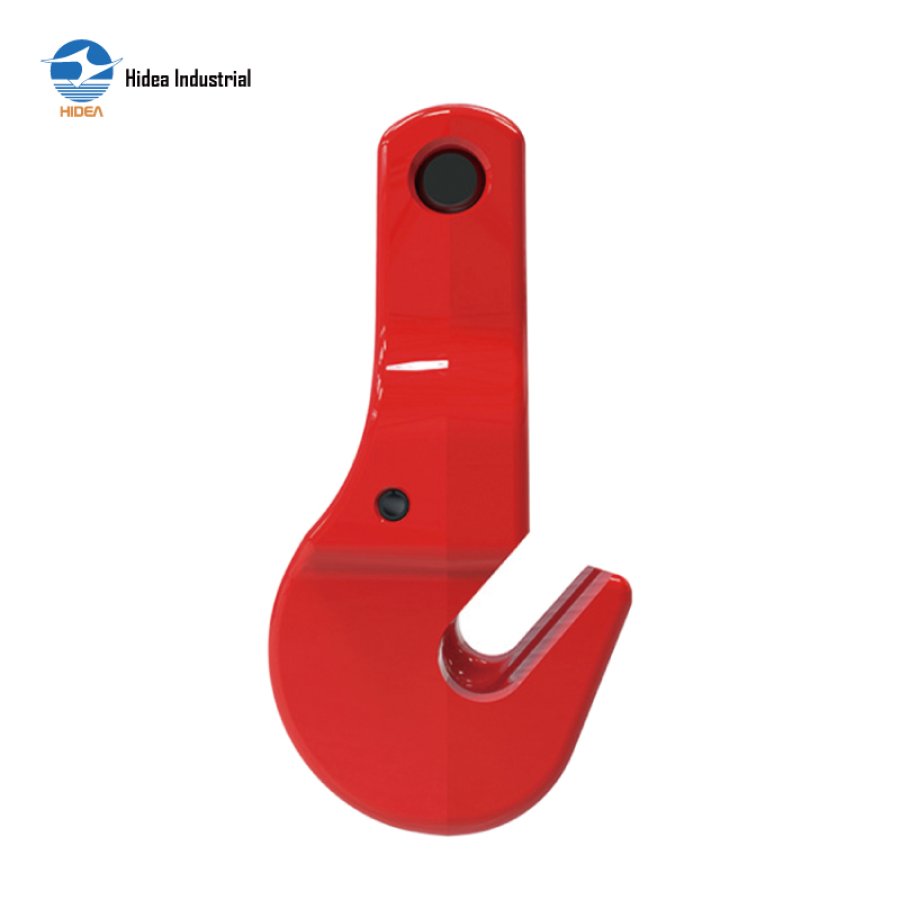

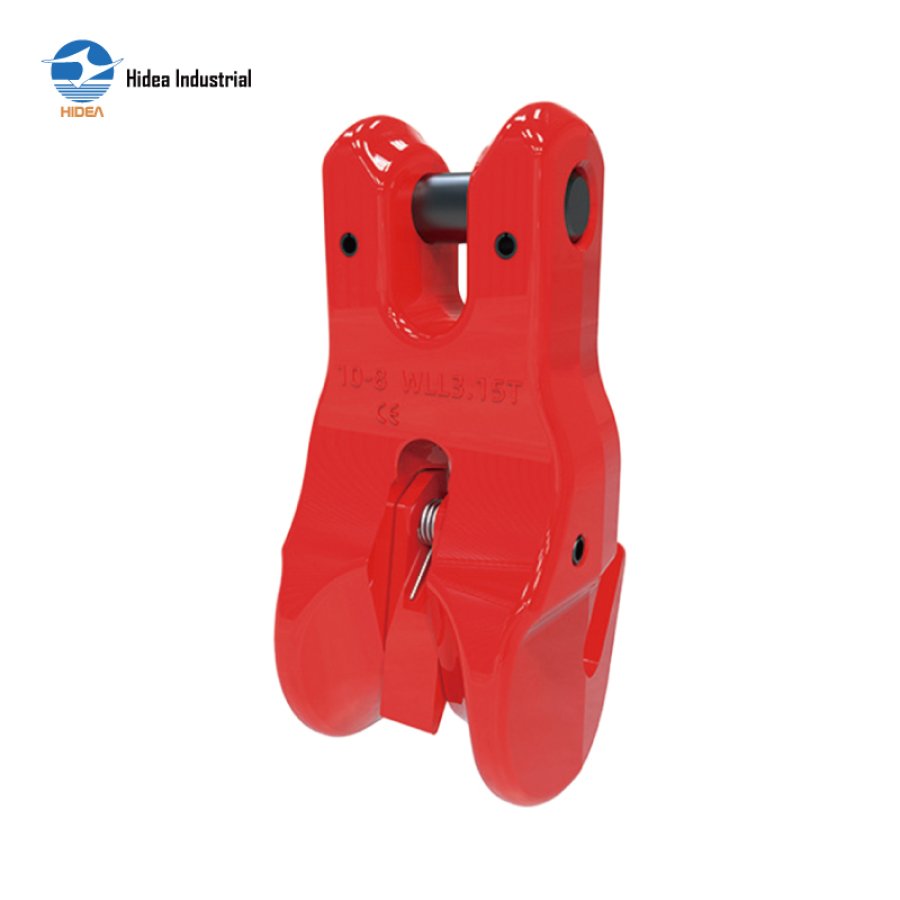

G80 CLEVIS CHAIN CLUTCH WITH DOWEL PIN

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

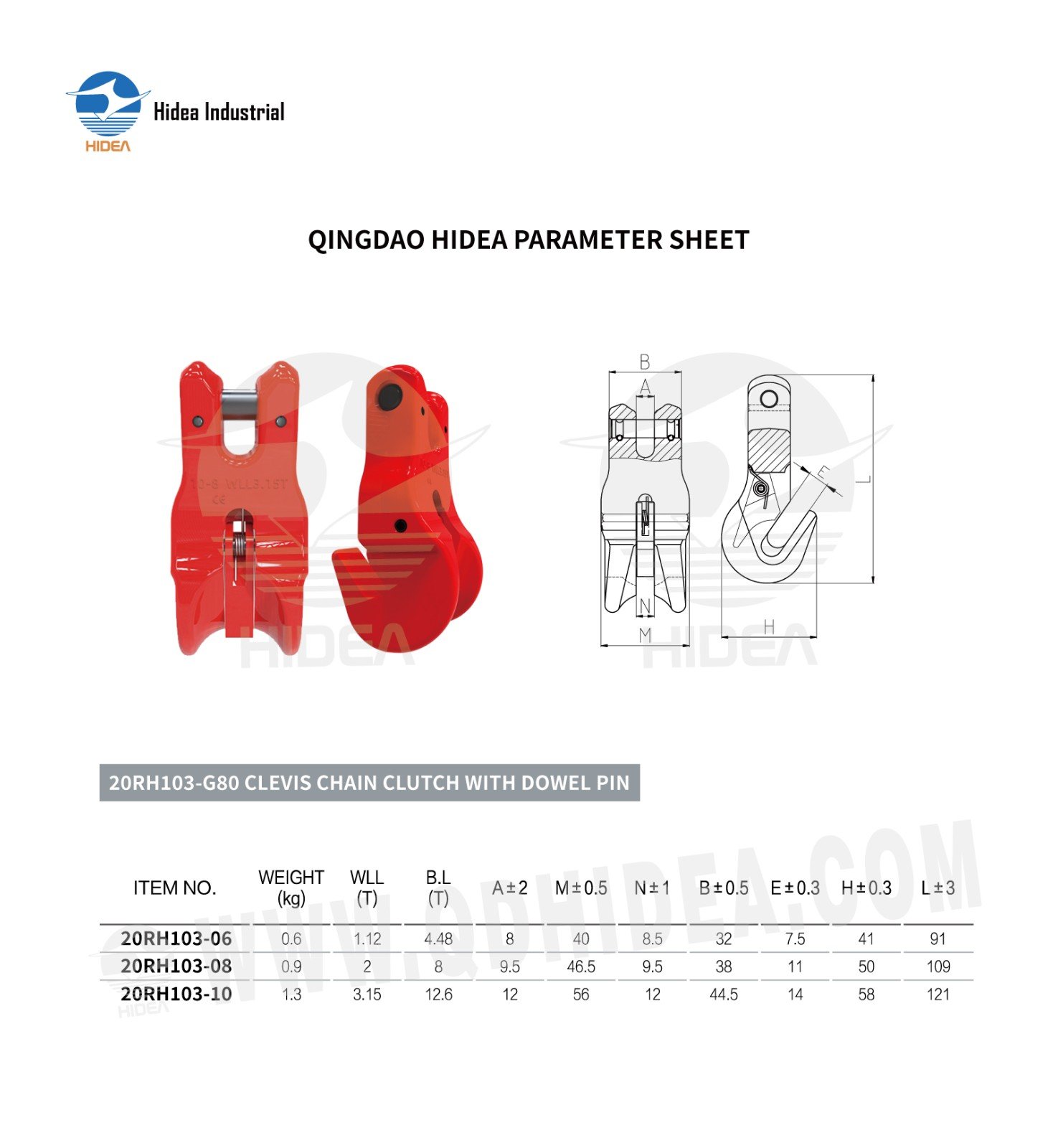

QINGDAO HIDEA PARAMETER SHEET FOR

20RH103-G80 CLEVIS CHAIN CLUTCH WITH DOWEL PIN

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±2	M±0.5	N±1	B±0.5	E±0.3	H±0.3	L±3
20RH103-06	0.6	1.12	4.48	8	40	8.5	32	7.5	41	91
20RH103-08	0.9	2	8	9.5	46.5	9.5	38	11	50	109
20RH103-10	1.3	3.15	12.6	12	56	12	44.5	14	58	121
