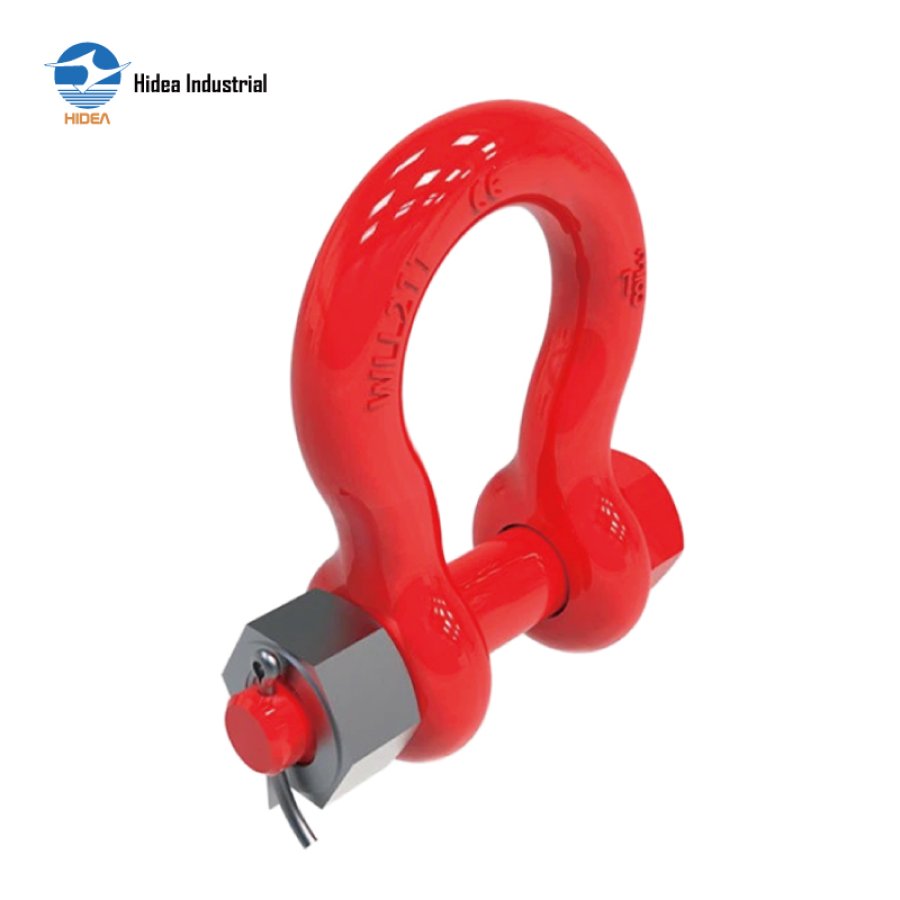

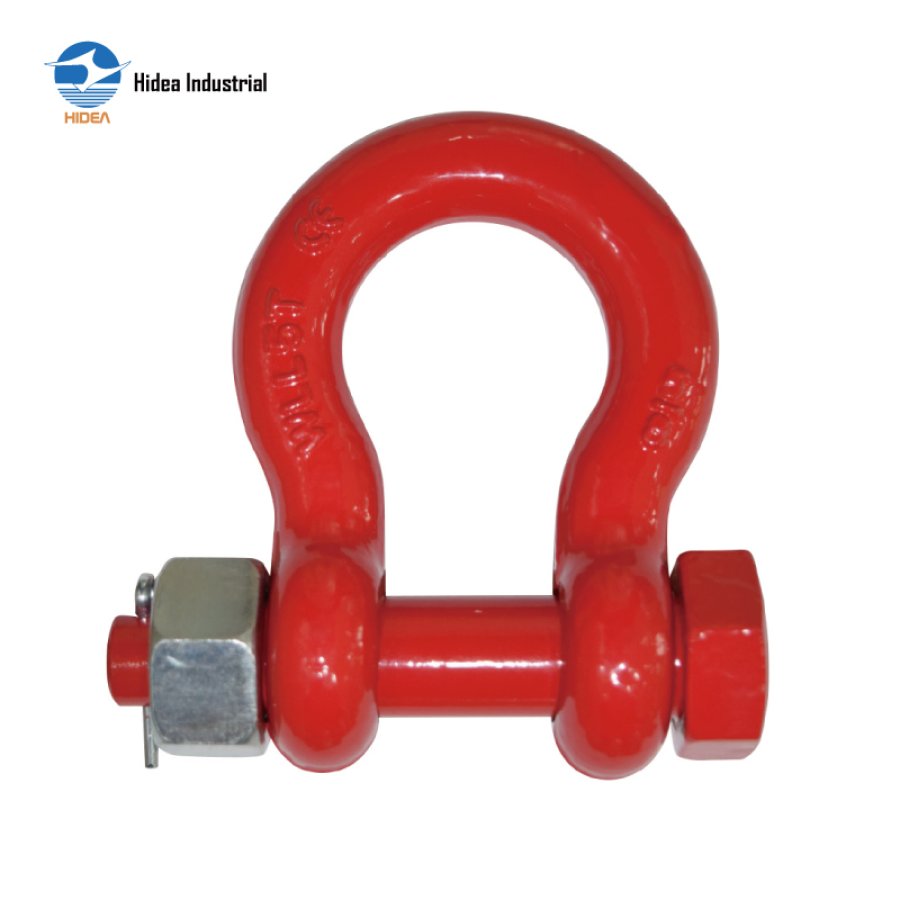

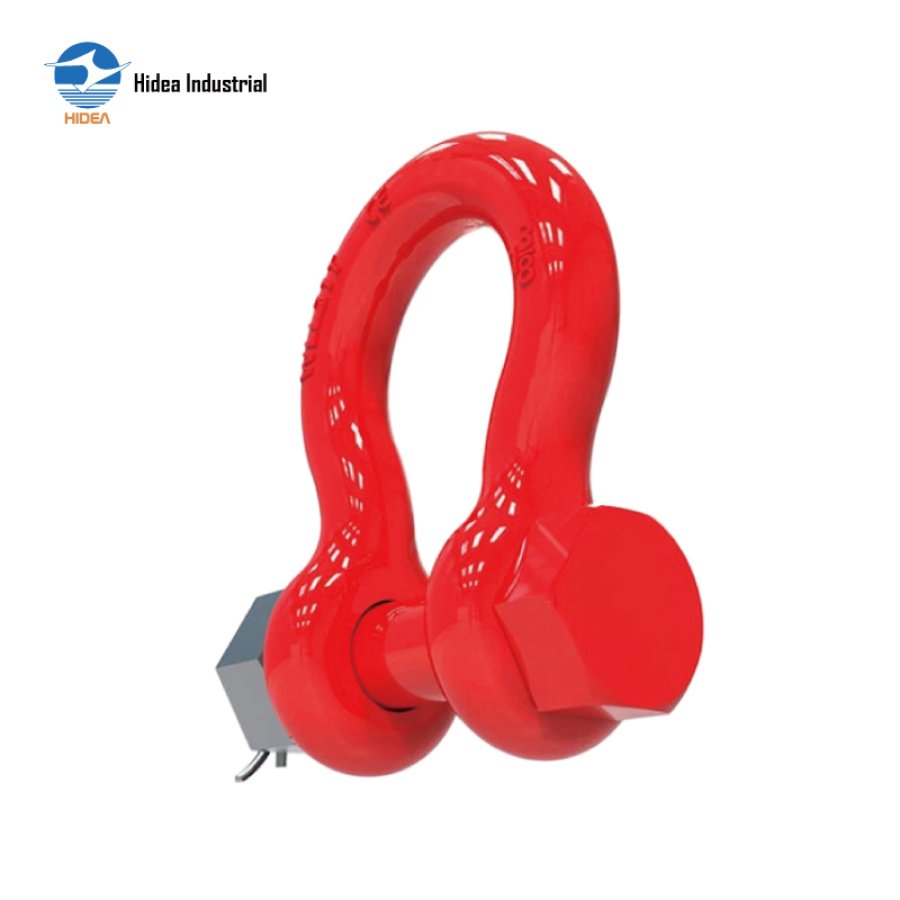

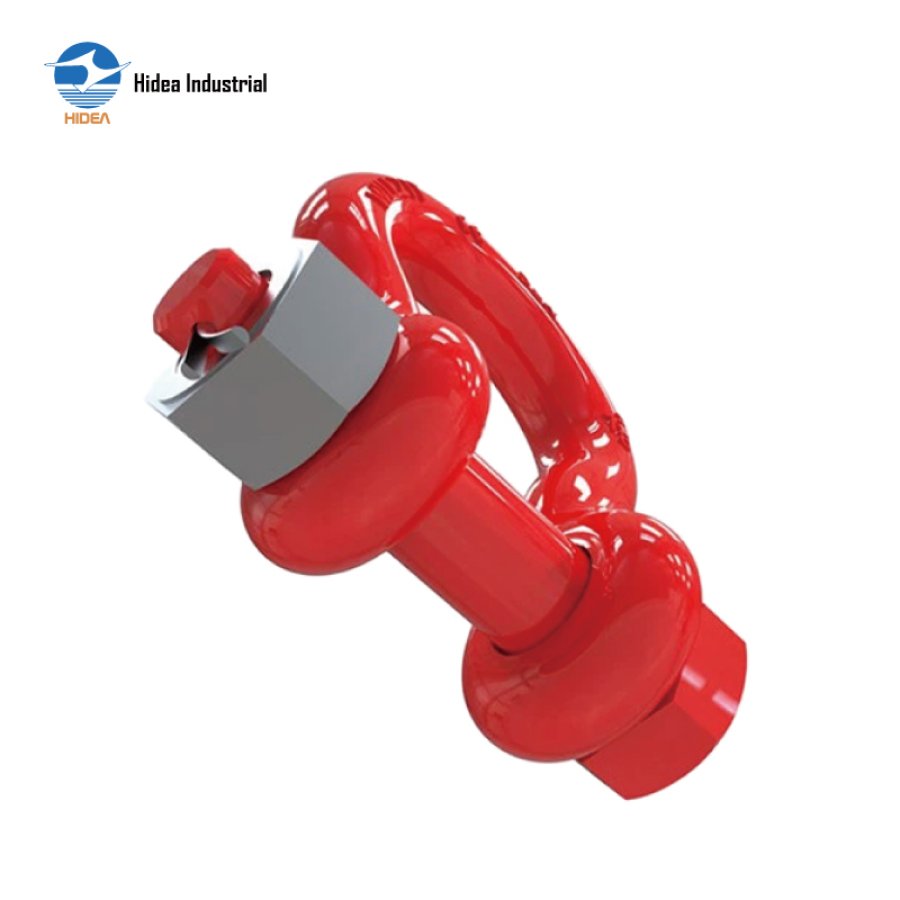

Hidea G80/G8 Bolt Pin Anchor Shackle – Robust and Reliable for Industrial Rigging

G80/G8 BOLT TYPE ANCHOR SHACKLE

Material: body AND pin super alloy steel
Drop forged, quenched &tempered
Magnaflux crack detection
Safety factor 5:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271D, Type IVA, Class3,Grade B/EN 1677-1:2000+A1:2008
Temperature range -20 to 200 centigrade degrees

Inquire Now

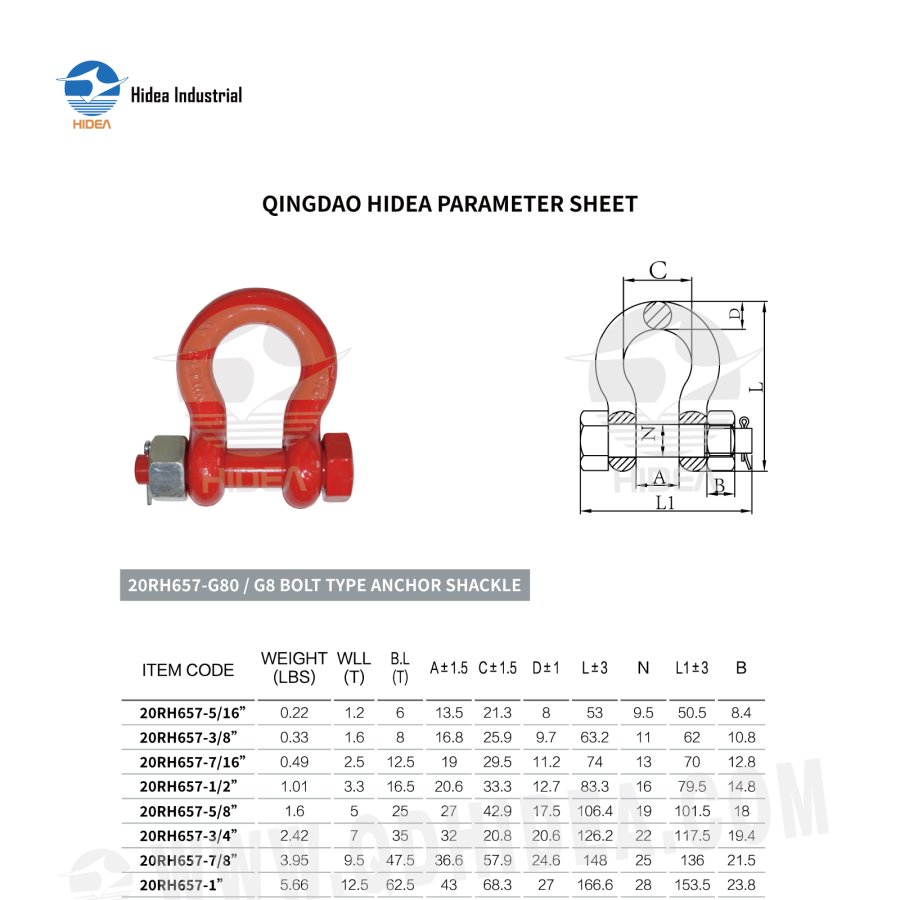

QINGDAO HIDEA PARAMETER SHEET FOR

20RH657-G80/G8 BOLT TYPE ANCHOR SHACKLE

ITEM CODE	WEIGHT (LBS)	WLL (T)	B.L (T)	A±1.5	C±1.5	D±1	L±3	N	L1±3	B
20RH657-5/16”	0.22	1.2	6	13.5	21.3	8	53	9.5	50.5	8.4
20RH657-3/8”	0.33	1.6	8	16.8	25.9	9.7	63.2	11	62	10.8
20RH657-7/16"	0.49	2.5	12.5	19	29.5	11.2	74	13	70	12.8
20RH657-1/2”	1.01	3.3	16.5	20.6	33.3	12.7	83.3	16	79.5	14.8
20RH657-5/8”	1.6	5	25	27	42.9	17.5	106.4	19	101.5	18
20RH657-3/4”	2.42	7	35	32	20.8	20.6	126.2	22	117.5	19.4
20RH657-7/8"	3.95	9.5	47.5	36.6	57.9	24.6	148	25	136	21.5
20RH657-1”	5.66	12.5	62.5	43	68.3	27	166.6	28	153.5	23.8
20RH657-1-1/8”	8.27	15	75	46	74	31.75	190	32	171.5	25.6
20RH657-1-1/4”	11.71	18	90	51.6	82.5	35	210	35	192	31
20RH657-1-3/8”	15.83	21	105	57	92	36	232.7	38	202	33.4
20RH657-1-1/2”	20.8	30	150	60.5	98	41	254	42	222	34
20RH657-1-3/4”	33.91	40	200	73.2	126	57.2	313.7	51	278	38
20RH657-2”	52.25	55	275	82.5	146	61	347.5	57	307	45
