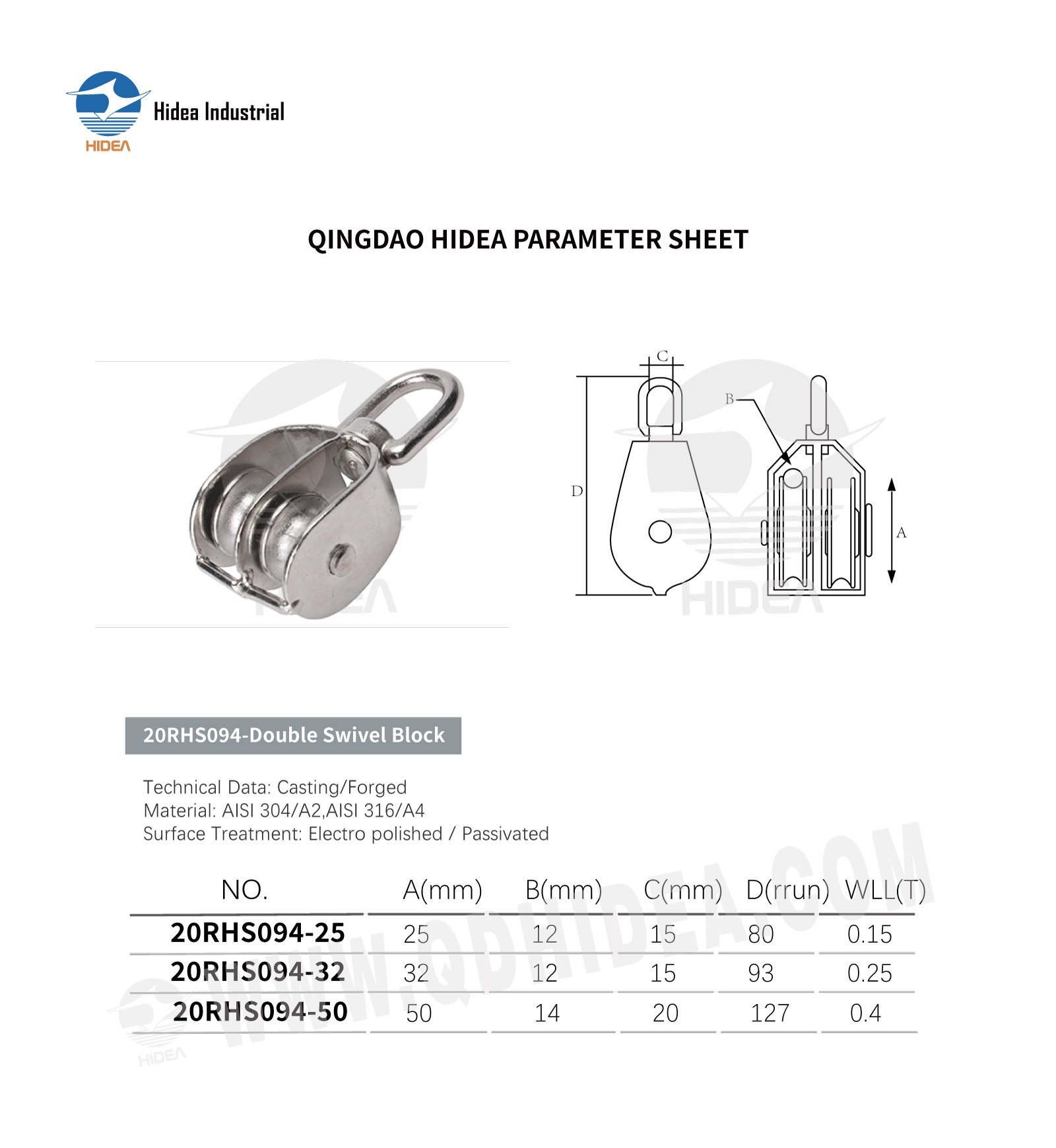

QINGDAO HIDEA PARAMETER SHEET FOR

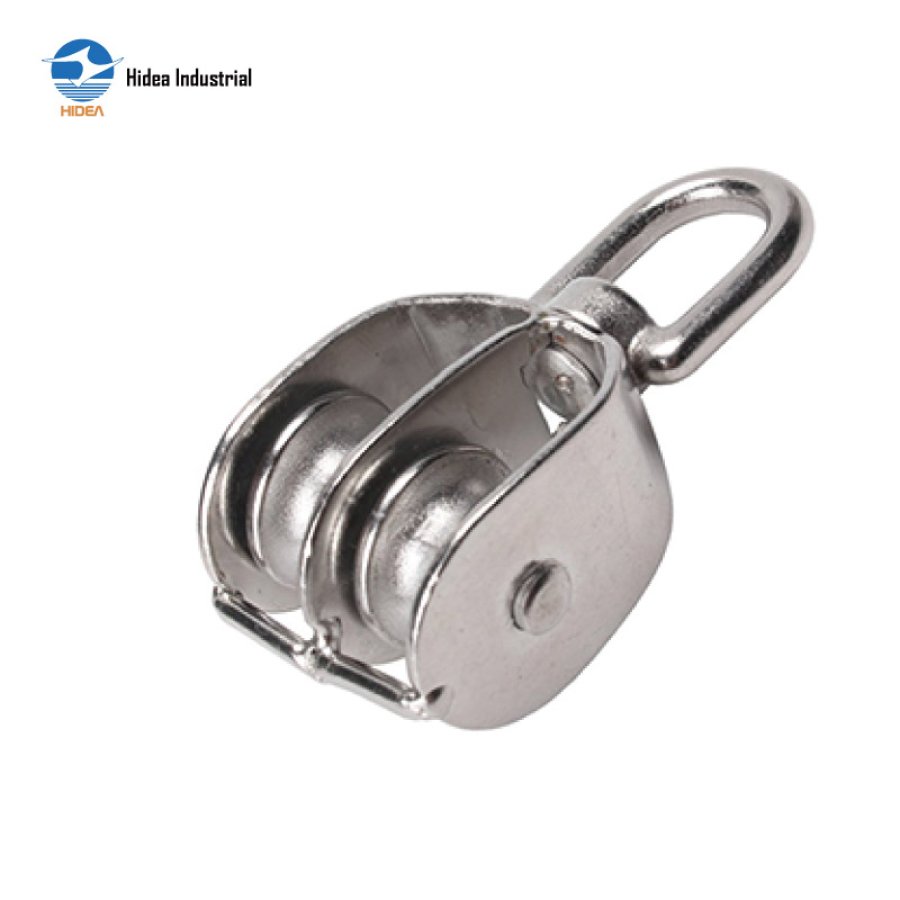

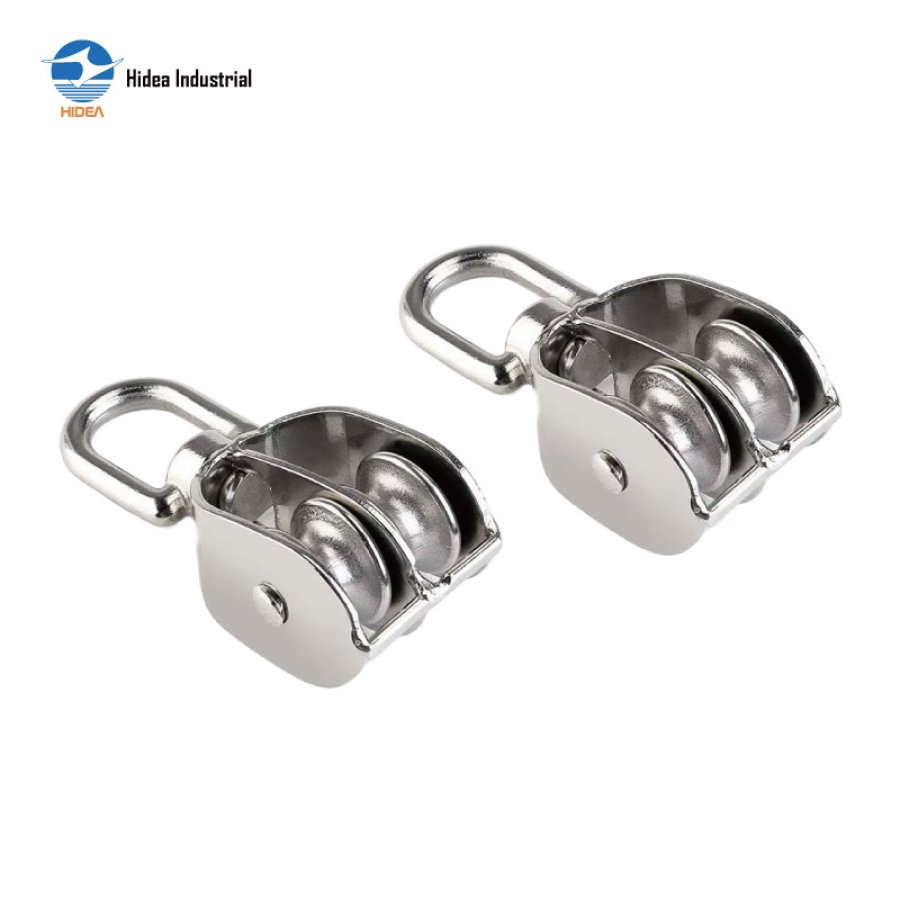

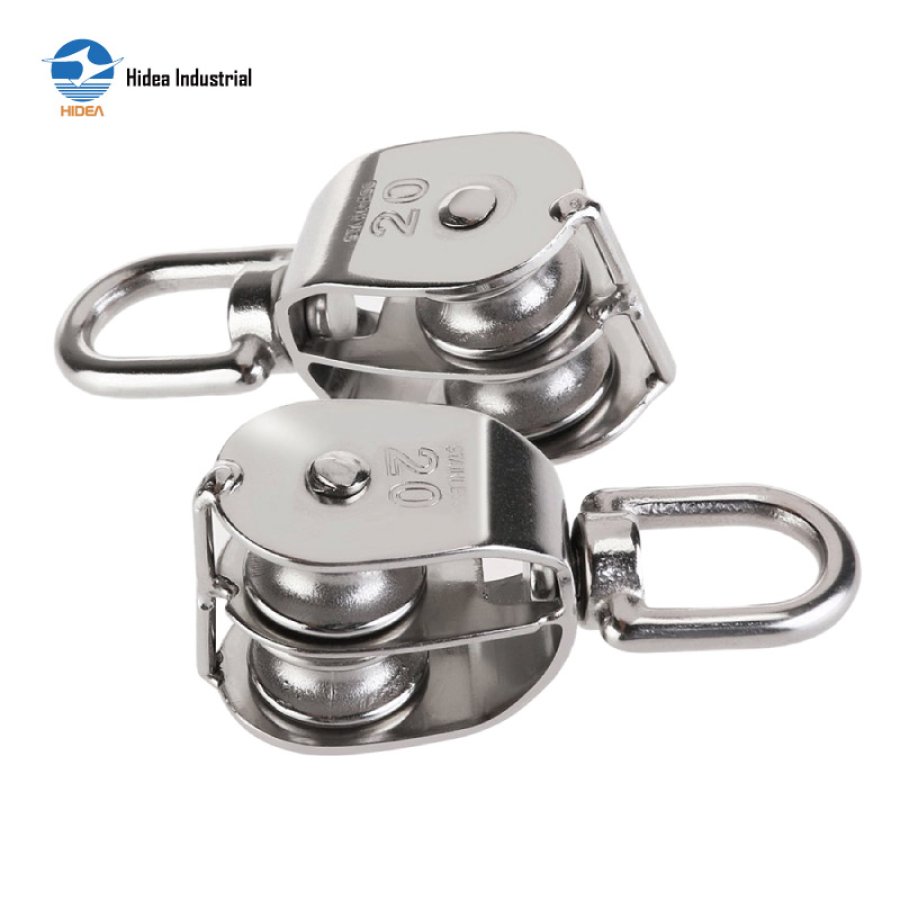

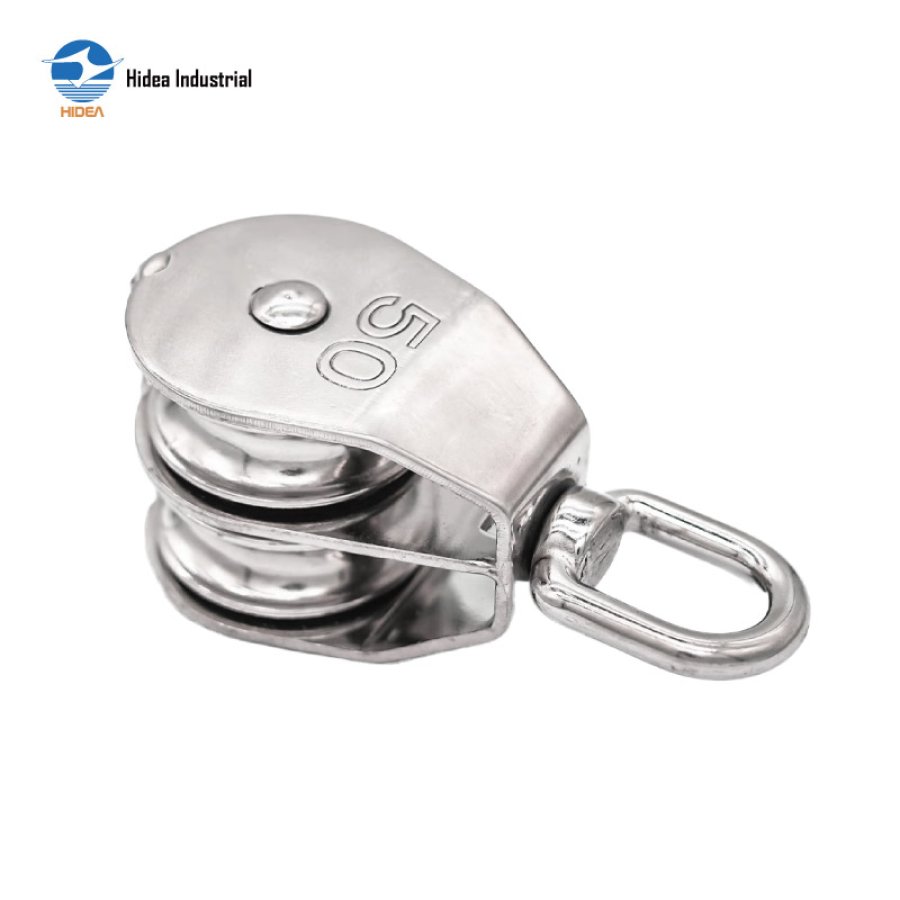

20RHS094-Double Swivel Block
| NO. | A(mm) | B(mm) | C(mm) | D(rrun) | WLL(T) |
| 20RHS094-25 | 25 | 12 | 15 | 80 | 0.15 |
| 20RHS094-32 | 32 | 12 | 15 | 93 | 0.25 |
| 20RHS094-50 | 50 | 14 | 20 | 127 | 0.4 |
Inquire Now
-
