High-Performance Hidea Fiber Core Steel Wire Rope for Tough Applications

GENERAL PURPOSE WIRE ROPES 6x12/6x24

General Purpose Wire Rope 6*12+FC & 6*24+FC
Surface Electro Galv. / zinc plated OR as requested
Standard GB/T 20118-2006/GB 8918-2006 / BS EN 12385-4
Application / Usage: Marine, General, Industry, Fishery

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

GENERAL PURPOSE WIRE ROPES 6x12/6x24

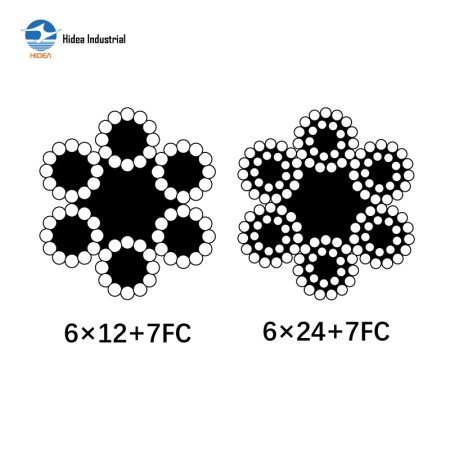

6×12+7FC
		Diameter mm	Min.Breaking Load(Kg)						Approx. Weight (Kg/100m)
			1570N/Mmm		1670N/Mmm		1770N/Mmm
		3	2.95		3.14		3.33		2.26
		4	5.25		5.58		5.92		4.02
		5	8.20		8.73		9.25		6.28
		6	11.80		12.56		13.32		9.04
		8	21.00		22.30		23.70		16.10
		9	26.60		28.30		30.00		20.30
Usage:		10	32.80		34.90		37.00		25.10
		12	47.30		50.30		53.30		36.10
Marine,General		14	64.30		68.40		72.50		49.20
Industry,Lashing		16	84.00		89.40		94.70		64.30
		18	106.00		113.00		120.00		81.30
		20	131.00		140.00		148.00		100.00
6×24+7FC
	Diameter mm			Min.Breaking Load(Kg)				Approx Weight (Kg/100m)
				1570N/Mmm		1670N/Mmm
	8			28.10		29.90		20.40
	9			35.60		37.90		25.80
	10			44.00		46.80		31.80
	11			53.20		56.60		38.50
	12			63.30		67.30		45.80
	13			74.30		79.00		53.70
	14			86.20		91.60		62.30
Usage:	16			113.00		120.00		81.40
	18			142.00		152.00		103.00
Marine,General	20			176.00		187.00		127.00
Industry,Fishery	22			213.00		226.00		154.00
	24			253.00		269.00		183.00
	26			297.00		316.00		215.00
	28			345.00		367.00		249.00
	32			450.00		479.00		326.00
