Hidea G80 Forged D-Ring – Durable, Heavy-Duty Solution for Lifting and Securing Loads

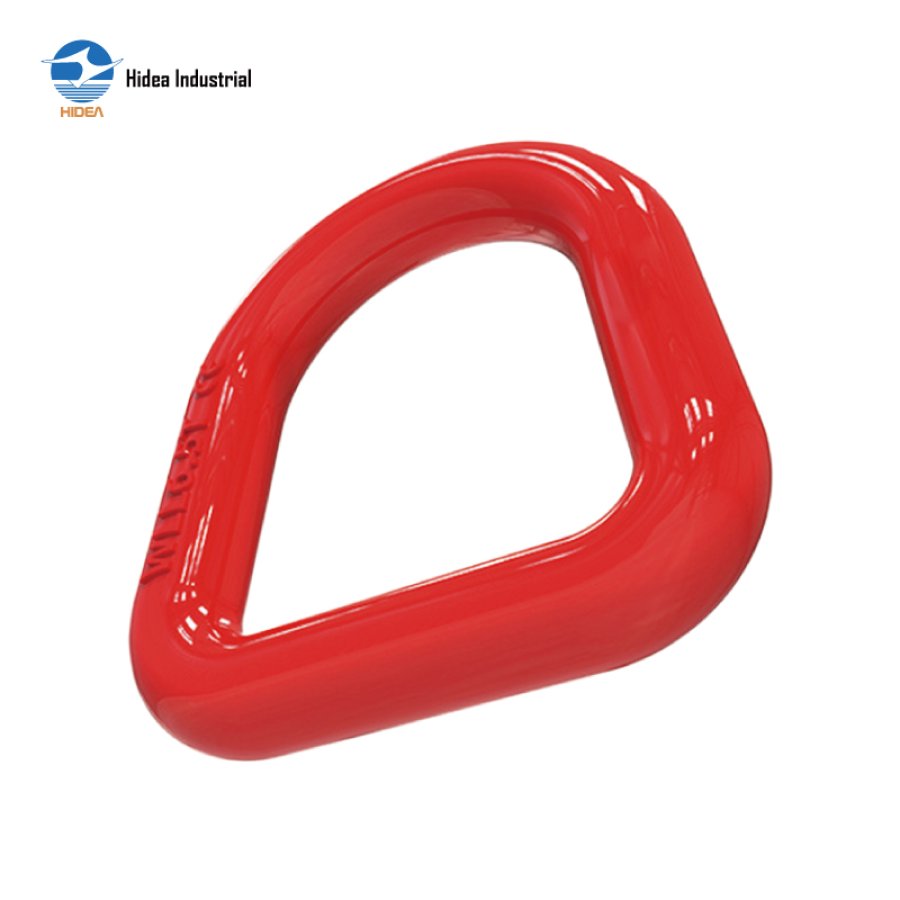

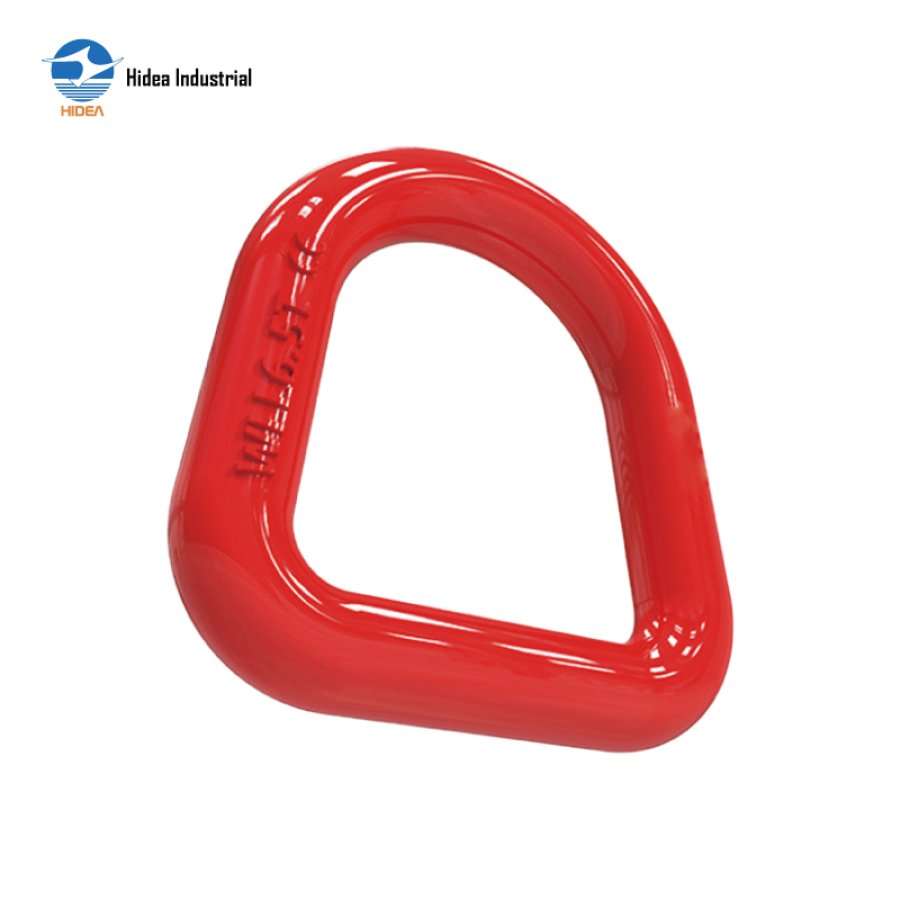

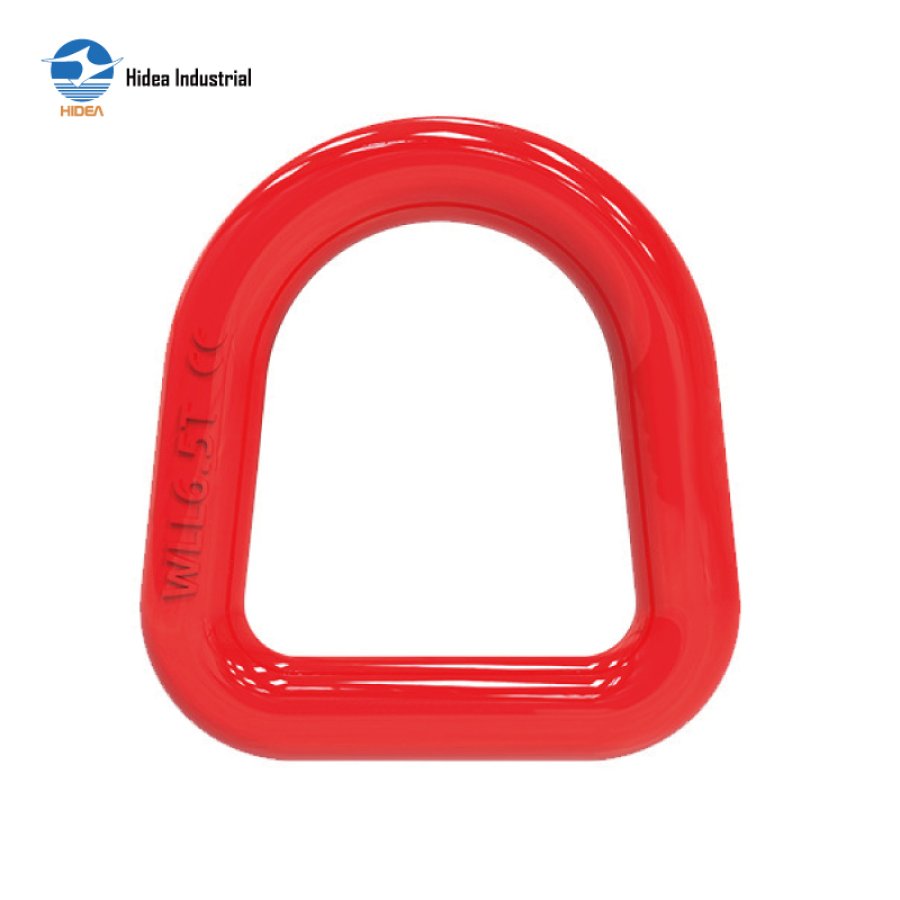

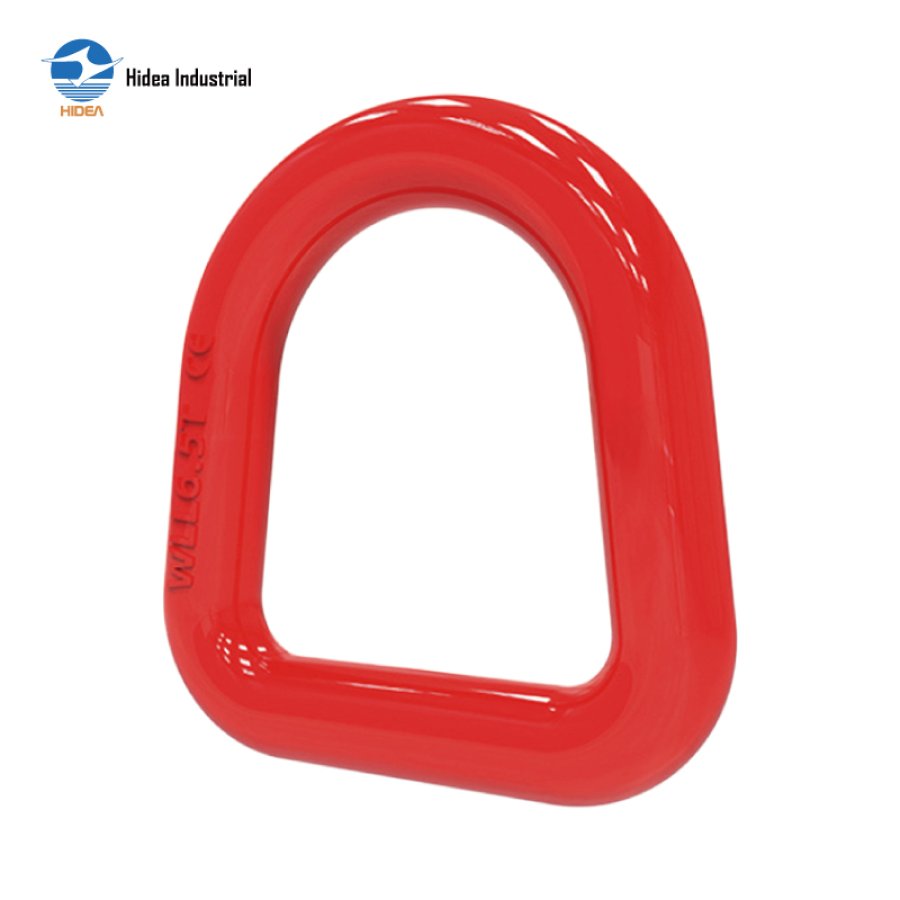

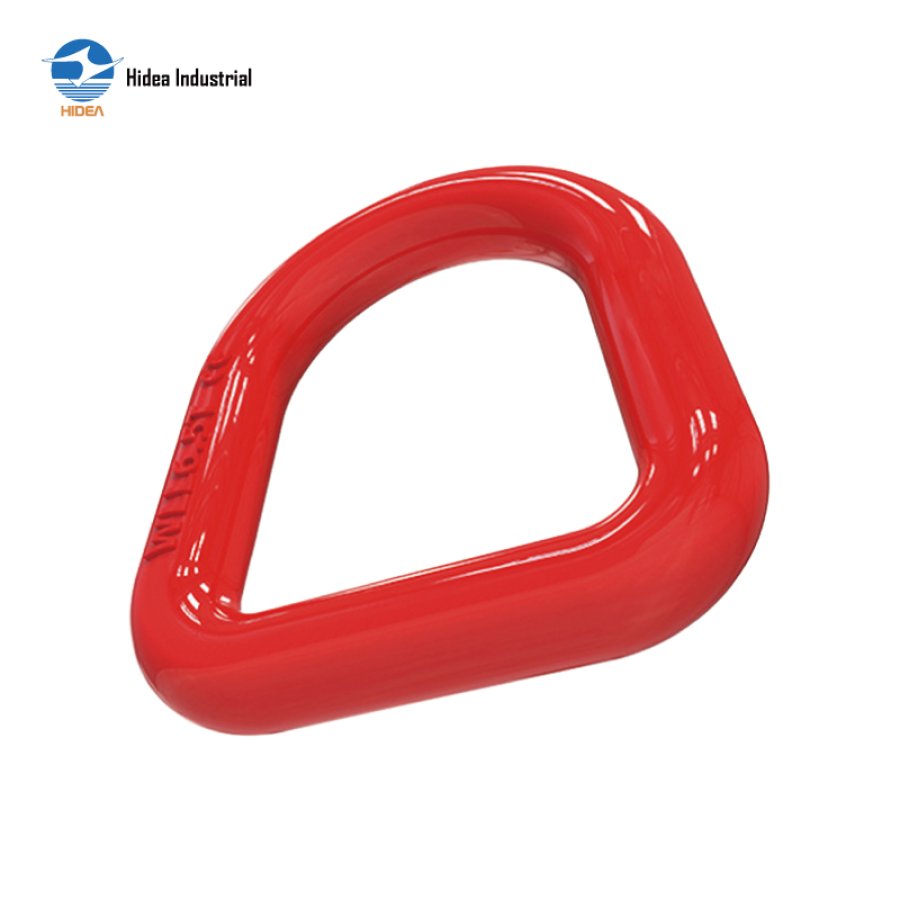

G80 FORGED D RING

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

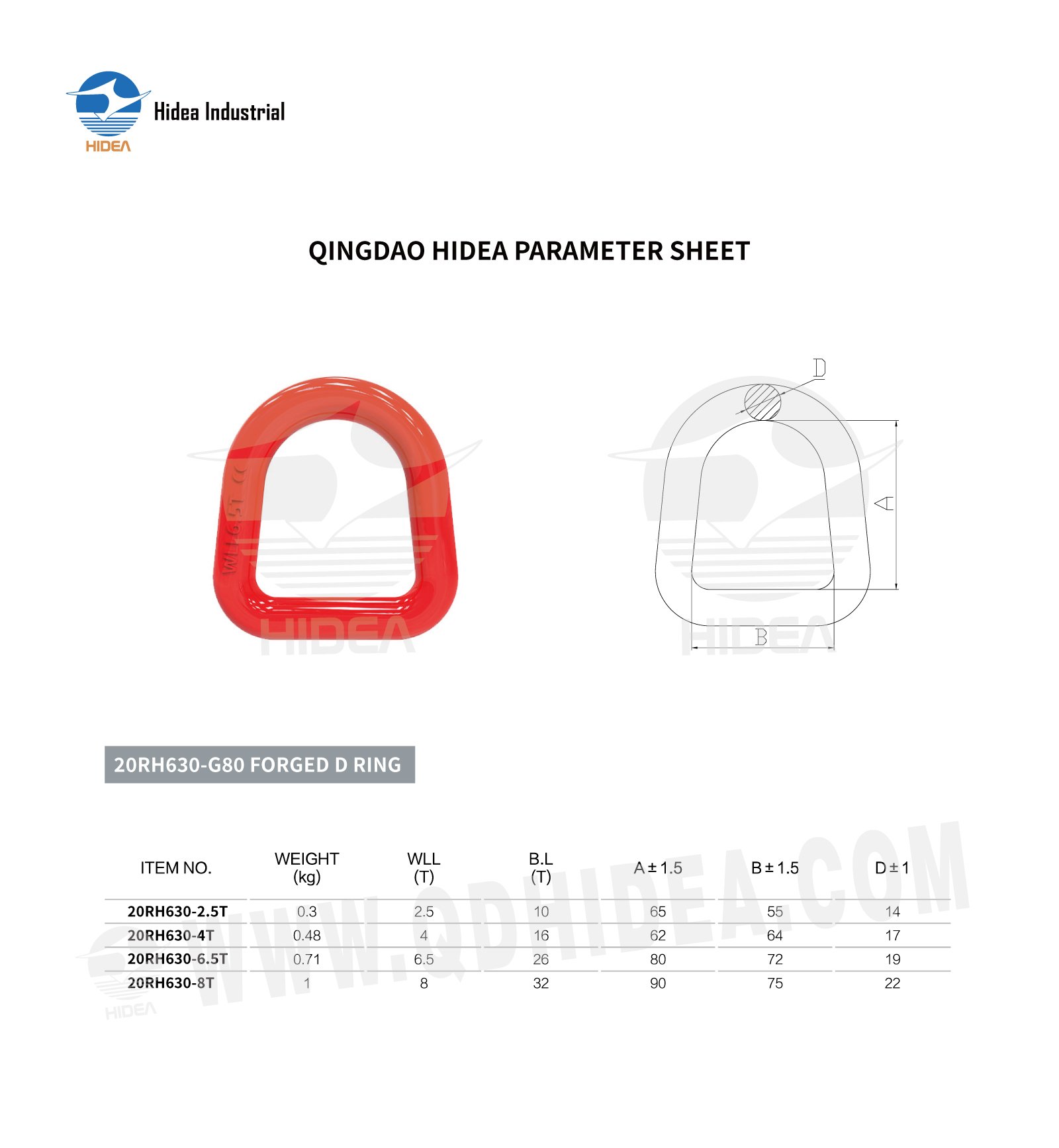

QINGDAO HIDEA PARAMETER SHEET FOR

20RH630-G80 FORGED D RING

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1.5	B±1.5	D±1

20RH630-2.5T	0.3	2.5	10	65	55	14
20RH630-4T	0.48	4	16	62	64	17
20RH630-6.5T	0.71	6.5	26	80	72	19
20RH630-8T	1	8	32	90	75	22
