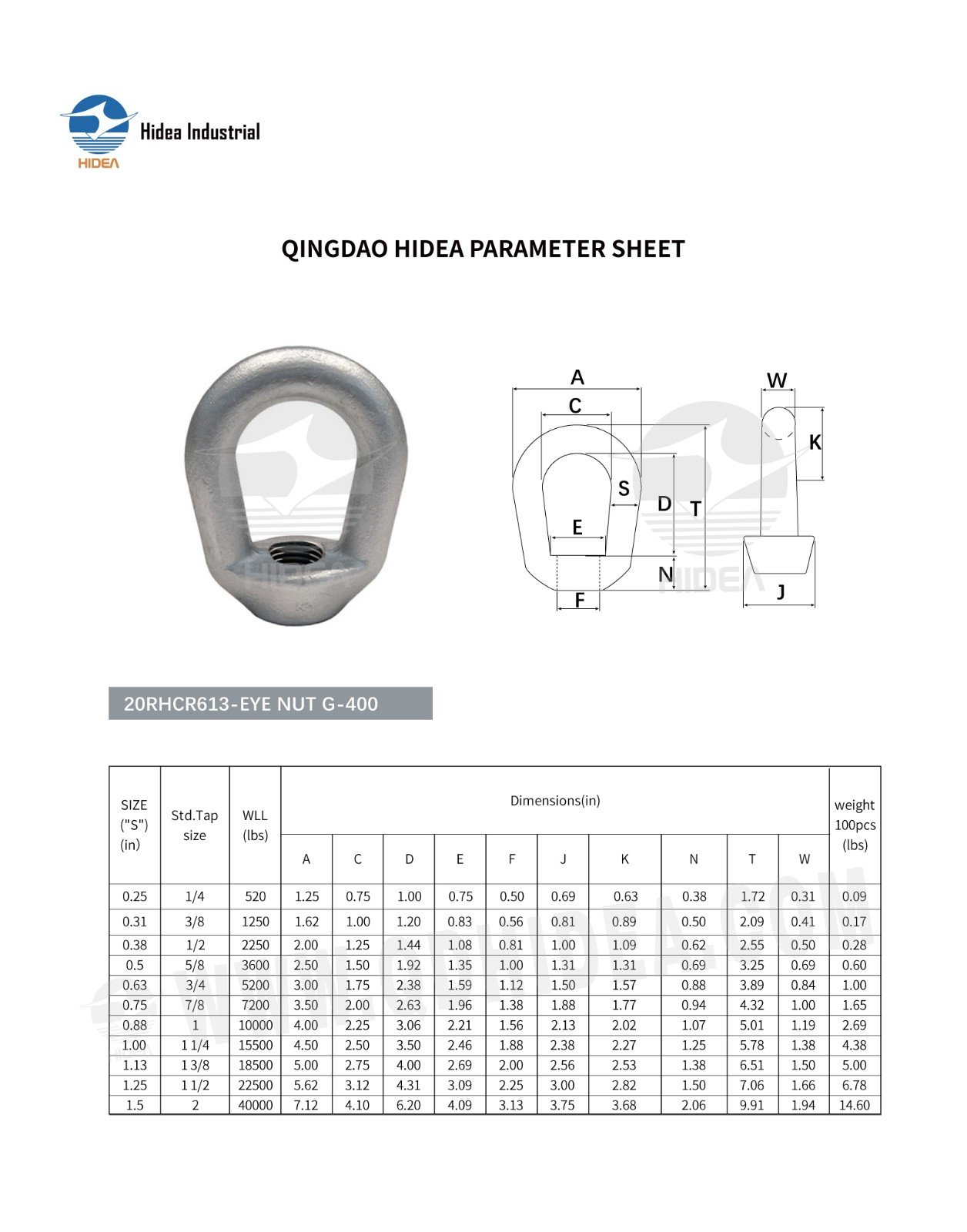

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR613-EYE NUT G-400
| SIZE ("S" (in) | Std.Tap size | WLL (Ibs) | Dimensions(in) | weight 100pcs (Ibs) | ||||||||||
| A | C | D | E | F | J | K | N | T | W | |||||
| 0.25 | 1/4 | 520 | 1.25 | 0.75 | 1.00 | 0.75 | 0.50 | 0.69 | 0.63 | 0.38 | 1.72 | 0.31 | 0.09 | |
| 0.31 | 3/8 | 1250 | 1.62 | 1.00 | 1.20 | 0.83 | 0.56 | 0.81 | 0.89 | 0.50 | 2.09 | 0.41 | 0.17 | |
| 0.38 | 1/2 | 2250 | 2.00 | 1.25 | 1.44 | 1.08 | 0.81 | 1.00 | 1.09 | 0.62 | 2.55 | 0.50 | 0.28 | |
| 0.5 | 5/8 | 3600 | 2.50 | 1.50 | 1.92 | 1.35 | 1.00 | 1.31 | 1.31 | 0.69 | 3.25 | 0.69 | 0.60 | |
| 0.63 | 3/4 | 5200 | 3.00 | 1.75 | 2.38 | 1.59 | 1.12 | 1.50 | 1.57 | 0.88 | 3.89 | 0.84 | 1.00 | |
| 0.75 | 7/8 | 7200 | 3.50 | 2.00 | 2.63 | 1.96 | 1.38 | 1.88 | 1.77 | 0.94 | 4.32 | 1.00 | 1.65 | |
| 0.88 | 1 | 10000 | 4.00 | 2.25 | 3.06 | 2.21 | 1.56 | 2.13 | 2.02 | 1.07 | 5.01 | 1.19 | 2.69 | |
| 1.00 | 11/4 | 15500 | 4.50 | 2.50 | 3.50 | 2.46 | 1.88 | 2.38 | 2.27 | 1.25 | 5.78 | 1.38 | 4.38 | |
| 1.13 | 13/8 | 18500 | 5.00 | 2.75 | 4.00 | 2.69 | 2.00 | 2.56 | 2.53 | 1.38 | 6.51 | 1.50 | 5.00 | |
| 1.25 | 11/2 | 22500 | 5.62 | 3.12 | 4.31 | 3.09 | 2.25 | 3.00 | 2.82 | 1.50 | 7.06 | 1.66 | 6.78 | |
| 1.5 | 2 | 40000 | 7.12 | 4.10 | 6.20 | 4.09 | 3.13 | 3.75 | 3.68 | 2.06 | 9.91 | 1.94 | 14.60 | |
