Durable Hidea Stainless Steel Twisted Shackle – Ideal for Marine, Industrial, and Rigging Needs

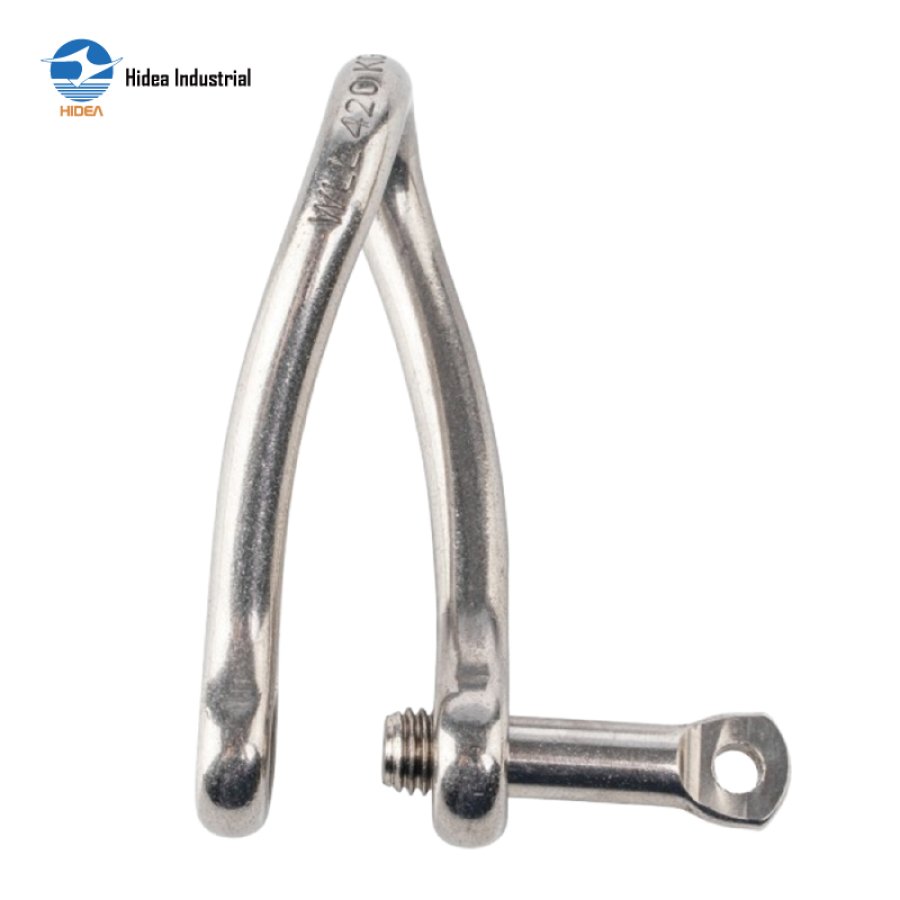

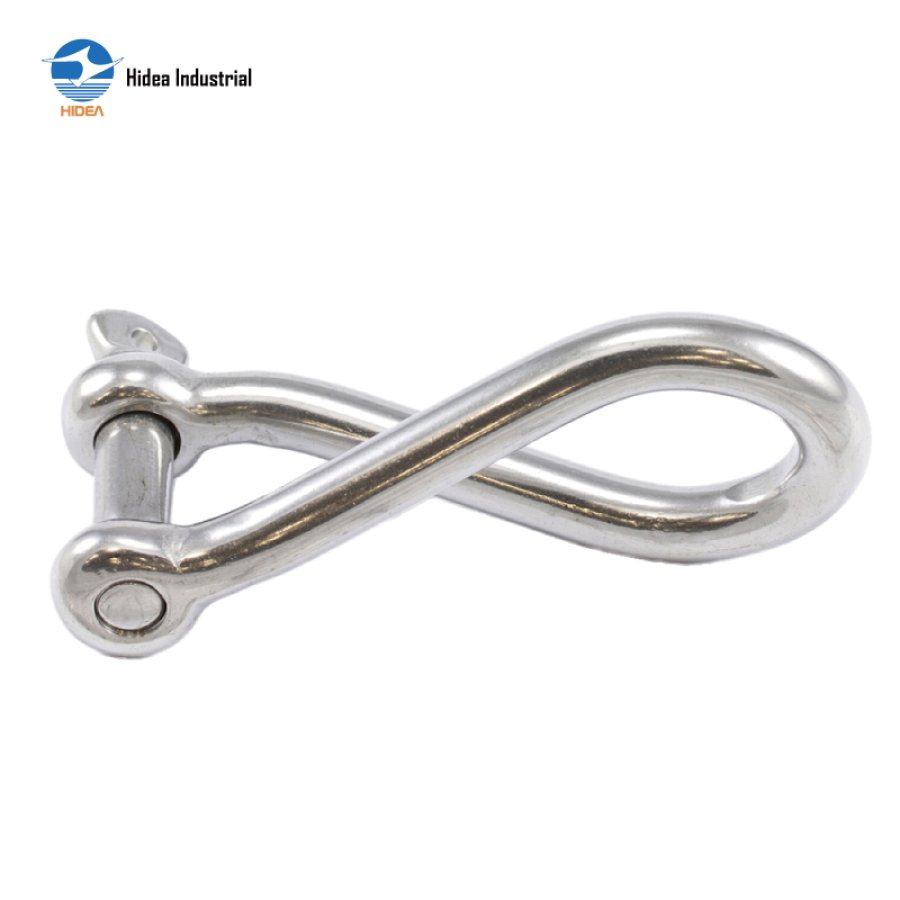

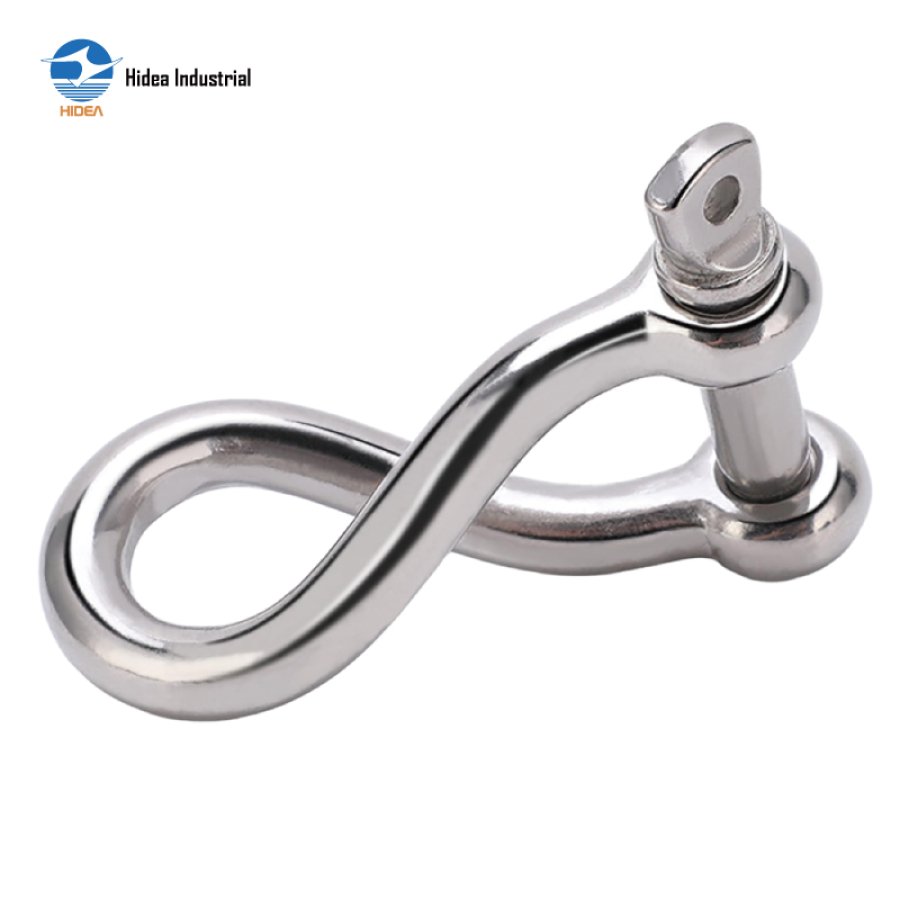

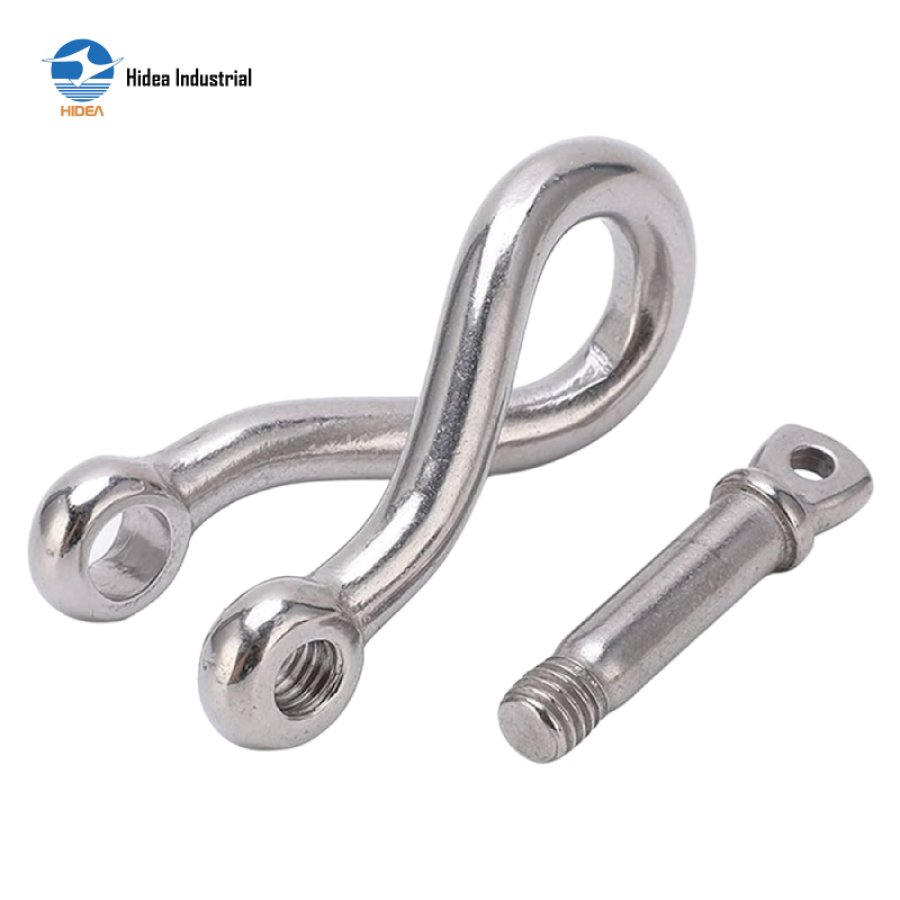

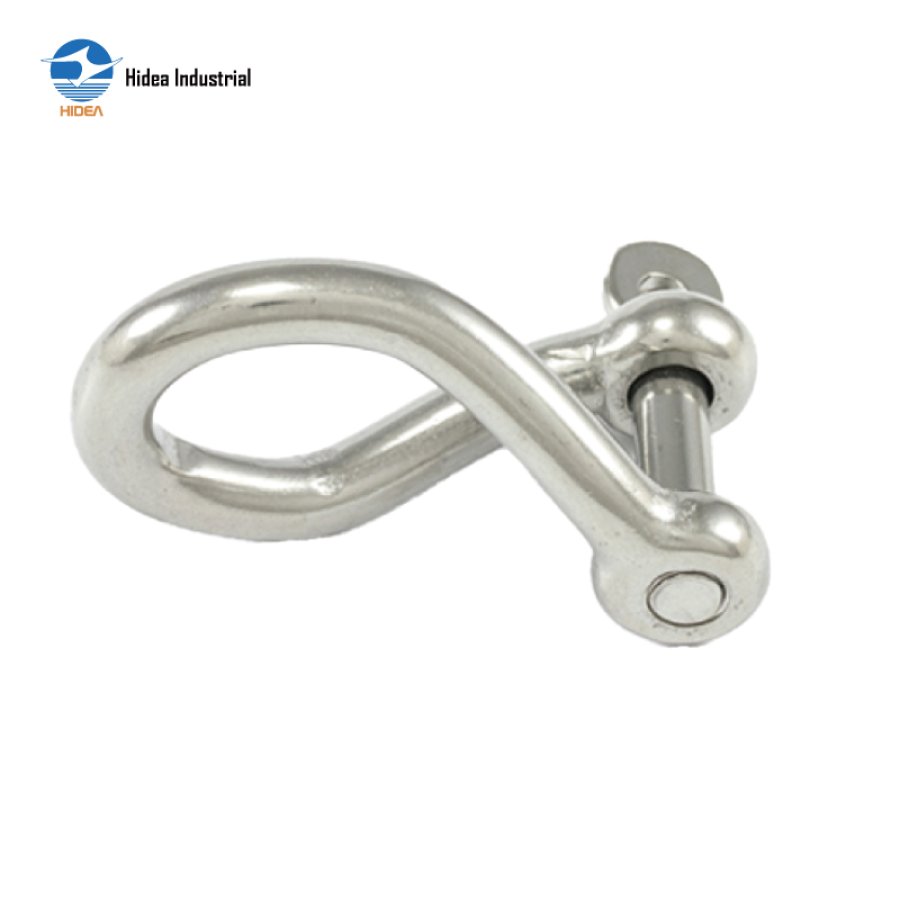

TWISTED SHACKLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

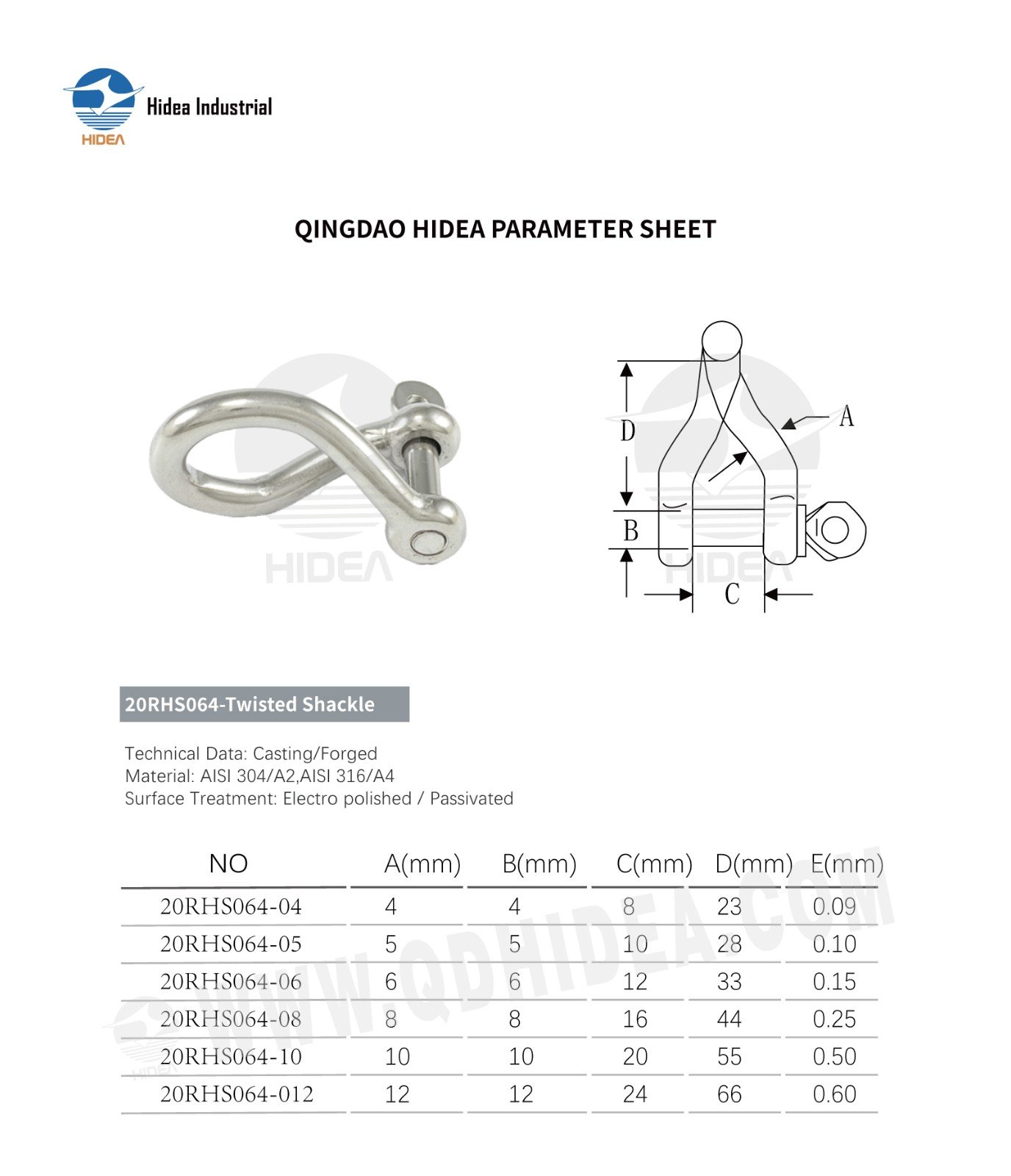

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS064-Twisted Shackle

NO	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
20RHS064-04	4	4	8	23	0.09
20RHSO64-05	5	5	10	28	0.10
20RHSO64-06	6	6	12	33	0.15
20RHS064-08	8	8	16	44	0.25
20RHS064-10	10	10	20	55	0.50
20RHS064-012	12	12	24	66	0.60
