Hidea Trawling Bow Shackle: Built for Safe and Secure Trawling Operations

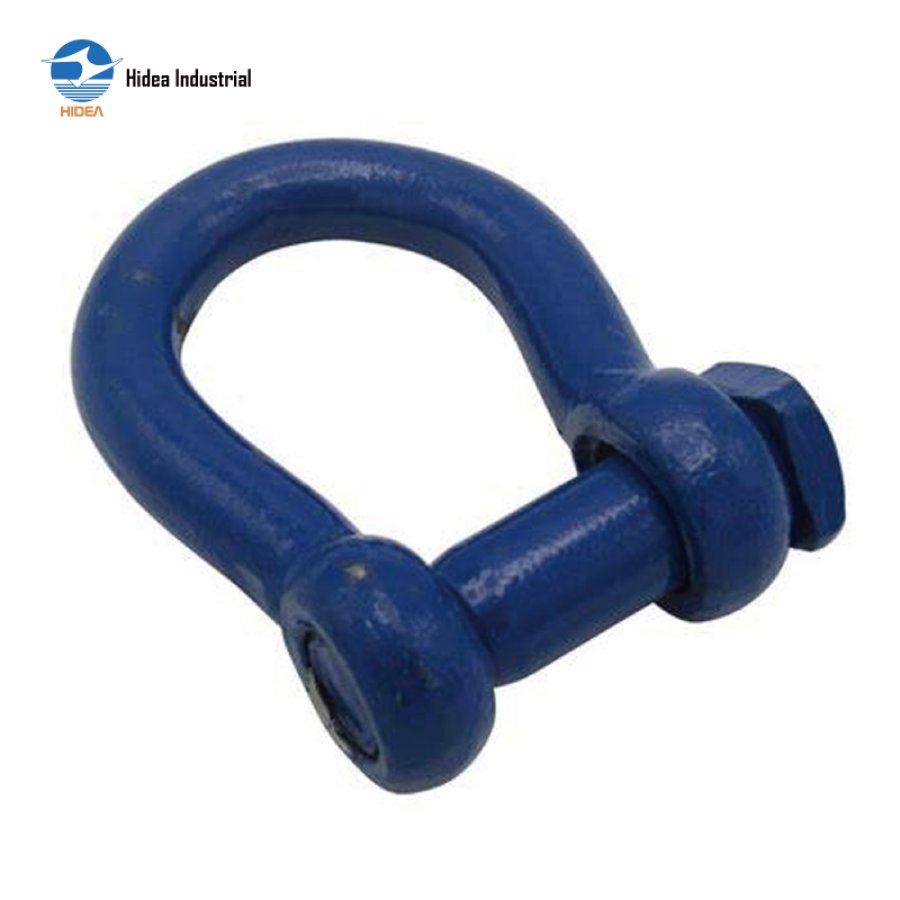

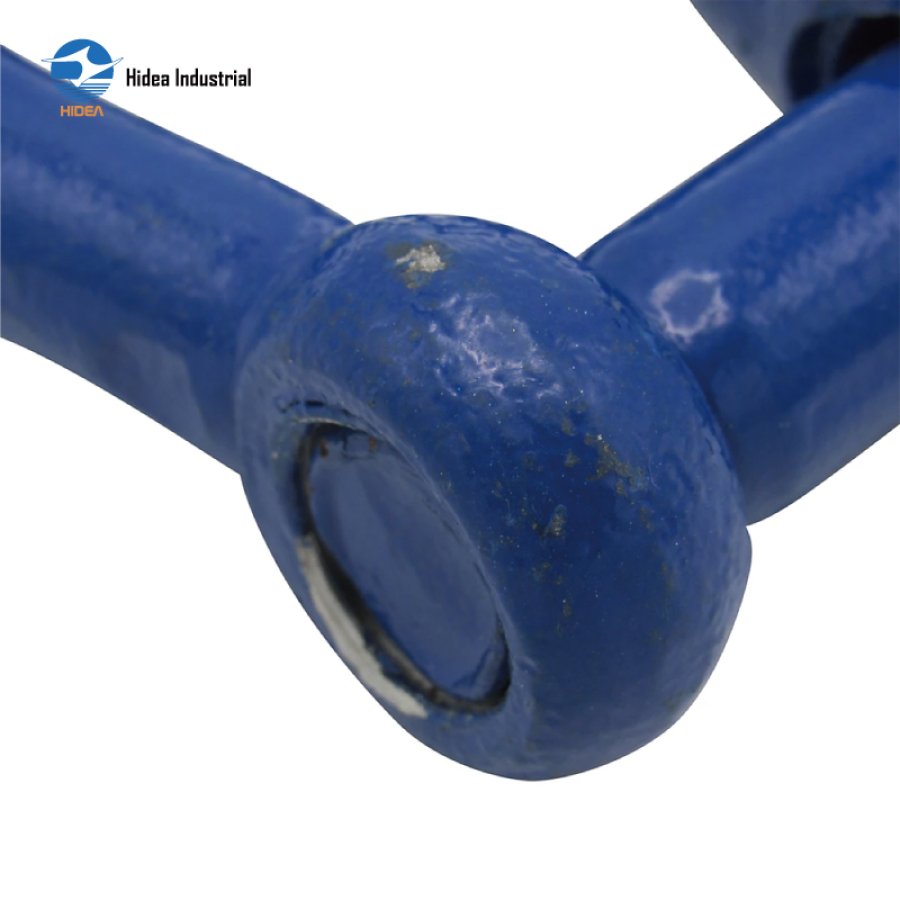

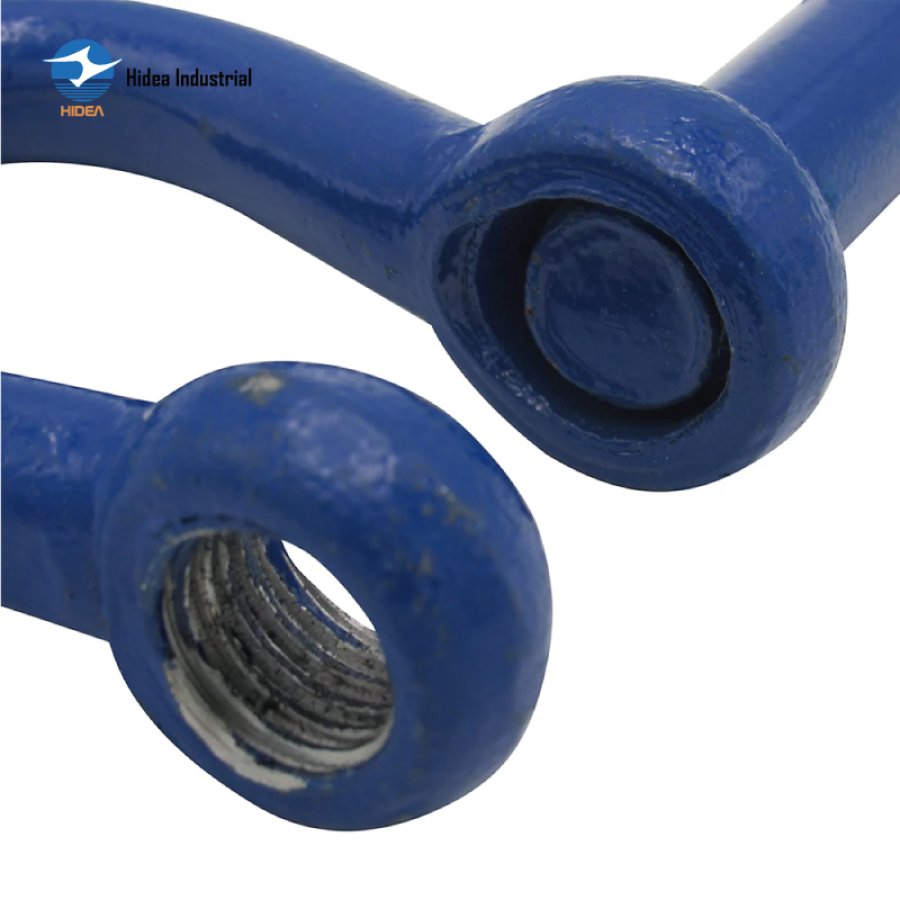

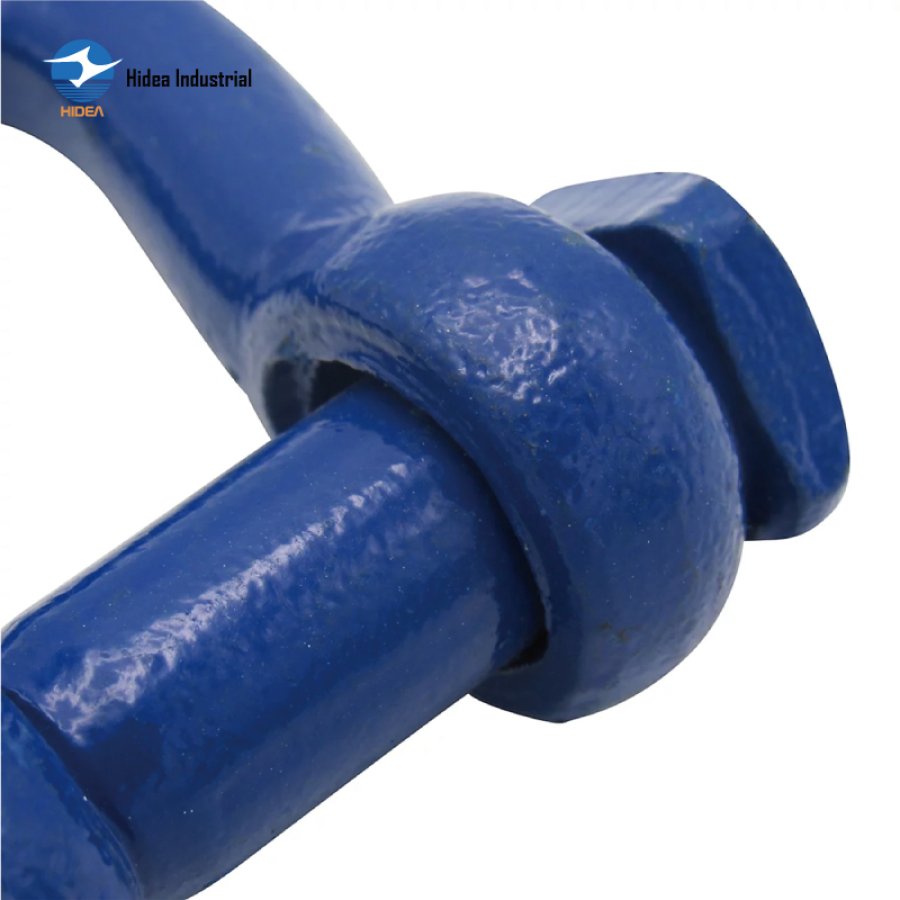

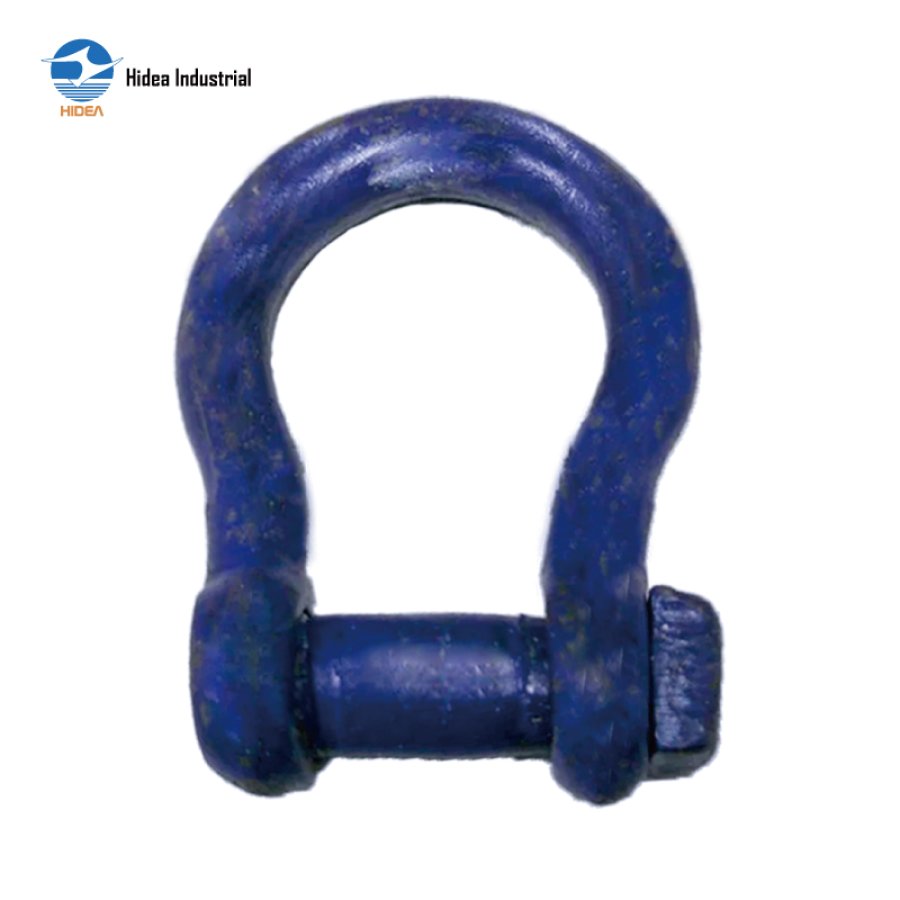

TRAWLING SHACKLE OVERSIZE SQUARE HEAD PIN BOW TYPE

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface Electro galvanized (EG), powder coated OR self-colored

Inquire Now

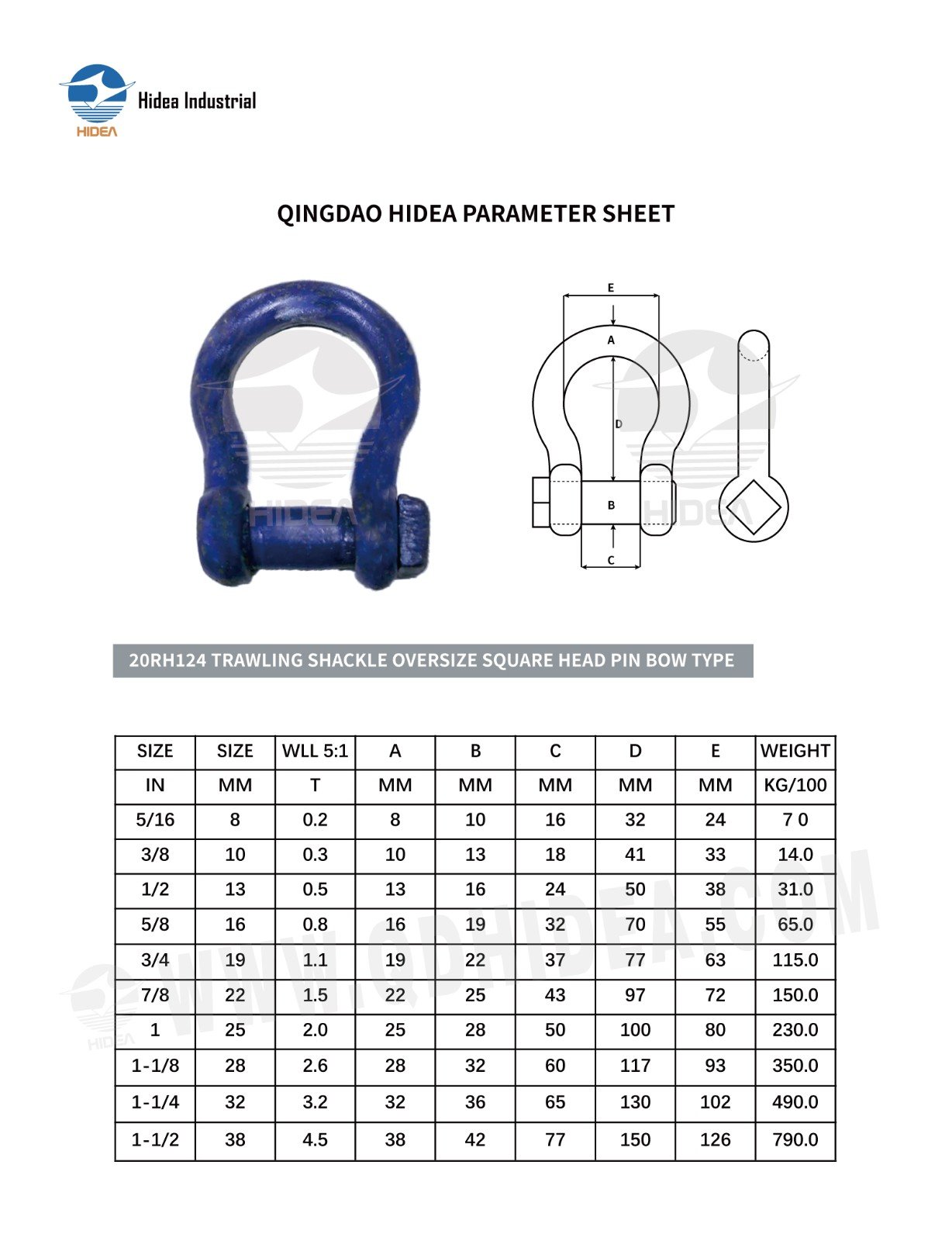

QINGDAO HIDEA PARAMETER SHEET FOR

20RH124 TRAWLING SHACKLE OVERSIZE SQUARE HEAD PIN BOW TYPE

SIZE	SIZE	WLL 5:1	A	B	C	D	E	WEIGHT
IN	MM	T	MM	MM	MM	MM	MM	KG/100
5/16	8	0.2	8	10	16	32	24	70
3/8	10	0.3	10	13	18	41	33	14.0
1/2	13	0.5	13	16	24	50	38	31.0
5/8	16	0.8	16	19	32	70	55	65.0
3/4	19	1.1	19	22	37	77	63	115.0
7/8	22	1.5	22	25	43	97	72	150.0
1	25	2.0	25	28	50	100	80	230.0
1-1/8	28	2.6	28	32	60	117	93	350.0
1-1/4	32	3.2	32	36	65	130	102	490.0
1-1/2	38	4.5	38	42	77	150	126	790.0
