Hidea DIN1480 Jaw to Jaw Turnbuckles – Superior Design for Long-Lasting Rigging Performance

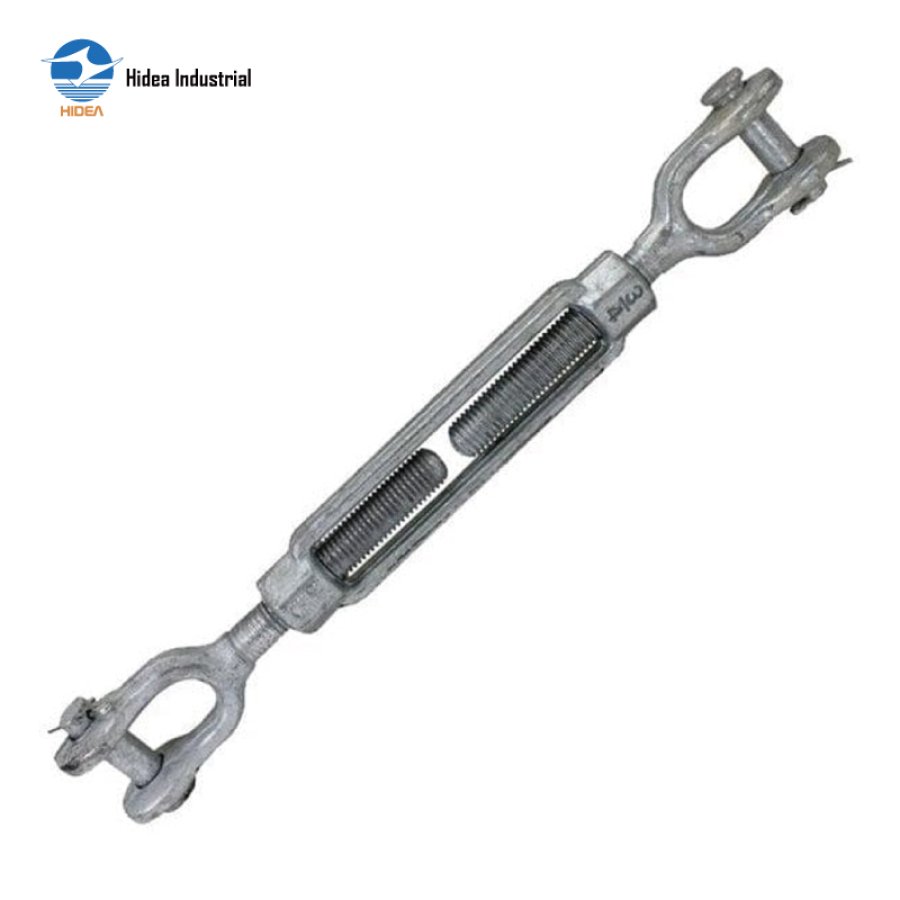

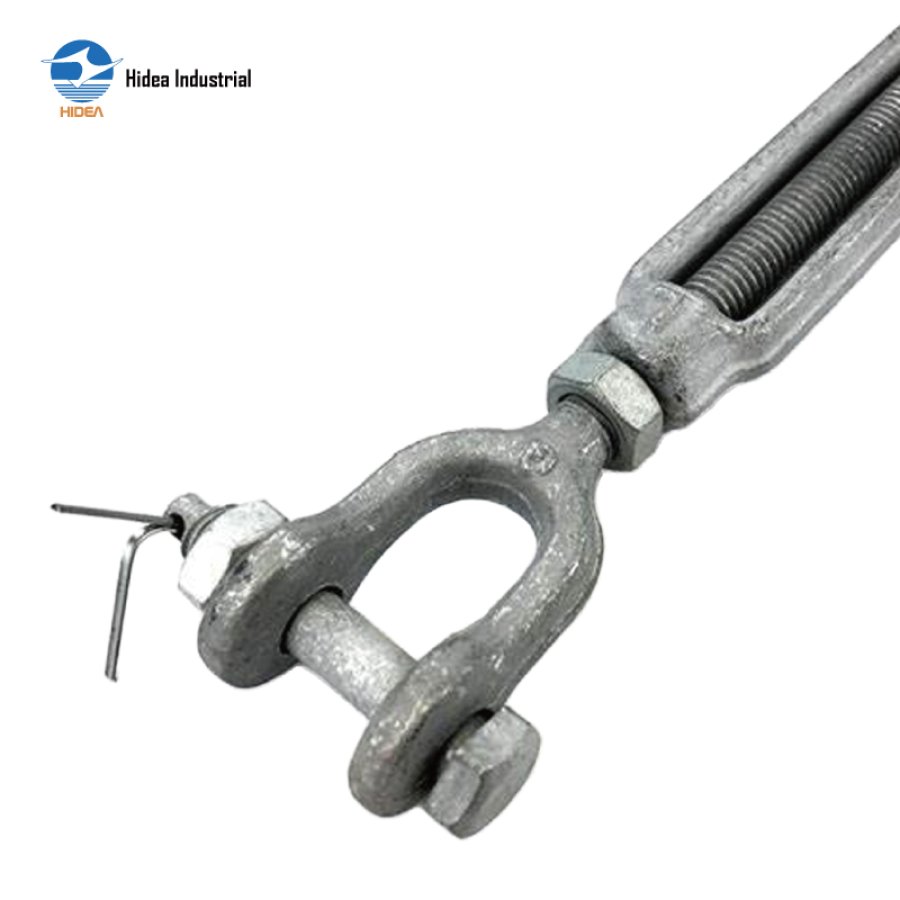

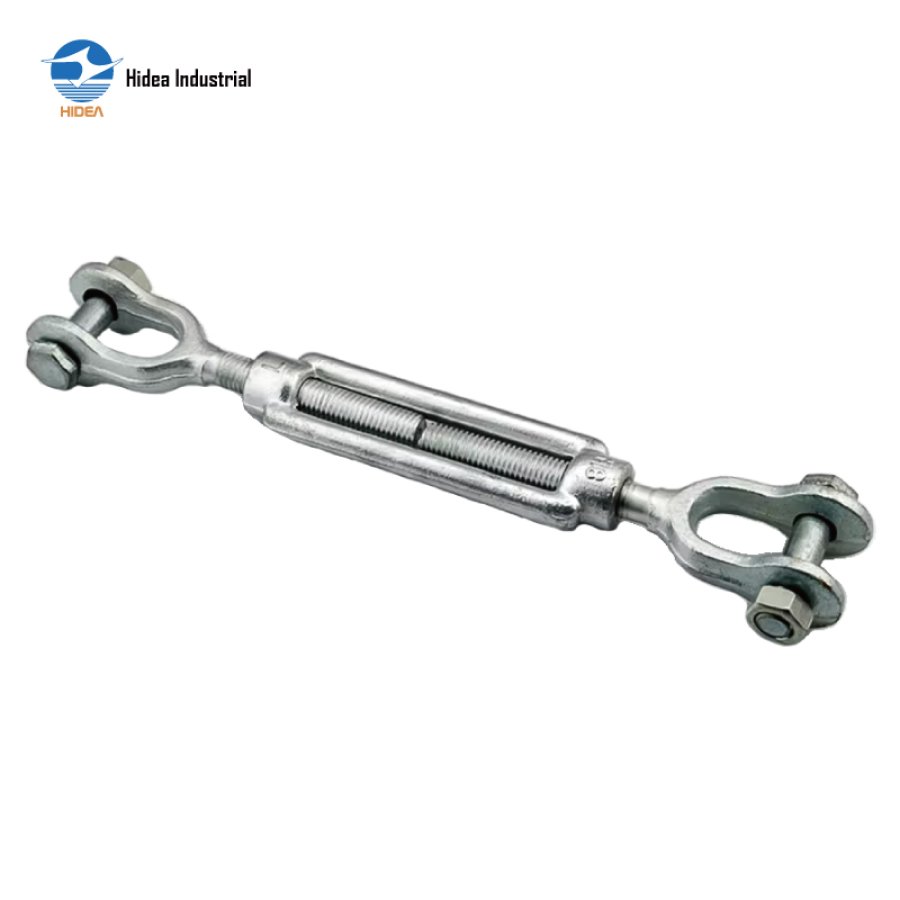

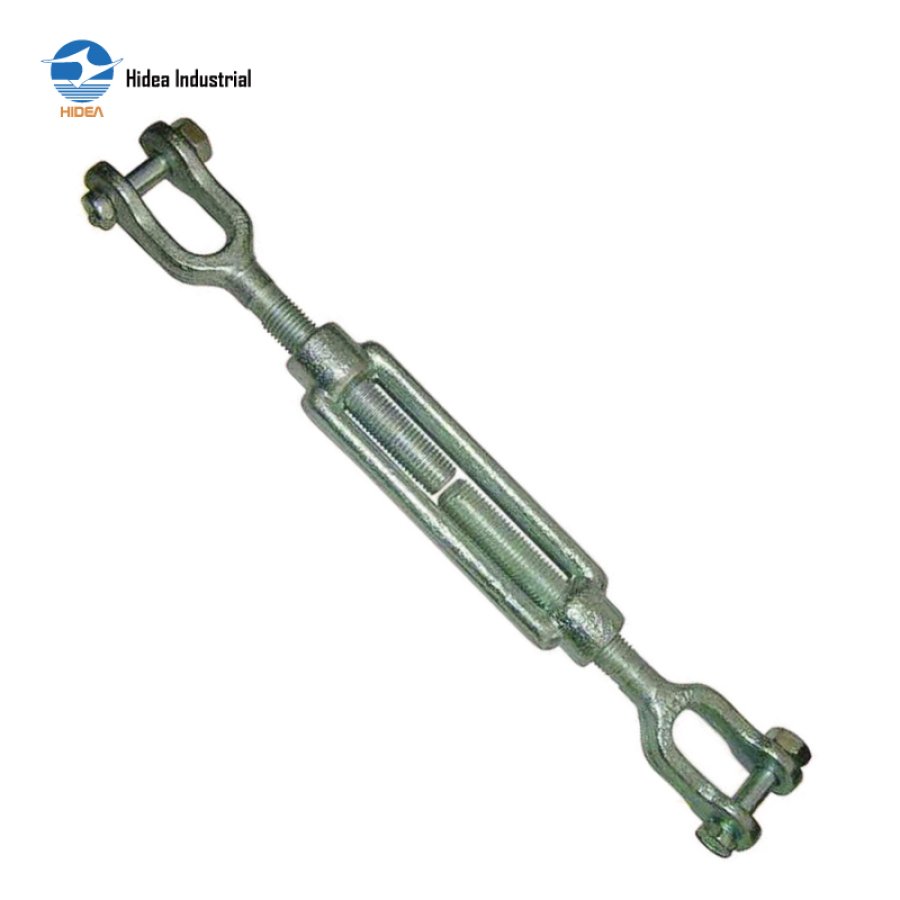

DIN1480 TURNBUCKLES WITH JAW/JAW

Material: High tensile carbon steel
Forged, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1480 jaw & jaw open body type turnbuckles

Inquire Now

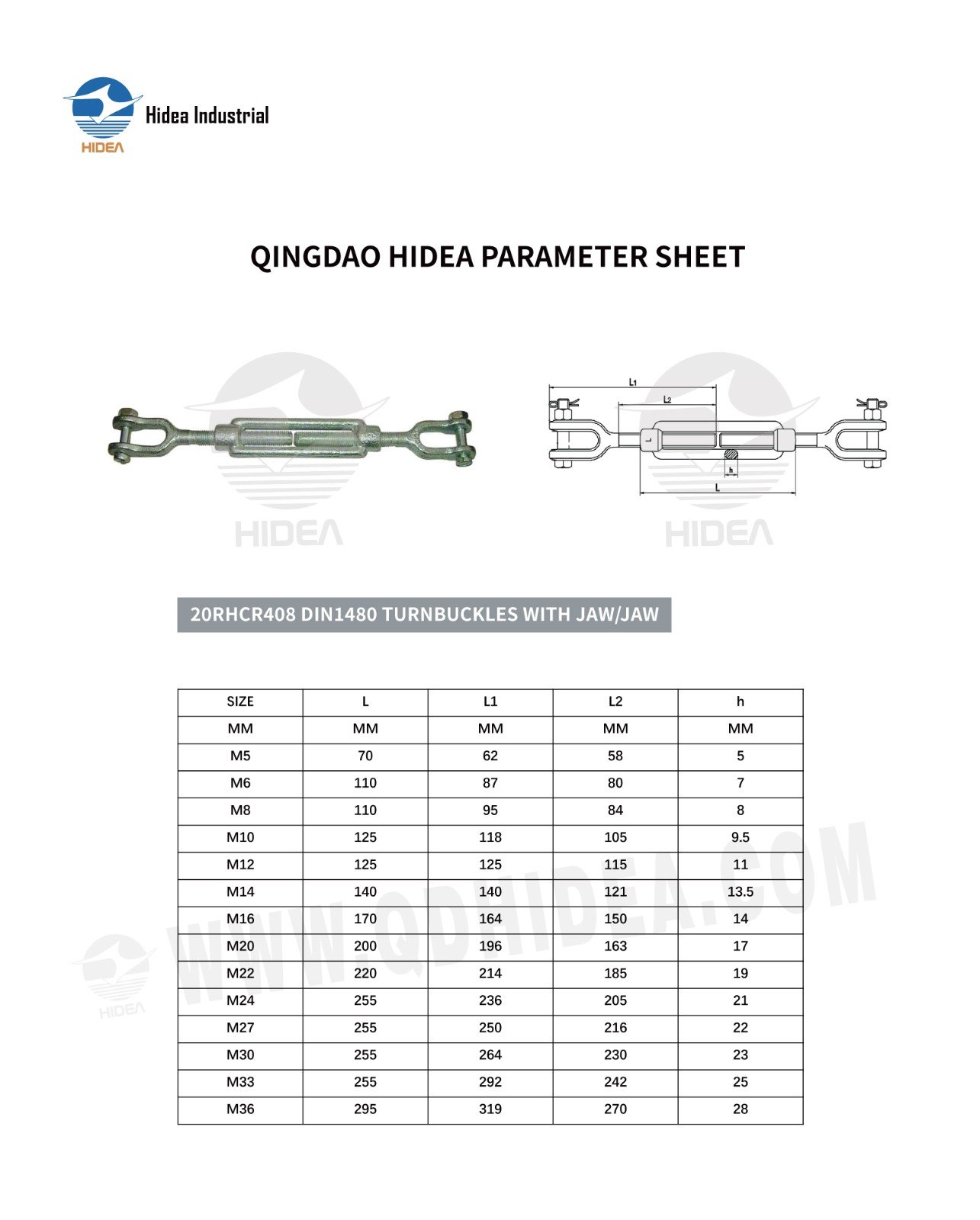

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR408 DIN1480 TURNBUCKLES WITH JAW/JAW

SIZE	L	L1	L2	h
MM	MM	MM	MM	MM
M5	70	62	58	5
M6	110	87	80	7
M8	110	95	84	8
M10	125	118	105	9.5
M12	125	125	115	11
M14	140	140	121	13.5
M16	170	164	150	14
M20	200	196	163	17
M22	220	214	185	19
M24	255	236	205	21
M27	255	250	216	22
M30	255	264	230	23
M33	255	292	242	25
M36	295	319	270	28
