Hidea Hamburger Turnbuckle – Ideal for Industrial and Marine Rigging Applications

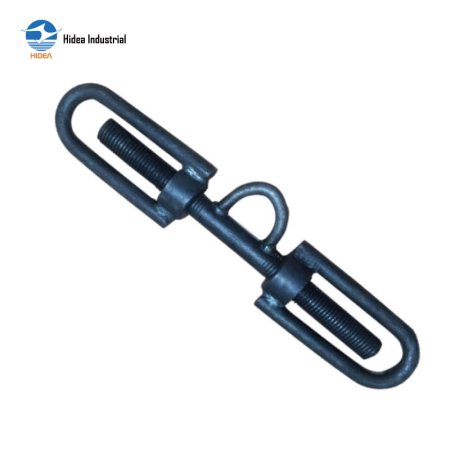

DEE-DEE TURNBUCKLES/HAMBURGER TURNBUCKLES

Material High tensile Carbon Steel
Welded & machined, quenched & tempered
Proof tested individually & certificate available
Self-colored, zinc plated OR as requested
Dee-Dee turnbuckles / Hambueger Turnbuckles for general cargo lashings systems

Inquire Now

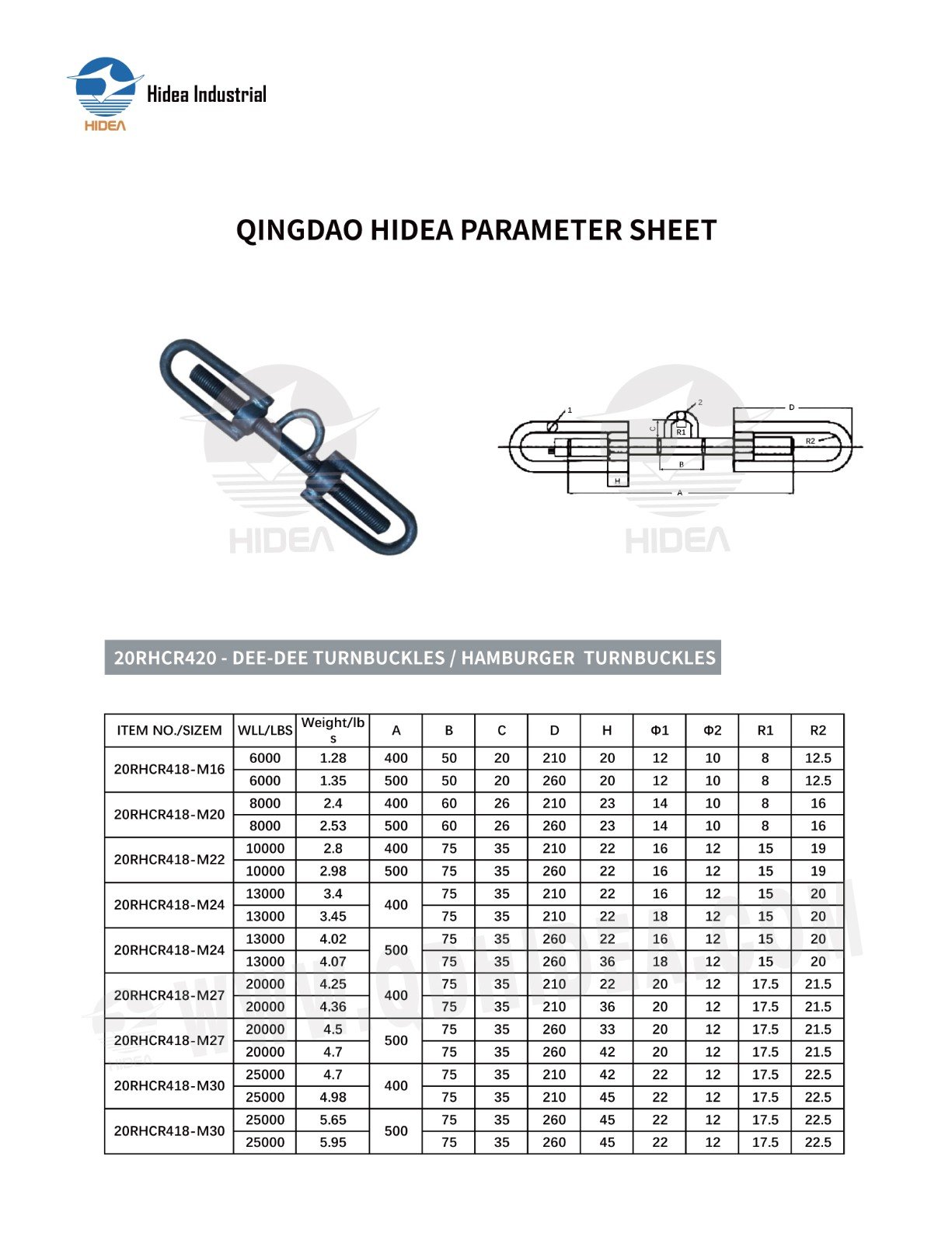

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR420-DEE-DEE TURNBUCKLES/HAMBURGER TURNBUCKLES

ITEM NO./SIZEM	WLL/LBS	Weight/lb S	A	B	C	D	H	φ1	φ2	R1	R2
20RHCR418-M16	6000	1.28	400	50	20	210	20	12	10	8	12.5
20RHCR418-M16	6000	1.35	500	50	20	260	20	12	10	8	12.5
20RHCR418-M20	8000	2.4	400	60	26	210	23	14	10	8	16
20RHCR418-M20	8000	2.53	500	60	26	260	23	14	10	8	16
20RHCR418-M22	10000	2.8	400	75	35	210	22	16	12	15	19
20RHCR418-M22	10000	2.98	500	75	35	260	22	16	12	15	19
20RHCR418-M24	13000	3.4	400	75	35	210	22	16	12	15	20
20RHCR418-M24	13000	3.45	400	75	35	210	22	18	12	15	20
20RHCR418-M24	13000	4.02	500	75	35	260	22	16	12	15	20
20RHCR418-M24	13000	4.07	500	75	35	260	36	18	12	15	20
20RHCR418-M27	20000	4.25	400	75	35	210	22	20	12	17.5	21.5
20RHCR418-M27	20000	4.36	400	75	35	210	36	20	12	17.5	21.5
20RHCR418-M27	20000	4.5	500	75	35	260	33	20	12	17.5	21.5
20RHCR418-M27	20000	4.7	500	75	35	260	42	20	12	17.5	21.5
20RHCR418-M30	25000	4.7	400	75	35	210	42	22	12	17.5	22.5
20RHCR418-M30	25000	4.98	400	75	35	210	45	22	12	17.5	22.5
20RHCR418-M30	25000	5.65	500	75	35	260	45	22	12	17.5	22.5
20RHCR418-M30	25000	5.95	500	75	35	260	45	22	12	17.5	22.5
