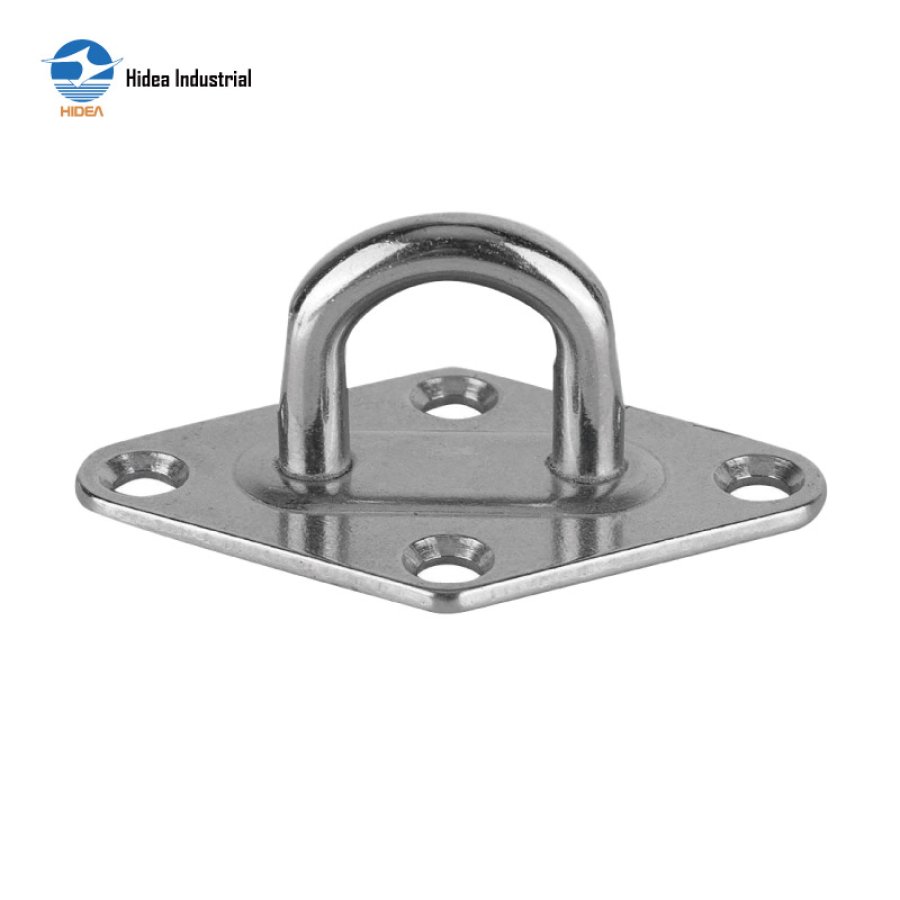

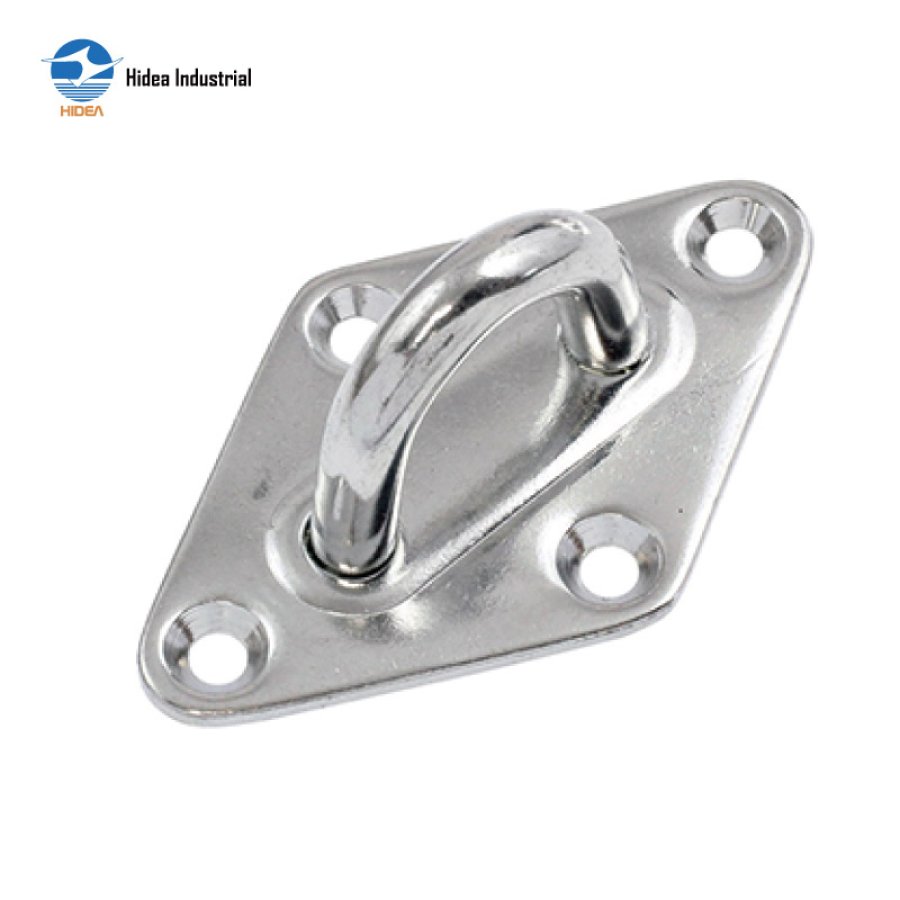

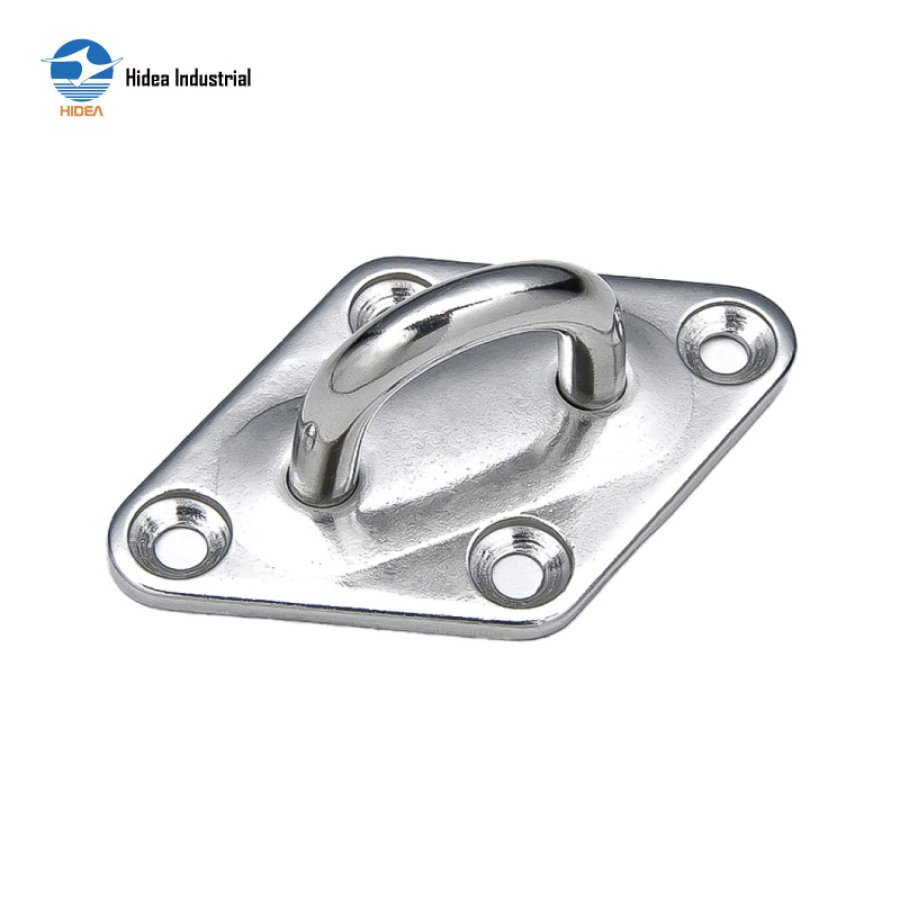

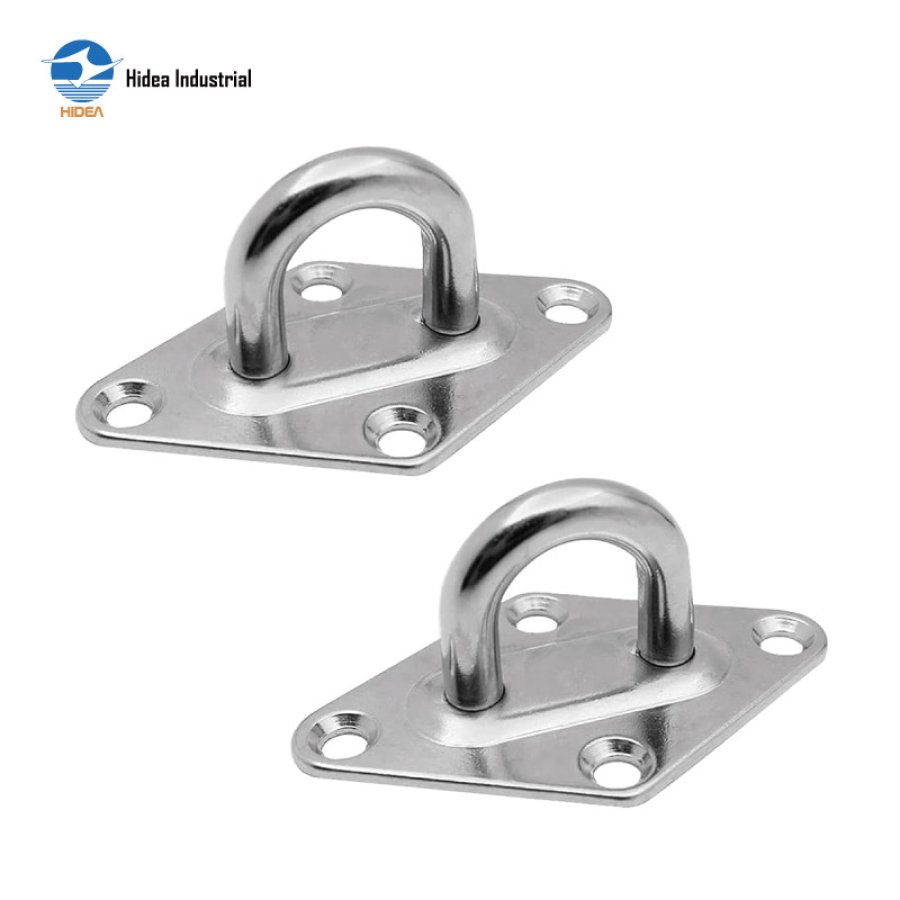

Hidea Stainless Steel Diamond Pad Eye Plate - Ideal for Marine and DIY Projects

DIAMOND EYE PLATE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

Diamond Eye Plate

D(mm)	A(mm)	B(mm)	H(mm)	h(mm)	w(mm)	d(mm)	WT(KGS)
5	36	60	23	15	16	4.5	0.031
6	40	65	26	17	17	4.5	0.043
8	50	80	32	21	21	6.2	0.077
10	60	100	36	26	26	6.2	0.136
12	80	120	50	38	32	6.5	0.251
