Forged super alloy steel-Quenched and Tempered
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Color code: Blue RAL5015
Positive lock latch is self-locking when hook is loaded
QINGDAO HIDEA PARAMETER SHEET FOR

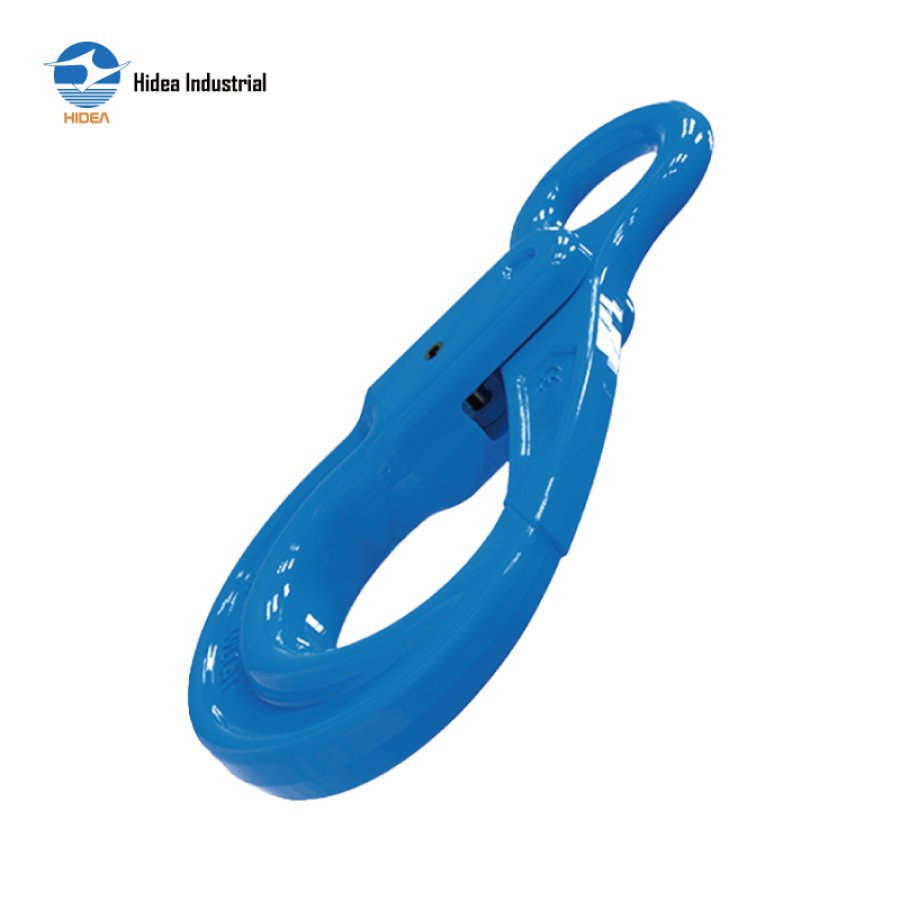

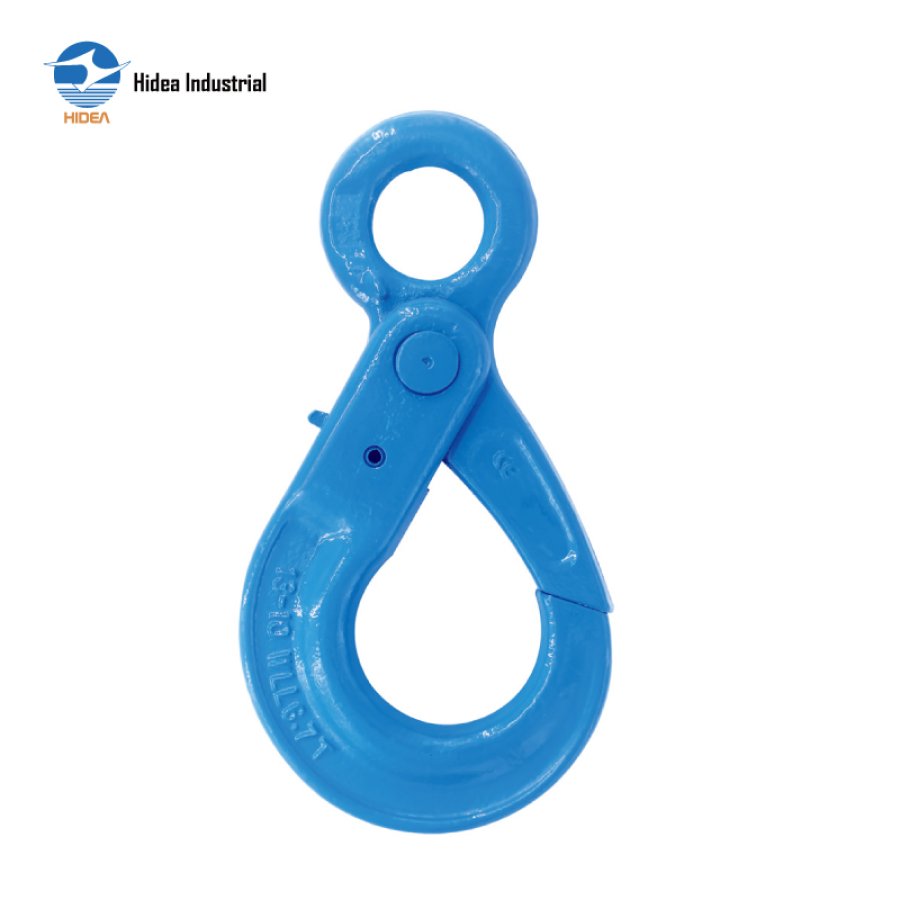

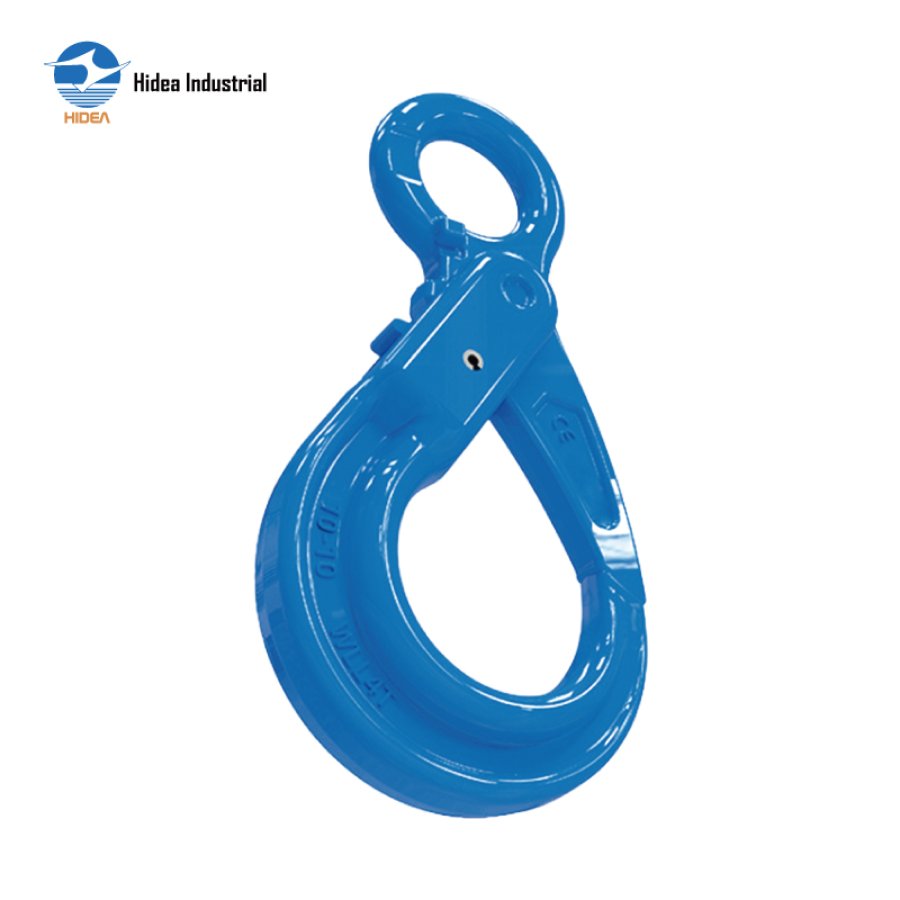

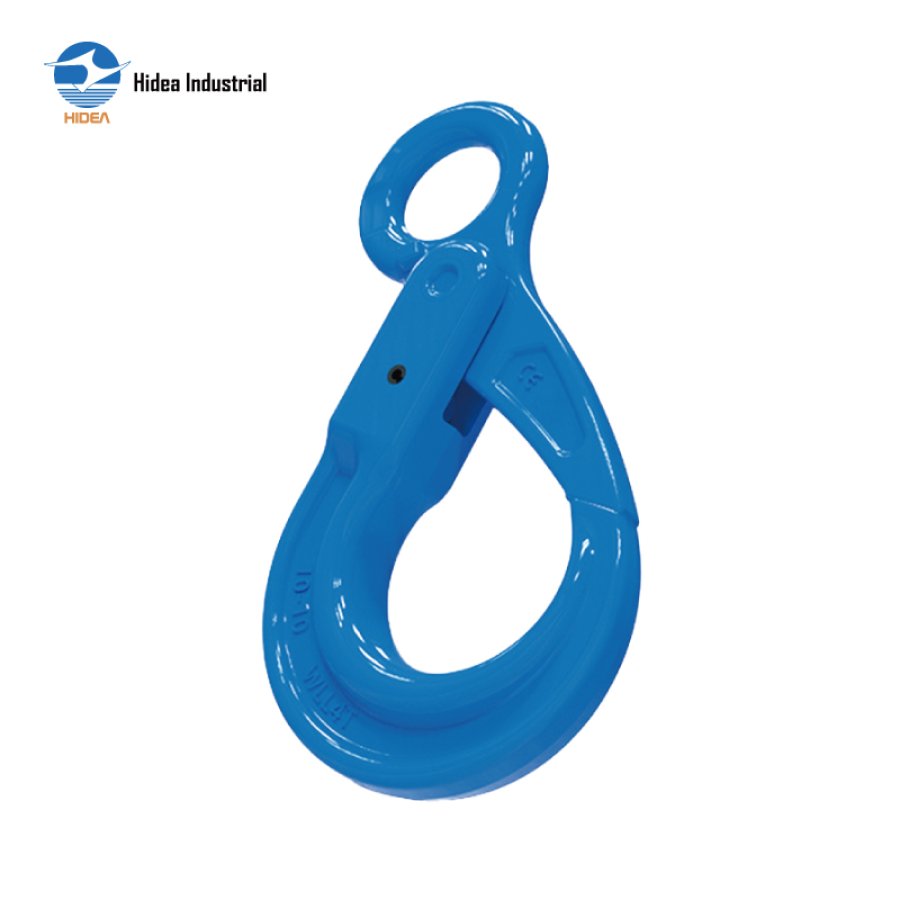

20RH5001- G100 EYE SELF-LOCKING HOOK

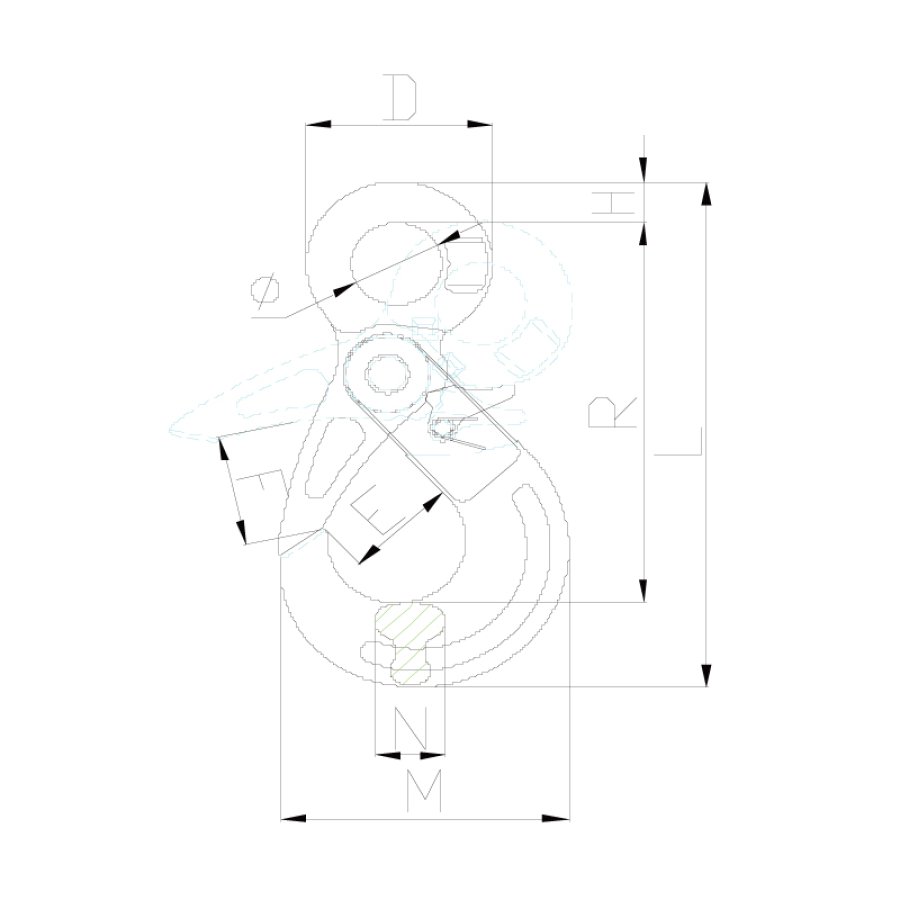

| ITEM NO. | WEIGHT | WLL | B.L | DIMENSION(MM) | ||||||||
| (kg) | (T) | (T) | Ø | D | E | F | R | M | N | L | H | |
| 20RH5001-06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 27 | 30 | 110 | 70 | 15 | 141 | 11 |
| 20RH5001-07 | 0.81 | 1.9 | 7.6 | 27 | 51 | 30 | 33.5 | 127 | 81 | 17 | 162 | 12 |
| 20RH5001-08 | 0.9 | 2.5 | 10 | 27 | 51 | 35 | 38 | 137 | 90 | 20 | 175 | 12 |
| 20RH5001-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 43 | 52 | 170 | 108 | 26 | 212 | 15 |
| 20RH5001-13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 51.5 | 63 | 209 | 137.5 | 32.5 | 269 | 20 |
| 20RH5001-16 | 5.7 | 10 | 40 | 50 | 104 | 59 | 71 | 256 | 170.5 | 38 | 333 | 27 |
| 20RH5001-20 | 7.9 | 16 | 64 | 60 | 124 | 74.5 | 77 | 277 | 191.5 | 50 | 368.5 | 30 |
| 20RH5001-22 | 11.2 | 19 | 76 | 70 | 139 | 78 | 92 | 319 | 205 | 52 | 417 | 33 |
