Hidea Spring Load Binder for Reliable Rigging

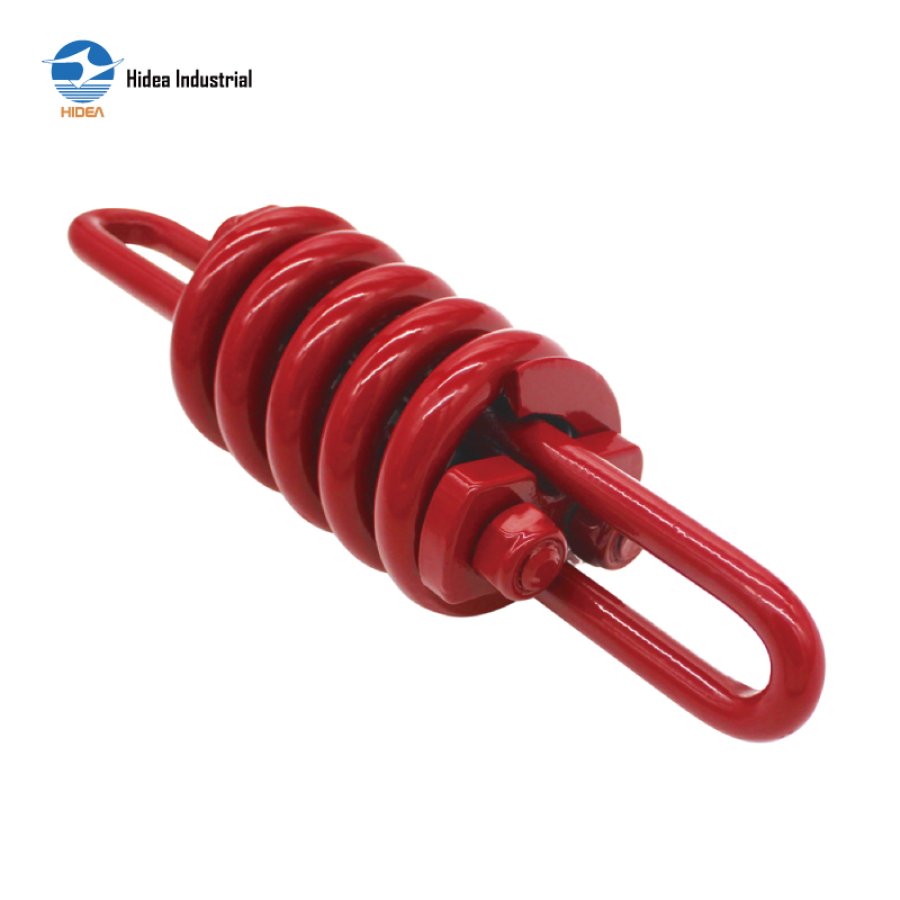

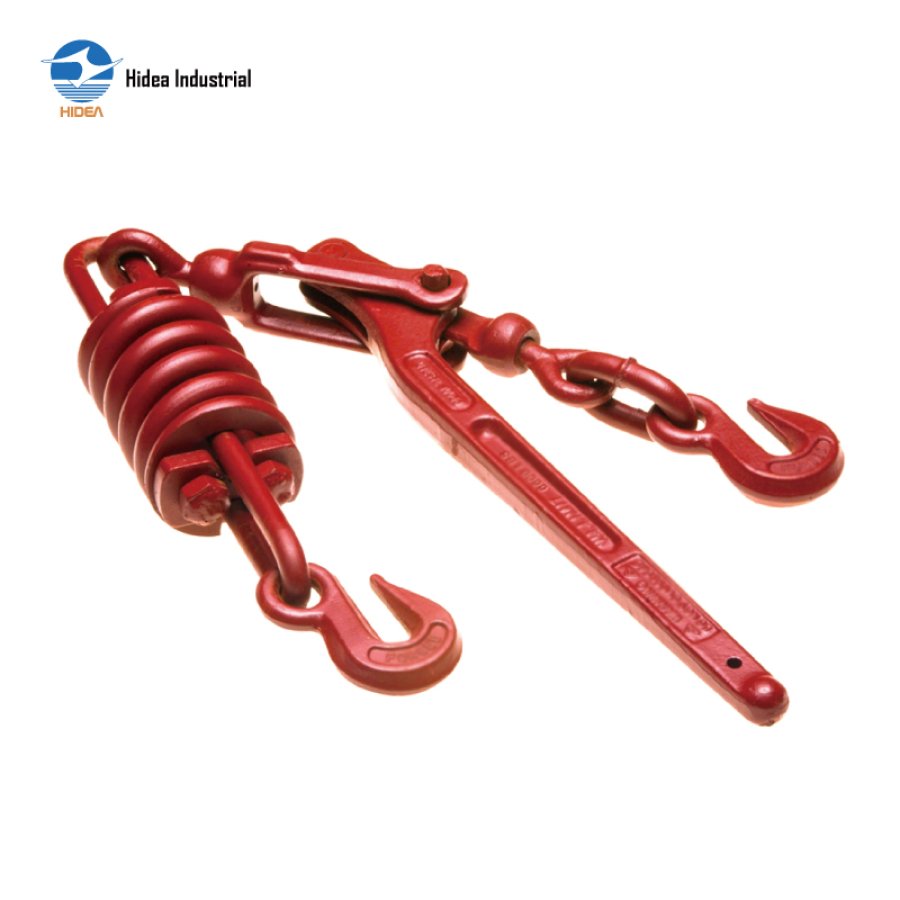

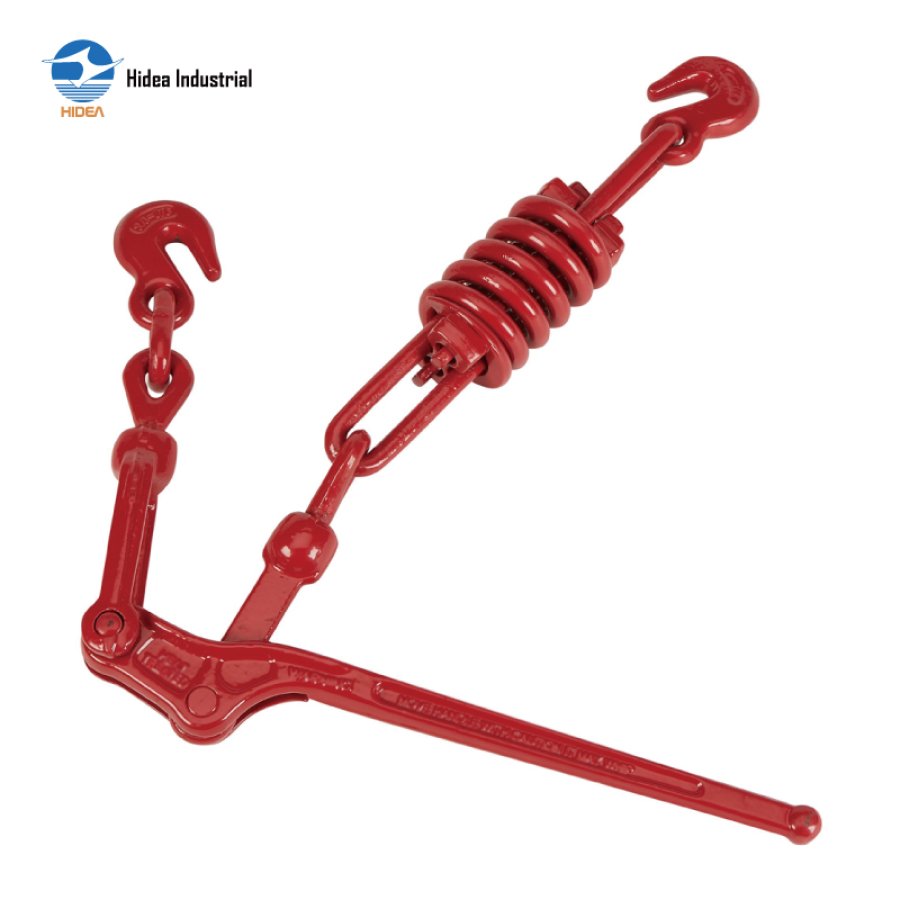

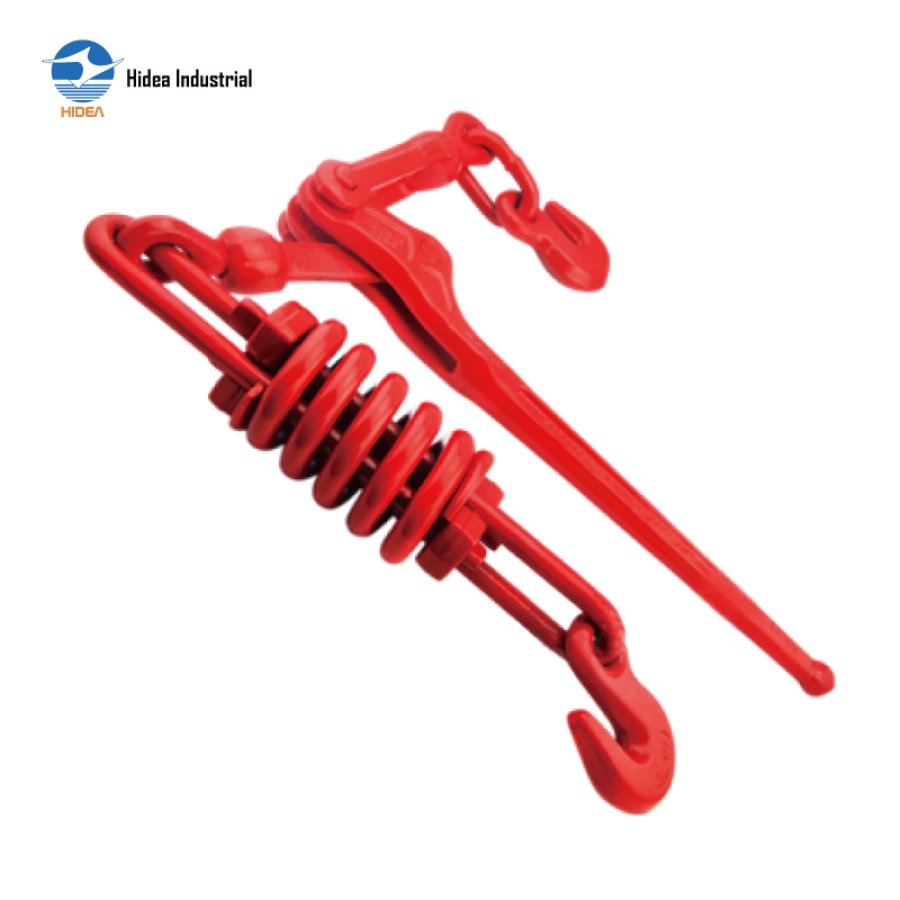

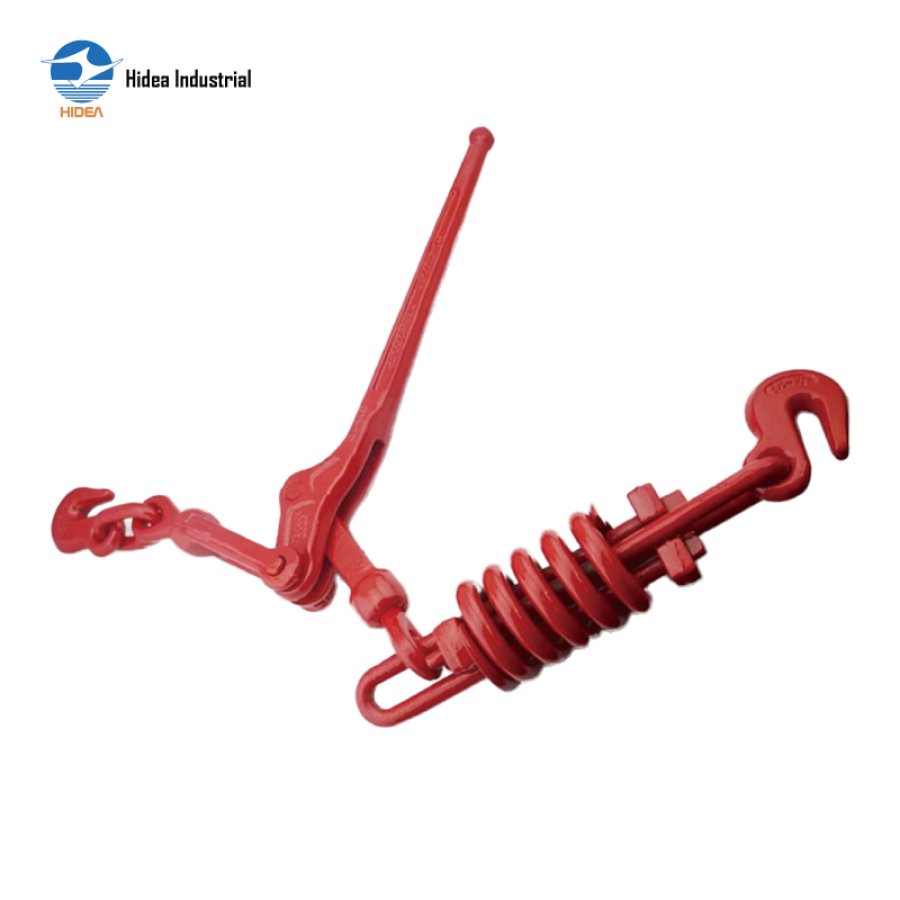

DROP FORGED SPRING LOAD BINDER

High tensile steel
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface: Powder coated OR as requested
Snubbing type Load Binders

Inquire Now

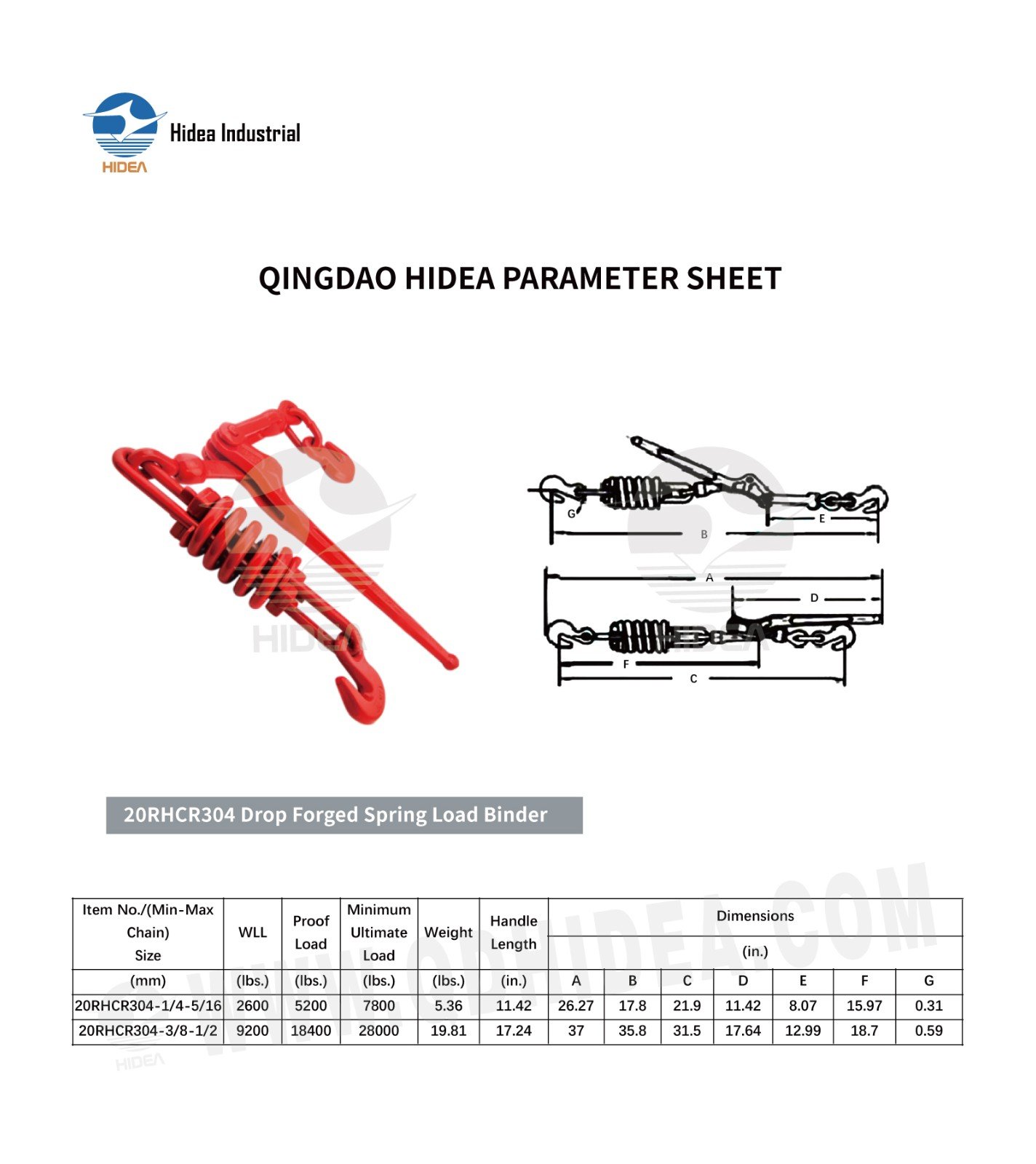

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR304 Drop Forged Spring Load Binder

Item No./(Min-Max
Chain)
Size

WLL

Proof
Load

Minimum
Ultimate
Load

Weight

Handle
Length

Dimensions

(in.)

(mm)

(Ibs.)

(Ibs.)

(Ibs.)

(Ibs.)

(in.)

A

B

C

D

E

F

G

20RHCR304-1/4-5/16

2600

5200

7800

5.36

11.42

26.27

17.8

21.9

11.42

8.07

15.97

0.31

20RHCR304-3/8-1/2

9200

18400

28000

19.81

17.24

37

35.8

31.5

17.64

12.99

18.7

0.59
