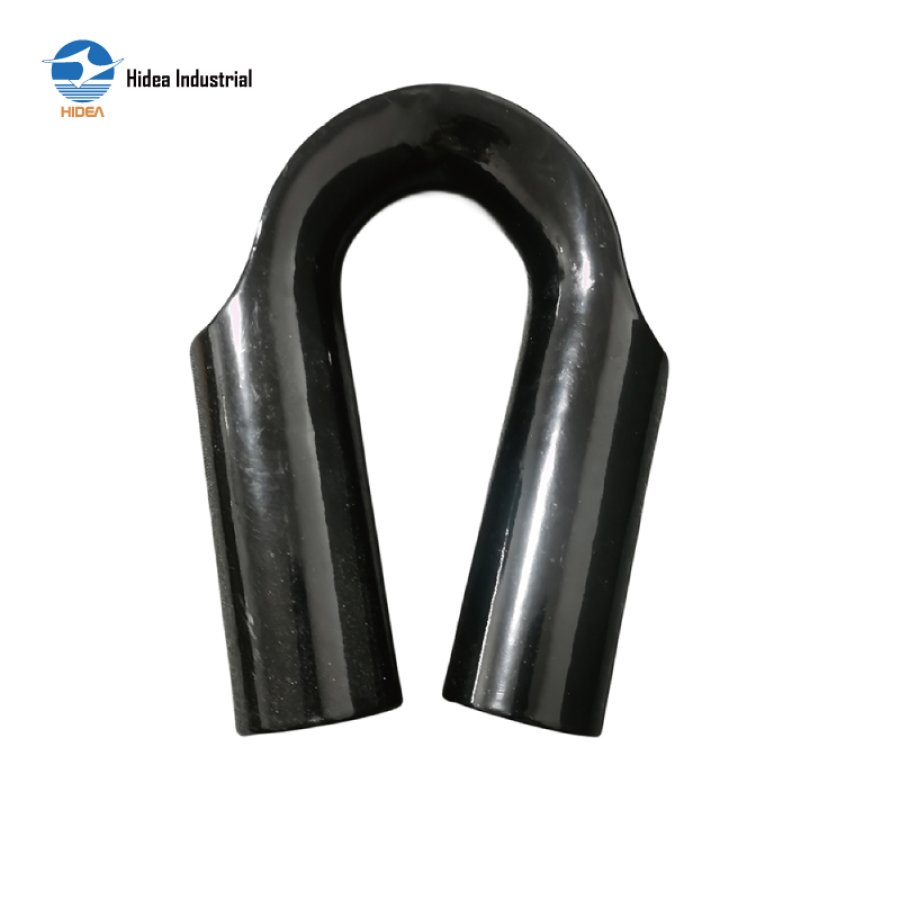

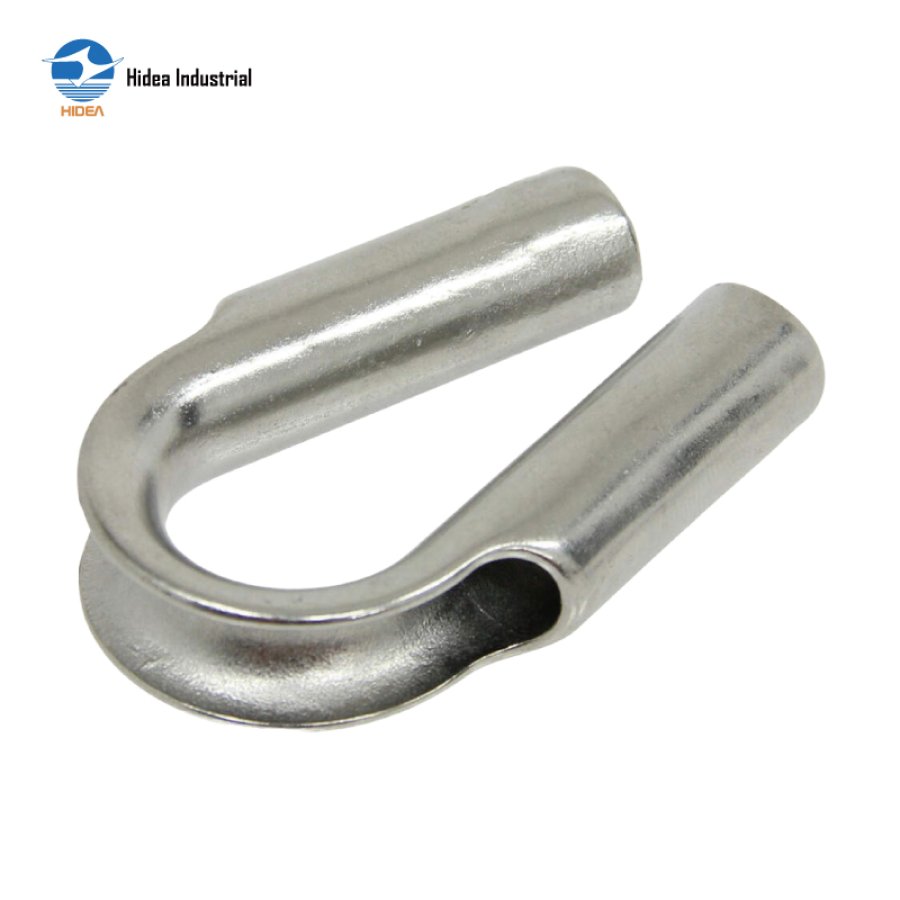

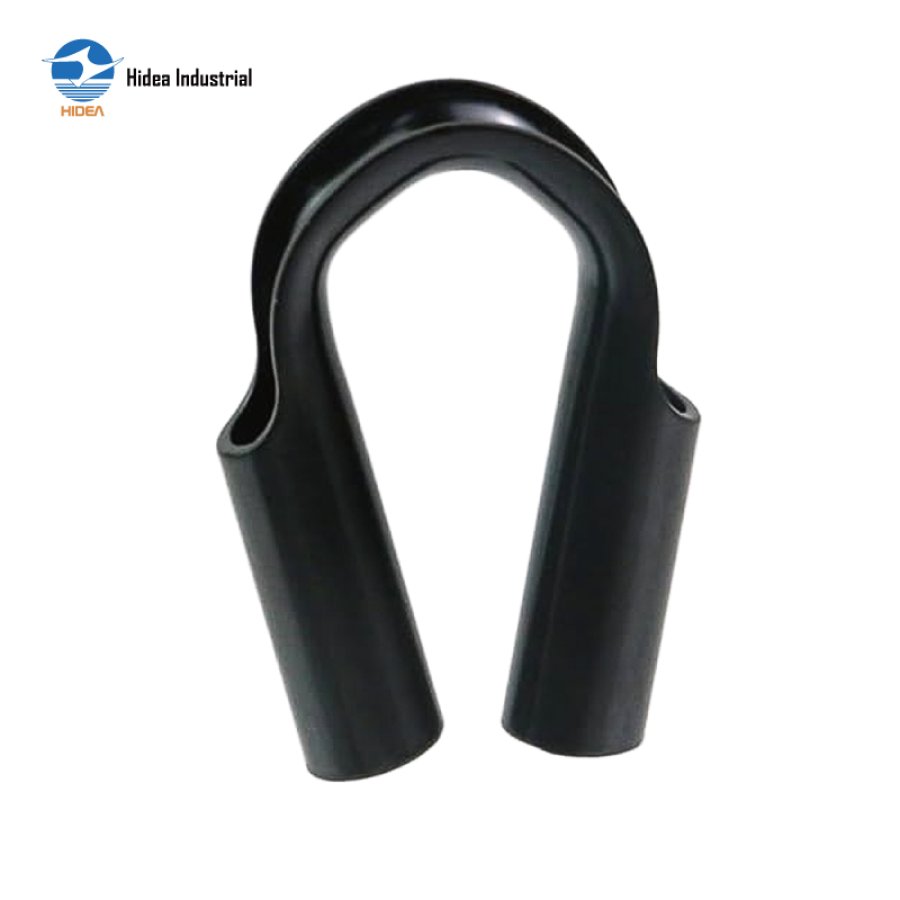

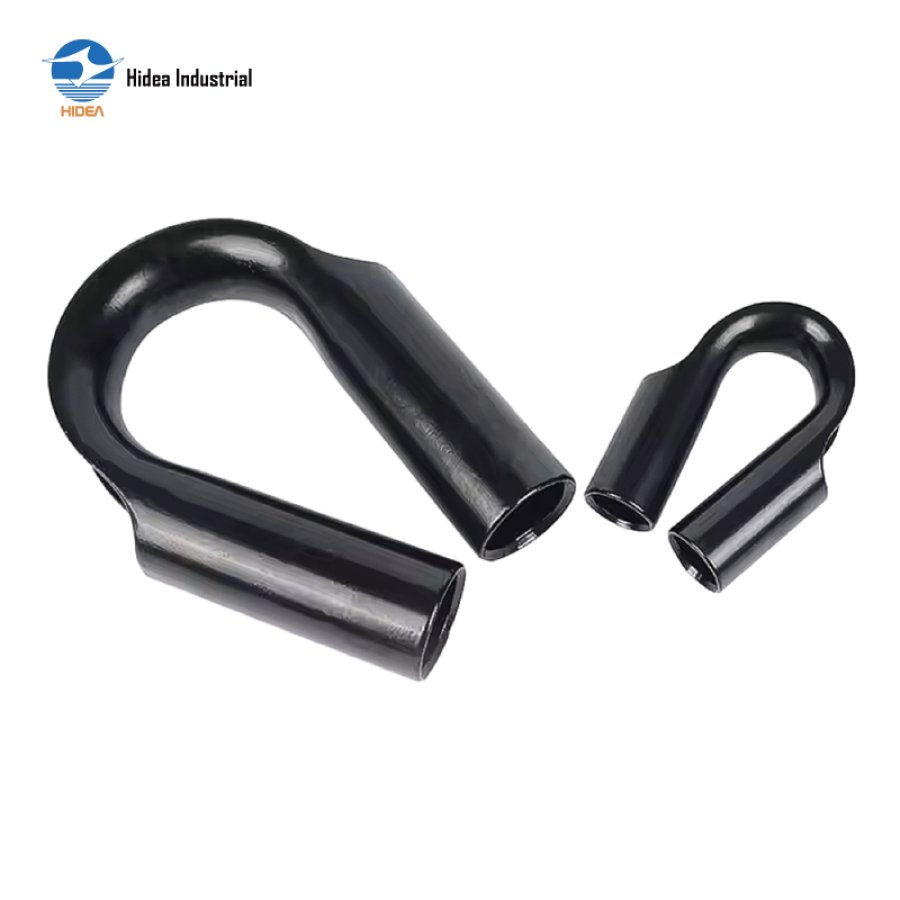

HIDEA Tubular Thimble without Gusset Flat: Ideal for Marine & Industrial Rigging

TUBE TUBULAR THIMBLE WITHOUT GUSSET FLAT

Material Seamless Mild Steel Tube
Stamped & Bent to shape, Machined & polished
Surface powder coated OR painted blue, black etc., OR Hot Dip Galv., Electro Galv. Or as requested
Temperature range -20°C up to +200°C
Tubular Thimble without Gusset / Stub Flat mouths

Inquire Now

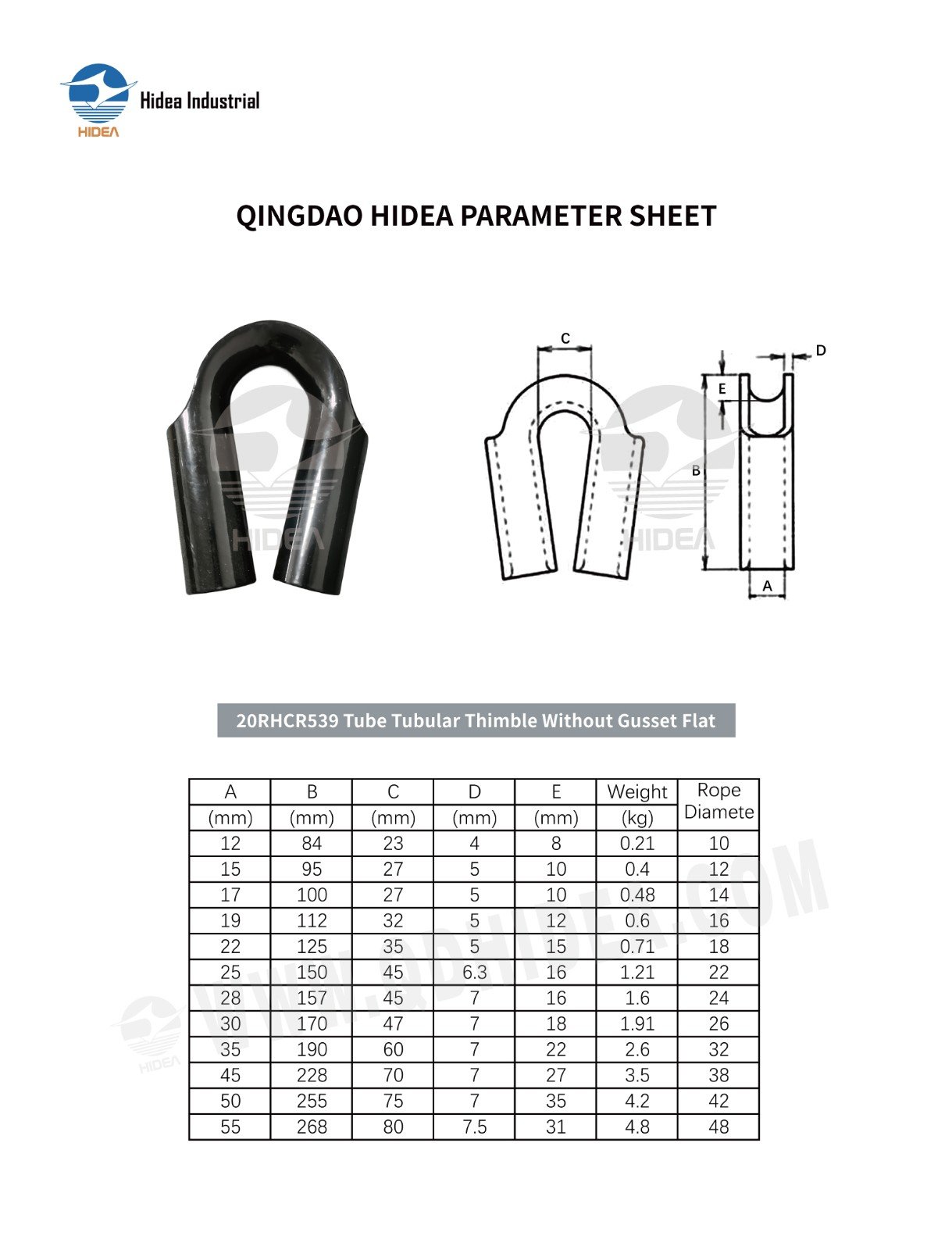

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR539 Tube Tublar Thimble Without Gusset Flat

A	B	C	D	E	Weight	Rope Diamete
(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	Rope Diamete
12	84	23	4	8	0.21	10
15	95	27	5	10	0.4	12
17	100	27	5	10	0.48	14
19	112	32	5	12	0.6	16
22	125	35	5	15	0.71	18
25	150	45	6.3	16	1.21	22
28	157	45	7	16	1.6	24
30	170	47	7	18	1.91	26
35	190	60	7	22	2.6	32
45	228	70	7	27	3.5	38
50	255	75	7	35	4.2	42
55	268	80	7.5	31	4.8	48
