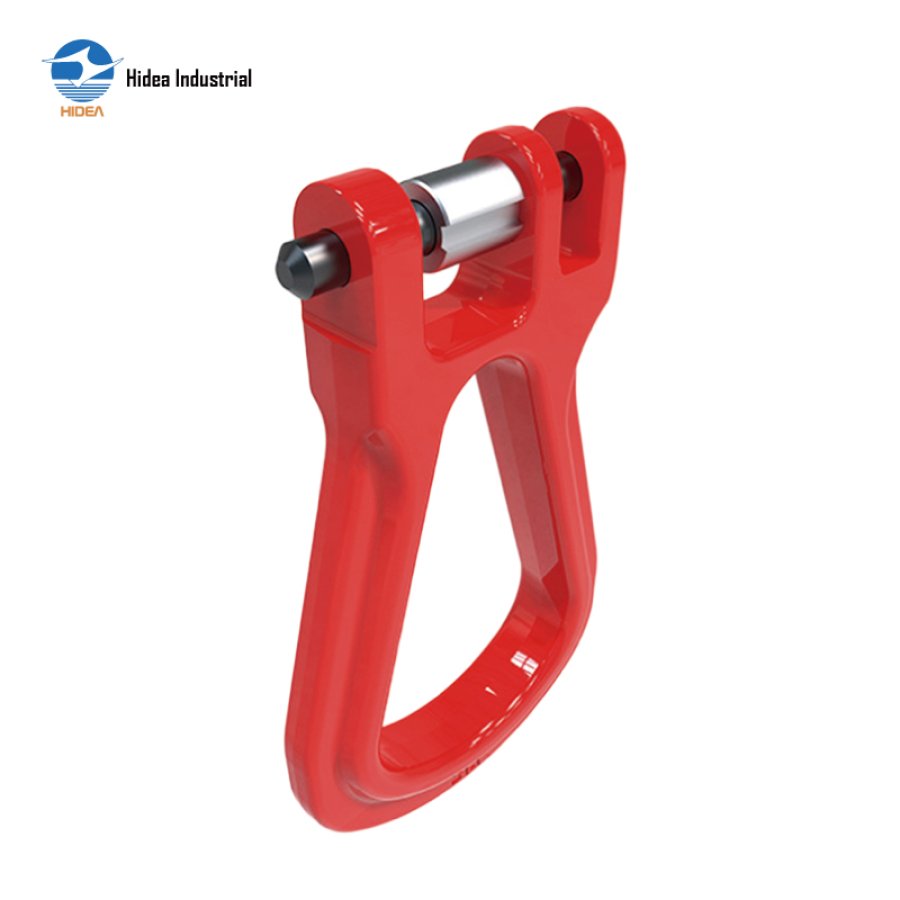

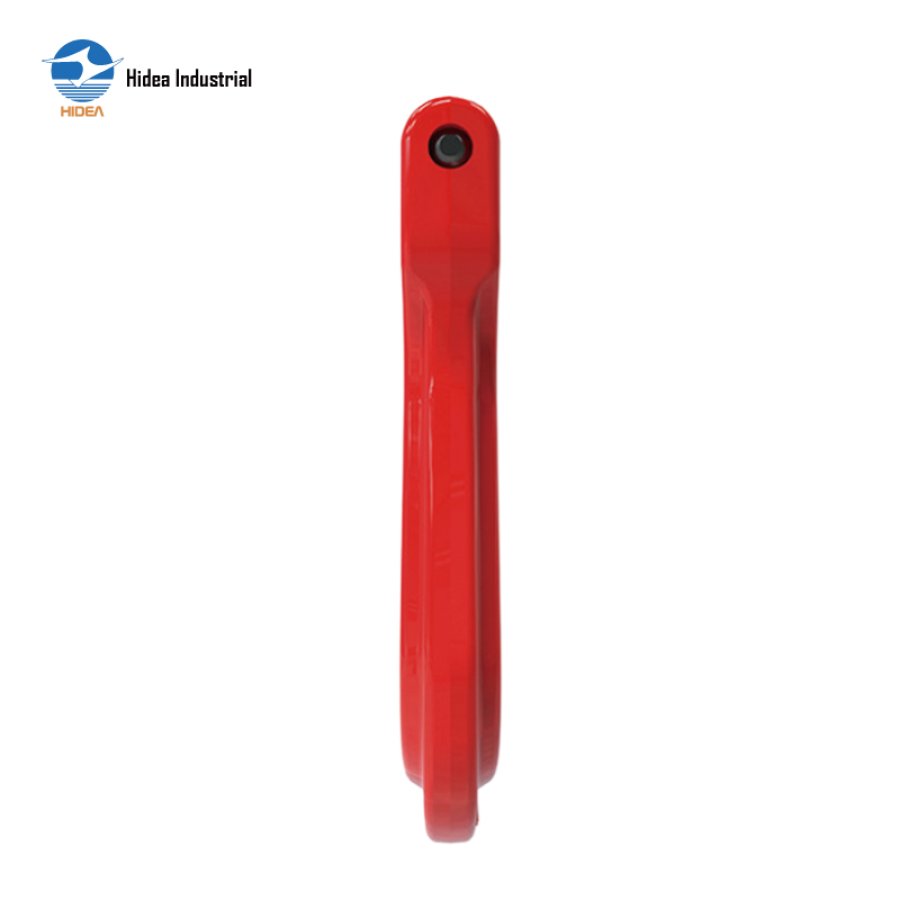

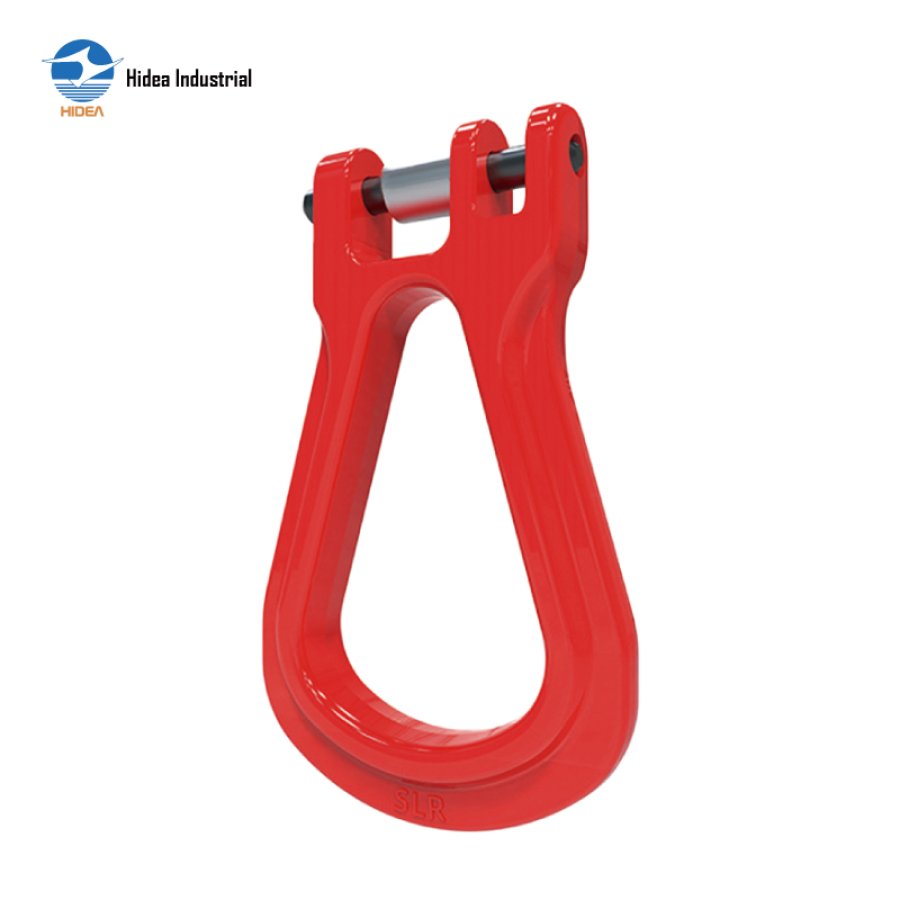

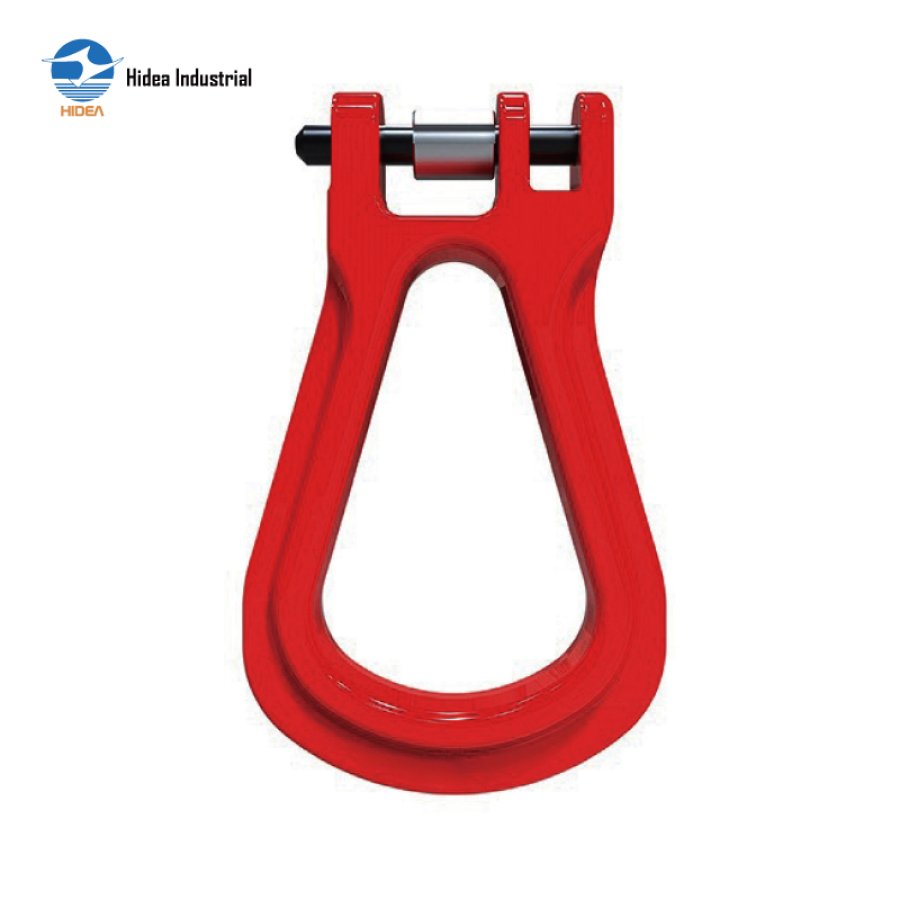

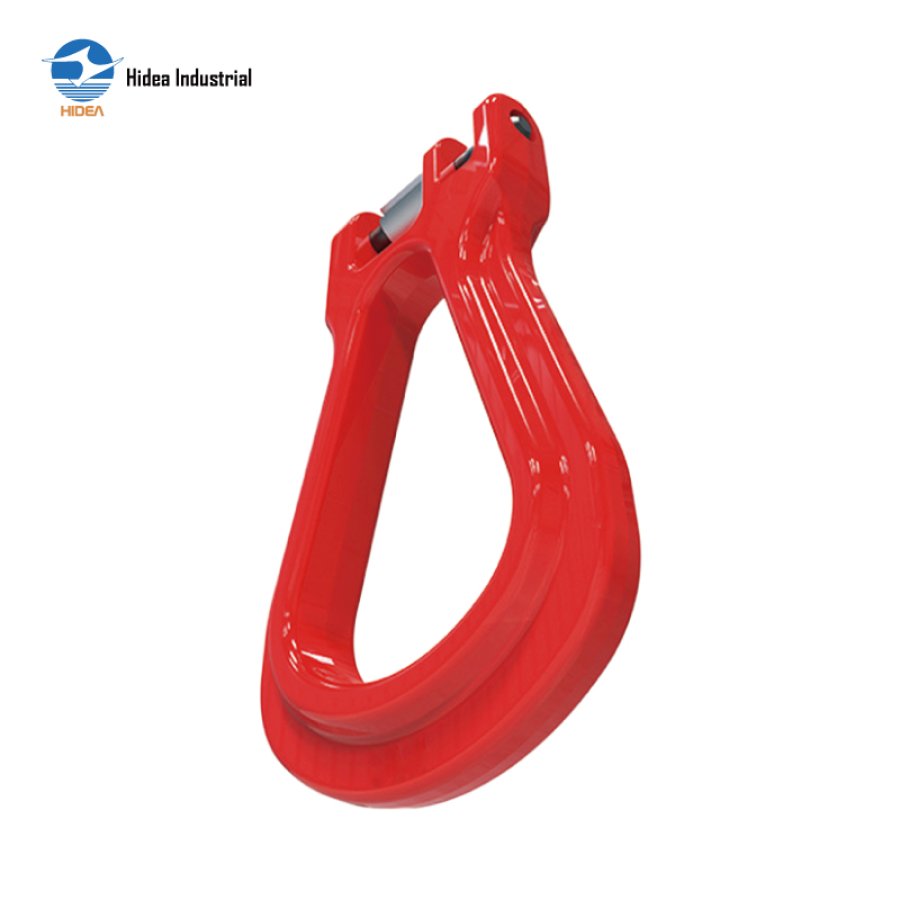

Hidea Grade 80 Closed Type Long Connecting Link for Precision Lifting

CLOSED TYPE LONG CONNECTING LINK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH539-CLOSED TYPE LONG CONNECTING LINK

ITEM NO.	WEIGHT (kg)	WLL (T)	BF (T)	A	B	C	D	H	K	L
7/8-8	0.34	2	8	15±0.5	75±2	50±1	20.5±0.5	9±0.5	78±2	121±2
10-8	0.74	3.15	12.6	18±1	98±2	65±2	28±0.5	14±1	101±3	160±3
13-8	1.16	5.3	21.2	23±1	110±3	70±2	30±1	12±1	115.5±3	182±3
16-8	2	8	32	30±1	126±3	80±2	36.3±1	20±1	138±3	218±4
18/20-8	3.55	12.5	50	36±1	158±3	104.5±3	44±1	27±1	165±3	260±4
