QINGDAO HIDEA PARAMETER SHEET FOR

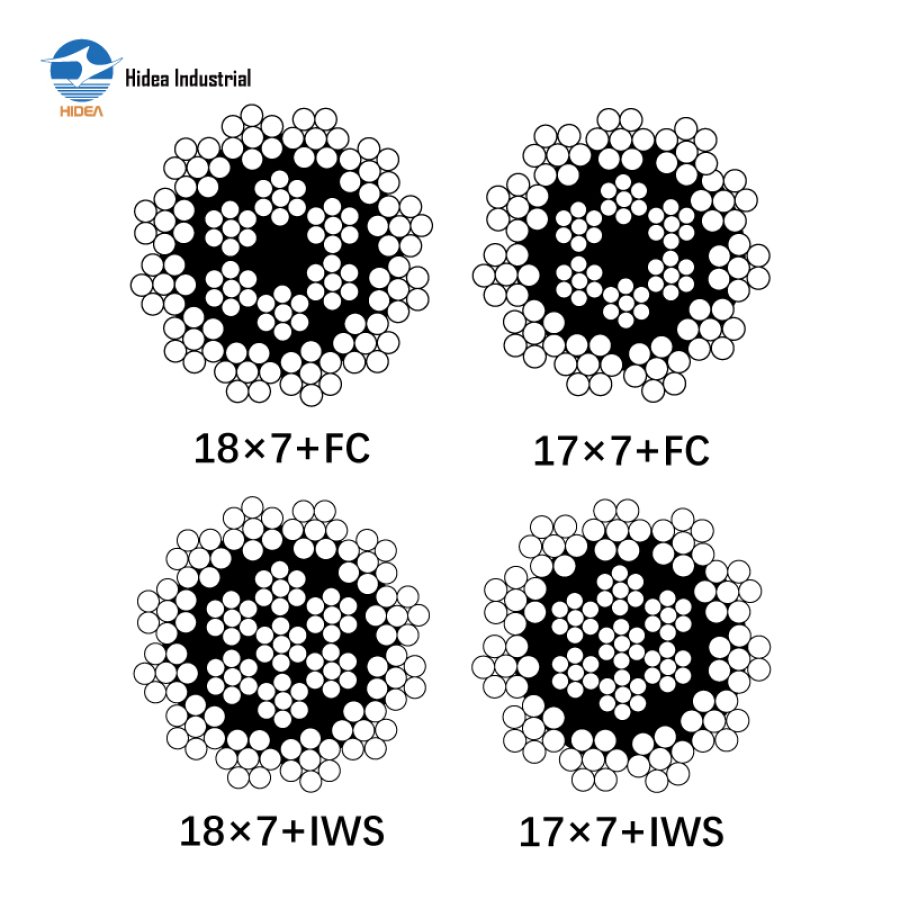

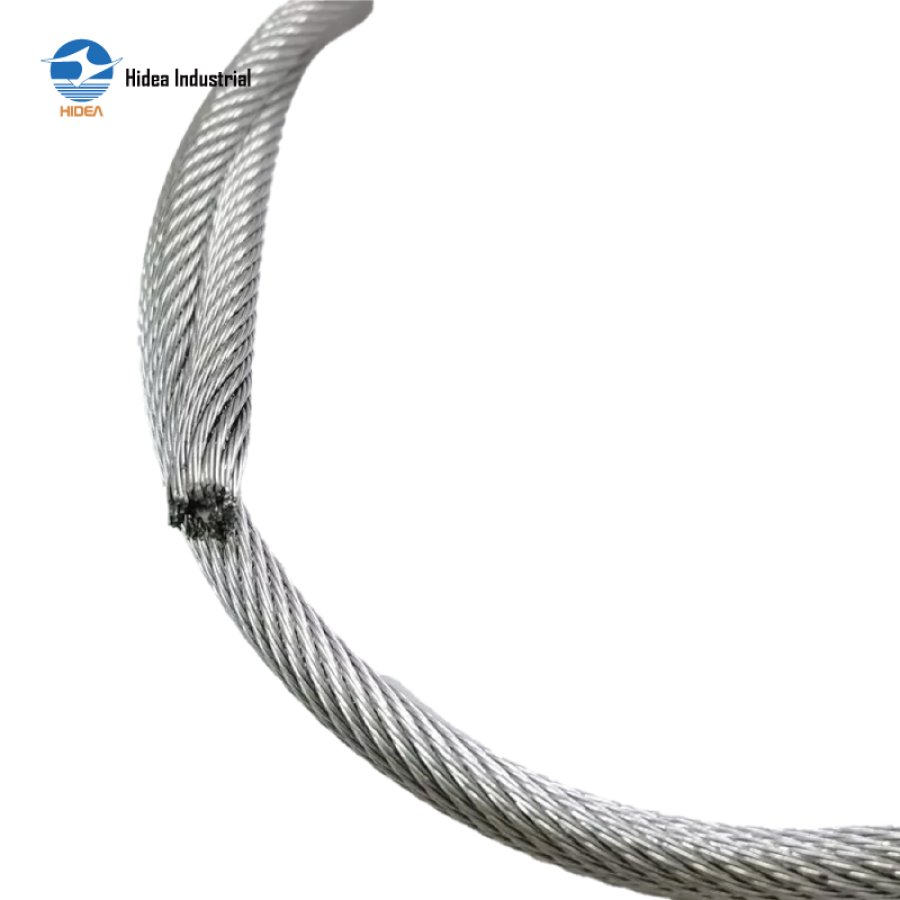

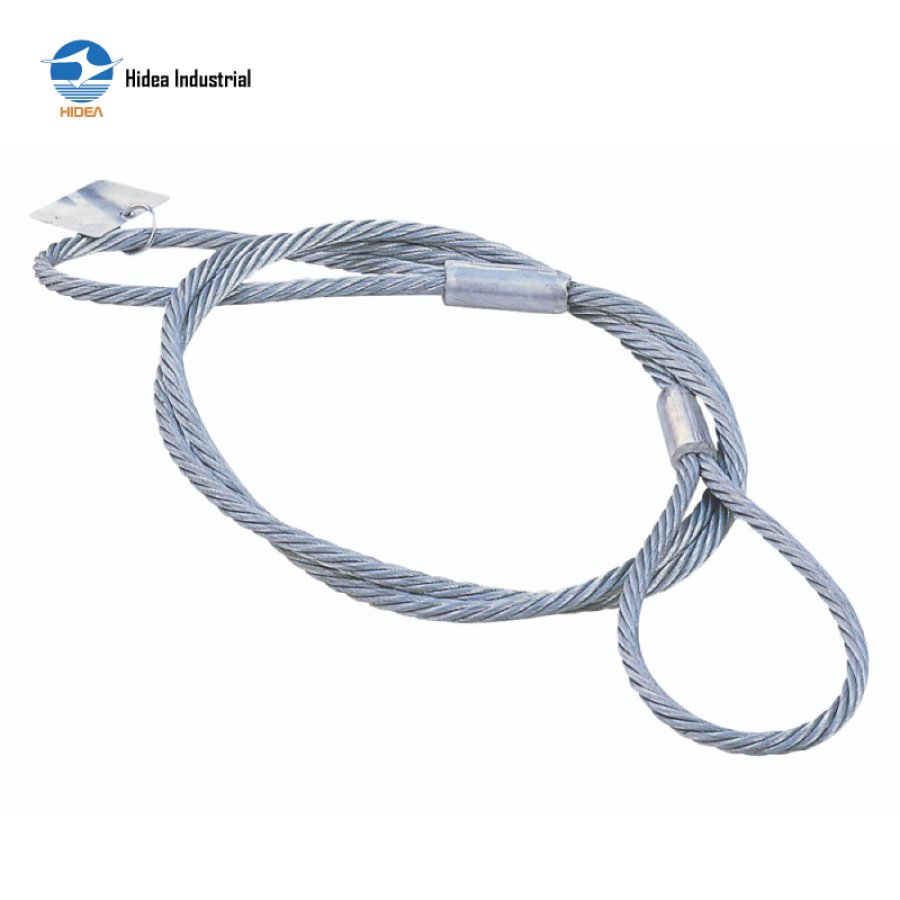

GENERAL PURPOSE WIRE ROPES 18×7/17×7
| 18×7+FC 17×7+FC | |||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | |||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | ||||||
| 1670N/mm | 1770N/mm | 1770N/mm | 1960N/mm | ||||||
| FC/IWS | FC/IWS | FC/IWS | FC/IWS | FC/IWS | FC | IWS | |||
| 6 | 18.60 | 19.80 | 14.00 | 20.90 | 23.10 | 13.80 | 14.40 | ||
| 7 | 25.40 | 26.90 | 19.10 | 28.40 | 31.50 | 18.70 | 19.60 | ||
| 8 | 33.10 | 35.10 | 25.00 | 37.20 | 41.10 | 24.40 | 25.70 | ||
| 9 | 41.90 | 44.40 | 31.60 | 47.00 | 52.10 | 30.90 | 32.50 | ||
| 10 | 51.80 | 54.90 | 39.00 | 58.10 | 64.30 | 38.20 | 40.10 | ||
| 11 | 62.60 | 66.40 | 47.20 | 70.20 | 77.80 | 46.20 | 48.50 | ||
| 12 | 74.50 | 79.00 | 56.20 | 83.60 | 92.60 | 55.00 | 57.70 | ||
| 13 | 87.50 | 92.70 | 65.90 | 98.10 | 109.00 | 64.60 | 67.80 | ||
| 14 | 101.00 | 108.00 | 76.40 | 114.00 | 126.00 | 74.90 | 78.60 | ||
| 16 | 133.00 | 140.00 | 99.80 | 149.00 | 165.00 | 97.80 | 103.00 | ||
| 18 | 168.00 | 178.00 | 126.00 | 188.00 | 208.00 | 124.00 | 130.00 | ||
| Usage: | 20 | 207.00 | 219.00 | 156.00 | 232.00 | 257.00 | 153.00 | 160.00 | |
| Vertical Well, | 22 | 251.00 | 266.00 | 189.00 | 281.00 | 311.00 | 185.00 | 194.00 | |
| Tramway Support | 24 | 298.00 | 316.00 | 225.00 | 334.00 | 370.00 | 220.00 | 231.00 | |
| Crane | 26 | 350.00 | 371.00 | 264.00 | 392.00 | 435.00 | 258.00 | 271.00 | |
| 28 | 406.00 | 430.00 | 306.00 | 455.00 | 504.00 | 299.00 | 314.00 | ||
| 32 | 530.00 | 562.00 | 399.00 | ---- | ---- | ---- | ---- | ||
| 18×7+IWS 17×7+IWS | |||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | |||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | ||||||
| 1670N/mm | 1770N/mm | 1770N/mm | 1960N/mm | ||||||
| FC/IWS | FC/IWS | FC/IWS | FC/IWS | FC/WS | FC | IWS | |||
| 6 | 19.70 | 20.90 | 15.50 | 20.90 | 23.10 | 13.80 | 14.40 | ||
| 7 | 26.80 | 28.40 | 21.10 | 28.40 | 31.50 | 18.70 | 19.60 | ||
| 8 | 35.10 | 37.20 | 27.50 | 37.20 | 41.10 | 24.40 | 25.70 | ||
| 9 | 44.40 | 47.00 | 34.80 | 47.00 | 52.10 | 30.90 | 32.50 | ||
| 10 | 54.80 | 58.10 | 43.00 | 58.10 | 64.30 | 38.20 | 40.10 | ||
| 11 | 66.30 | 70.20 | 52.00 | 70.20 | 77.80 | 46.20 | 48.50 | ||
| 12 | 78.90 | 83.60 | 61.90 | 83.60 | 92.60 | 55.00 | 57.70 | ||
| 13 | 92.50 | 98.10 | 72.70 | 98.10 | 109.00 | 64.60 | 67.80 | ||
| 14 | 107.00 | 114.00 | 84.30 | 114.00 | 126.00 | 74.90 | 78.60 | ||
| 16 | 140.00 | 149.00 | 110.00 | 149.00 | 165.00 | 97.80 | 103.00 | ||
| 18 | 177.00 | 188.00 | 139.00 | 188.00 | 208.00 | 124.00 | 130.00 | ||
| Usage: | 20 | 219.00 | 232.00 | 172.00 | 232.00 | 257.00 | 153.00 | 160.00 | |
| 22 | 265.00 | 281.00 | 208.00 | 281.00 | 311.00 | 185.00 | 194.00 | ||
| Vertical Well, | 24 | 316.00 | 334.00 | 248.00 | 334.00 | 370.00 | 220.00 | 231.00 | |
| Tramway Support, | 26 | 370.00 | 392.00 | 291.00 | 392.00 | 435.00 | 258.00 | 271.00 | |
| Crane | 28 | 429.00 | 455.00 | 337.00 | 455.00 | 504.00 | 299.00 | 314.00 | |
| 32 | 561.00 | 594.00 | 440.00 | ---- | ---- | ---- | ---- | ||
