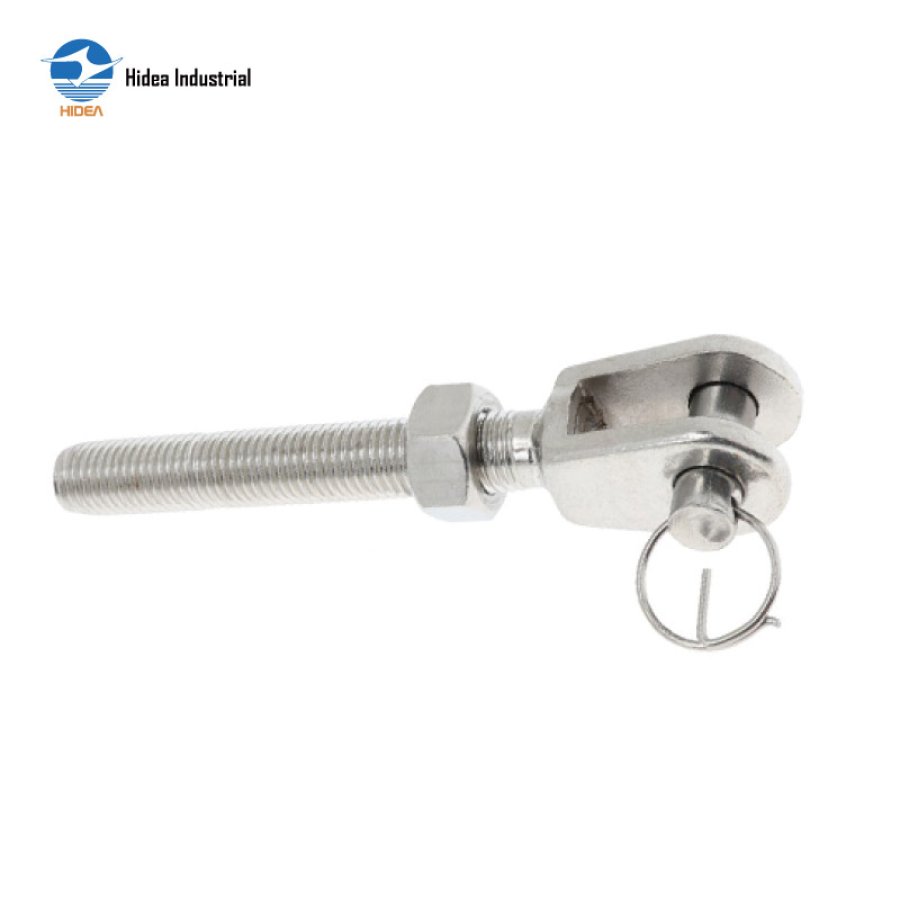

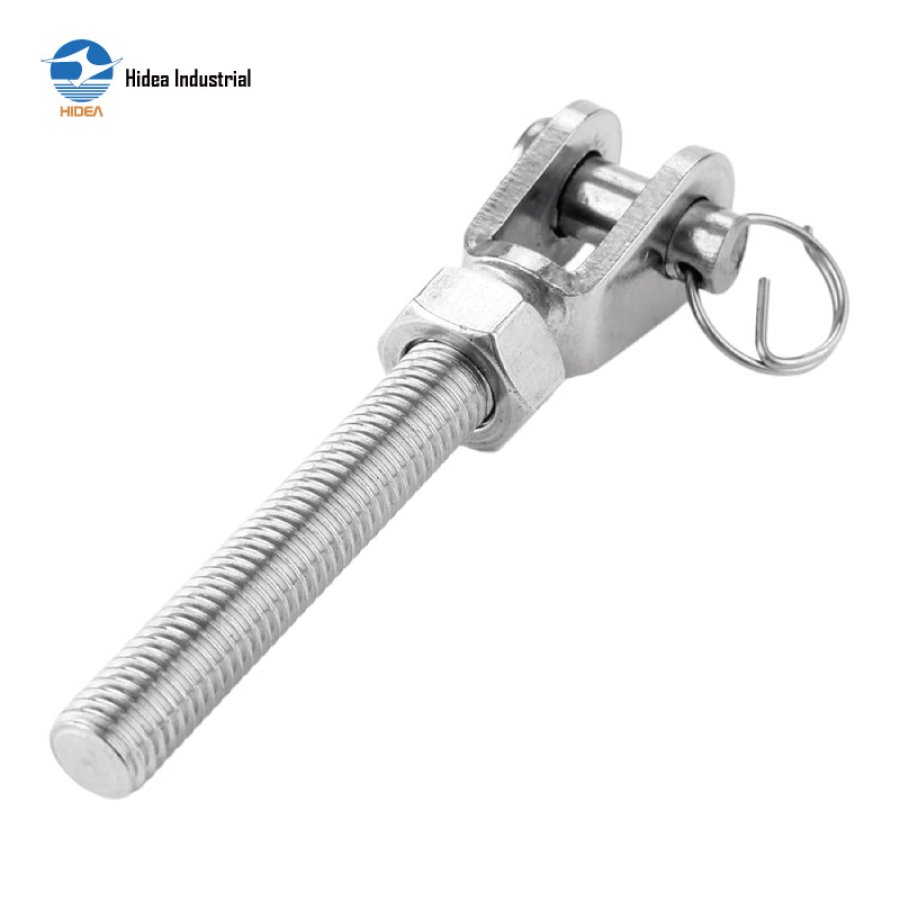

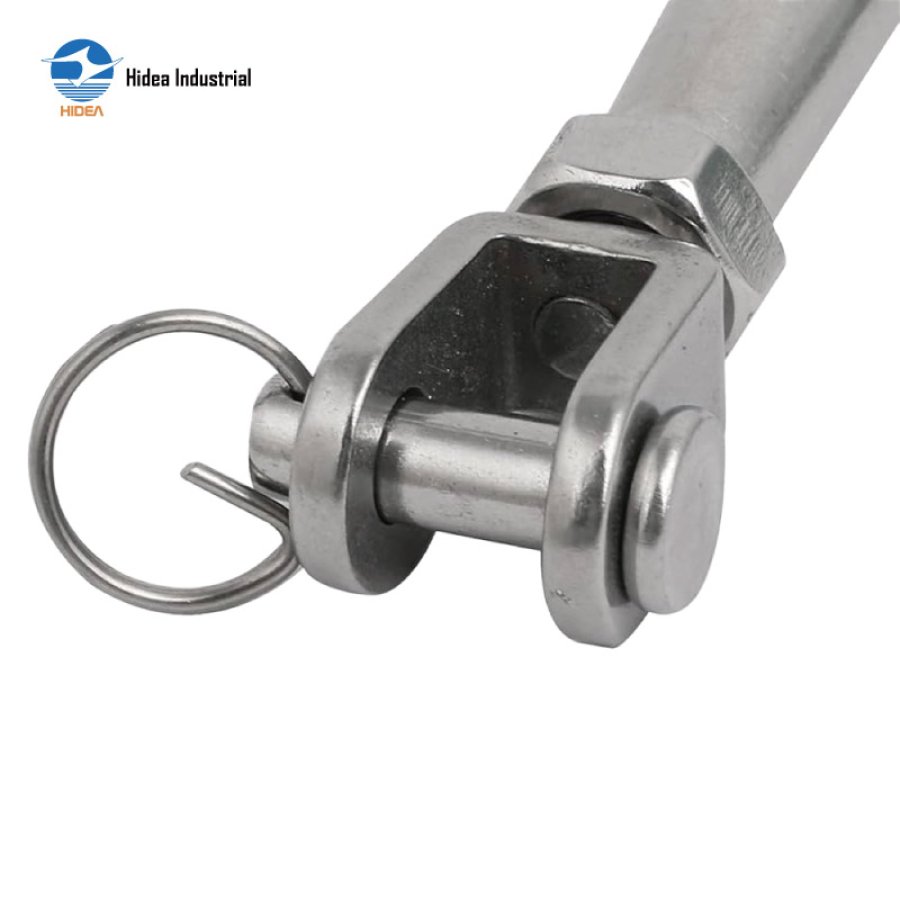

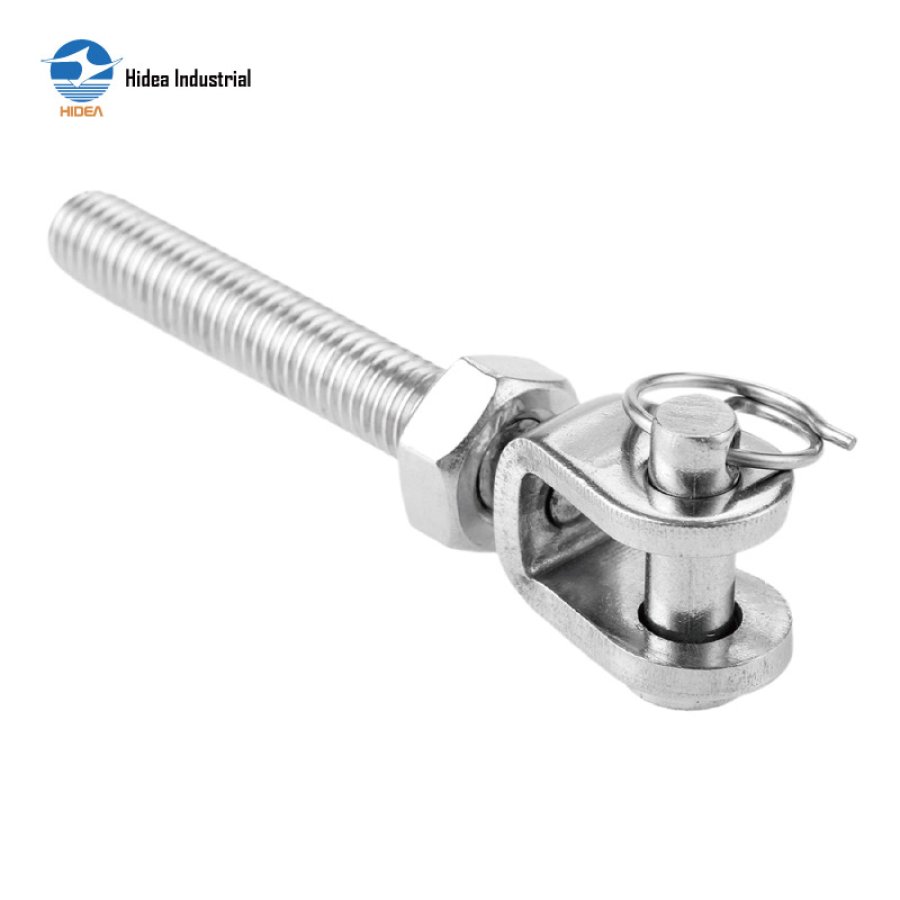

HIDEA Threaded Fork Terminal – Stainless Steel, High Strength

STANDARD FORK TERMINAL EXTERNAL THREAD

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

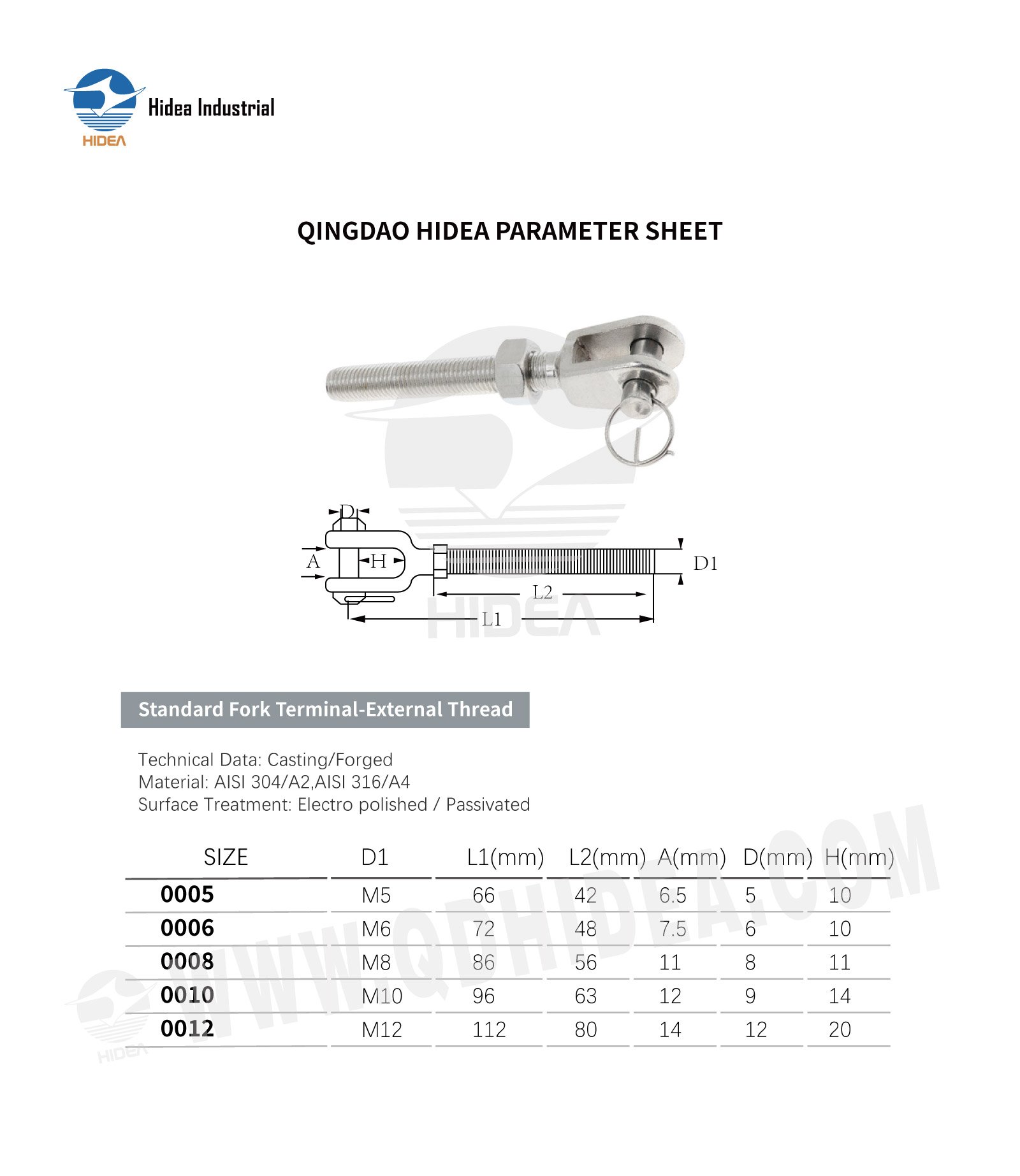

QINGDAO HIDEA PARAMETER SHEET FOR

Standard Fork Terminal-External Thread

SIZE	D1	L1(mm)	L2(mm)	A(mm)	D(mm)	H(mm)
0005	M5	66	42	6.5	5	10
0006	M6	72	48	7.5	6	10
0008	M8	86	56	11	8	11
0010	M10	96	63	12	9	14
0012	M12	112	80	14	12	20
