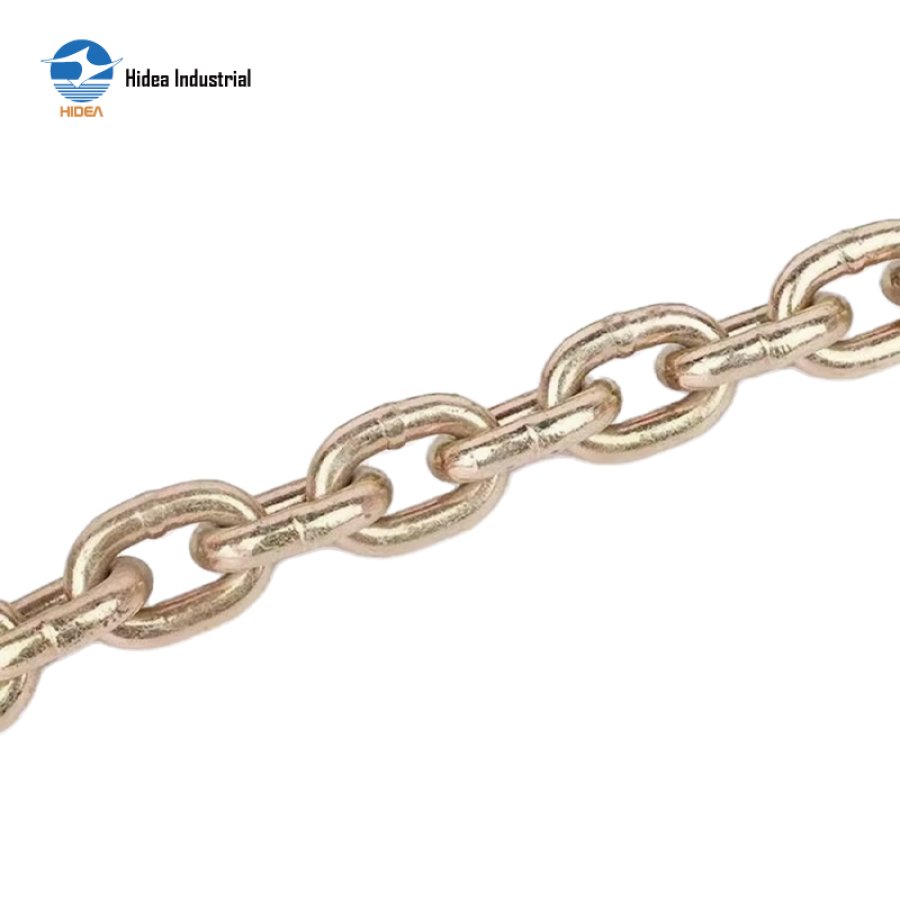

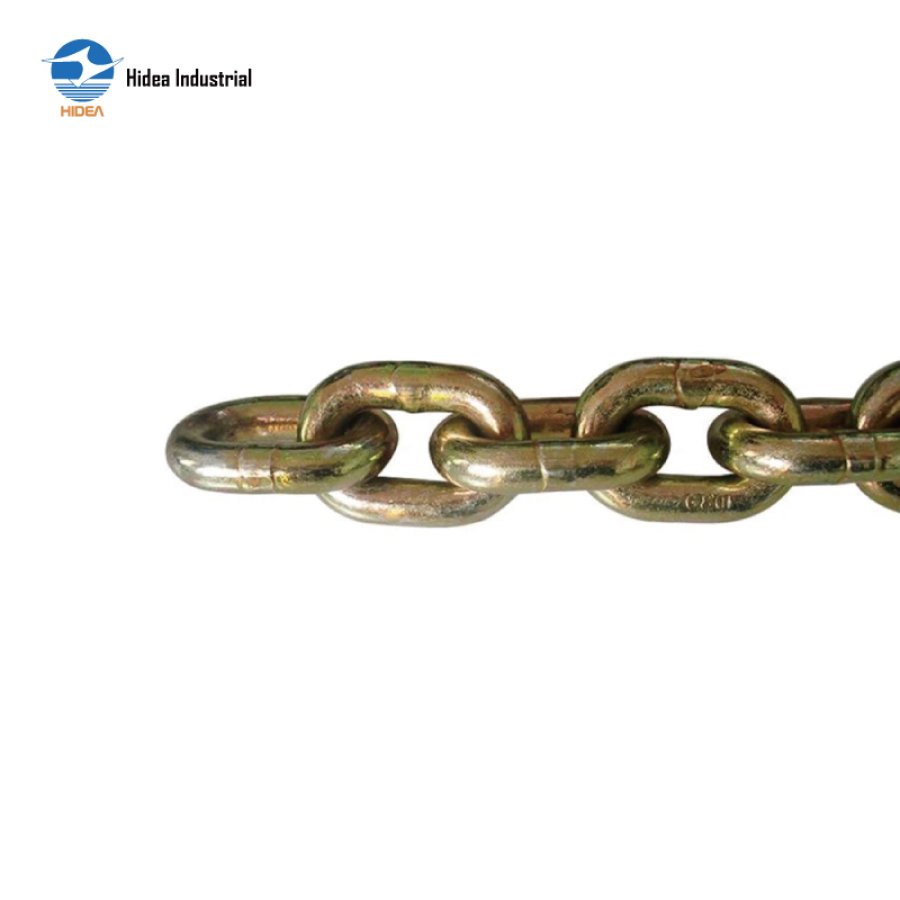

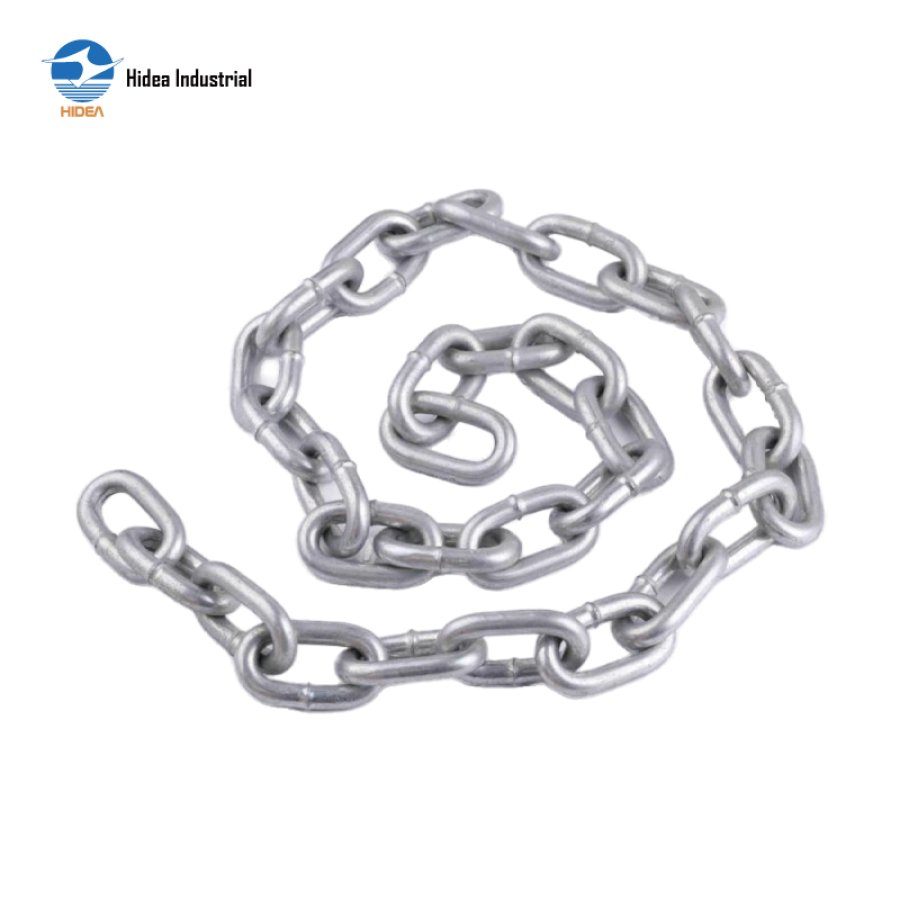

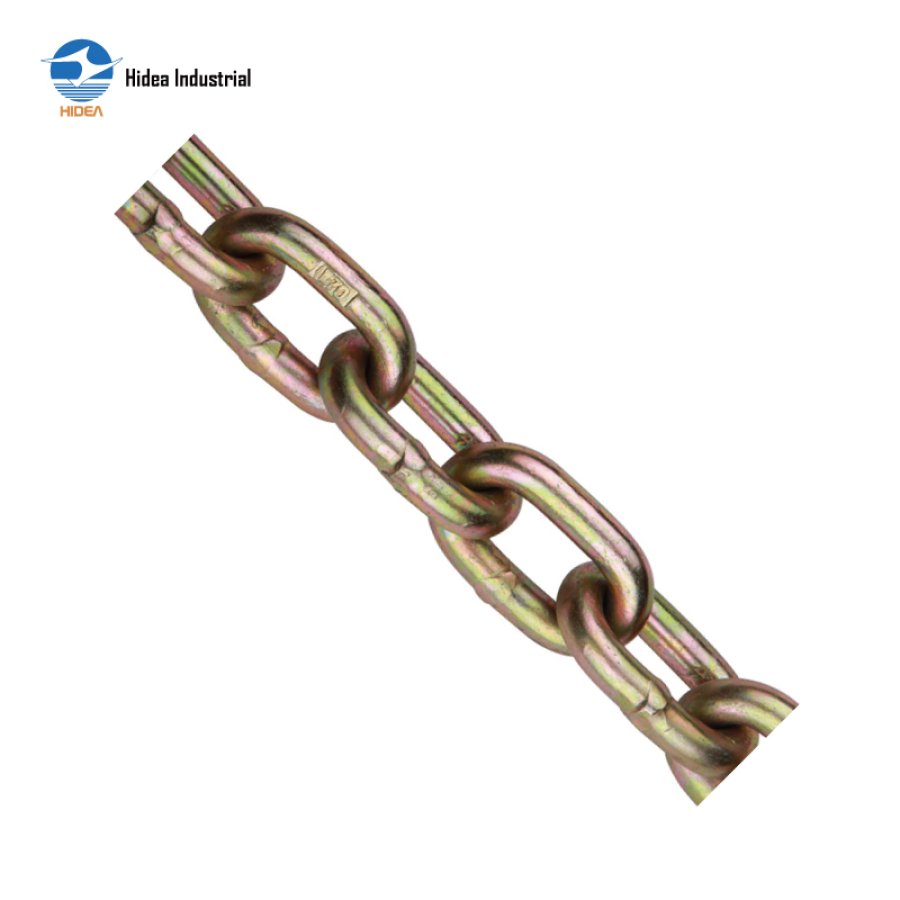

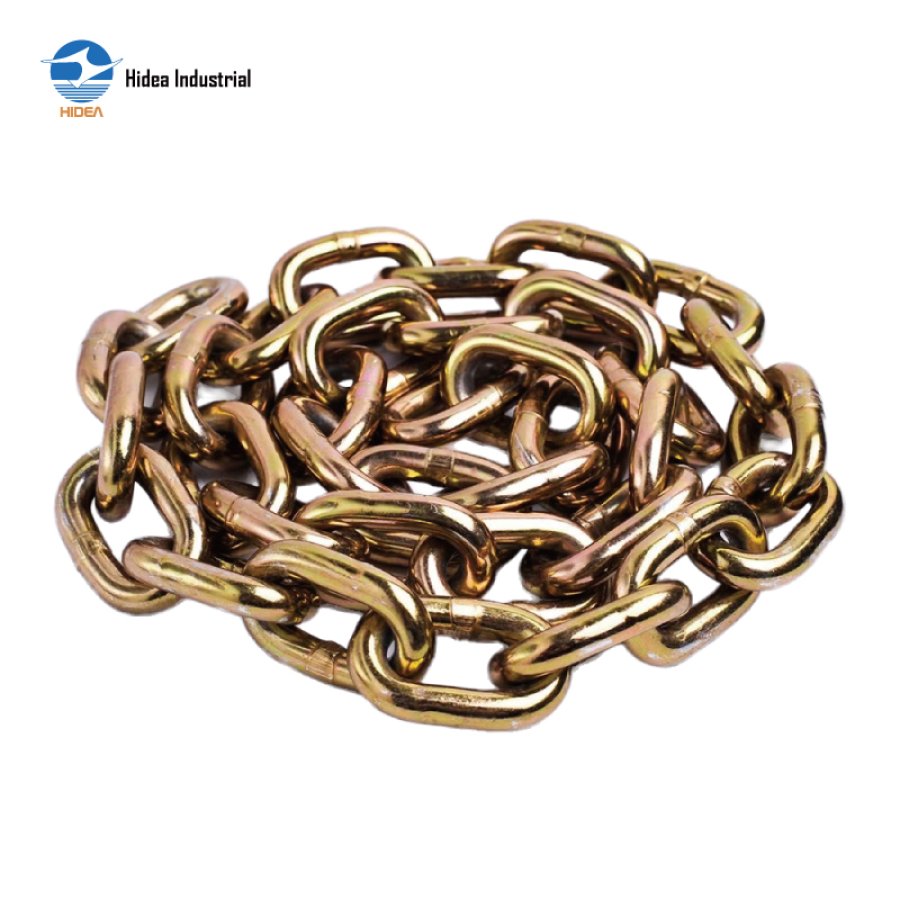

Hidea NACM90 Standard Link Chain: Reliable Solutions for Rigging, Securing, and Towing

NACM90 STANDARD LINK CHAIN

Material: Carbon Steel & Alloy Steel G30 / G43 / G70
Surface Treatment: Electro OR Hot Dip galvanized,Blackened or as requested
US NACM90 Standard Link Chain, Proof Coil Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC118 US NACM90 Standard Link Chain

Proof Coil Chain(G30)

Nominal Size		Working Load Max.		Breaking Load Min.			Inside Length Max.		Inside Width Min.		Weight
in	mm	lbs	kg	lbs	kn		mm	in	mm	in	kg/m
1/8	4.0	375	170	1,600	7.10		23.9	0.94	6.4	0.25	0.28
3/16	5.5	800	365	3,200	14.30		24.8	0.98	7.7	0.30	0.57
1/4	7.0	1,300	580	5,200	23.10		31.5	1.24	9.8	0.38	0.92
5/16	8.0	1,900	860	6,800	30.20		32.8	1.29	11.2	0.44	1.24
3/8	10.0	2,650	1,200	10,600	47.10		35.0	1.38	14.0	0.55	2.07
1/2	13.0	4,500	2,030	17,900	79.60		45.5	1.79	18.2	0.72	3.49
5/8	16.0	6,900	3,130	27,200	120.60		56.0	2.2	20.0	0.79	5.21
3/4	20.0	10,600	4,800	42,400	188.50		70.0	2.76	25.0	0.98	8.14
7/8	22.0	12,800	5,810	51,200	228.10		77.0	3.03	27.5	1.03	9.86
1	26.0	17,900	8,140	71,600	318.00		90.9	3.58	31.7	1.25	12.56

High Test Chain (G43)

Nominal Size		Working Load Max.		Breaking Load Min.			Inside Length Max.		Inside Width Min.		Weight
in	mm	Ibs	kg	Ibs	kn		mm	in	mm	in	kg/m
11/4	7.0	2,600	1,180	7,500	33.1		31.5	1.24	9.8	0.38	0.92
5/16	8.0	3,900	1,770	9,700	43.2		32.8	1.29	11.2	0.44	1.50
3/8	10.0	5,400	2,450	15,200	67.6		35.0	1.38	14.0	0.55	2.07
1/2	13.0	9,200	4,170	25,700	114.2		45.5	1.79	18.2	0.72	3.49
5/8	16.0	11,500	5,220	38,900	172.9		56.0	2.20	20.0	0.79	5.21
3/4	20.0	16,200	7,350	60,700	270.2		70.0	2.76	25.0	0.98	8.14

Transport Chain (G70)

Nominal Size		Working Load Max.		Breaking Load Min.			Inside Length Max.		Inside Width Min.		Weight
in	mm	lbs	kg	lbs	kn		mm	in	mm	in	kg/m
11/4	7.0	2,600	1,180	7,500	33.1		31.5	1.24	9.8	0.38	0.92
5/16	8.0	3,900	1,770	9,700	43.2		32.8	1.29	11.2	0.44	1.50
3/8	10.0	5,400	2,450	15,200	67.6		35.0	1.38	14.0	0.55	2.07
1/2	13.0	9,200	4,170	25,700	114.2		45.5	1.79	18.2	0.72	3.49
5/8	16.0	11,500	5,220	38,900	172.9		56.0	2.20	20.0	0.79	5.21
3/4	20.0	16,200	7,350	60,700	270.2		70.0	2.76	25.0	0.98	8.14
