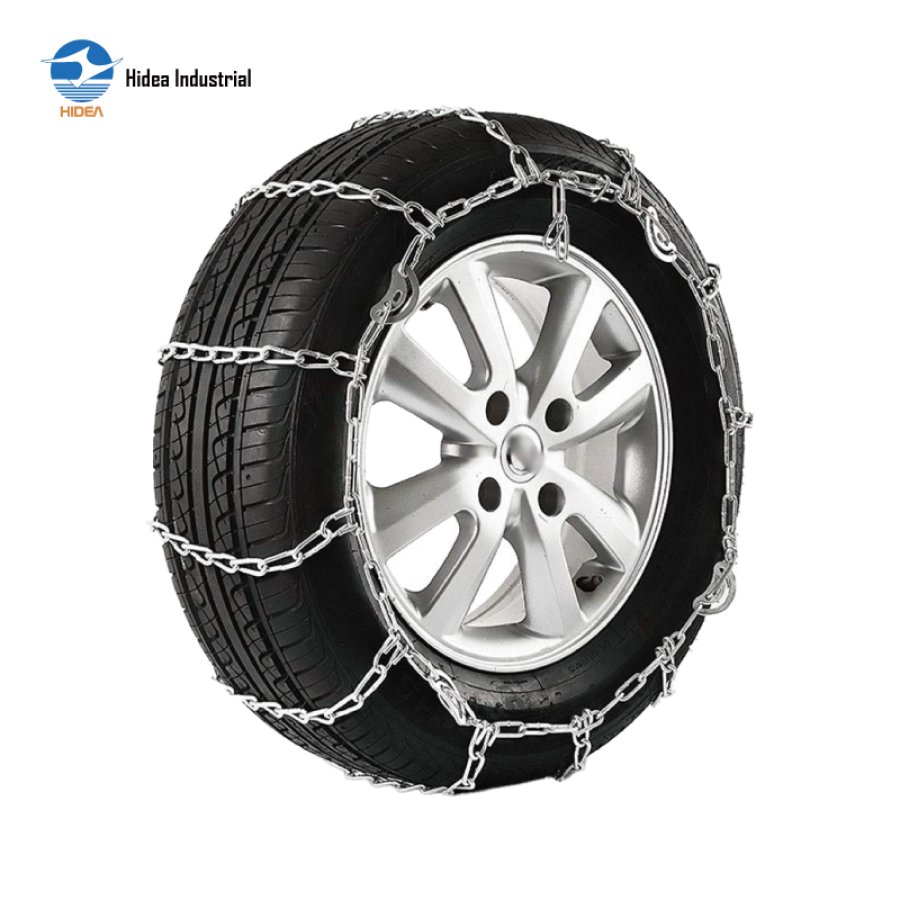

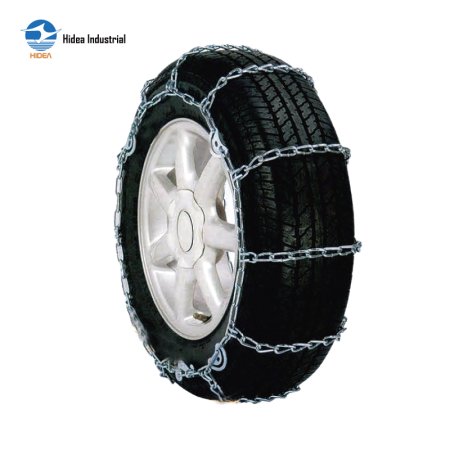

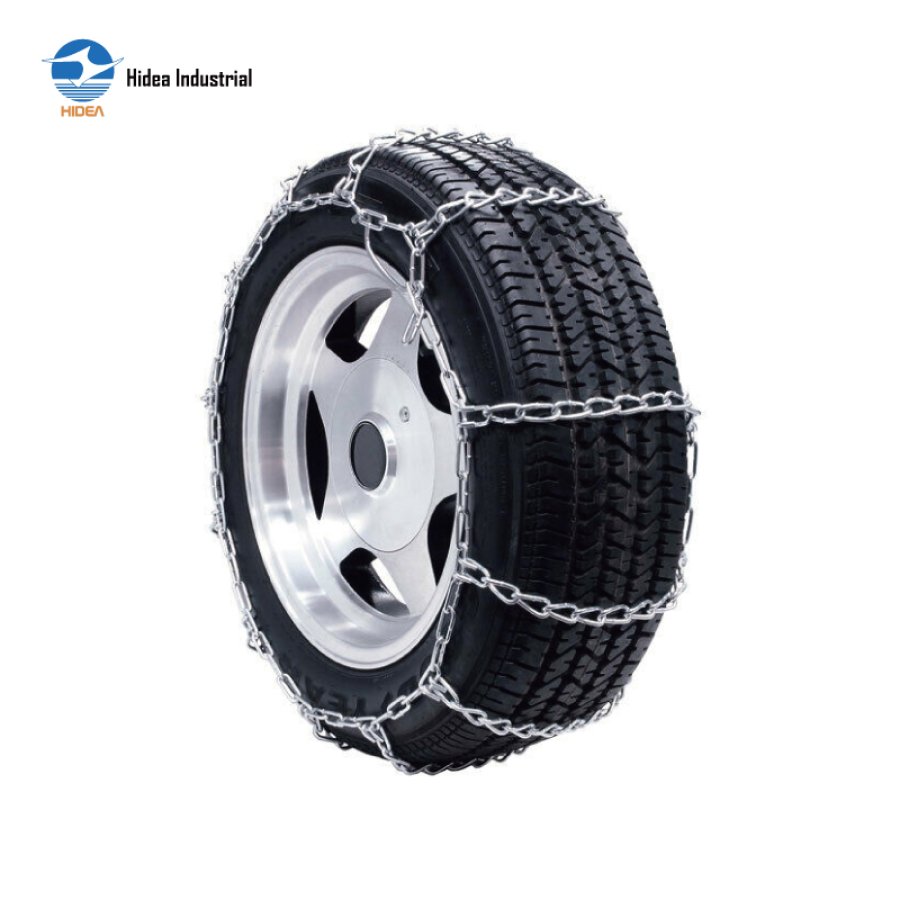

The series multi-purpose snow chains for cars,buses & light trucks; well meets desired anti-slippery purposes

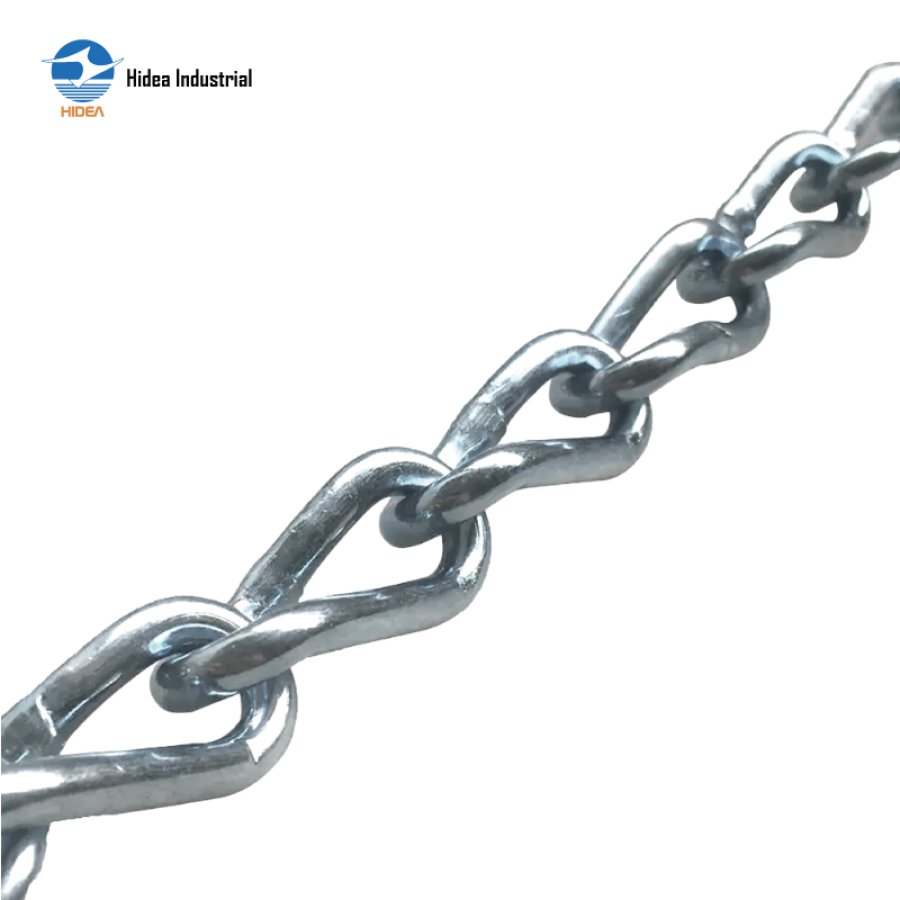

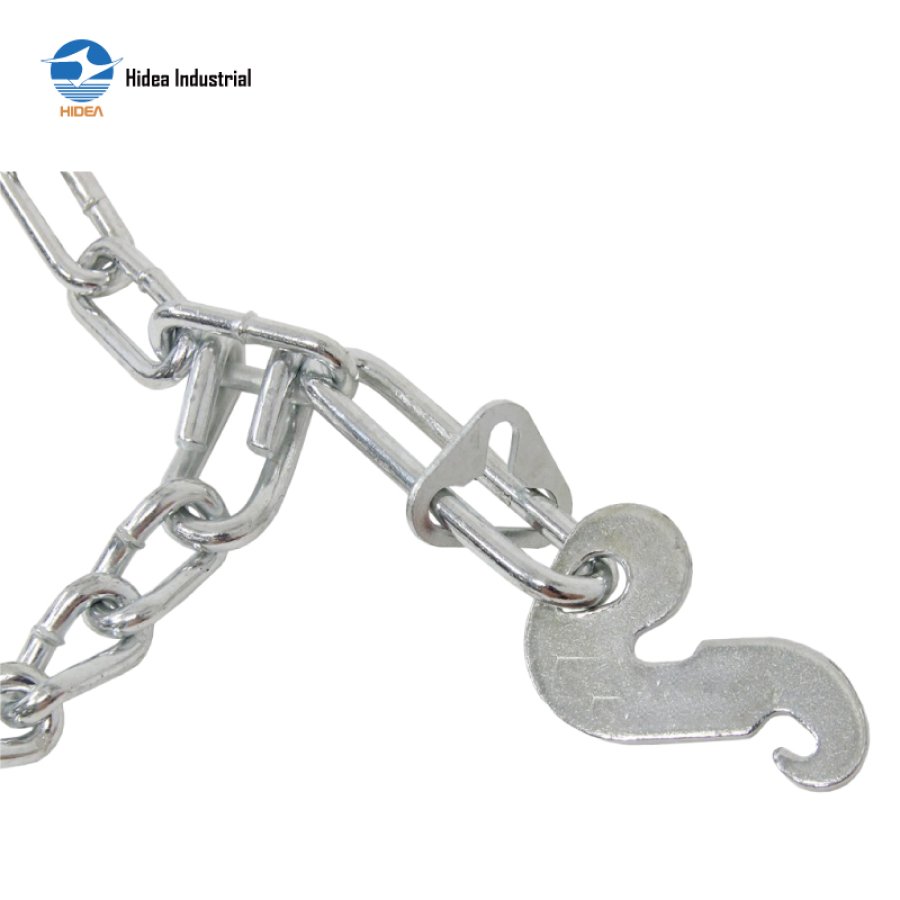

Twisted chain links to enhance gripping force, the CAM parts makes tightening much easier
Intermediate frequency quenched & carburized to ensure hardness and anti-wearing
Working safely at low temperature of minus 40 degrees Celsius
Also AVAILABLE for Net Type & Diamond Type patterns
Meeting and complying with NORMS of US NACM - 92805 (TC), NORMS OF European EN 16662-1, ÖNORM and TÜV
QINGDAO HIDEA PARAMETER SHEET FOR
11 SERIES MULTI-PURPOSE SNOW CHAINS
| 4.5MM CROSS CHAIN | ||||
| ITEM NO | TIRE SIZE | |||
| 12"&13" | 14" | 15"&OTHERS | ||
| 1110 | 145R12;155R12;P165/70R12;P145/80R12; 135R13;P155/65R13;P145/70R13;P135/80R13; | |||
| 1114 | 6.00-12;145R12;155R12;P175/70R12;P155/80R12; 145R13;155R13;P165/60R13:P165/65R13; P175/6R13;P185/65R13;P155/7OR13;P165/70R13; P165/75R13;P145/80R13;P155/80R13; | 135R14; 145R14;P165/60R14;P155/65R14;P145/70R14; | 135R15 | |
| 1118 | 165R13;P185/60R13;P165/70R13;P175/70R13; P175/75R13;P165/80R13;560.13 | 6.00-14LT;155R14;P175/60R14;P185/60R14; R165/65R14;P185/55R14;P175/65R14;P155/70R14 P166/70R14;P165/75R14;P165/80R14; | P165/65R15;145R15;P145/70R16;P115/70R15 P165/70R360;P165/70R365P145/80R15; | |
| 1122 | P175/80R13 | 175R14;P195/55R14;P175/75R14; P185/75R14;P175/70R14;185/65-14: | 5.60-15;155R15;165R15:185/55R15P195/55R15; P185/60R15;P195/60R15;P185/65R15;P165/70R15; P175/70R15;P175/75R15;P165/80R15;P1565/80R15; | |
| 1126 | 175R13:185R13;195/60R13;P205/60R13; P215/60R13;P195/65R13;P185/70R13P195/70R13; P185/75R13;P195/75R13;P175/80R13;P185/80R13; | P205/55R14;P195/60R14;P185/85R365; P195/65R14P175/70R14;P185/70R14: | P220/45R15;P195/50R15;P205/50R15;P185/60R15; P185/65R15;P185/65R390;P175/70R15 | |
| 1130 | 195R13;P125/65R13;P205/70R13;P185/85R13; 600-13; | 7.00-14LT;185R14;P215/60R14 P225/60R14;P205/65R14;P215/65R14; P195/70R14;P195/75R14;P185/80R14; 205/60-14; | 175R15;P225/50R15;P190/65R15;P190/65R390 P195/65R15;P205/65R15;P185/70R15;P185/70R365; P195/70R15;P185/75R15;P205/60R15;P200/60R390; | |
| 1134 | P235/50R13;P245/50R13;P235/60R13 | 195R14:205R14;P225/65R14; P235/60R14;P205/70R14;P215/70R14; P205/75R14;P215/75R14:650-14; | 185R15;195R15;P215/60R15;P225/60R15;P205/65R15 P205/70R15;P195/75R15;P205/75R15;P195/80R15; P205/50R16;P205/55R16;P215/55R16;P205/60ZR16; P215/60ZR16; | |
| 1138 | 205R14;215R14;P265/50R14;P225/55R14; P245/60R14;P225/60R14;P225/70R14; P235/70R14;P225/75R14;750-14; | 7.75-15;205R15;215R15;P245/50R15;P215/60R15; P235/60R15;P165/65R15;P220/65R390P225/65R15; P215/70R15;P225/70R15;P205/75R15;P215/75R15; P245/50ZR16;P225/55R16;P235/55R16;P215/60ZR16: P225/60ZR16;P205/65R16;P235/45R17; | ||
| 1142 e | 225R14;265/60R14;P275/60R14;P245/70R14; | 855-15;215R15;225R15;230R15;235R15; P265/50R15;P275/50R15;P245/60R15P255/60R15; P265/60R15;P275/60R15;P255/65R15P235/70R15; P245/70R15;P225/75R15;P235/75R15;P225/80R15; P235/60R16;P245/60R16;225/70-16:235/55-17; | ||
