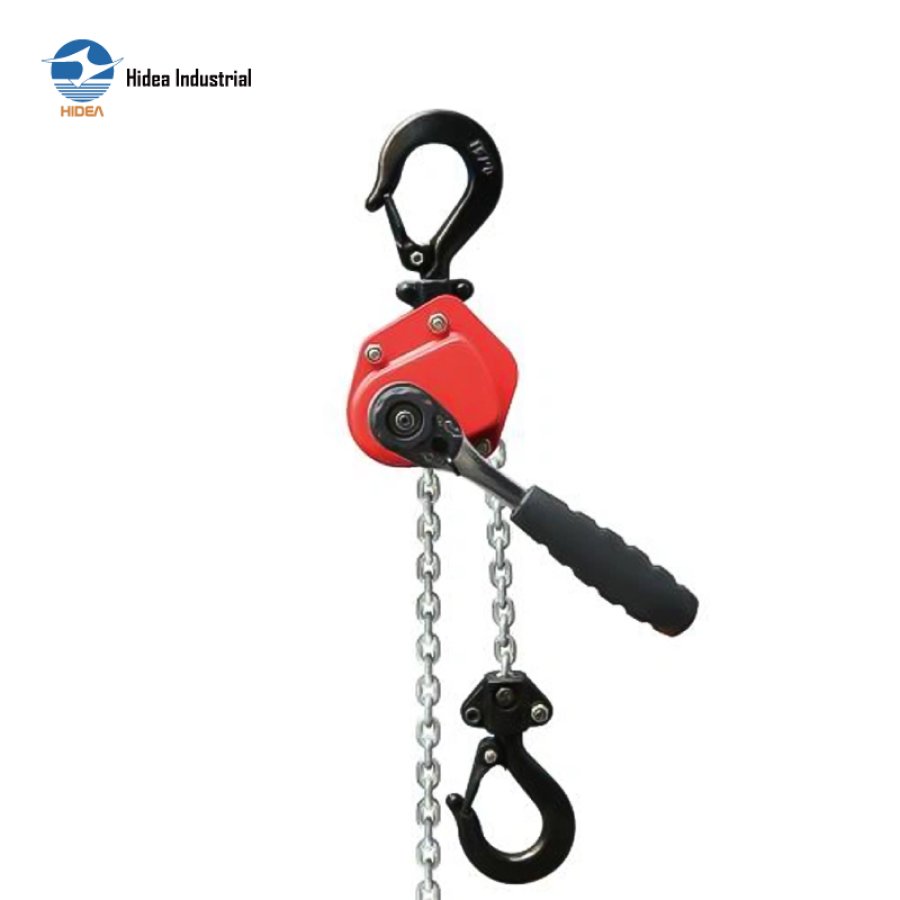

Mini lever block hoist is a kind of manual hoisting tool designed specially for light duty hoisting, from 0.25 tons to 0.75 tons
The Mini lever block hoist, suitable for light loading hoisting, has a rated load range of 0.25 tons to 0.75 tons, and weight less than 5Kgs, down to 2.2Kgs
The Mini lever block fully steel constructed with double pawl braking system, small & compact though but strong and safe enough for rated loads
The Mini lever block meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

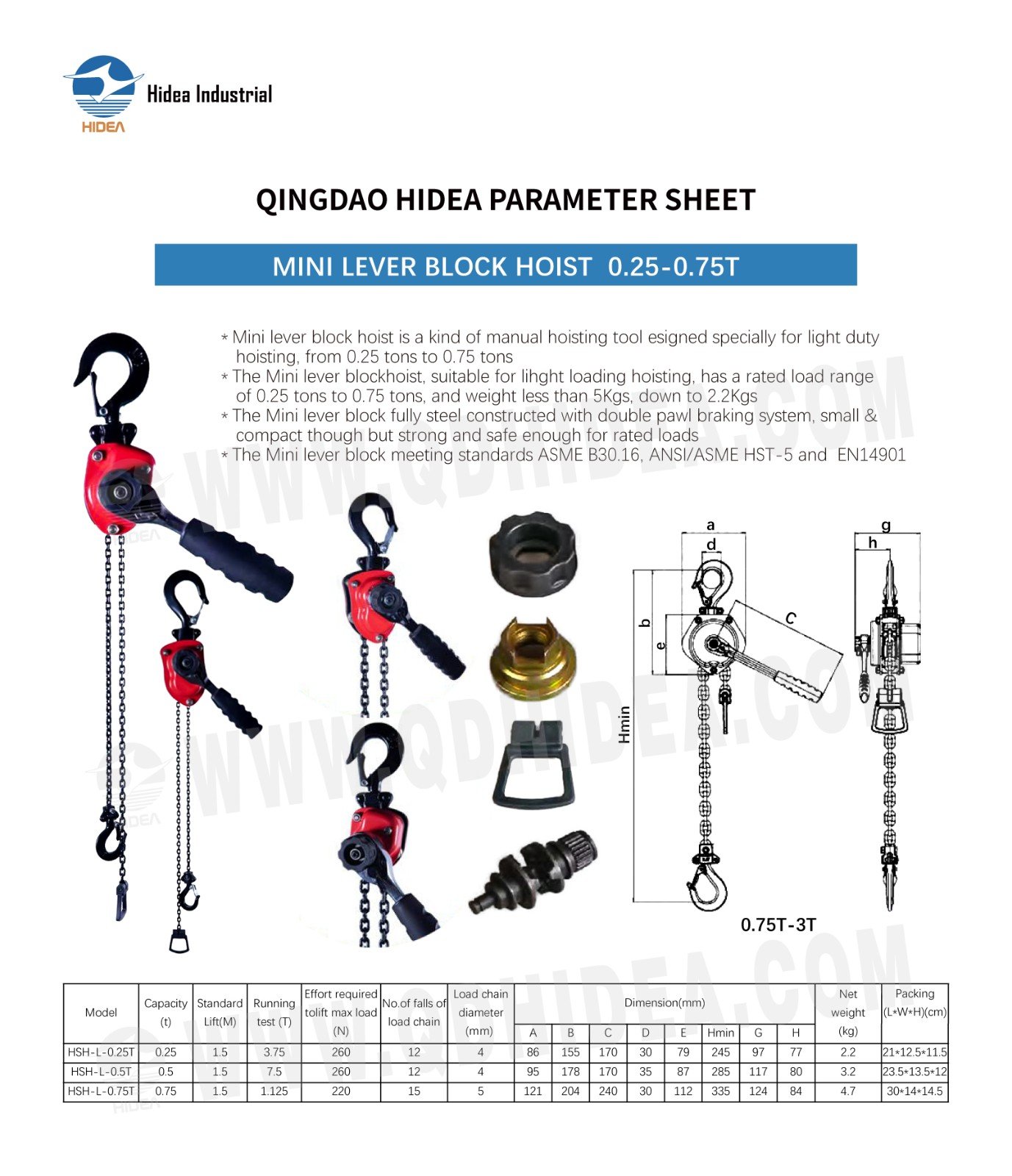

QINGDAO HIDEA PARAMETER SHEET FOR
MINI LEVER BLOCK HOIST 0.25-0.75T
| Model | Capacity (t) | Standard Lift(M) | Running test(T) | Effort required tolift max load (N) | No.of falls of load chain | Load chain diameter (mm) | Dimension(mm) | Net weight (kg) | Packing (L*W*H)(cm) | ||||||||||
| A | B | C | D | E | Hmin | G | H | ||||||||||||
| HSH-L-0.25T | 0.25 | 1.5 | 3.75 | 260 | 12 | 4 | 86 | 155 | 170 | 30 | 79 | 245 | 97 | 77 | 2.2 | 21*12.5*11.5 | |||
| HSH-L-0.5T | 0.5 | 1.5 | 7.5 | 260 | 12 | 4 | 95 | 178 | 170 | 35 | 87 | 285 | 117 | 80 | 3.2 | 23.5*13.5*12 | |||
| HSH-L-0.75T | 0.75 | 1.5 | 1.125 | 220 | 15 | 5 | 121 | 204 | 240 | 30 | 112 | 335 | 124 | 84 | 4.7 | 30*14*14.5 | |||
