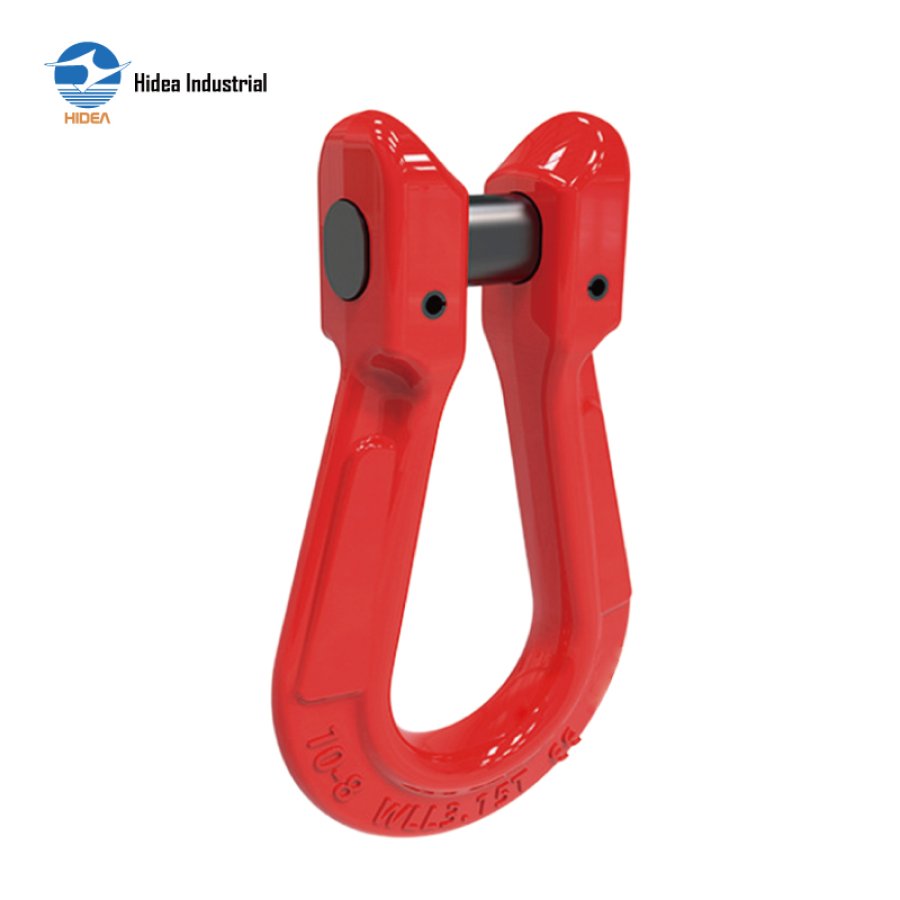

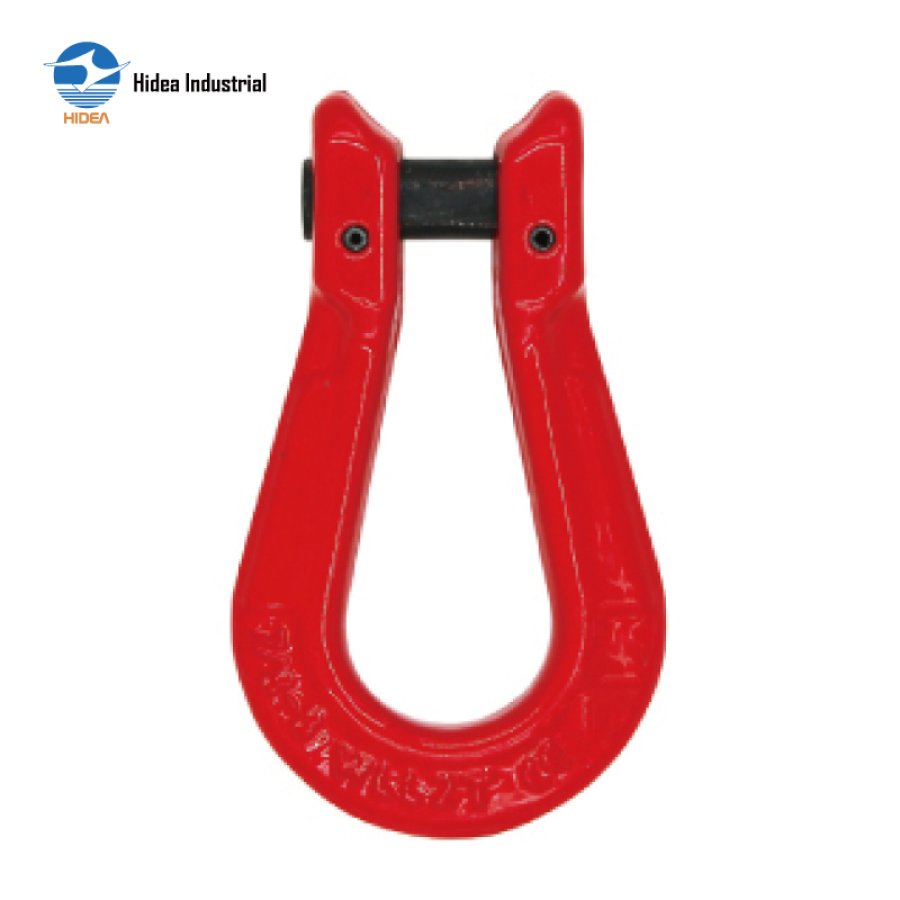

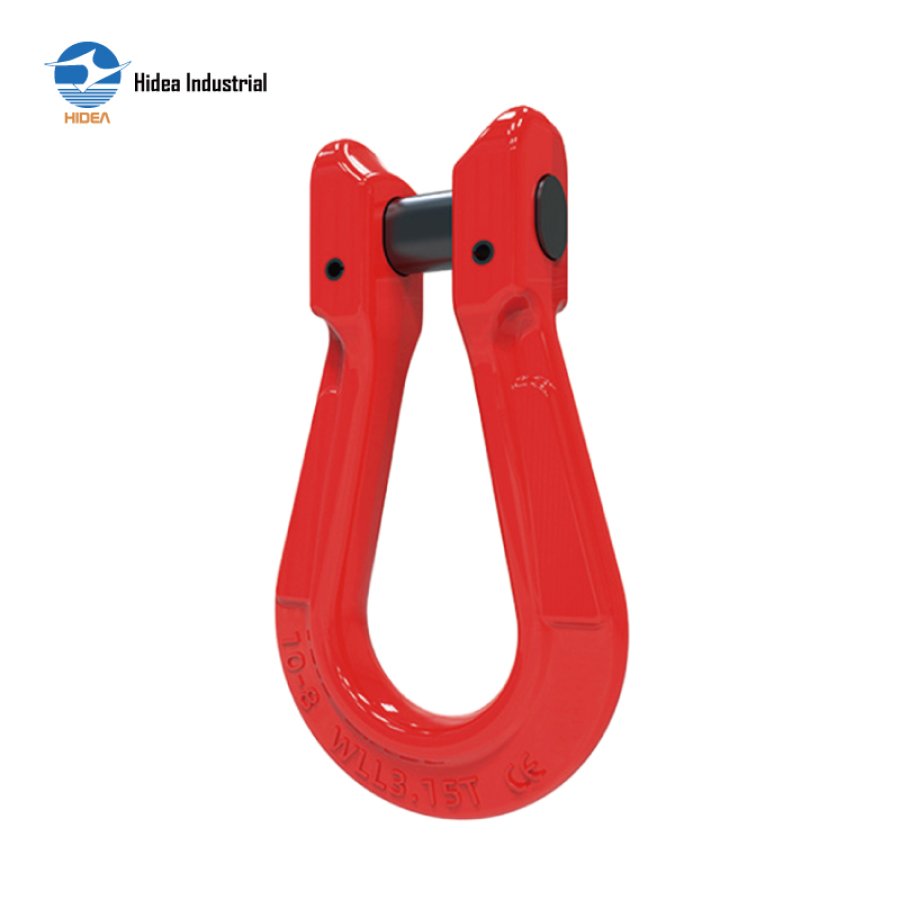

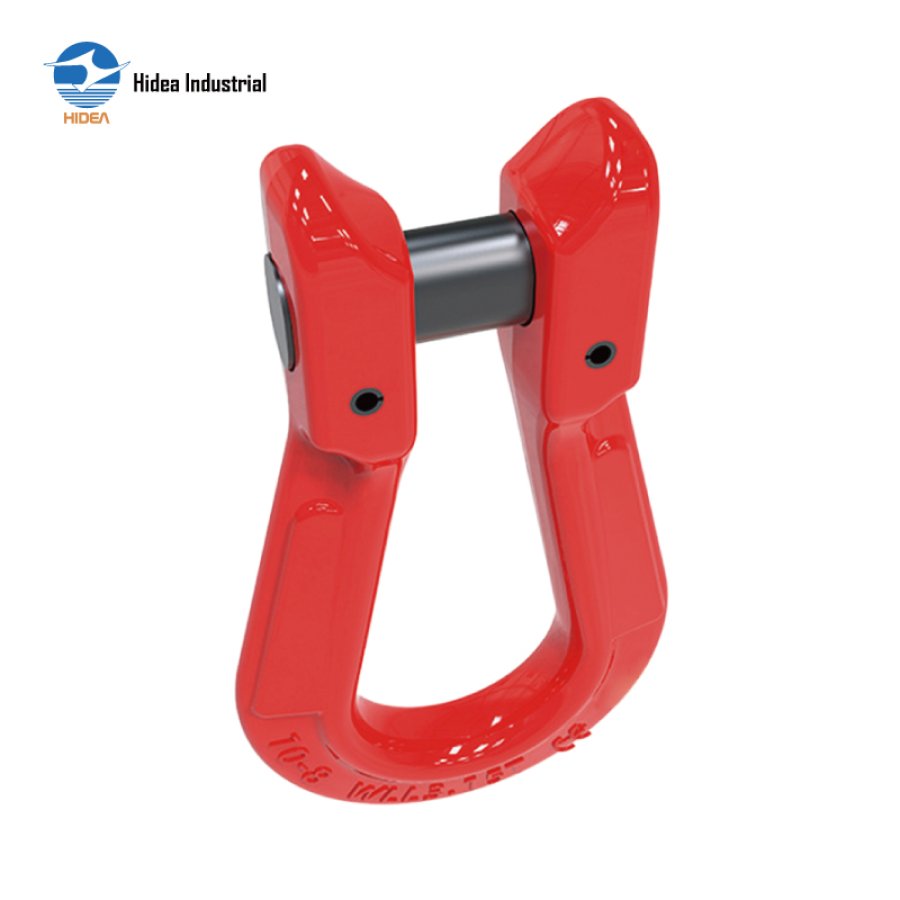

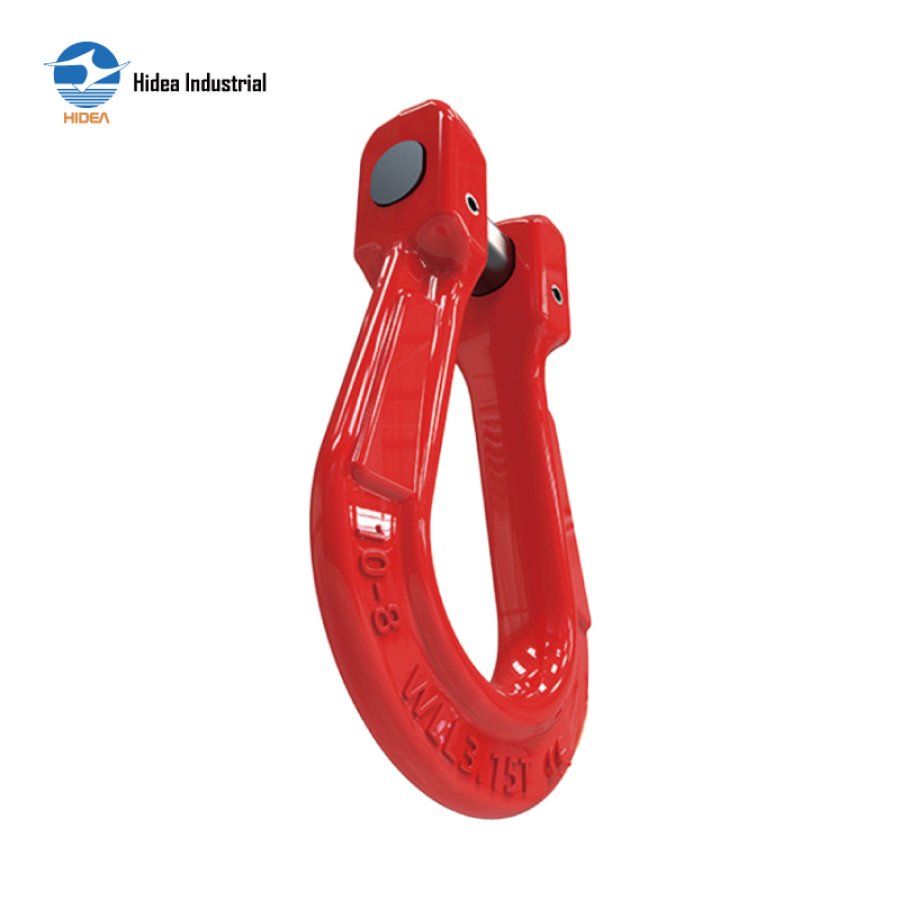

Hidea Grade G80 Long Shape Omega Link: Premium Steel Chain for Heavy-Duty Lifting

G80 LONG SHAPE OMEGA LINK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test

Inquire Now

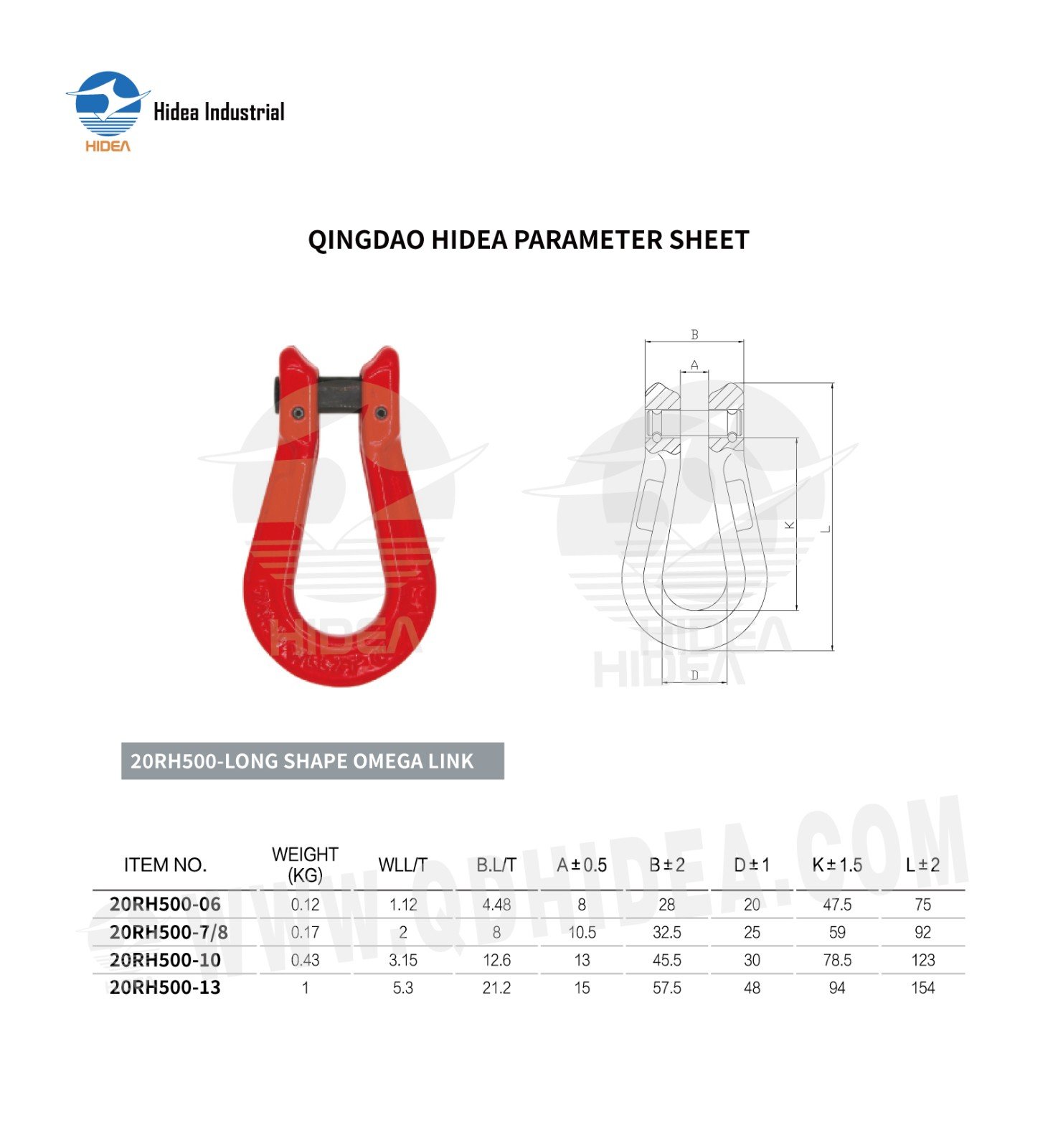

QINGDAO HIDEA PARAMETER SHEET FOR

20RH500-LONG SHAPE OMEGA LINK

ITEM NO.	WEIGHT (KG)	WLL/T	B.L/T	A±0.5	B±2	D±1	K±1.5	L±2
20RH500-06	0.12	1.12	4.48	8	28	20	47.5	75
20RH500-7/8	0.17	2	8	10.5	32.5	25	59	92
20RH500-10	0.43	3.15	12.6	13	45.5	30	78.5	123
20RH500-13	1	5.3	21.2	15	57.5	48	94	154
