Hidea Galvanized Large Bow Shackles: Versatile and Built to Last

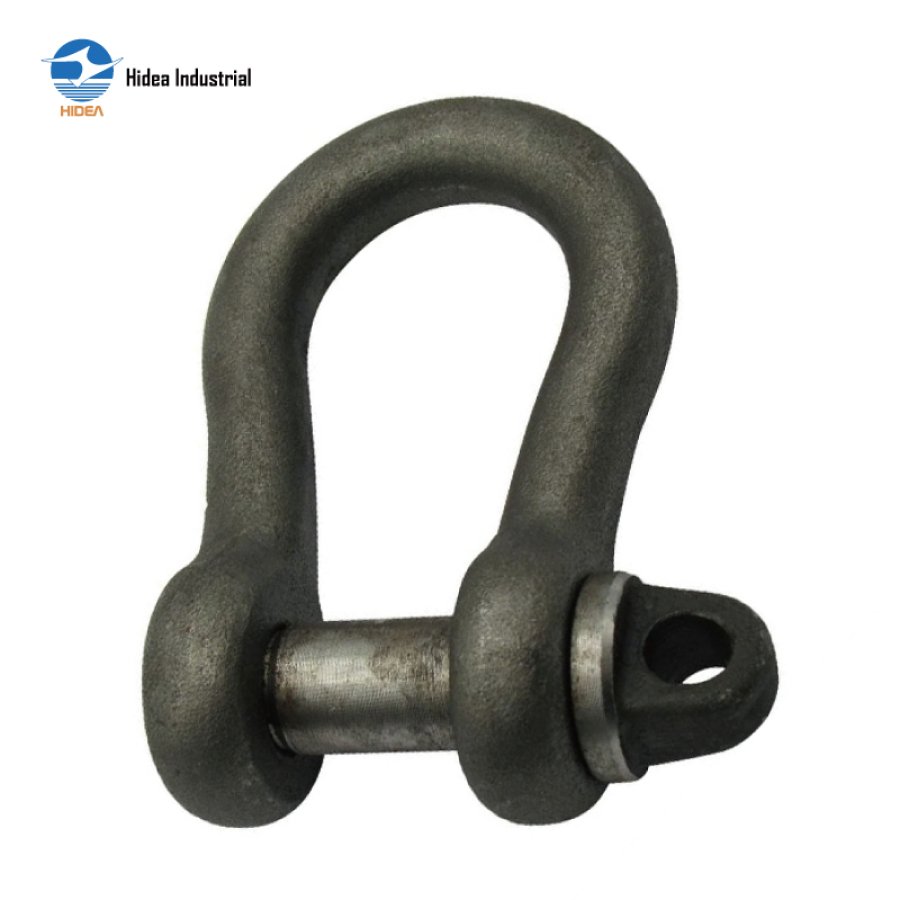

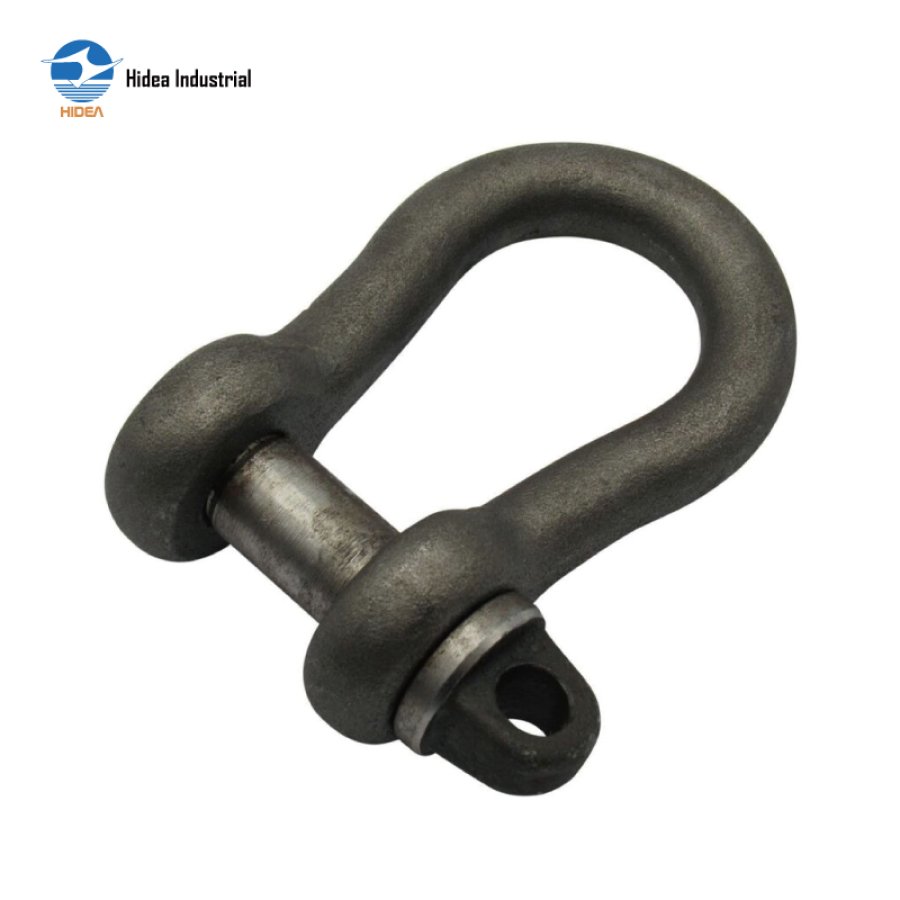

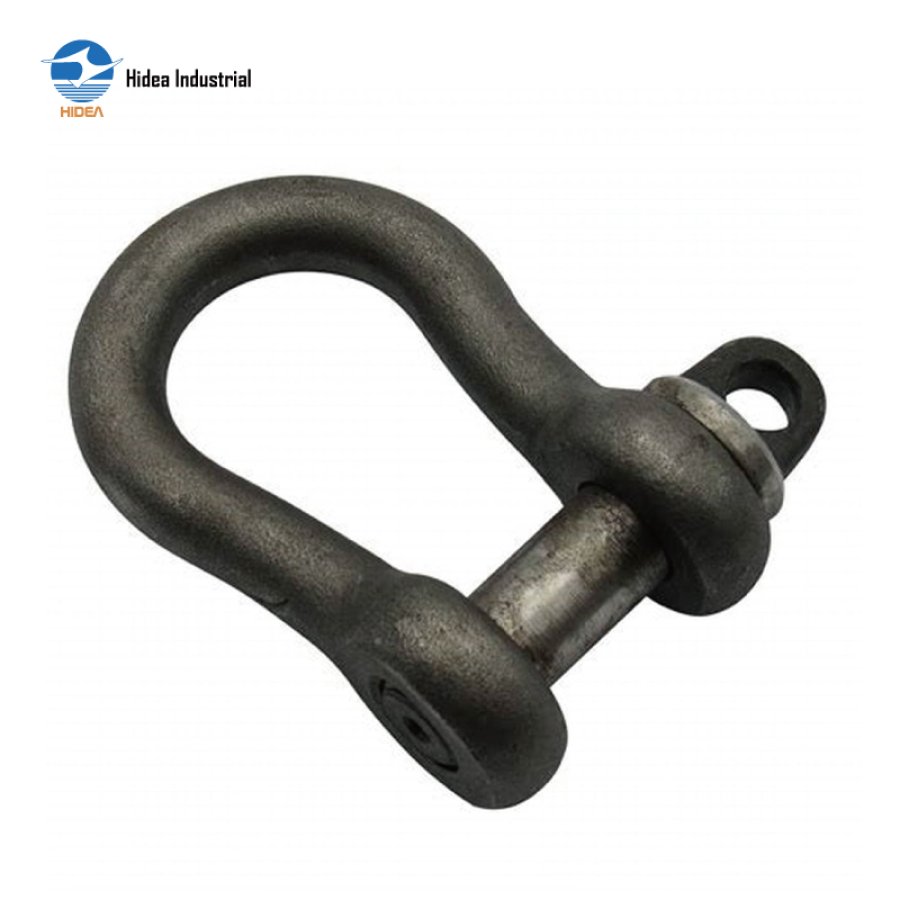

LARGE BOW BS3032 SHACKLE

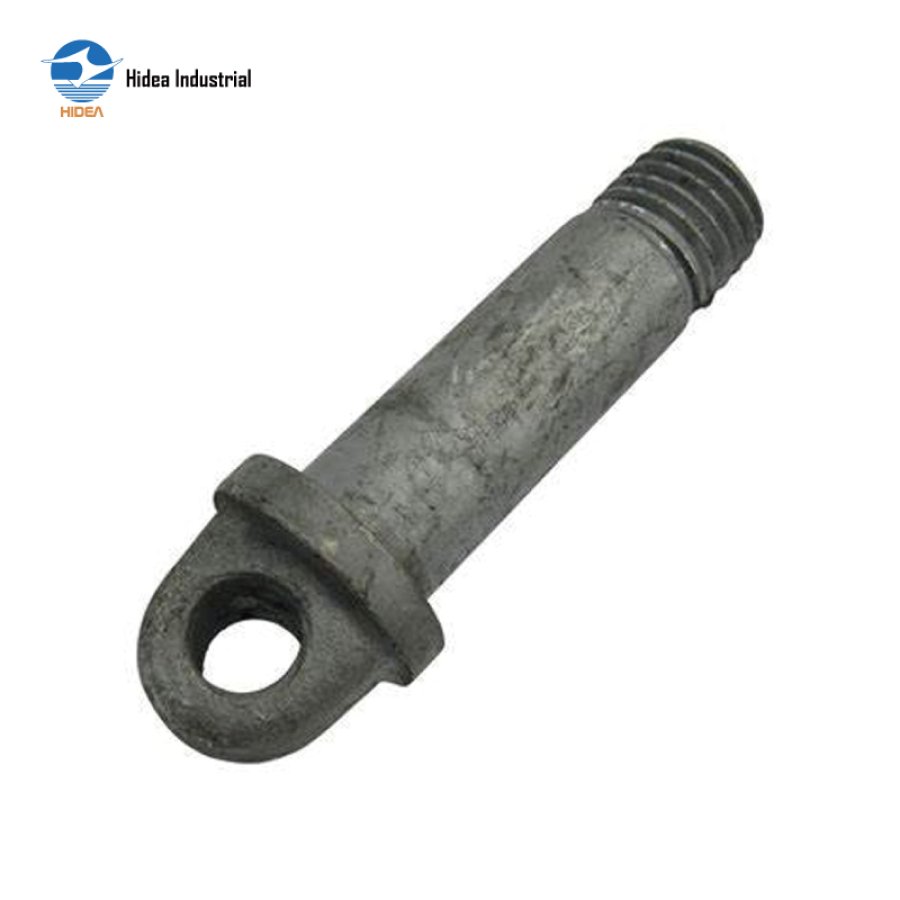

Material: body AND pin high tensile steel
Forged, quenched & tempered
Safety factor 6:1 & certificates available
Standard BS3032:1958
Surface Self-colored or at request

Inquire Now

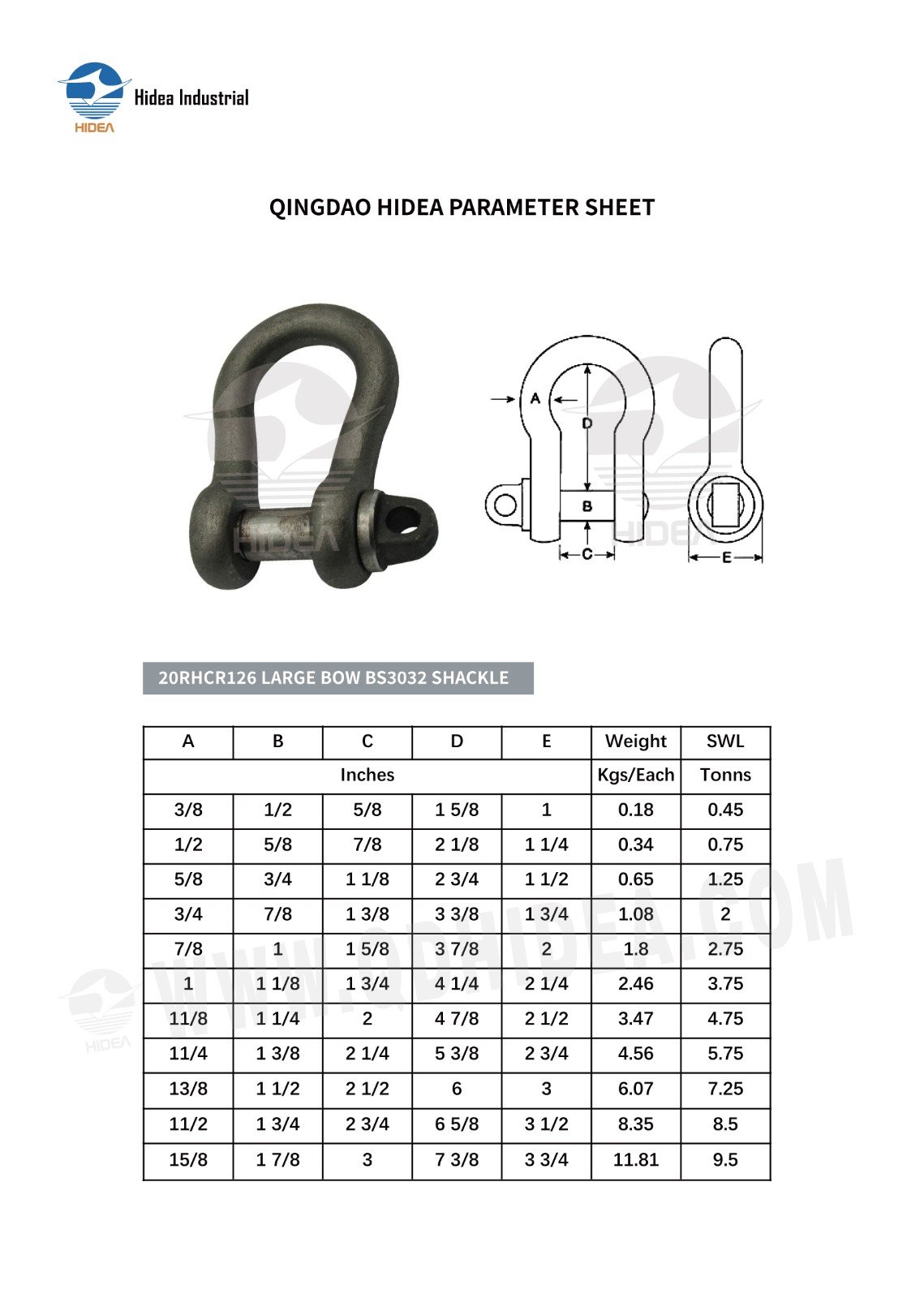

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR126 LARGE BOW BS3032 SHACKLE

A	B	C	D	E	Weight	SWL
Inches					Kgs/Each	Tonns
3/8	1/2	5/8	15/8	1	0.18	0.45
1/2	5/8	7/8	21/8	11/4	0.34	0.75
5/8	3/4	11/8	23/4	11/2	0.65	1.25
3/4	7/8	13/8	33/8	13/4	1.08	2
7/8	1	15/8	37/8	2	1.8	2.75
1	11/8	13/4	41/4	21/4	2.46	3.75
11/8	11/4	2	47/8	21/2	3.47	4.75
11/4	13/8	21/4	53/8	23/4	4.56	5.75
13/8	11/2	21/2	6	3	6.07	7.25
11/2	13/4	23/4	65/8	31/2	8.35	8.5
15/8	17/8	3	73/8	33/4	11.81	9.5
