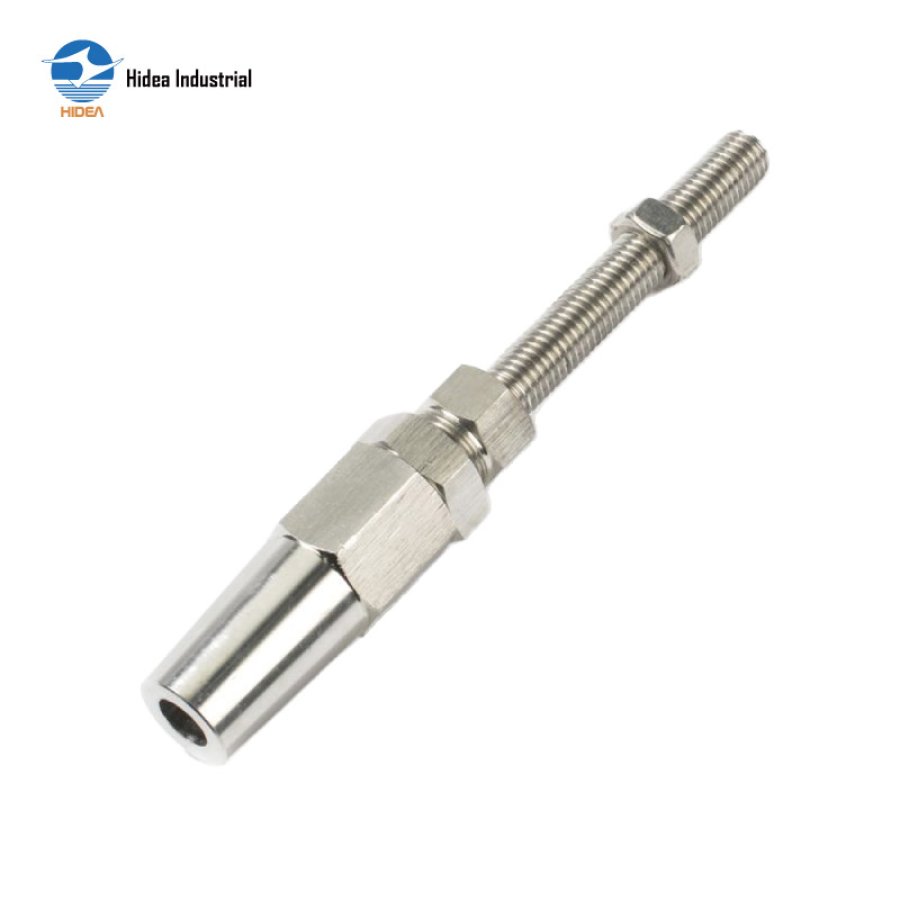

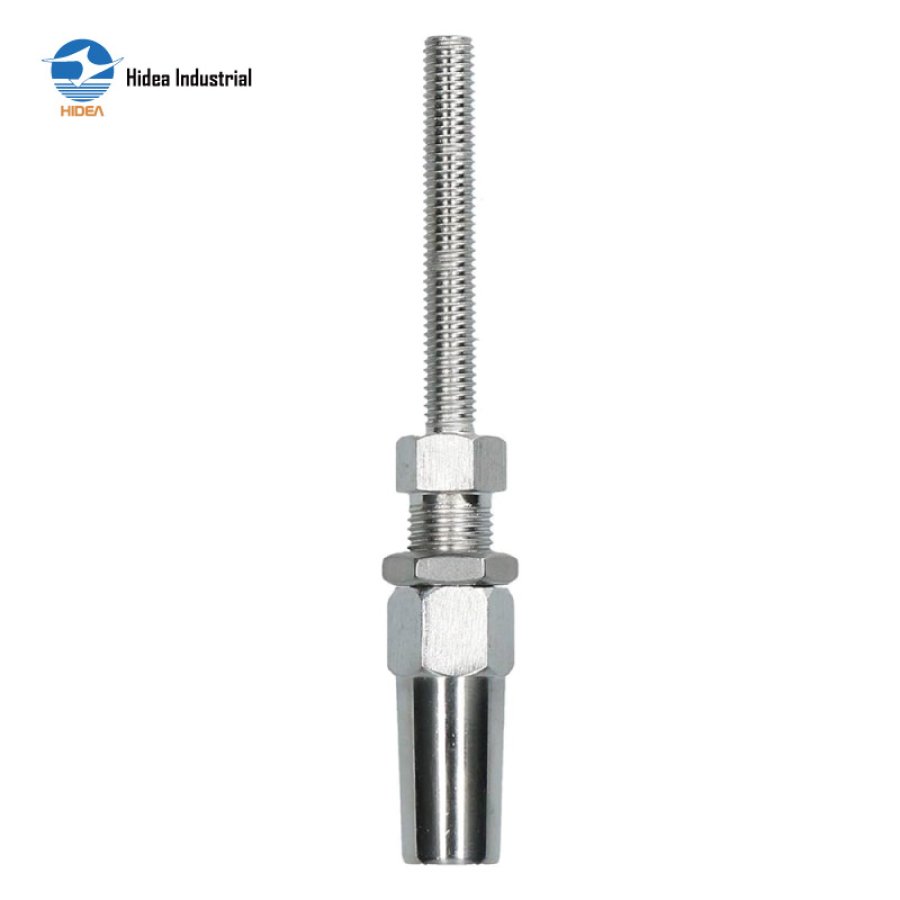

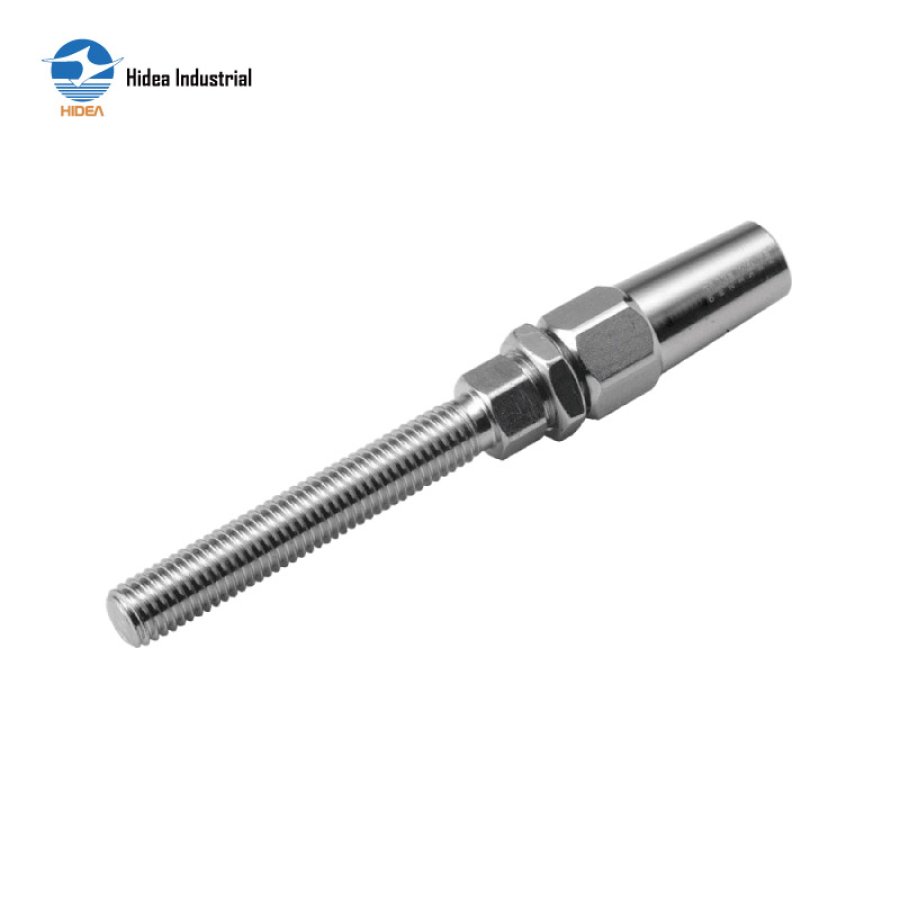

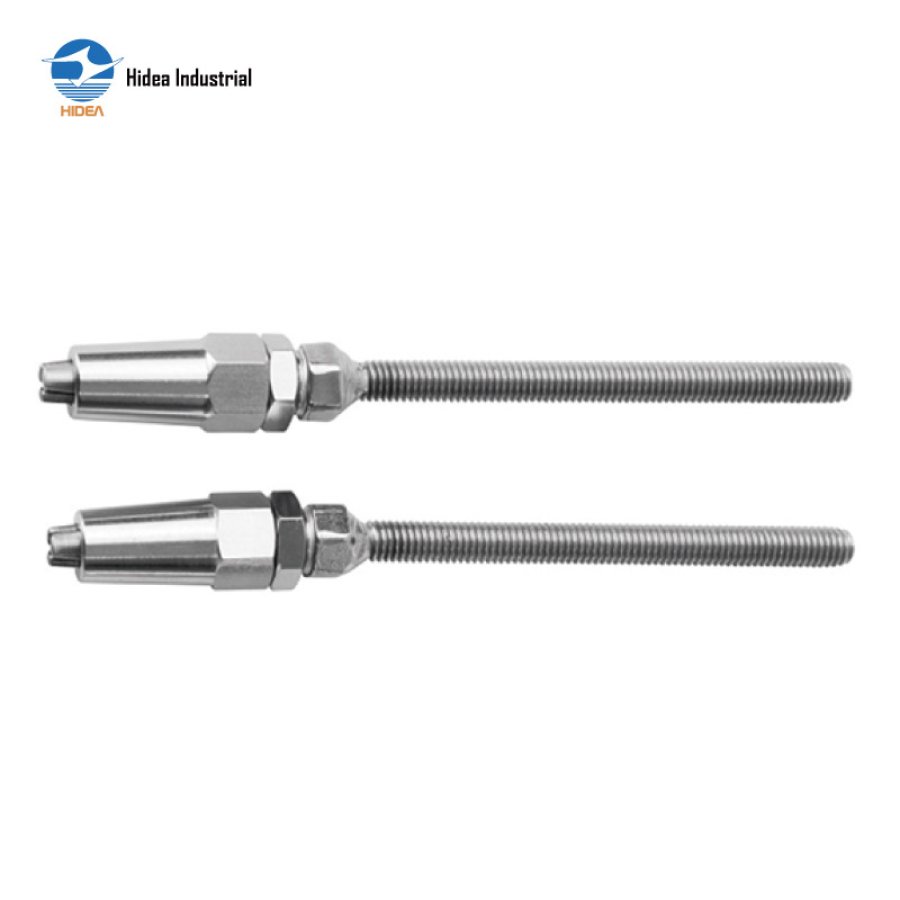

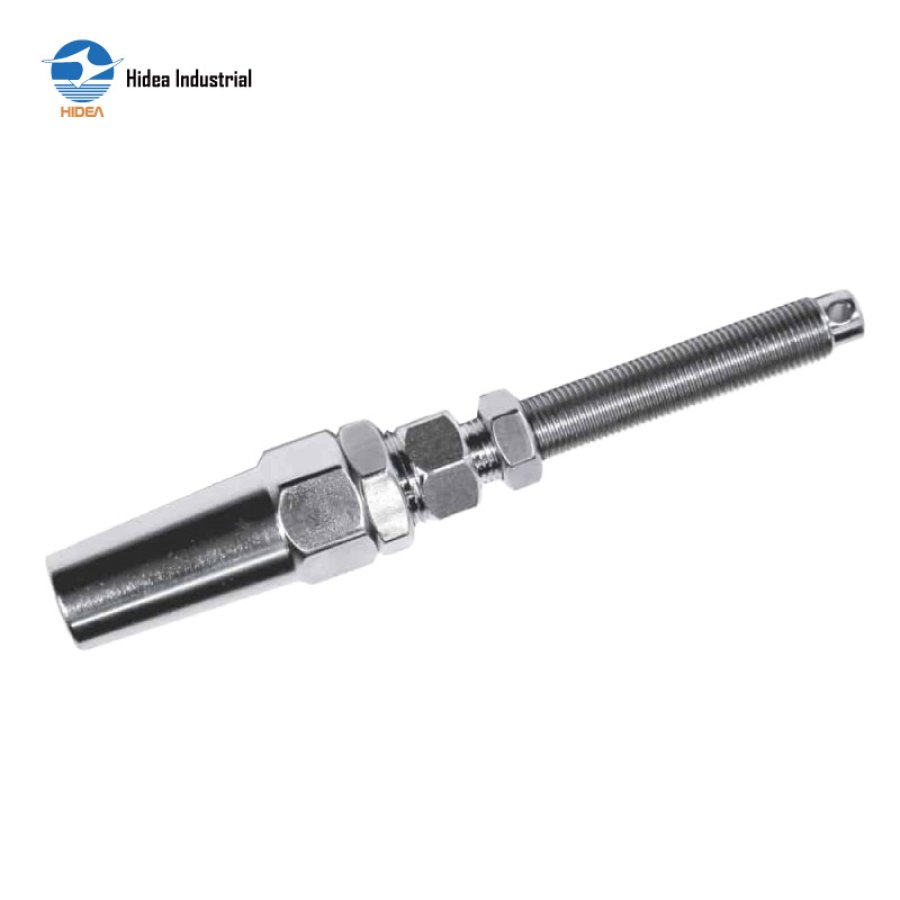

HIDEA Swageless Stud Terminal – Corrosion Resistance & Easy-To-Use Cable Railing Fittings

SWAGELESS STUD THREAD TERMINAL

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

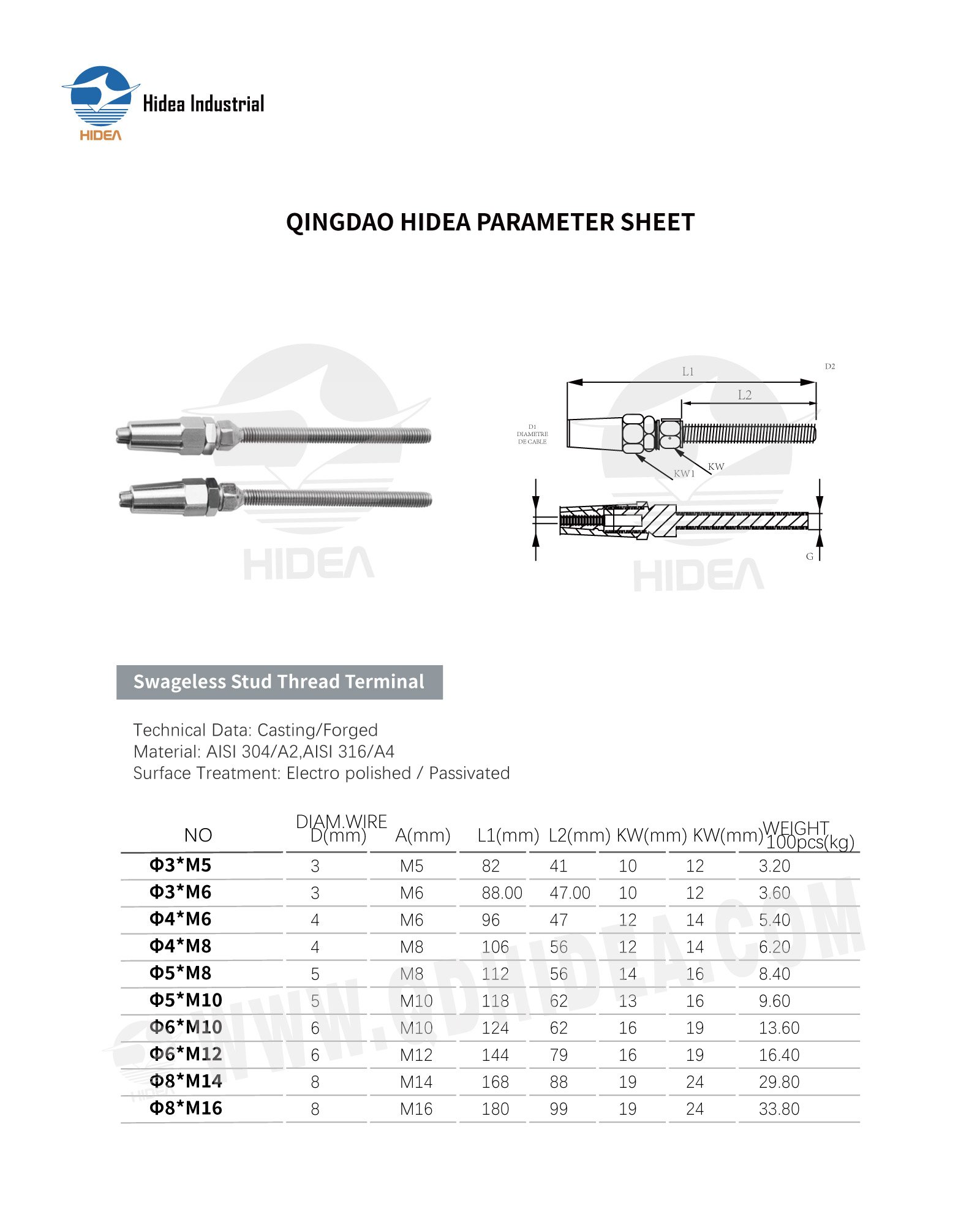

QINGDAO HIDEA PARAMETER SHEET FOR

Swageless Stud Thread Terminal

NO	DIAM WIRE D(mm) A(mm)		L1(mm)	L2(mm)	KW(mm)	KW(mm)	WEIGHT10Opcs(kg)
*Ф3M5**	3	M5	82	41	10	12	3.20
*Ф3M6**	3	M6	88.00	47.00	10	12	3.60
*Ф4M6**	4	M6	96	47	12	14	5.40
*Ф4M8**	4	M8	106	56	12	14	6.20
*Ф5M8**	5	M8	112	56	14	16	8.40
*Ф5M10**	5	M10	118	62	13	16	9.60
*Ф6M10**	6	M10	124	62	16	19	13.60
*Ф6M12**	6	M12	144	79	16	19	16.40
*Ф8M14**	8	M14	168	88	19	24	29.80
*Ф8M16**	8	M16	180	99	19	24	33.80
