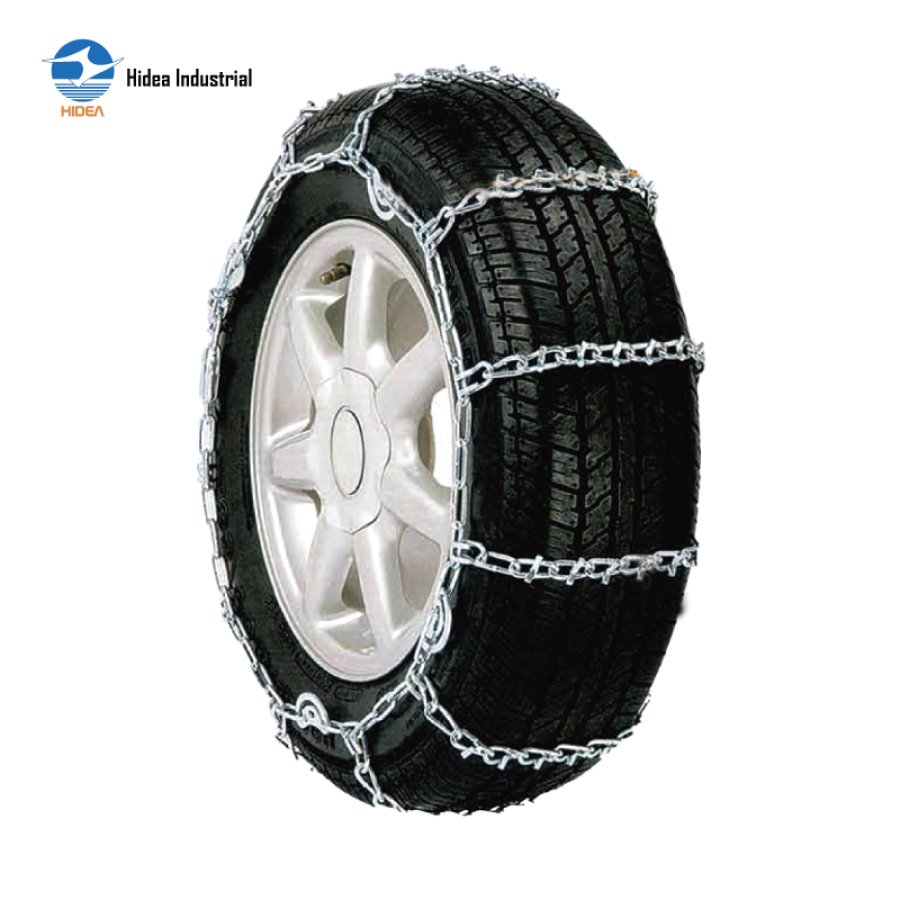

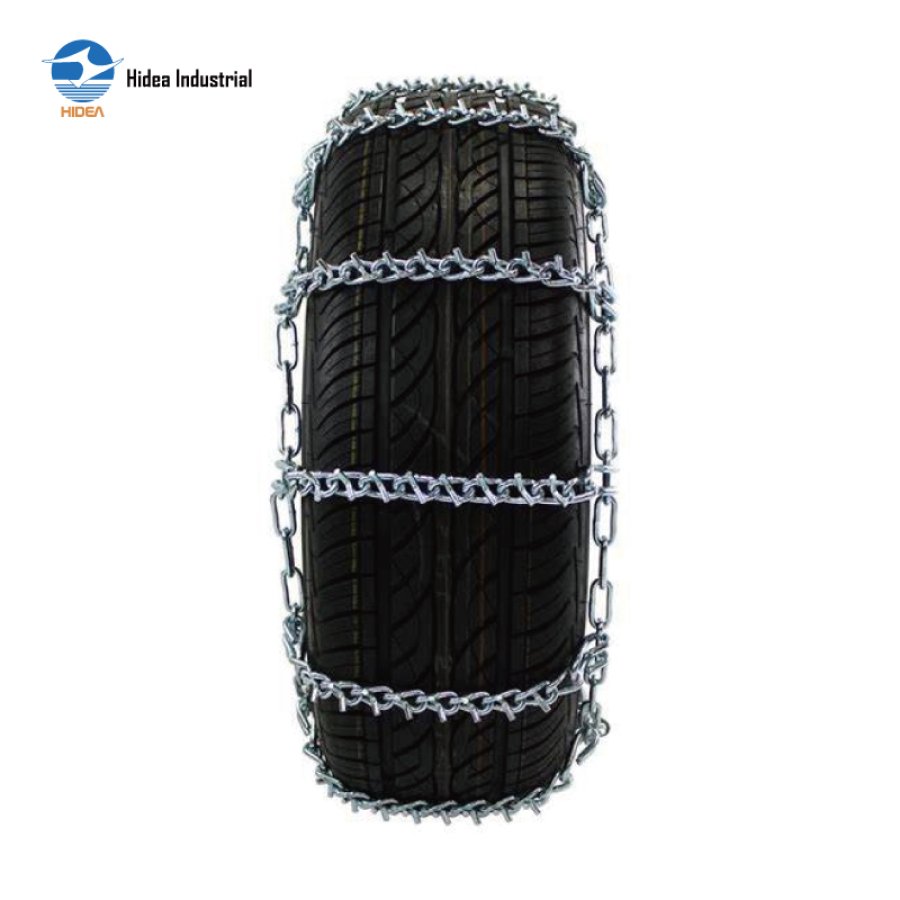

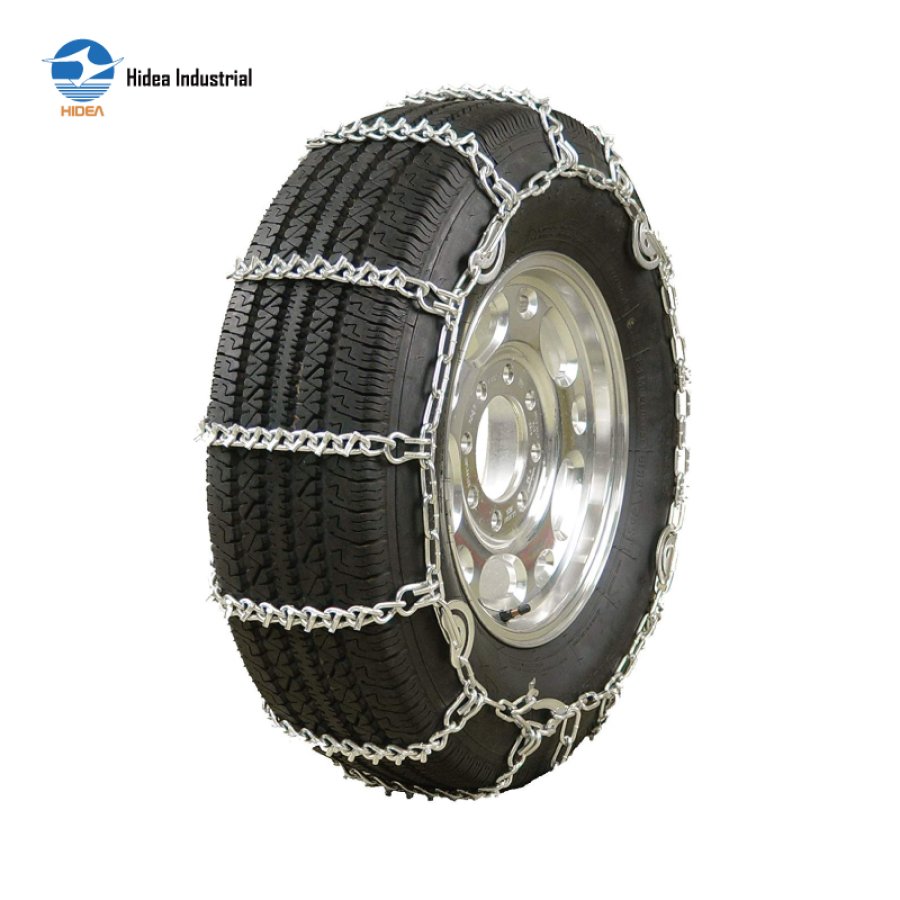

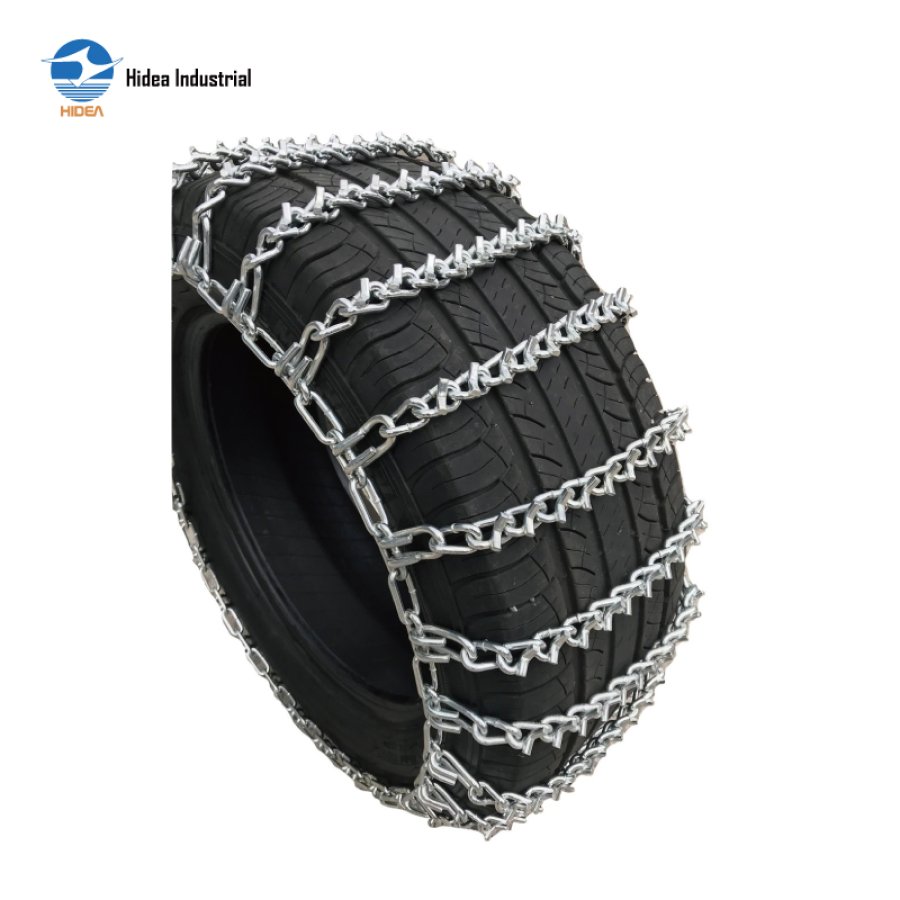

The series multi-purpose snow chains with V-Bar for excellent funcationality; well meets desired anti-slippery purposes

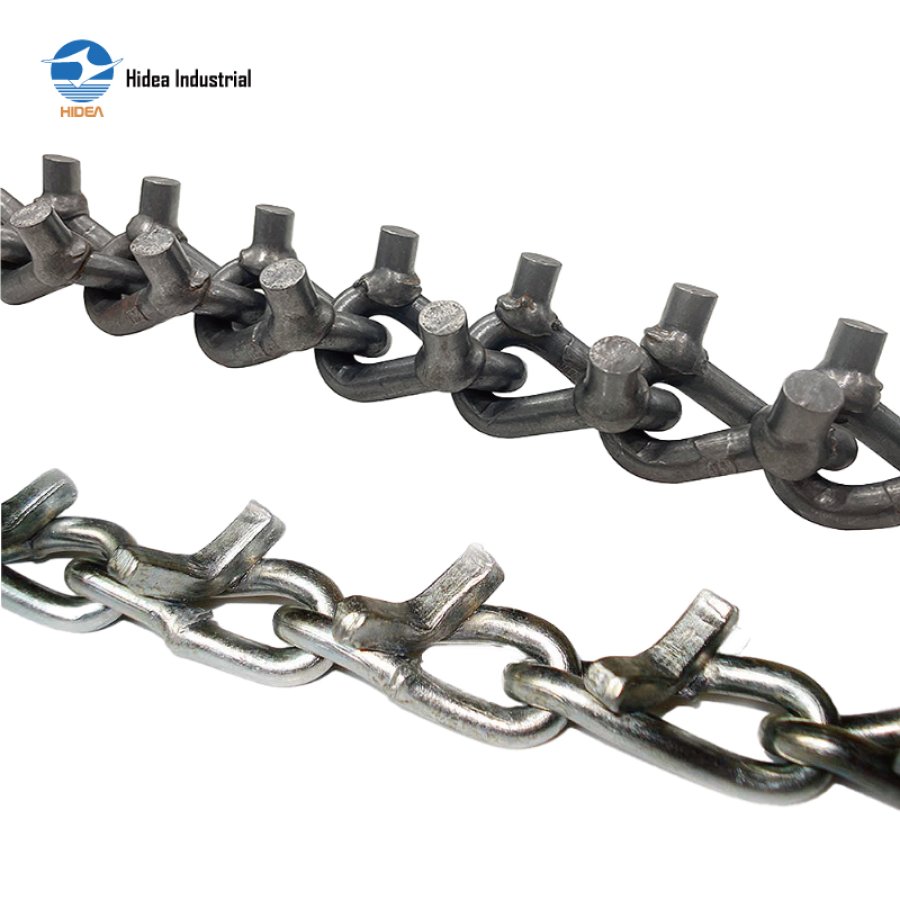

V-Bar designs on twisted chains links to ensure excellent gripping force, the CAM parts make tightening much easier
Intermediate frequency quenched & carburized to ensure hardness and anti-wearing
Working safely at low temperature of minus 40 degrees Celsius
Also AVAILABLE for Net Type & Diamond Type patterns
Meeting and complying with NORMS of US NACM - 92805 (TC), NORMS OF European EN 16662-1, ÖNORM and TÜV
QINGDAO HIDEA PARAMETER SHEET FOR
18 SERIES V-BAR TYPE MULTI-PURPOSE SNOW CHAINS
| 4.5MM CROSS CHAIN | ||||
| ITEM NO | TIRE SIZE | |||
| 12"&13" | 14" | 15"&OTHERS | ||
| 1810 | 145R12;155R12;P165/70R12:P145/80R12; 135R13;P155/65R13;P145/70R13;P135/80R13 | |||
| 1814 | 6.00-12;145R12;155R12;P175/70R12;P155/80R12; 145R13;155R13;P165/60R13;P165/B5R13; P175/60R13;P185/65R13;P155/70R13:P165/70R13 P165/75R13;P145/80R13 P155/80R13 | 135R14 145R14;P165/60R14;P155/65R14;P145/70R14; | 135R15 | |
| 1818 | 165R13;P185/60R13P165/70R13:P175/70R13; P175/75R13;P165/80R13:560-13: | 6.00-14LT;155R14;P175/60R14;P185/60R14: R165/65R14;P185/55R14;P175/65R14:P155/70R14 P165/70R14;P165/75R14;P165/80R14: | P165/65R15;145R15:P145/70R16:P115/70R15; P165/70R360;P165/70R365;P145/80R15; | |
| 1822 | P175/80R13 | 175R14;P195/55R14;P175/75R14 P185/75R14;P175/70R14;185/65-14: | 5.60-15;155R15;165R15;185/55R15;P195/55R15; P185/60R15;P195/60R15:P185/65R15:P165/70R15 P175/70R15;P175/75R15,P165/80R15;P155/80R15 | |
| 1826 | 175R13:185R13;195/60R13;P205/60R13; P215/60R13;P195/65R13;P185/70R13:P195/770R13; P185/75R13;P195/75R13;P175/80R13P185/80R13 | P205/55R14;P195/60R14;P185/85R365 P195/65R14;P175/70R14;P185/70R14; | P220/45R15;P195/50R15;P205/50R15 P185/60R15 P185/65R15;P185/65R390;P175/70R15 | |
| 1830 | 195R13;P125/65R13;P205/70R1;:P185/85R13 600-13; | 7.00-14LT;185R14;P215/60R14; P225/60R14;P205/65R14;P215/65R14; P195/70R14;P195/75R14;P185/80R14; 205/60-14; | 175R15;P225/50R15;P190/65R15;P190/65R390; P195/65R15:P205/65R15;P185/70R15;P185/70R365; P195/70R15;P185/75R15,P205/60R15;P200/60R390 | |
| 1834 | P235/50R13;P245/50R13;P235/60R13 | 195R14;205R14;P225/65R14; P235/60R14;P205/70R14;P215/70R14; P205/75R14;P215/75R14;650-14; | 185R15;195R15;P215/60R15P225/60R15;P205/65R15; P205/70R15;P195/75R15;P205/75R15;P195/80R15; P205/50R16;P205/56R16;P215/55R16;P205/60ZR16; P215/60ZR16; | |
| 1838 | 205R14;215R14;P265/50R14;P225/55R14; P245/60R14;P225/60R14;P225/70R14; P235/70R14;P225/75R14;750-14 | 7.75-15;205R15;215R15;P245/50R15;P215/60R15; P235/60R15:P165/65R15:P220/65R390;P225/65R15; P215/70R15;P225/70R15;P205/75R15;P215/75R15; P245/50ZR16;P225/55R16;P235/55R16;P215/60ZR16 P225/60ZR16;P205/65R16;P235/45R17; | ||
| 1842 | 225R14;265/60R14;P275/60R14;P245/70R14 | 8.55-15;215A15;225A15;230A15;235A15; P265/50R15;P275/50R15;P245/60R15;P255/60R15 P265/60R15;P275/60R15;P255/65R15;P235/70R15; P245/70R15;P225/75R15;P235/75R15;P225/80R15; P235/60R16:P245/60R16:225/70-16:235/55-17; | ||
