The German Type parallel grounding strand cable clamp, also known as frog style cable tensioner grip or parallel grounding cable adapter, is an electrical component used to connect parallel grounding cables or wires to other conductors or grounding components, designed to create a low resistance path for electrical current to flow safely into the ground, ensuring effective grounding of the electrical system

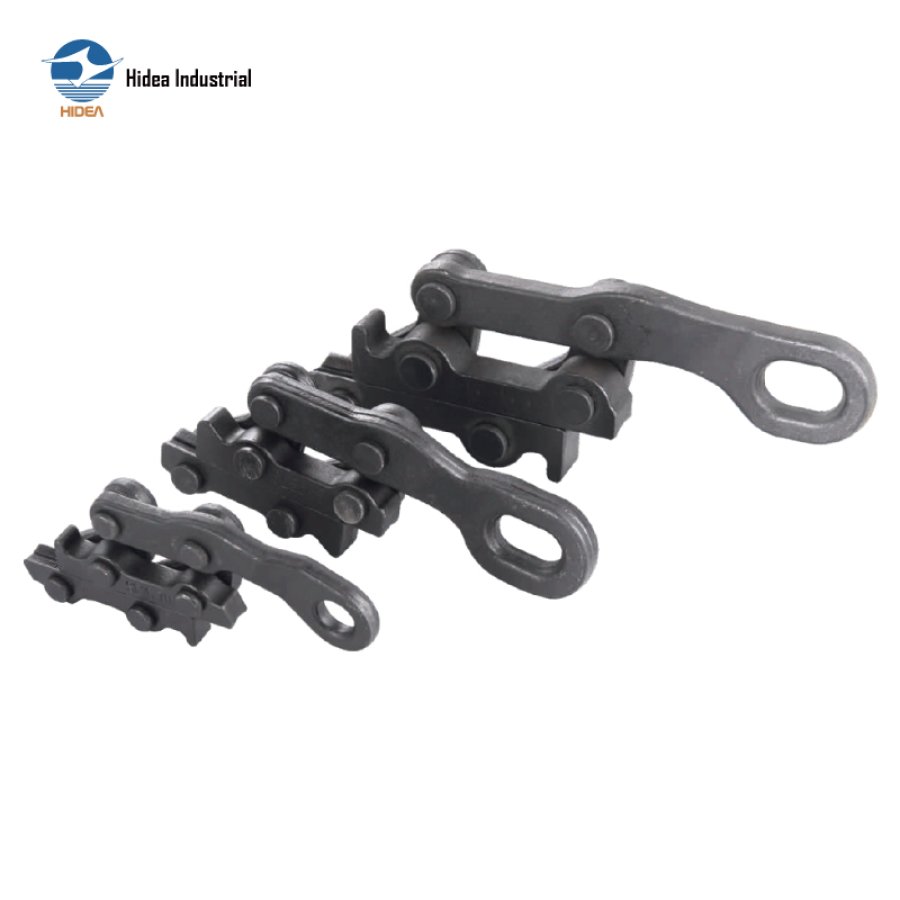

The German Type parallel grounding cable clamp are manufactured from high quality die forged steel and hardened properly; rated from 12kN up to 20kN, and with a strand cable application range of GJ16-70, GJ50-150 and GJ150-300
The German Type parallel grounding cable clamp is commonly used in industrial sites, public utility, and construction settings, where parallel strand cables grounding is required
The parallel grounding cable clamp meeting standards of and in conformity with IEC 60900:2004, DIN EN 50143 and other IEC and IEEE norms

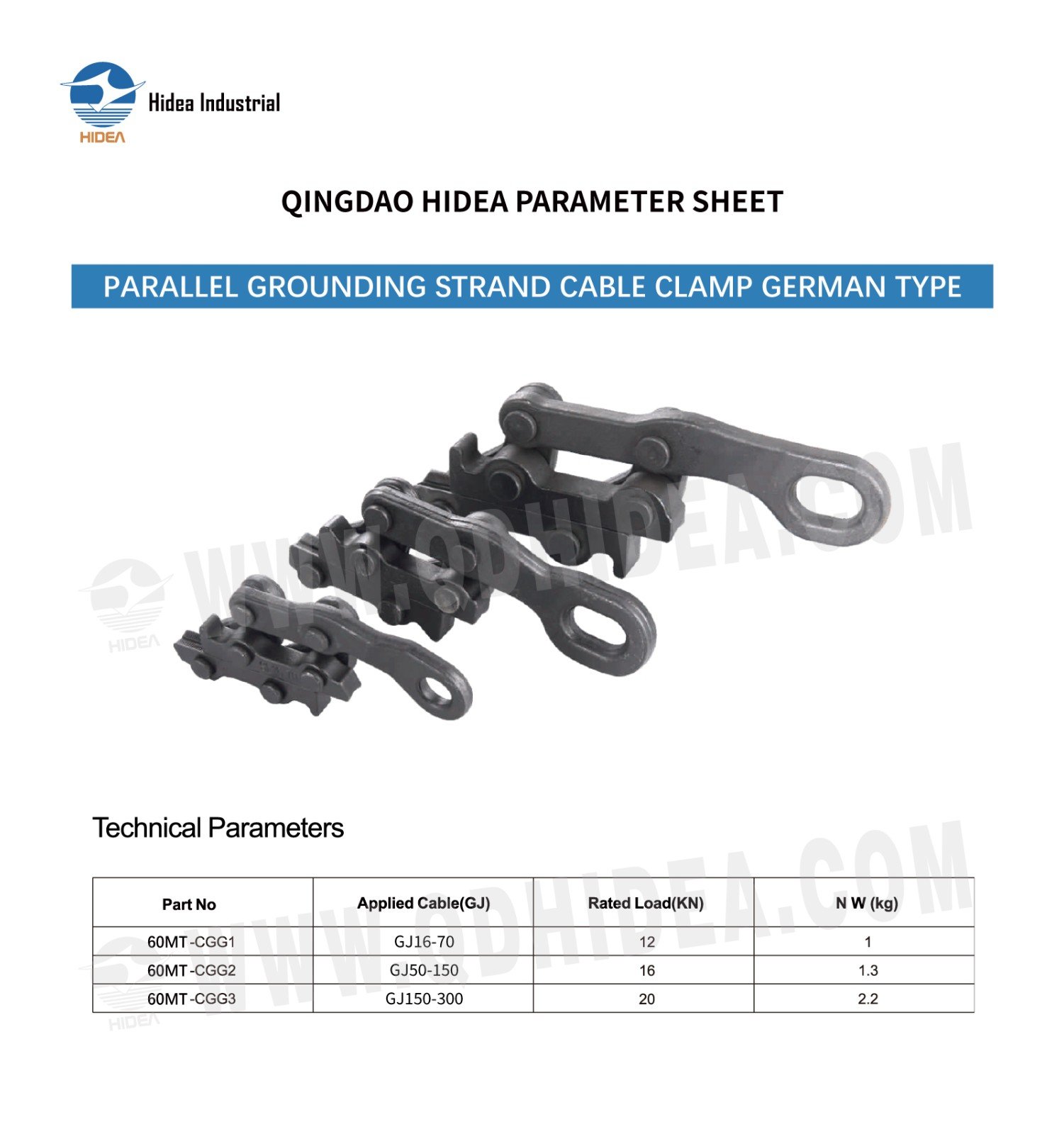

QINGDAO HIDEA PARAMETER SHEET FOR
PARALLEL GROUNDING STRAND CABLE CLAMP GERMAN TYPE
| Part No | Applied Cable(GJ) | Rated Load(KN) | NW(kg) |
| 60MT-CGG1 | GJ16-70 | 12 | 1 |
| 60MT-CGG2 | GJ50-150 | 16 | 1.3 |
| 60MT-CGG3 | GJ150-300 | 20 | 2.2 |
