HIDEA K10 Thimble with Link & Stub End: Strong & Durable Synthetic Rope Thimble

banner
Categories

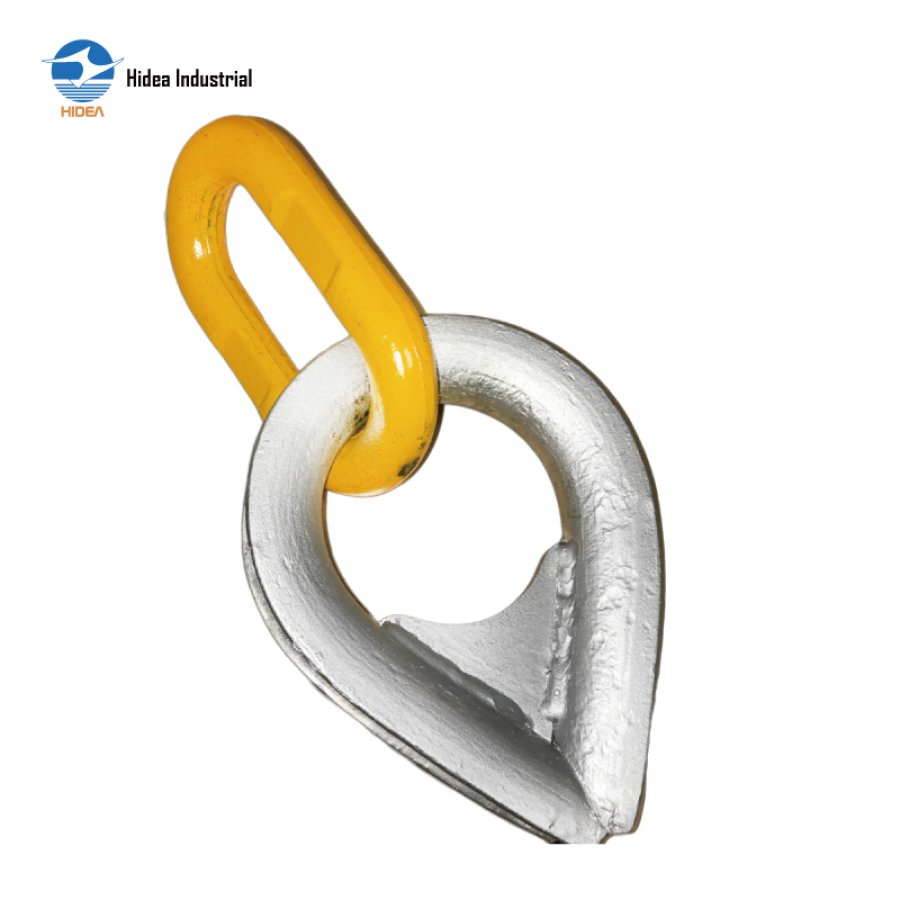

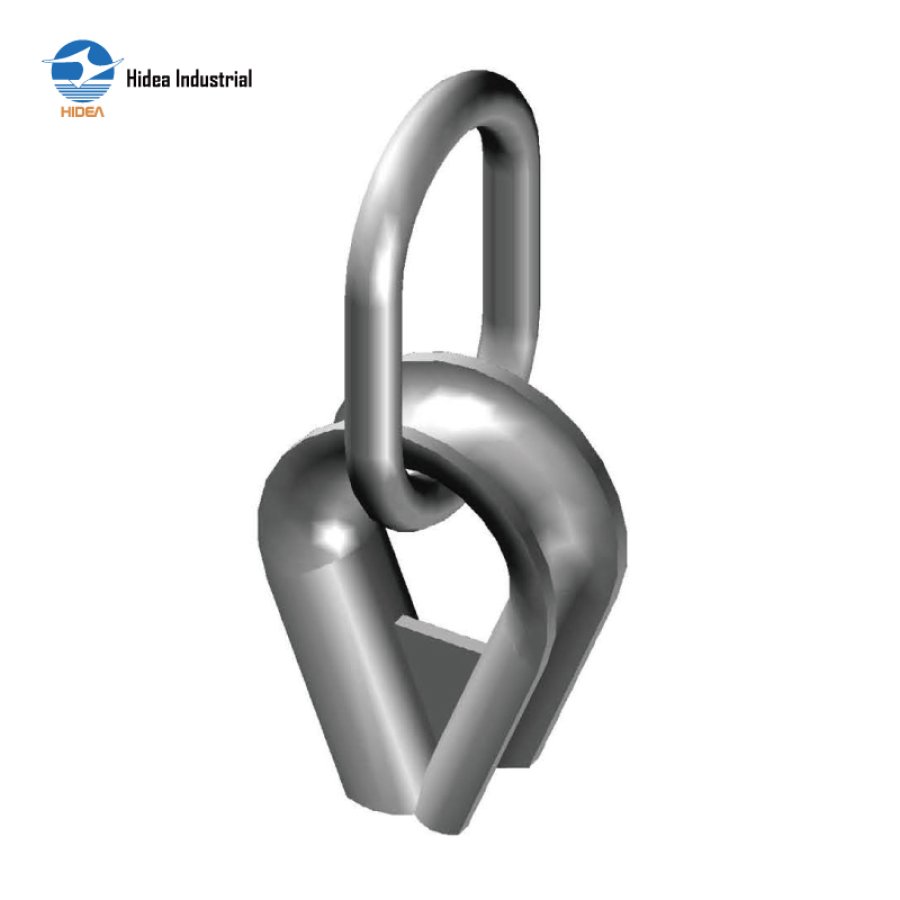

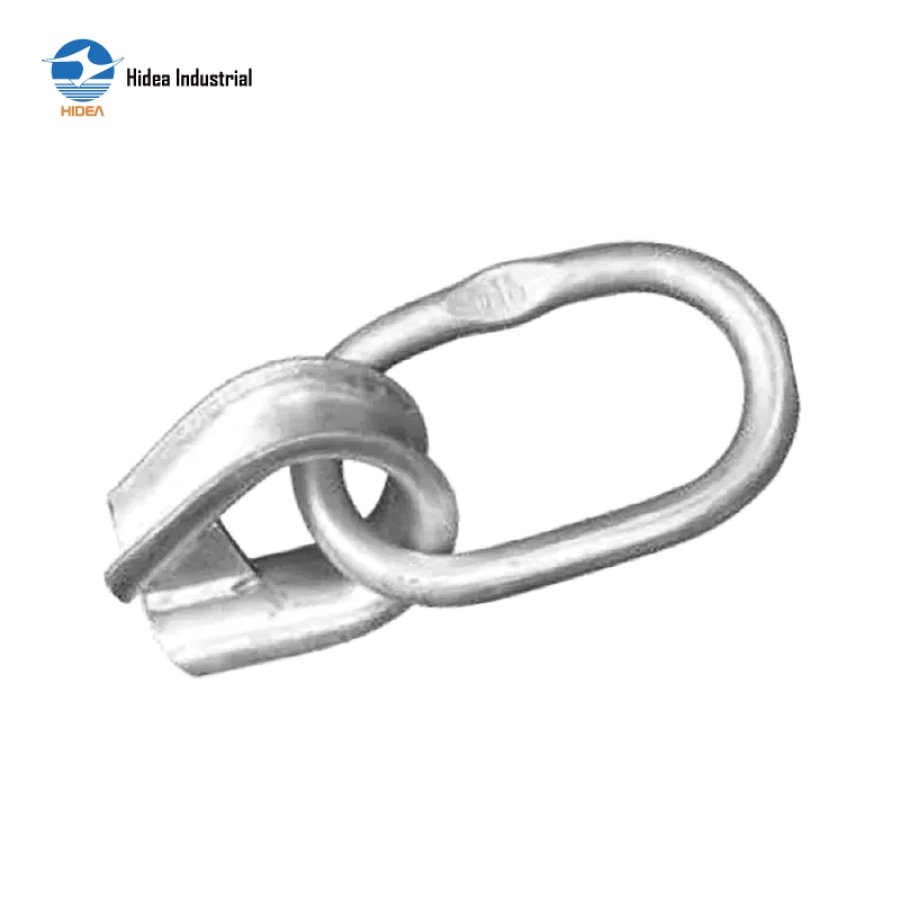

K10 SYNTHETIC ROPE THIMBLE WITH LINK

  • Material Mild Steel body & alloy steel ring

  • Stamped & Bent to shape, welded, Machined & polished

  • Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested

  • Temperature range -20°C up to +200°C

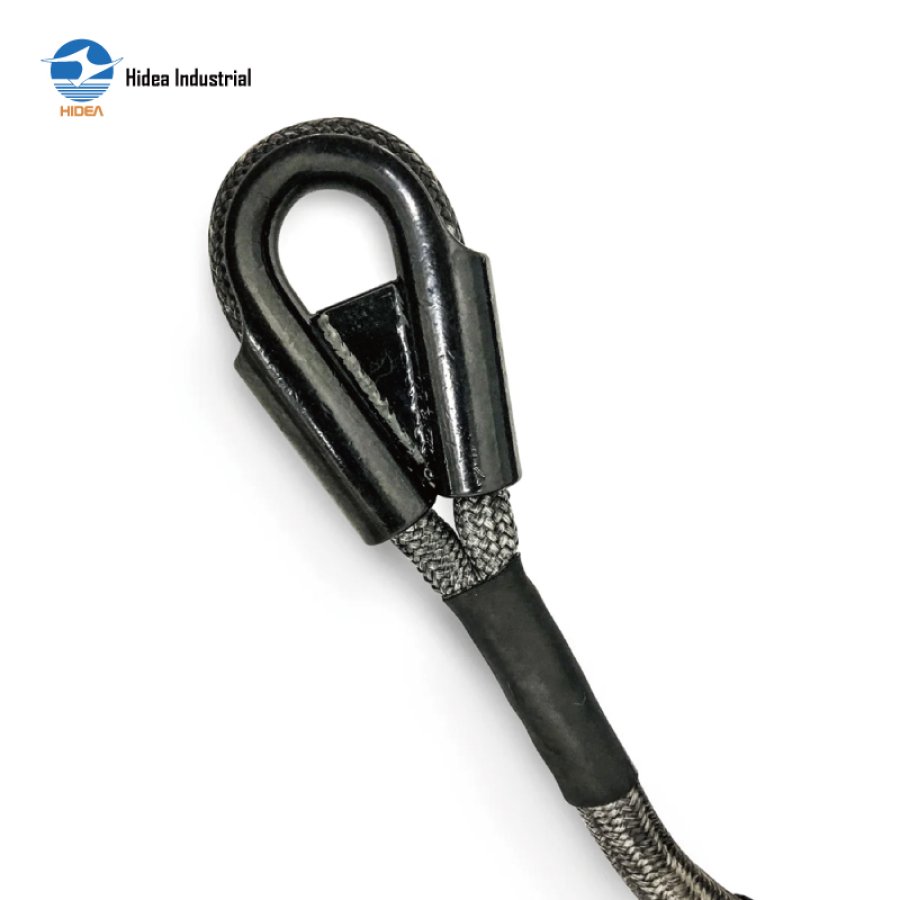

  • K10 Thimble with link & stub-end, Synthetic poly fibre Rope Thimbles


HIDEA K10 Thimble with Link & Stub End

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR536 K10 SYNTHETIC ROPE THIMBLE WITH LINK

Rope size
   inch		MBL link
ton		A
mm		B
mm		E
mm		F
mm		G
mm		H

mm		  1
  mm		J
mm		Weight
kg
  9-10½104 385 300 100 130 20 45 340 180 35
  9-10½144 385 300 100 130 20 51 350 190 39
  9-10½188 385 300 100 130 20 57 400 200 46
  9-10½232 385 300 100 130 20 63 430 220 54
12½-13188 470 320 115 155 20 57 400 200 56
12½-13232 470 320 115 155 20 63 430 220 64
12½-13336 470 320 115 155 20 72 460 250 77
12½-13420 470 320 115 155 20 80 450 250 88
  14-15232 560 390 135 175 30 63 430 220 78
  14-15336 560 390 135 175 30 72 460 250 91
  14-15420 560 390 135 175 30 80 450 250 102
  16-18336 560 390 155 195 30 72 460 250 93
  16-18420 560 390 155 195 30 80 450 250 104
  16-18524 560 390 155 195 30 90 460 300 125
  19-20420 600 450 180 220 30 80 450 250 116
  19-20524 600 450 180 220 30 90 460 300 137
  19-20628 600 450 180 220 30 100 500 300 161
  20-21524 620 480 205 245 30 90 460 300 148
  20-21628 620 480 205 245 30 100 500 300 172
  20-211000 620 480 205 245 30 115 600 400 234
