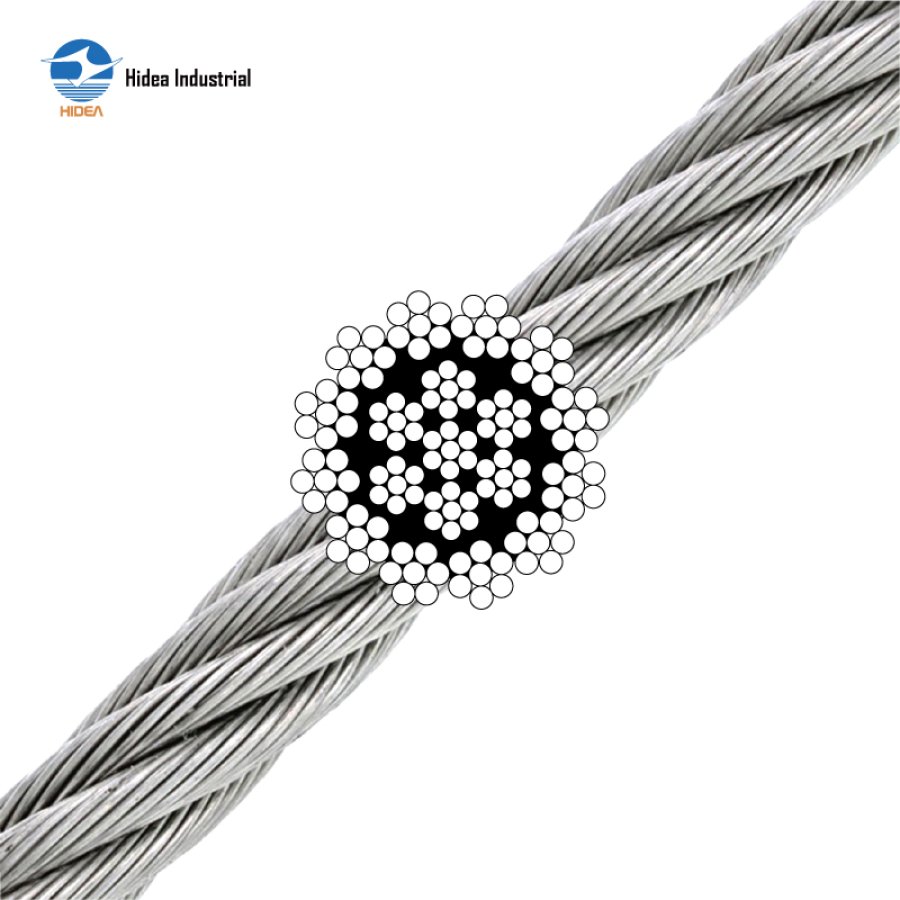

HIDEA Steel Wire Rope 18×7+FC & 19×7: Optimal Strength & Flexibility

RR-W-410 ROTATION RESISTANT WIRE ROPE IPS/EIPS 18×7 & 19×7

Federal Spec. RR-W-410 Rotation Resistant Wire Rope IPS / EIPS

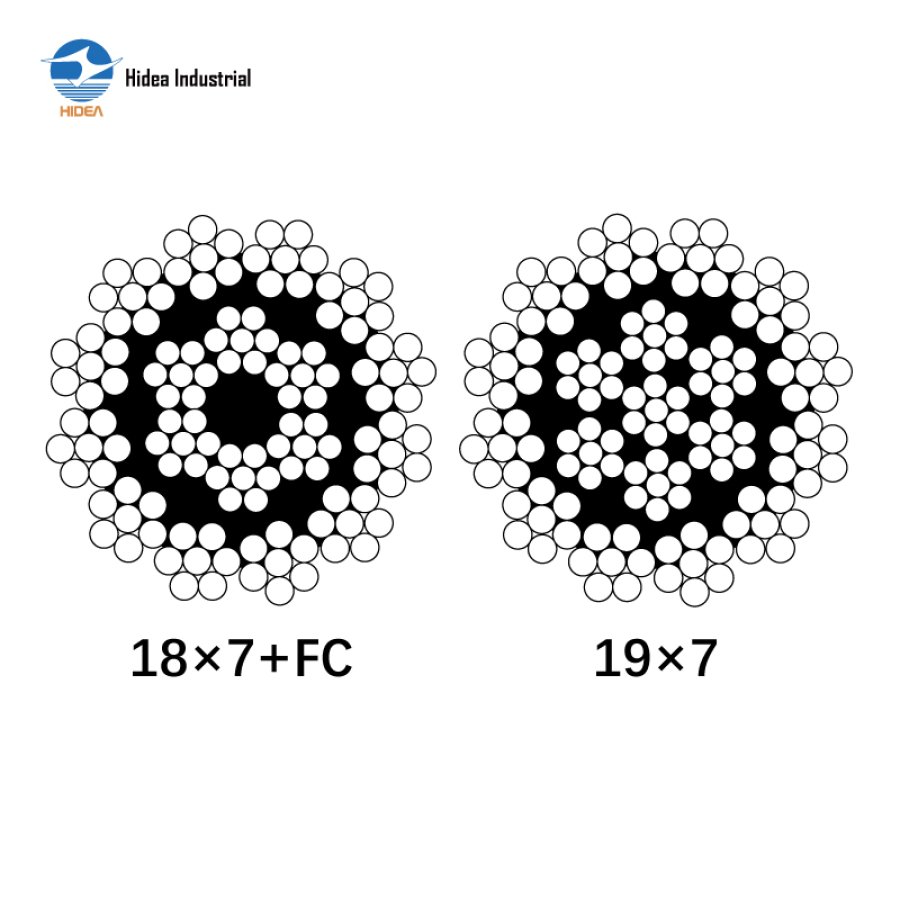

Constructions 18x7+FC & 19x7
Improved Plow Steel OR Extra Improved Plow Steel, High Carbon Steel

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

RR-W-410 ROTATION RESISTANT WIRE ROPE IPS/EIPS 18×7&19×7

	Specification:RR-W-41018×7+FC or 19×7 Rotation Resistant
	18×7+FC			19×7
Improved Plow Steel(IPS)
Diameter (mm)	Unit Weight			Min.Breaking Strength
(minimum)	FC	WSC		Ungalv	Galvanized
in	Ib/ft	Ib/ft		lb	lb
3/16	0.06	0.063		2,860	2,580
1/4	0.11	0.115		5,020	4.520
5/16	0.17	0.18		7.800	7,020
3/8	0.24	0.25		11.180	10,060
7/16	0.33	0.35		15.160	13.640
1/2	0.43	0.45		19.700	17.740
9/16	0.55	0.58		24,800	22,400
5/8	0.68	0.71		30,600	27,600
3/4	0.97	1.02		43,600	39,200
7/8	1.32	1.39		59,000	53,100
1	1.73	1.82		76,600	69,000
Extra Improved Plow Steel(EIPS)
Diameter(mm)	Unit Weight			Min.Breaking Strength
(minimum)	FC	WSC		Ungalv	Galvanized
in	Ib/ft	Ib/ft		Ib	Ib
3/16	0.06	0.063		3,140	2,820
1/4	0.11	0.115		5,520	4,980
5/16	0.17	0.18		8,600	7,740
3/8	0.24	0.25		12,300	11,080
7/16	0.33	0.35		16,660	15,000
1/2	0.43	0.45		21,600	19,440
9/16	0.55	0.58		27,200	24,400
5/8	0.68	0.71		33,600	30,200
3/4	0.97	1.02		48,000	43,200
7/8	132	1.39		65,000	58,500
1	1.73	1.82		84,400	76,000
