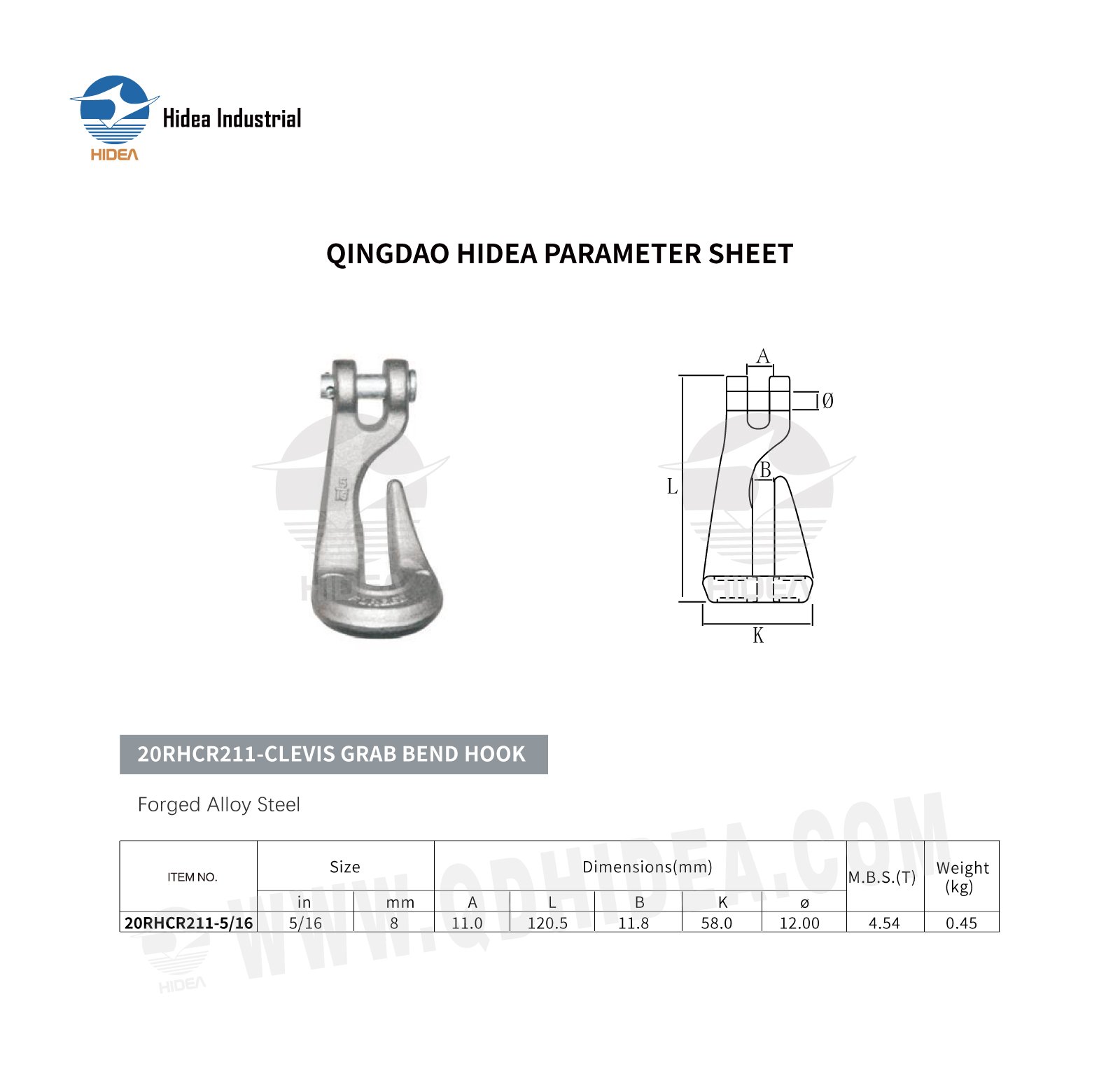

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR211-CLEVIS GRAB BEND HOOK
| ITEM NO. | Size | Dimensions(mm) | M.B.S. (T) | Weight (kg) | ||||||
| in | mm | A | L | B | K | Ø | ||||
| 20RHCR211-5/16 | 5/16 | 8 | 11.0 | 120.5 | 11.8 | 58.0 | 12.00 | 4.54 | 0.45 | |
Inquire Now
-
