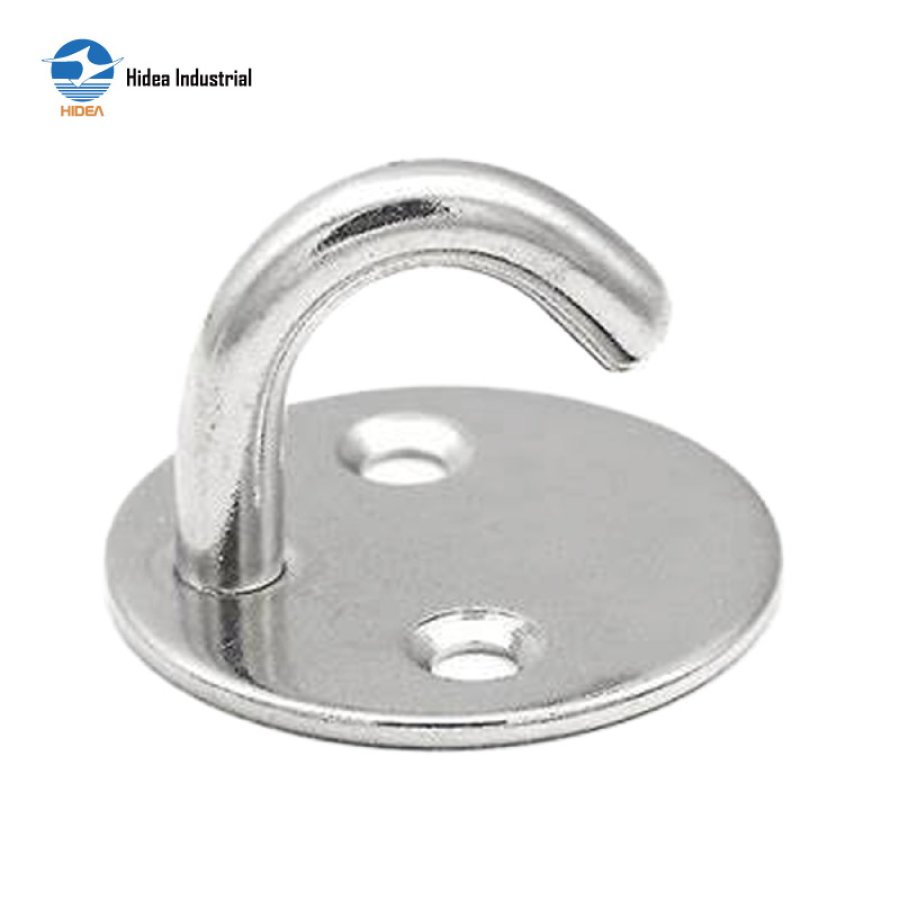

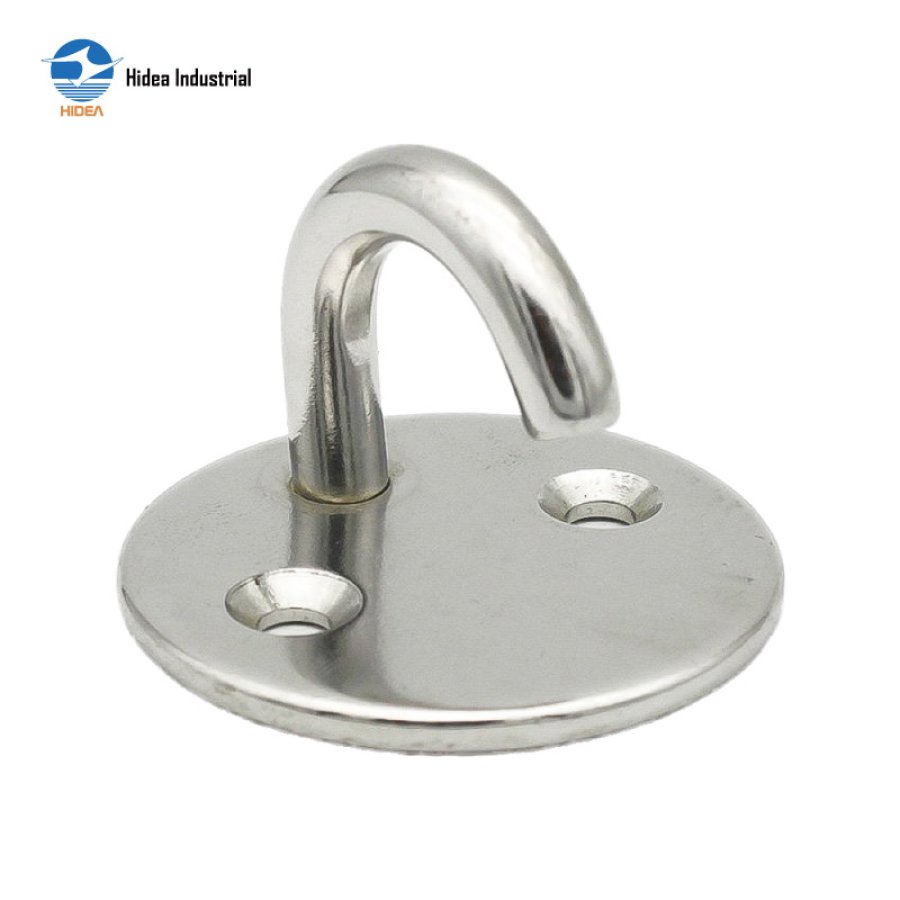

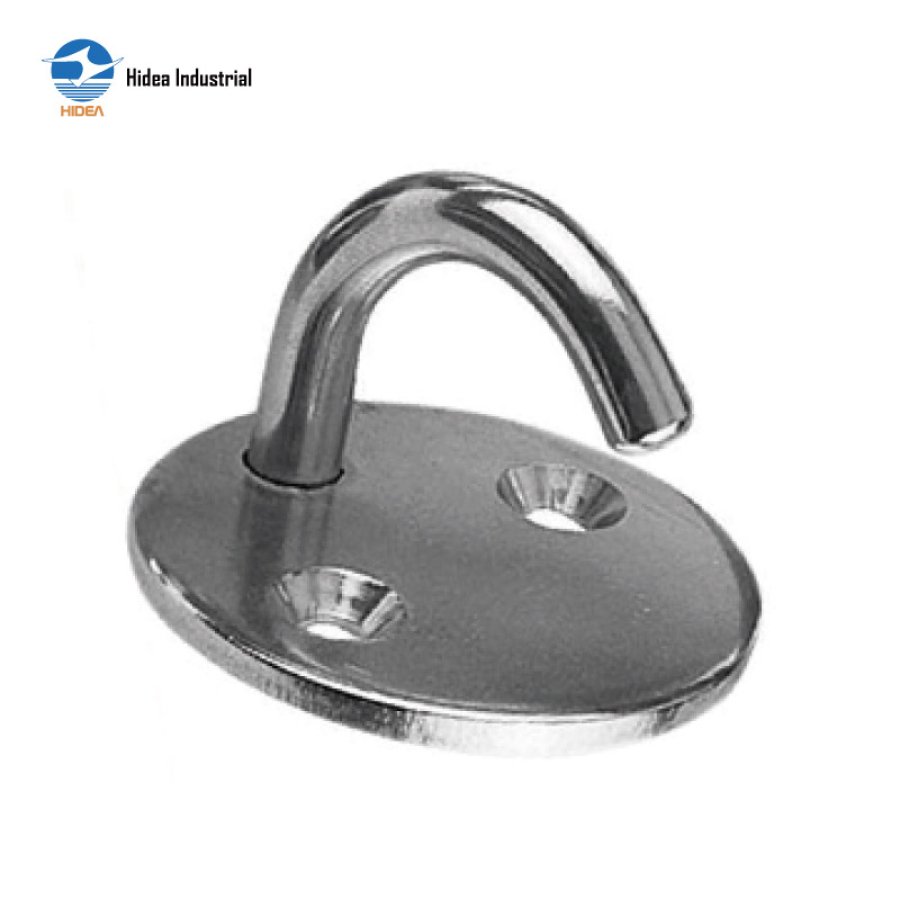

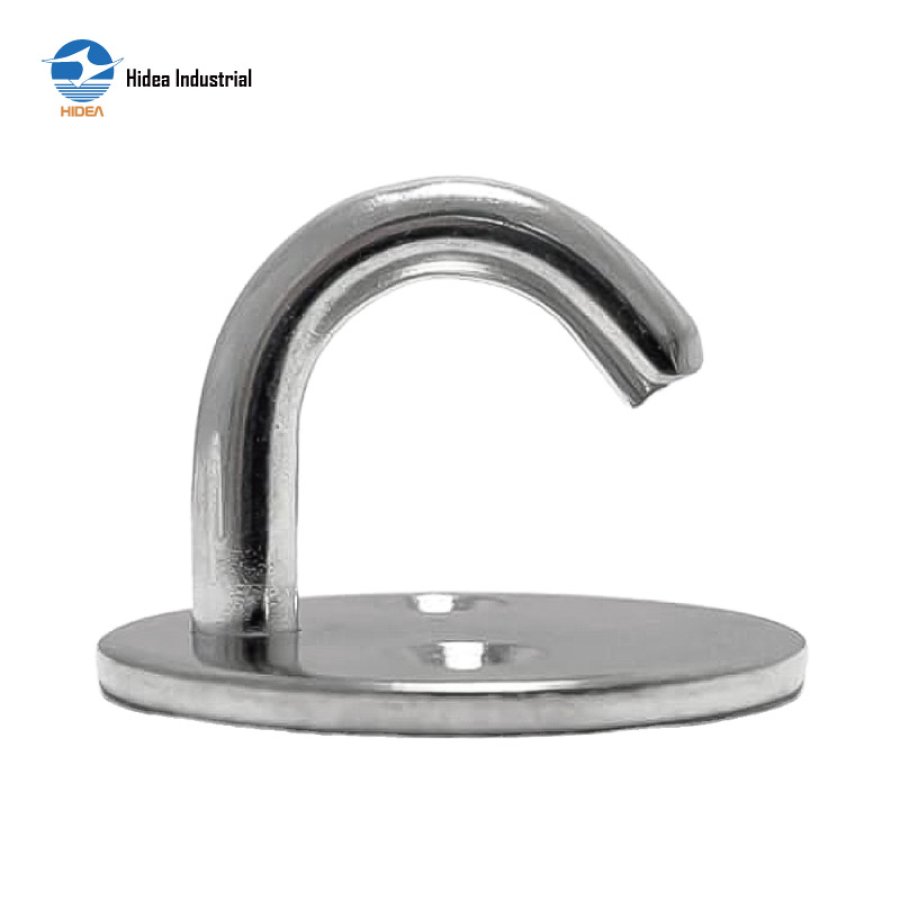

HIDEA Round Eye Plate with Hook – Durable Marine Stainless Steel with Countersunk Holes for Secure Fixing

OPEN ROUND EYE PLATE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

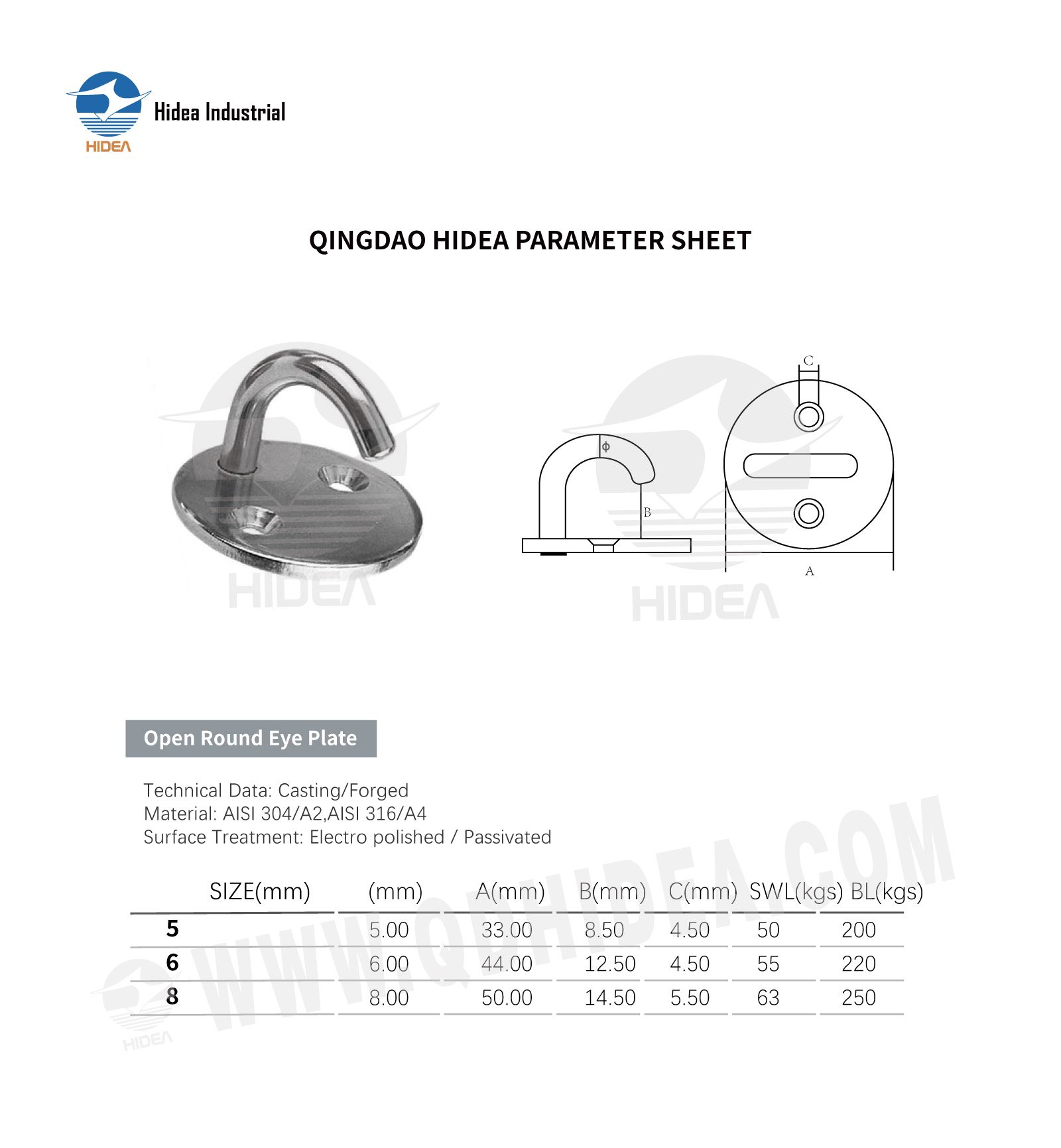

QINGDAO HIDEA PARAMETER SHEET FOR

Open Round Eye Plate

SIZE(mm)	(mm)	A(mm)	B(mm)	C(mm)	SWL(kgs)	BL(kgs)
5	5.00	33.00	8.50	4.50	50	200
6	6.00	44.00	12.50	4.50	55	220
8	8.00	50.00	14.50	5.50	63	250
