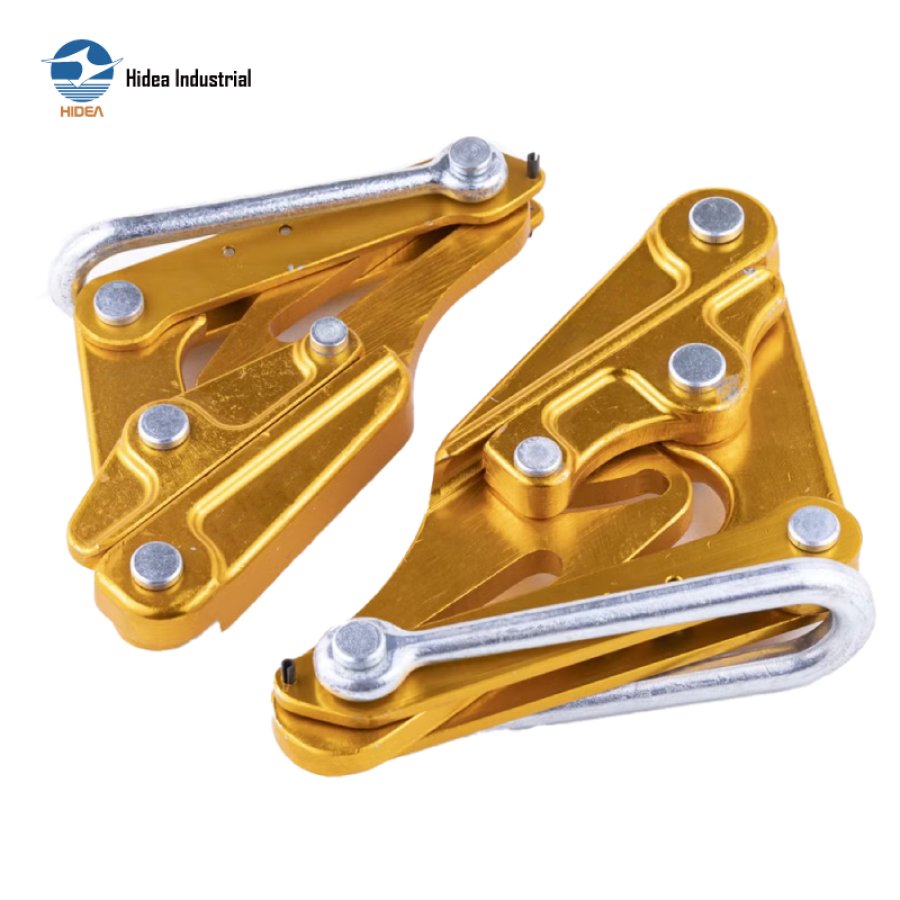

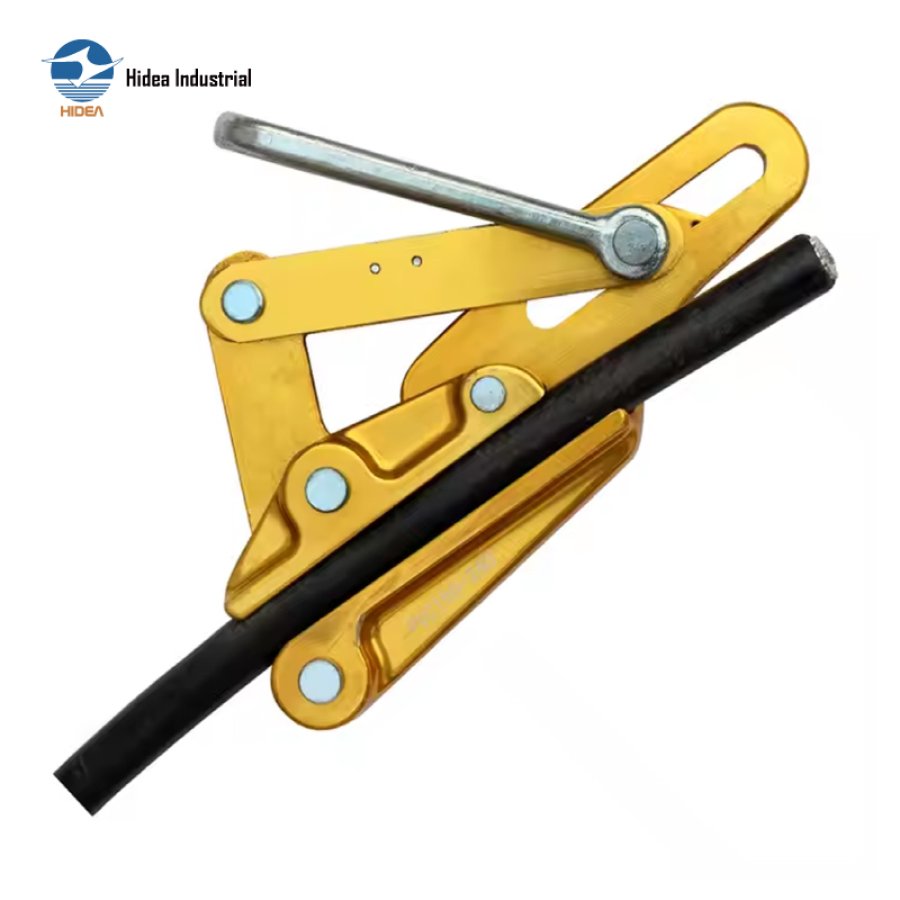

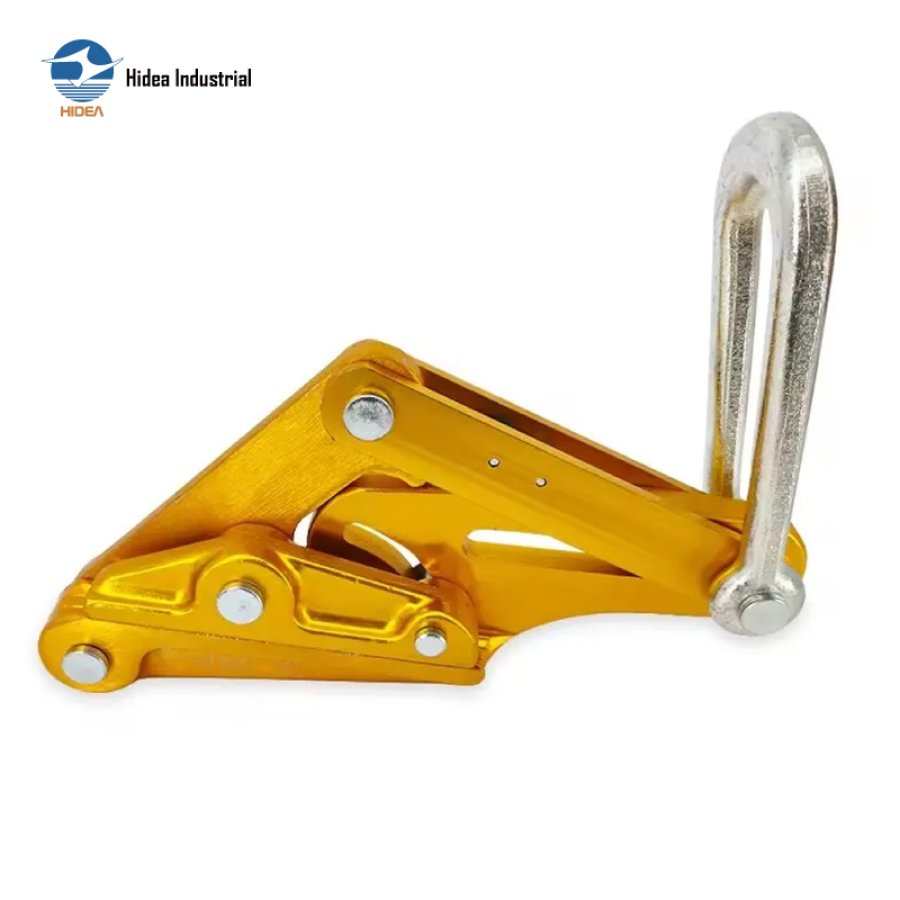

The aluminium-magnesium alloy wire rope grip, also known grounding cable adapter or come along clamp, is an electrical component used to connect grounding cables or wires to other conductors or grounding components, it can be used widely in industries such as construction, telecommunications and power engineering etc.

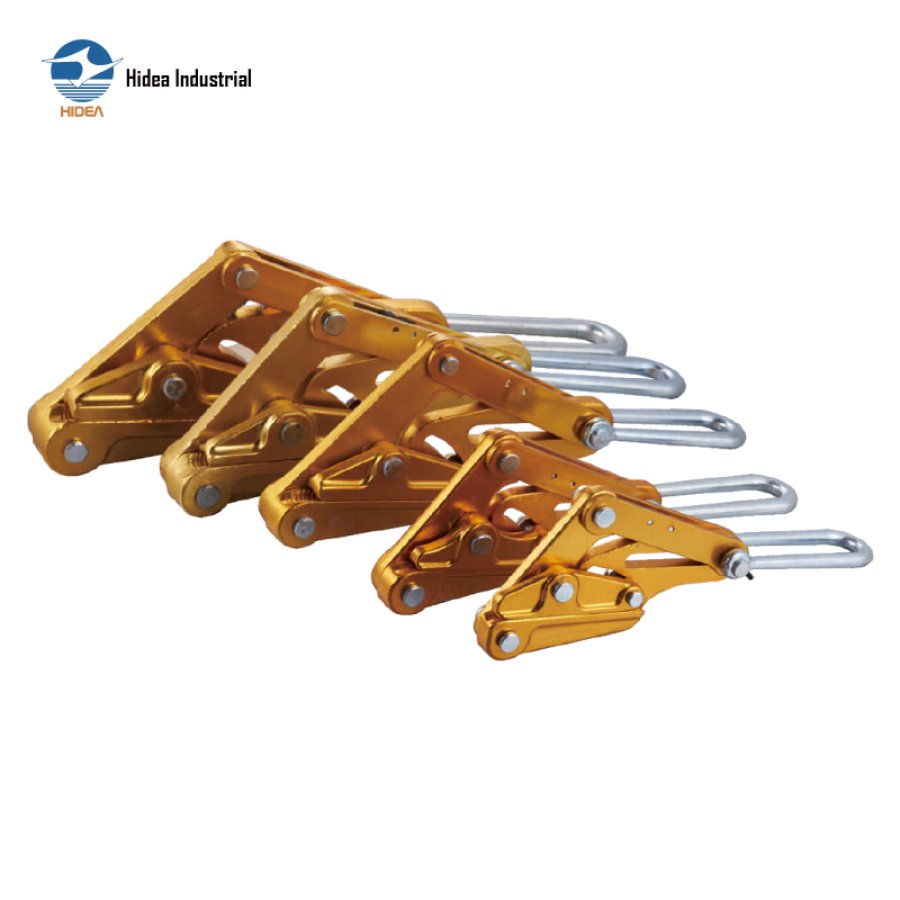

The grips are manufactured from aluminium-magnesium alloy and die forged; the material properties make it lighter as the lowest density among widely used metals while still high tensile and of excellent hardness; rated from 10kN up to 50kN, and with a strand cable application range of GJ25-630 for different sizes

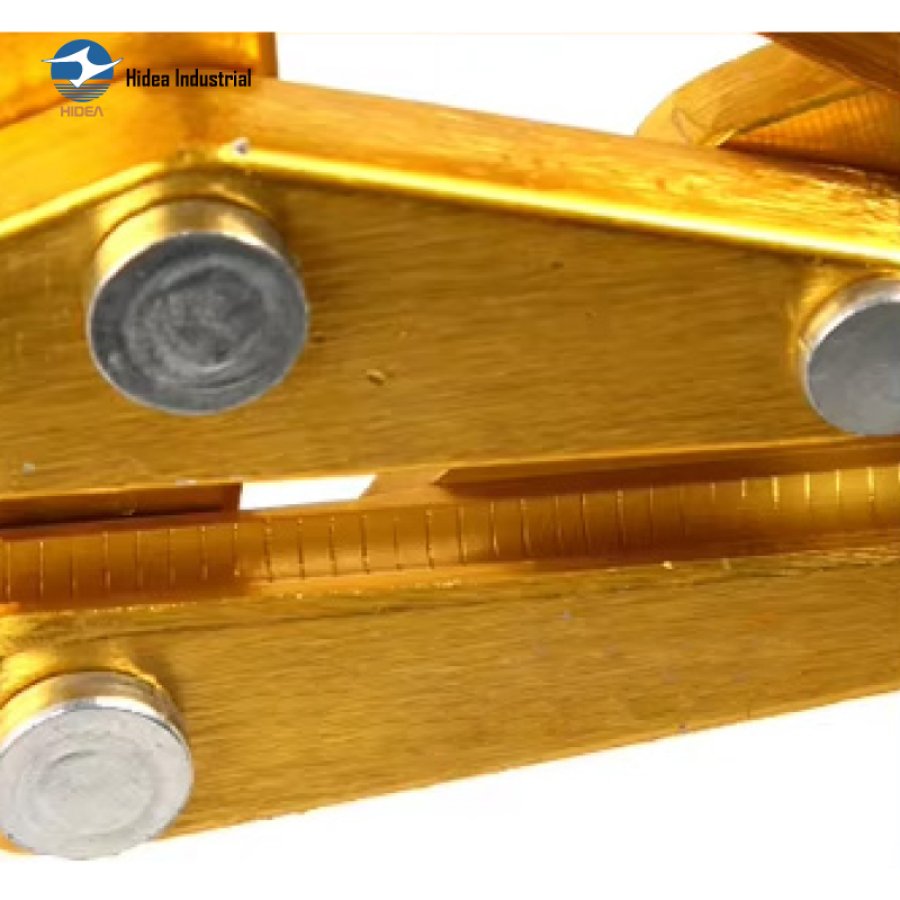

This type of aluminium-magnesium alloy grips without jaw teeth are normally use with with bare wires & cables without insulating layer outside
This type of aluminium-magnesium alloy grips meeting standards of and in conformity with IEC 60900:2004, DIN EN 50143 and other IEC and IEEE norms
QINGDAO HIDEA PARAMETER SHEET FOR
ALUMINIUM-MAGNESIUM ALLOY WIRE ROPE GRIP W/O JAW TEETH
| Part No. | Applied Cable(GJ) | Rated Load(KN) | Grip Range(mm) | N.W. (kg) | ||
| 60MT-CGN1 | GJ25-70 | 10 | 14 | 1 | ||
| 60MT-CGN2 | GJ95-120 | 15 | 18 | 1.56 | ||
| 60MT-CGN3 | GJ150-240 | 25 | 24 | 3.2 | ||
| 60MT-CGN4 | GJ300-400 | 40 | 32 | 4.14 | ||
| 60MT-CGN5 | GJ500-630 | 50 | 37 | 6.7 | ||
