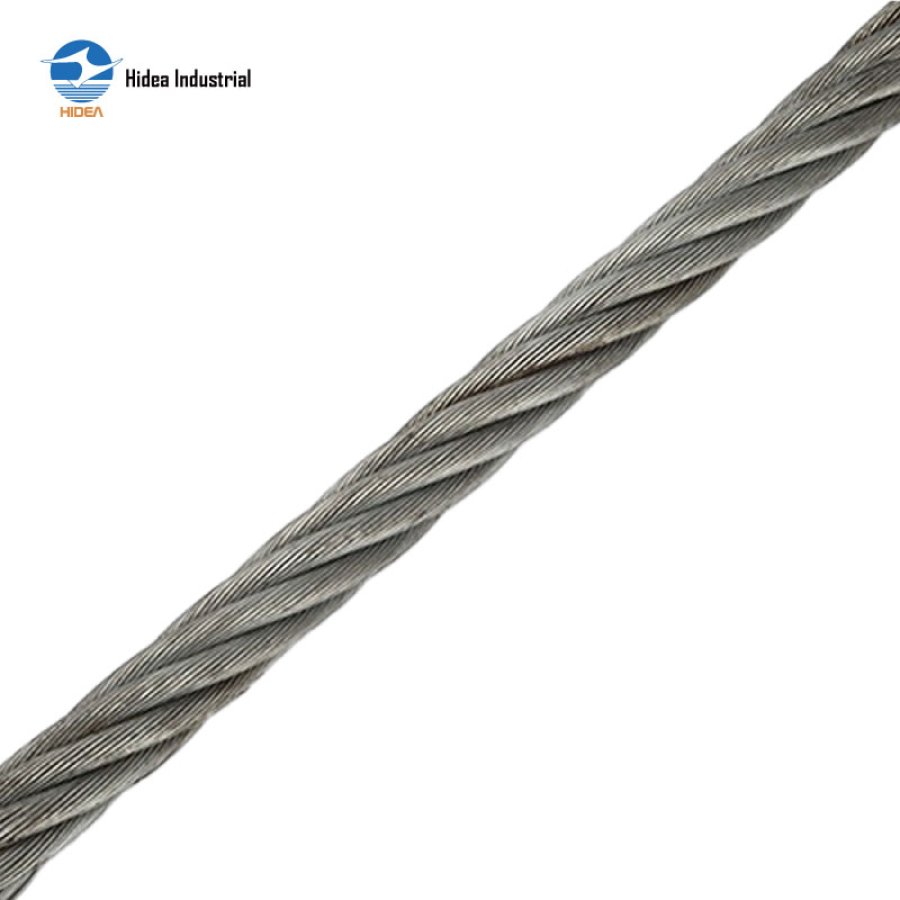

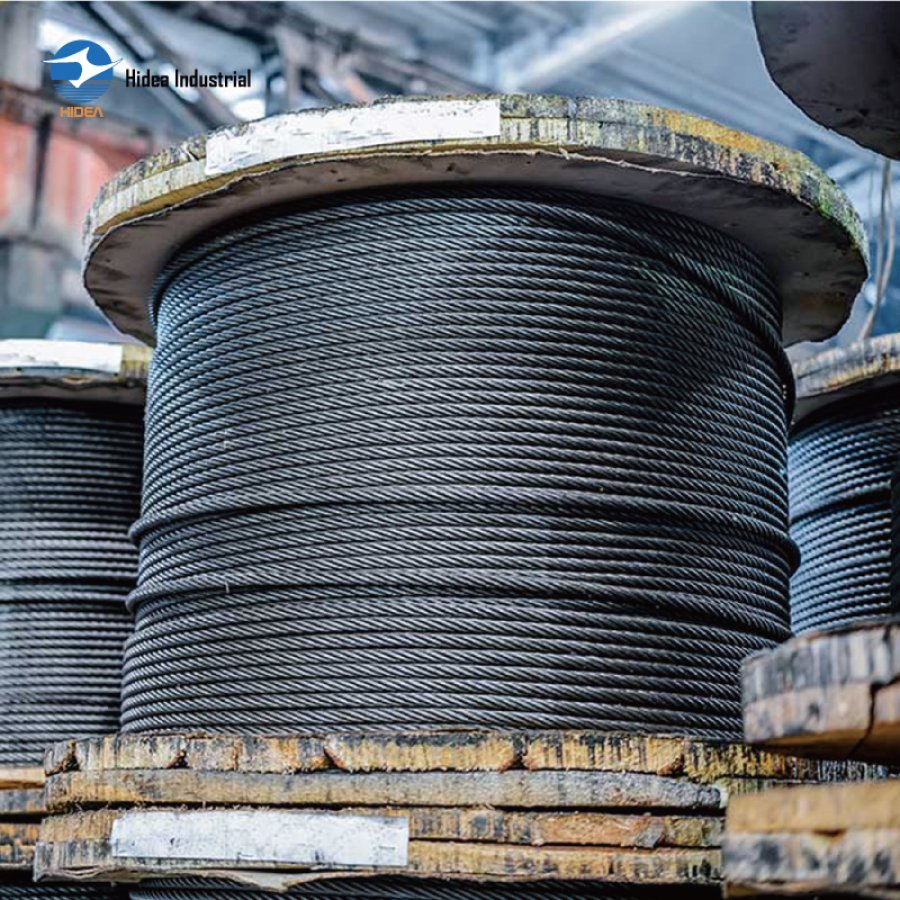

Conveyor Belt Cord Cable 6x7+IWS / 6x19+IWS / 6xW(19)+IWS
High Carbon Steel, High Tensile Strength, Good Flexibility and Low Elongation

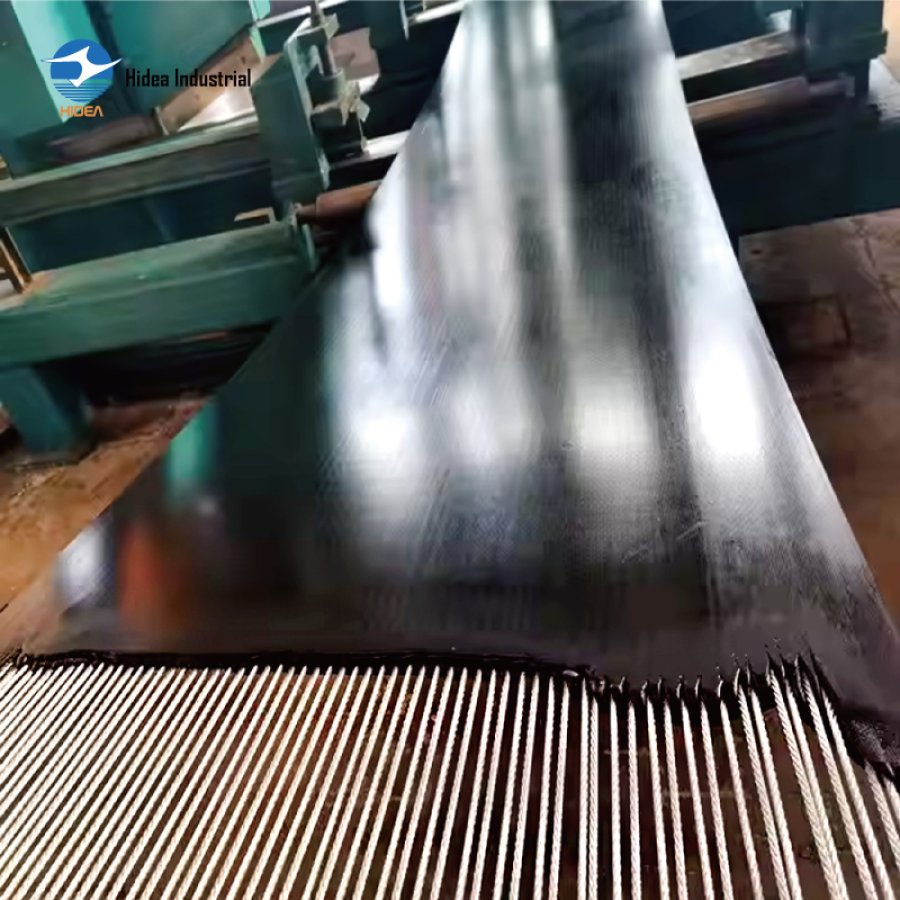

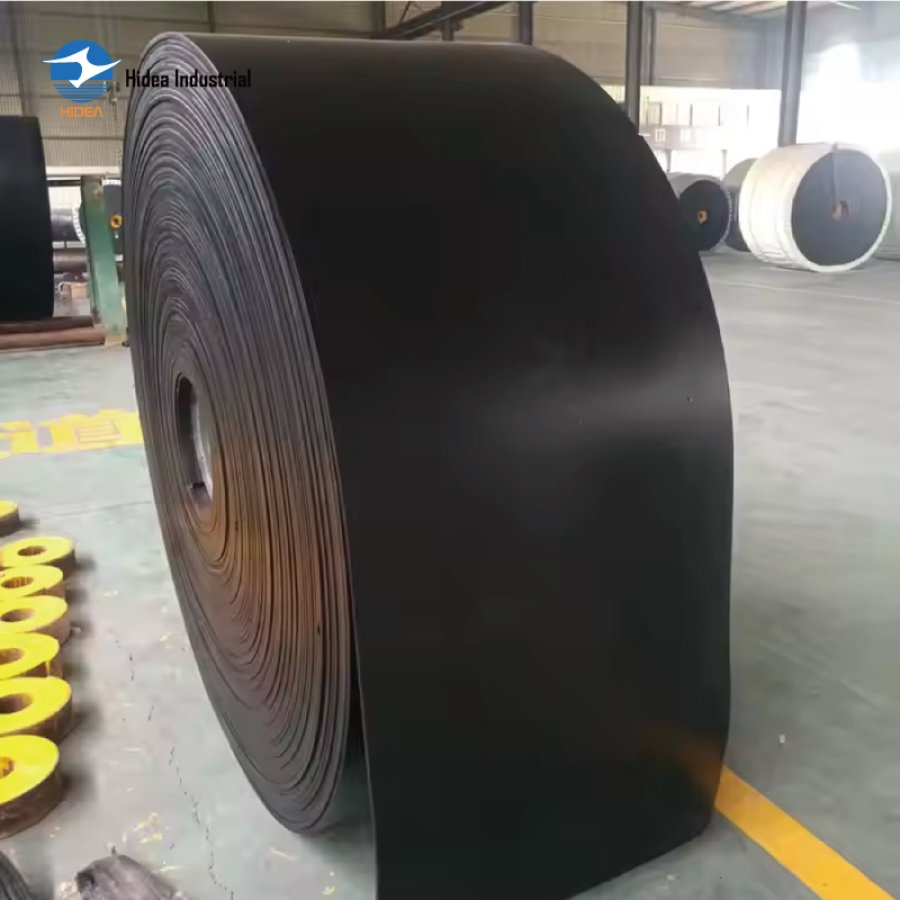

As Conveyor Belt Reinforcement Structure, Lowering Belt Elongation and to Ehance the Belt Tensile Strength, Flexibility and Resistance to Bending & Impact, and Extending Belt Life
QINGDAO HIDEA PARAMETER SHEET FOR

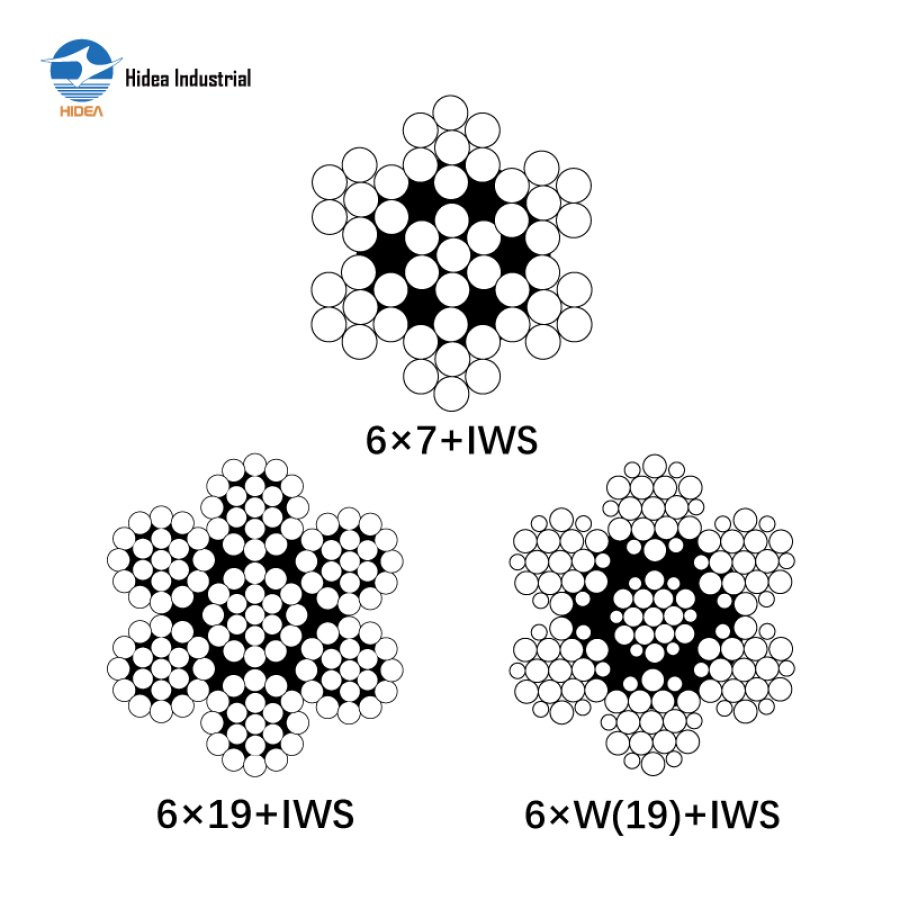

CONVEYOR BELT CORD CABLE 6x7+IWS/6x19+IWS/6xW(19)+IWS
High Tensile,Good Flexibility and Low Elogation
| 6×7+IWS | ||||||||||||||||
| Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | ||||||||||||||
| 1 | ||||||||||||||||
| 2.00 2.60 | 378622 | 1.70 2.70 | ||||||||||||||
| 2.80 3.00 | 714765 | 3.10 3.40 | ||||||||||||||
| 3.20 3.50 3.80 | 959 1143 1306 | 4.20 5.00 6.00 | ||||||||||||||
| Tensile Strength | Grade(GB/T12753-2002) | |||||||||||||||
Wire Diameter mm | Tensile Strength(MPa) | 4.00 4.20 4.50 | 1388 1531 1827 | 6.40 7.10 8.40 | ||||||||||||
| I | IⅡ | Ⅲ | IV | |||||||||||||
| 0.20~0.40 | 2160 | 2260 | 2360 | 2460 | 4.80 5.10 5.40 | 2051 2255 2582 | 9.40 10.50 12.10 | |||||||||
| >0.40-0.60 | 2060 | 2160 | 2260 | 2360 | ||||||||||||
| >0.60~0.90 | 1960 | 2062 | 2160 | 2260 | ||||||||||||
| 6×19+IWS | ||||||||||||||||
| Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | ||||||||||||||
| I | 6×W(19)+IWS | |||||||||||||||
| 4.00 4.30 | 1367 1632 | 6.20 7.40 | Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | |||||||||||
| 4.50 4.80 | 1826 2082 | 8.30 9.50 | I | Ⅱ | ||||||||||||
| 5.40 5.70 6.10 | 2480 2765 3224 | 11.30 12.60 14.80 | 5.00 | 2490 | 2602 | 10.60 | ||||||||||
| 5.60 | 3061 | 3204 | 13.70 | |||||||||||||
| 6.00 | 3500 | 3673 | 15.90 | |||||||||||||
| 6.40 7.20 7.50 | 3418 4255 4622 | 16.30 20.30 22.00 | 6.60 | 4133 | 4337 | 18.90 | ||||||||||
| 7.00 | 4653 | 4878 | 21.20 | |||||||||||||
| 7.60 | 5469 | 5735 | 25.30 | |||||||||||||
| 8.30 | 6265 | 6571 | 29.60 | |||||||||||||
| 7.80 8.10 9.30 | 5041 5439 6908 | 24.00 25.90 33.30 | 8.70 | 6939 | 7286 | 33.20 | ||||||||||
| 9.10 | 7418 | 7786 | 35.50 | |||||||||||||
| 10.00 | 9010 | 9470 | 43.20 | |||||||||||||
| 10.30 11.00 12.00 | 8347 9612 11224 | 41.80 48.20 56.30 | 10.50 | 9796 | 10306 | 47.00 | ||||||||||
| 11.00 | 10612 | 11224 | 51.50 | |||||||||||||
| 12.00 | 12347 | 13061 | 59.90 | |||||||||||||
