Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
With cast latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

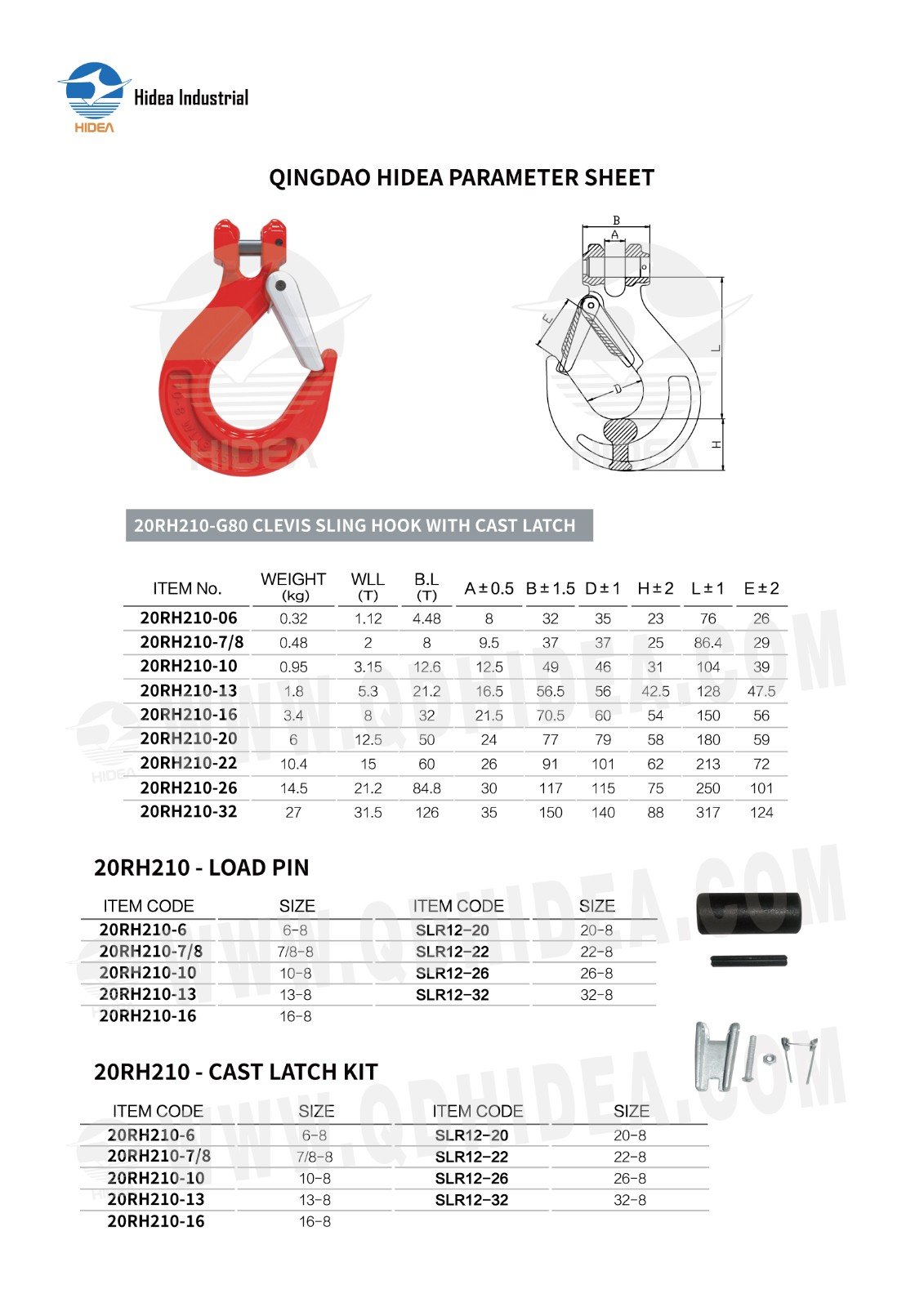

QINGDAO HIDEA PARAMETER SHEET FOR

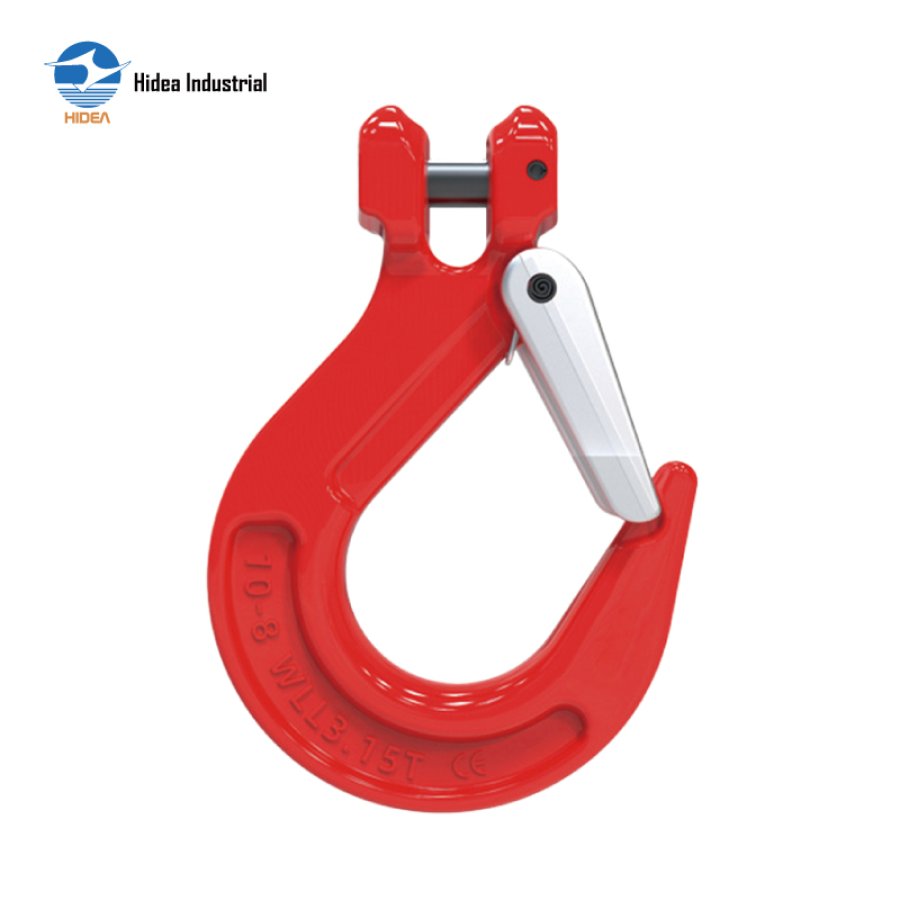

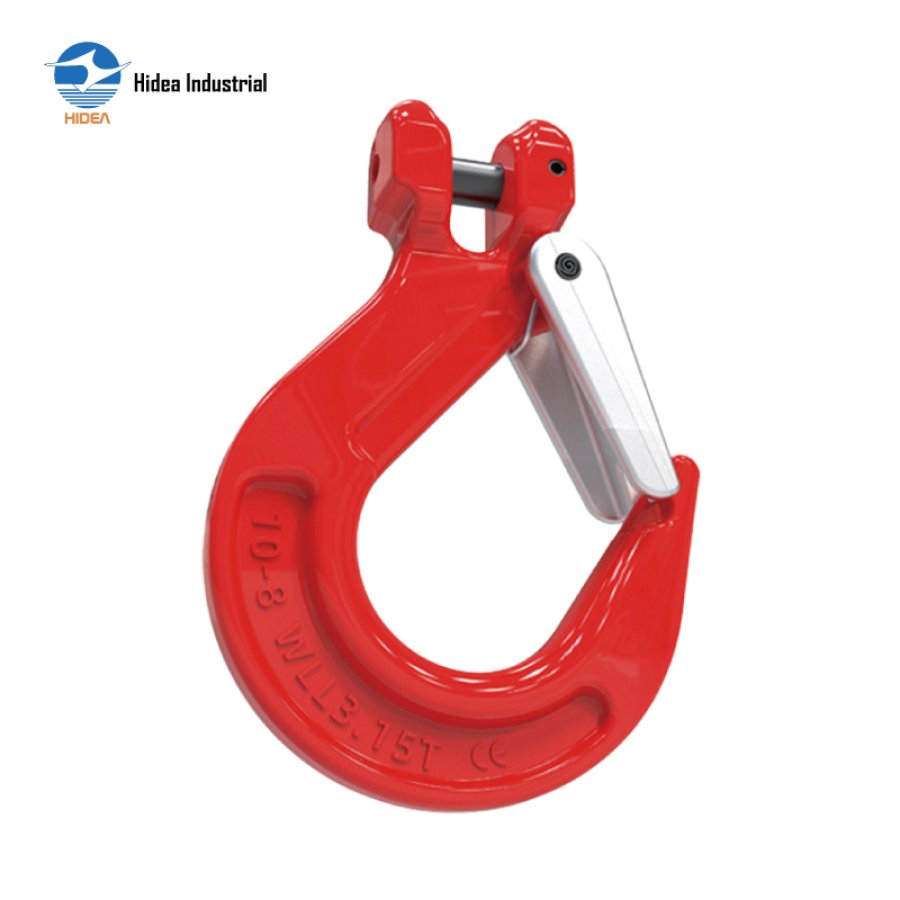

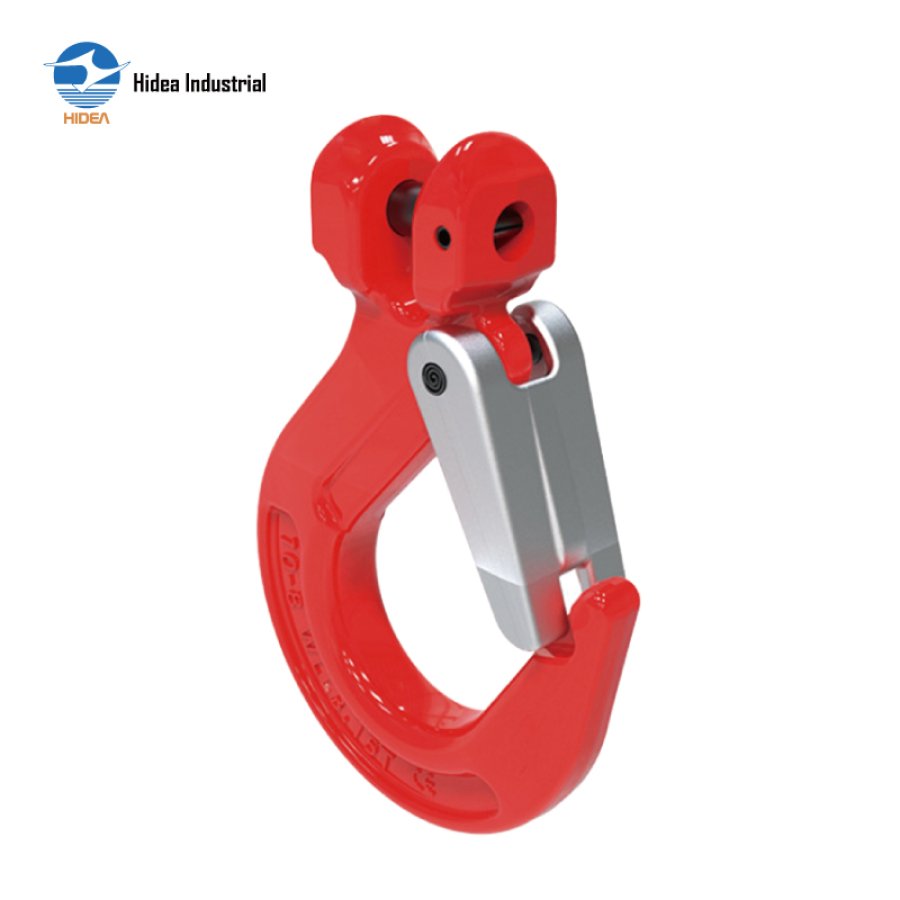

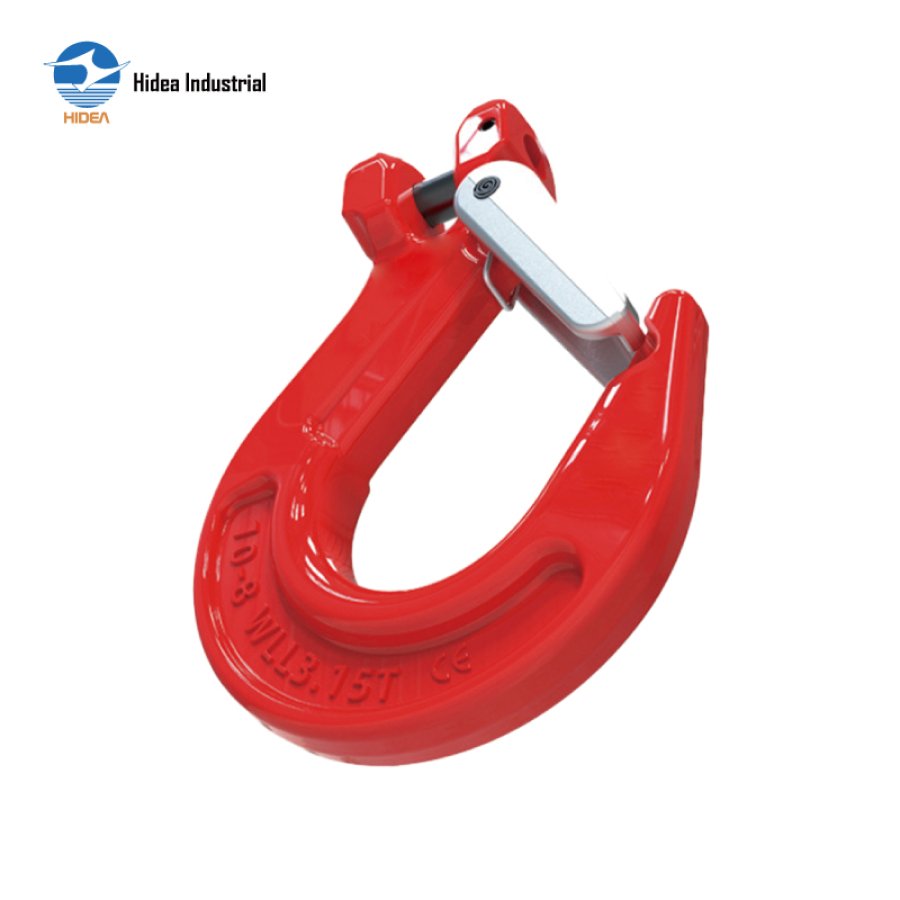

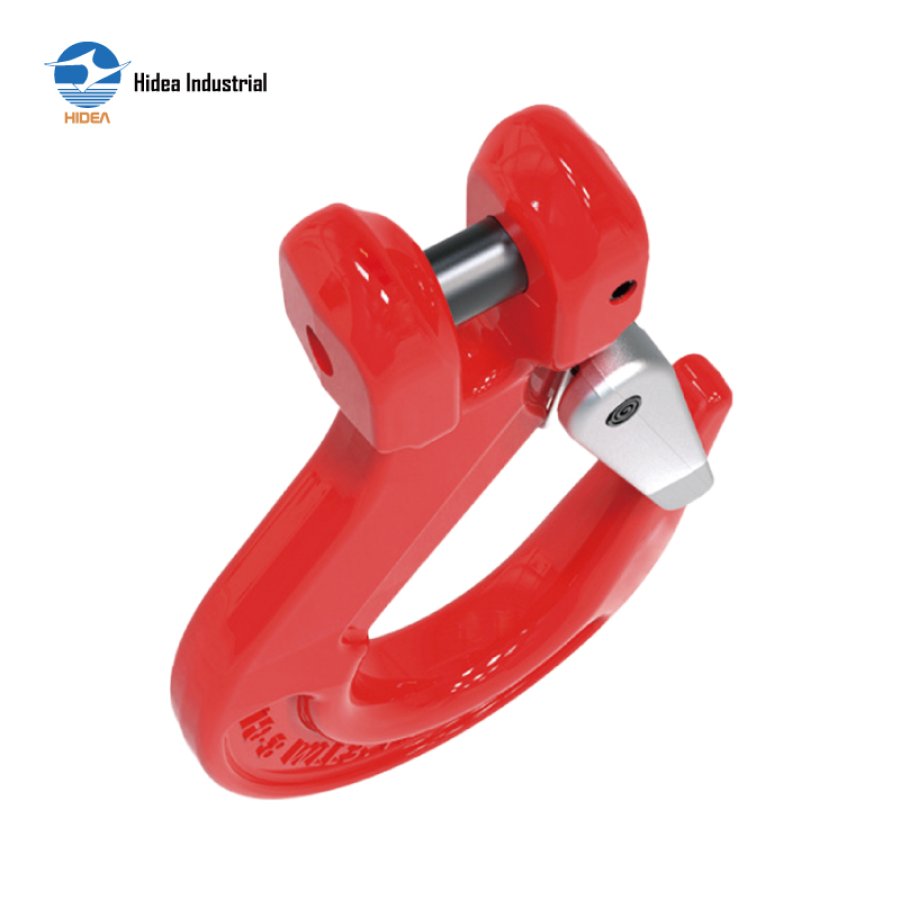

20RH210-G80 CLEVIS SLING HOOK WITH CAST LATCH
| ITEM No. | WEIGHT (kg) | WLL (T) | B.L (T) | A±0.5 | B±1.5 D±1 | H±2 | L±1 | E±2 | ||||||
| 20RH210-06 | 0.32 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 | |||||
| 20RH210-7/8 | 0.48 | 2 | 8 | 9.5 | 37 | 37 | 25 | 86.4 | 29 | |||||
| 20RH210-10 | 0.95 | 3.15 | 12.6 | 12.5 | 49 | 46 | 31 | 104 | 39 | |||||
| 20RH210-13 | 1.8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47.5 | |||||
| 20RH210-16 | 3.4 | 8 | 32 | 21.5 | 70.5 | 60 | 54 | 150 | 56 | |||||
| 20RH210-20 | 6 | 12.5 | 50 | 24 | 77 | 79 | 58 | 180 | 59 | |||||
| 20RH210-22 | 10.4 | 15 | 60 | 26 | 91 | 101 | 62 | 213 | 72 | |||||
| 20RH210-26 | 14.5 | 21.2 | 84.8 | 30 | 117 | 115 | 75 | 250 | 101 | |||||
| 20RH210-32 | 27 | 31.5 | 126 | 35 | 150 | 140 | 88 | 317 | 124 | |||||
