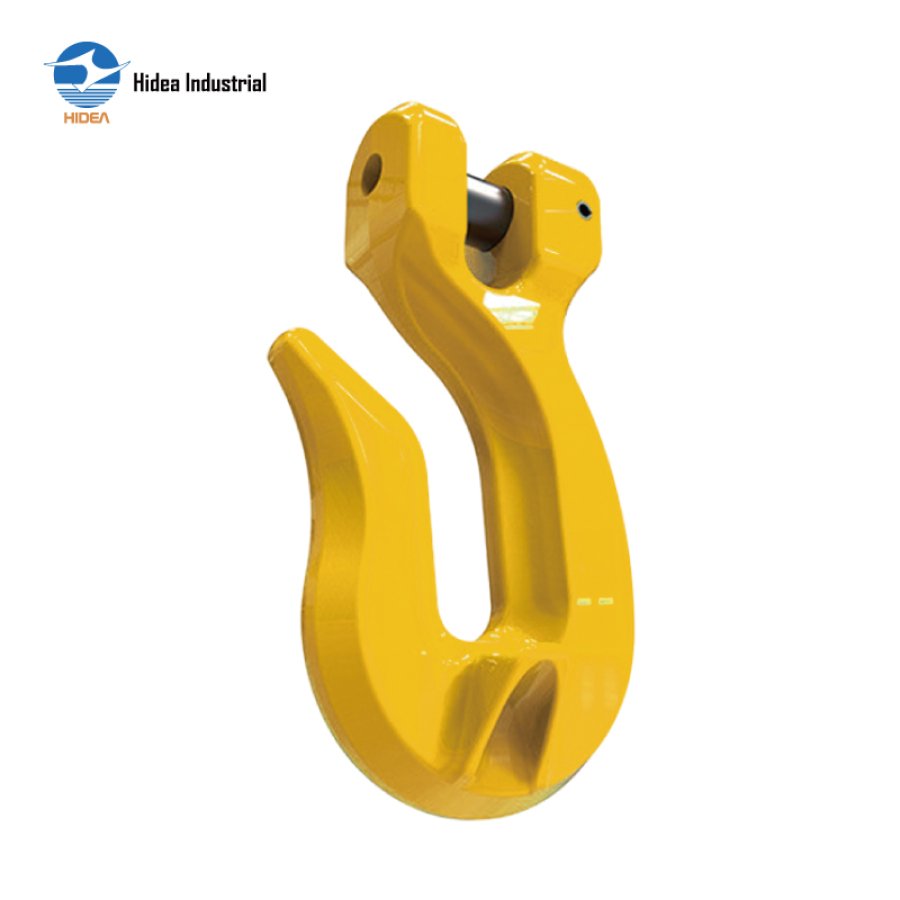

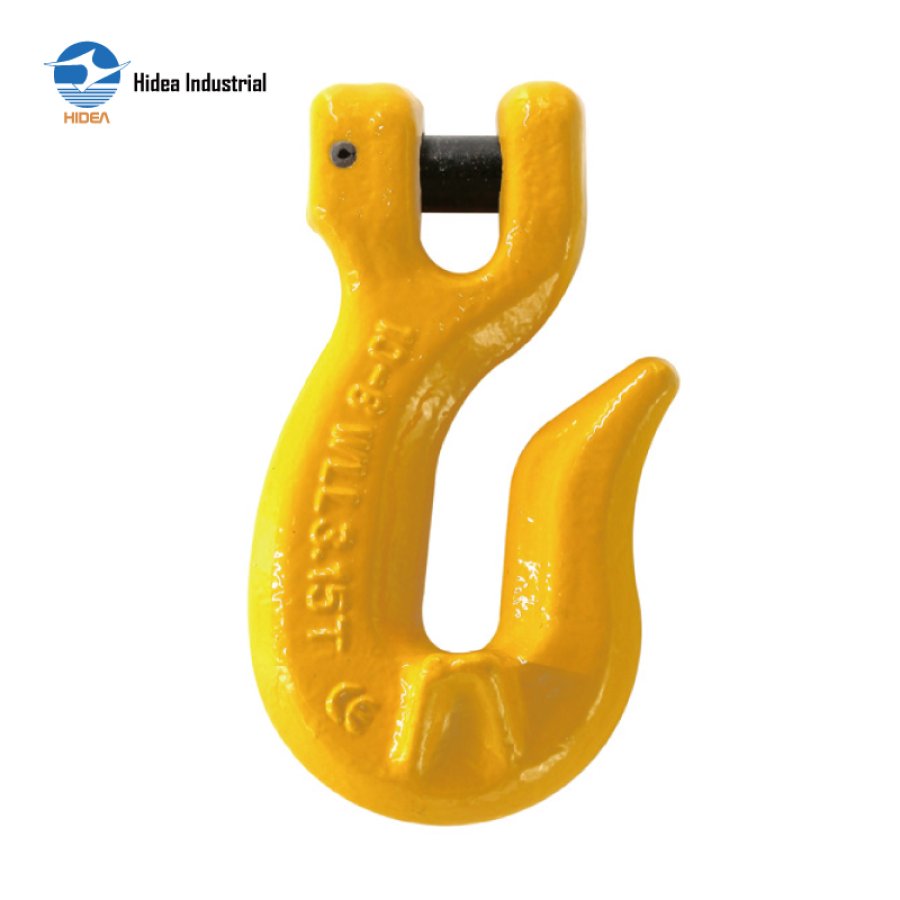

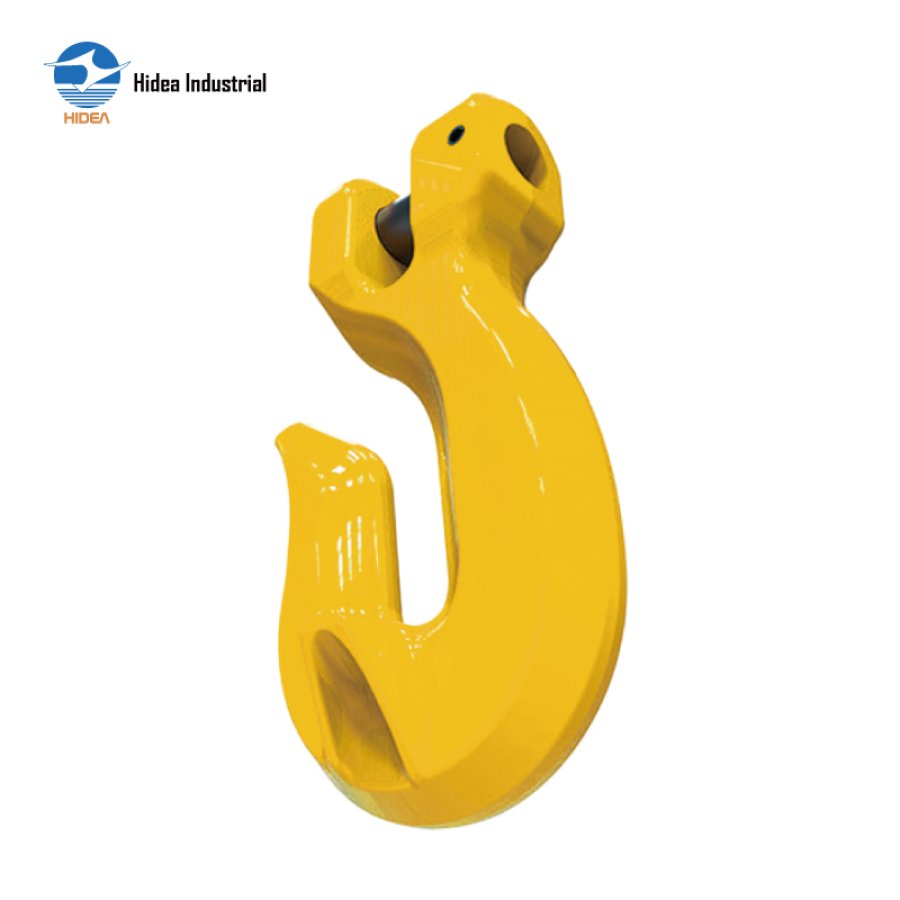

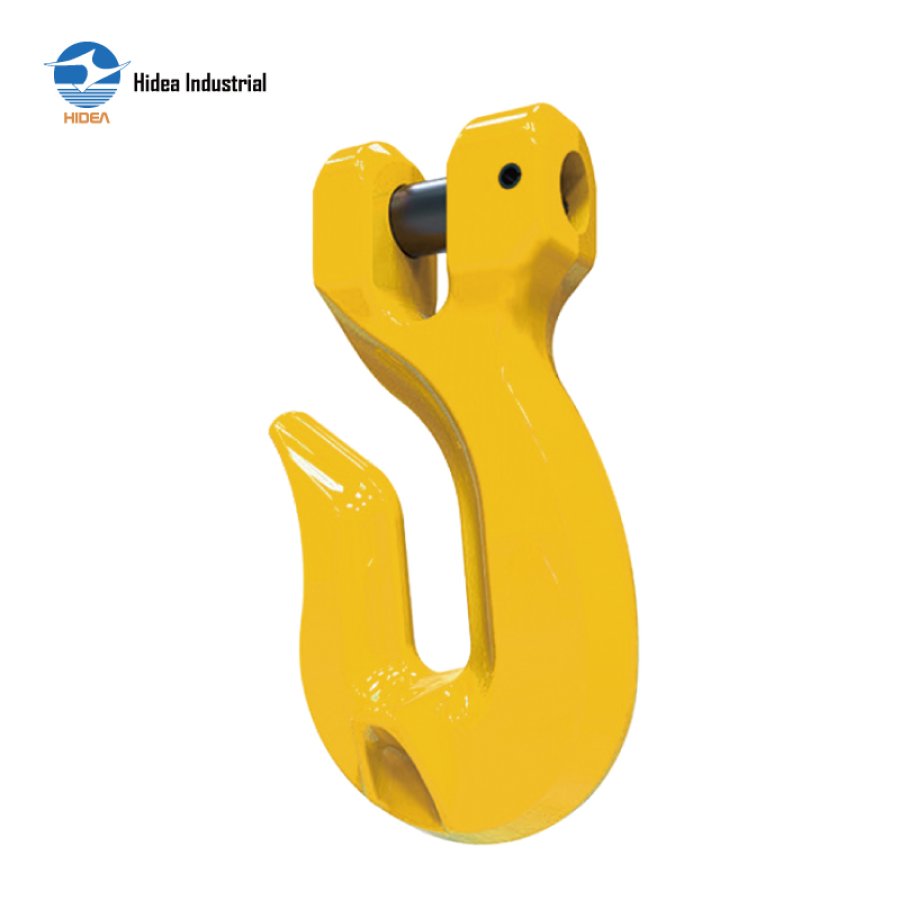

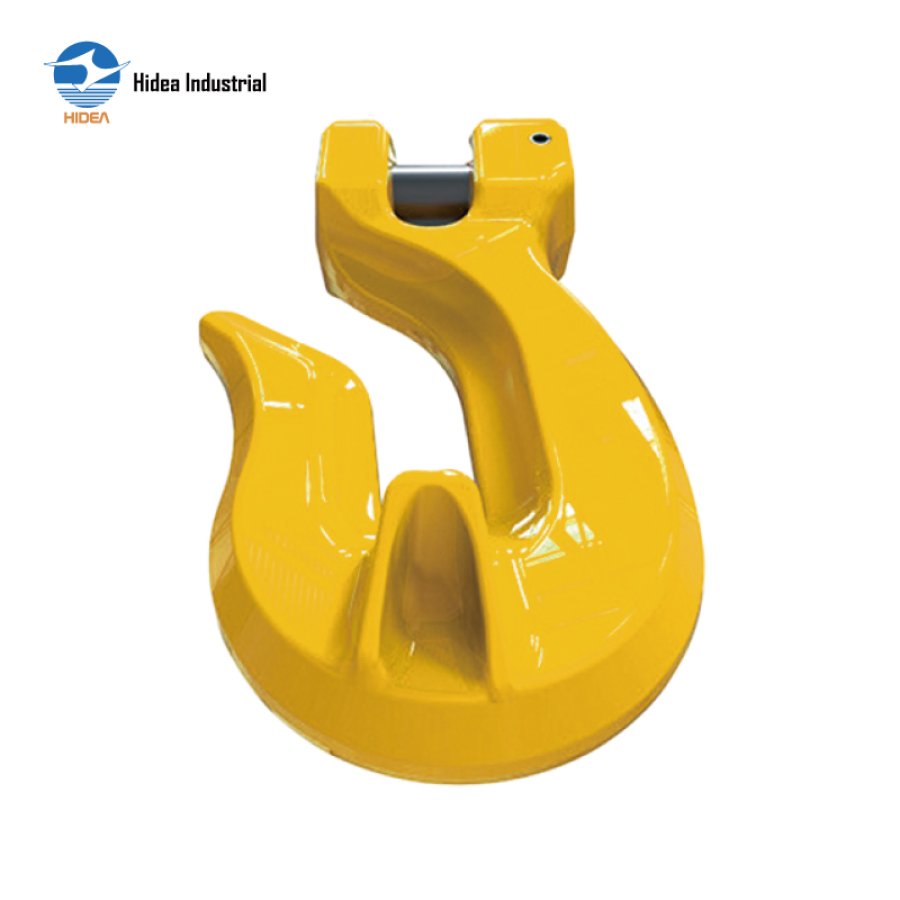

Efficient and Reliable Hidea G80 Deep Throat Clevis Grab Hook

G80 DEEP THROAT CLEVIS GRAB HOOK

All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

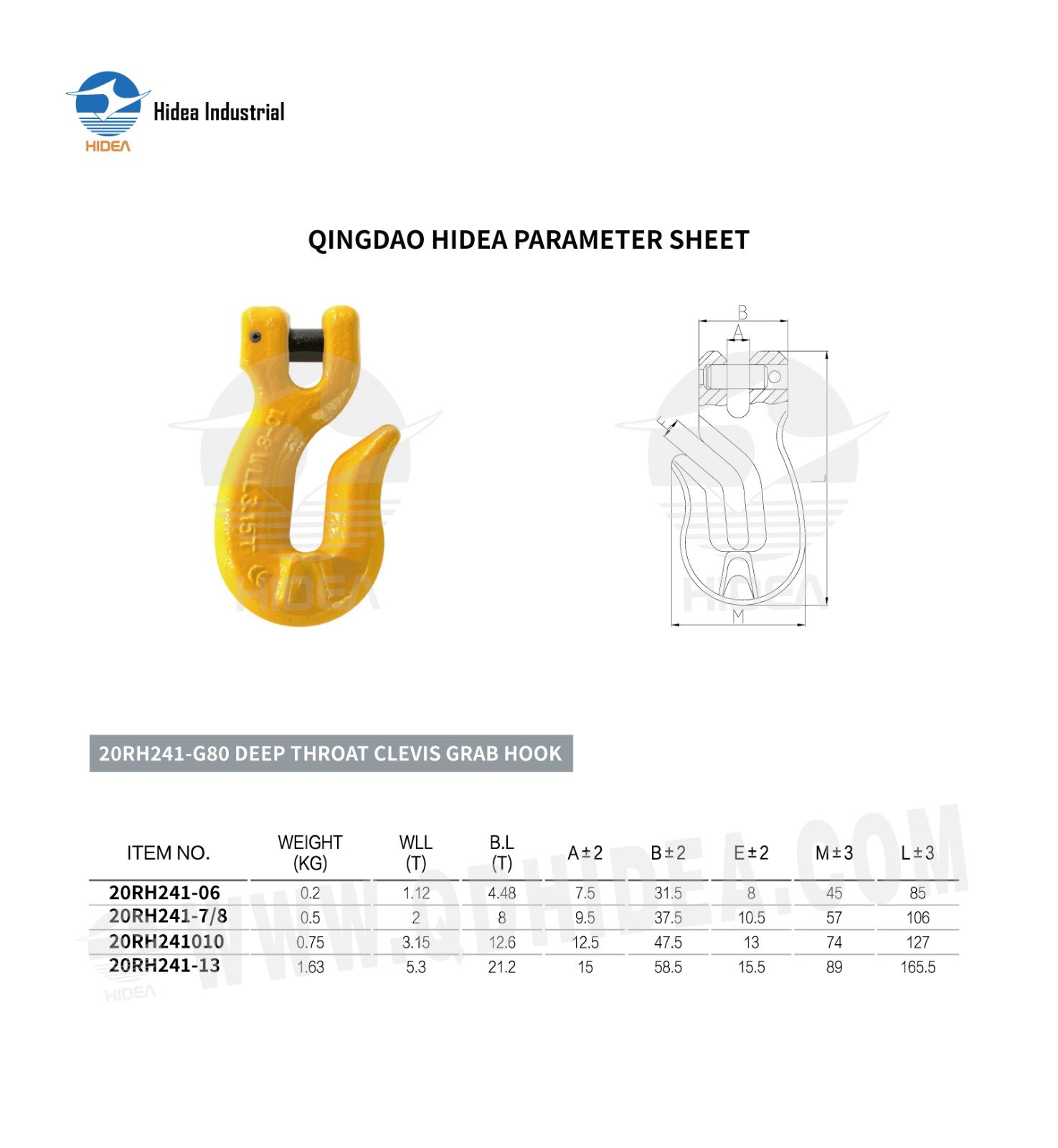

QINGDAO HIDEA PARAMETER SHEET FOR

20RH241-G80 DEEP THROAT CLEVIS GRAB HOOK

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±2	B±2	E±2	M±3	L±3
20RH241-06	0.2	1.12	4.48	7.5	31.5	8	45	85
20RH241-7/8	0.5	2	8	9.5	37.5	10.5	57	106
20RH241010	0.75	3.15	12.6	12.5	47.5	13	74	127
20RH241-13	1.63	5.3	21.2	15	58.5	15.5	89	165.5
