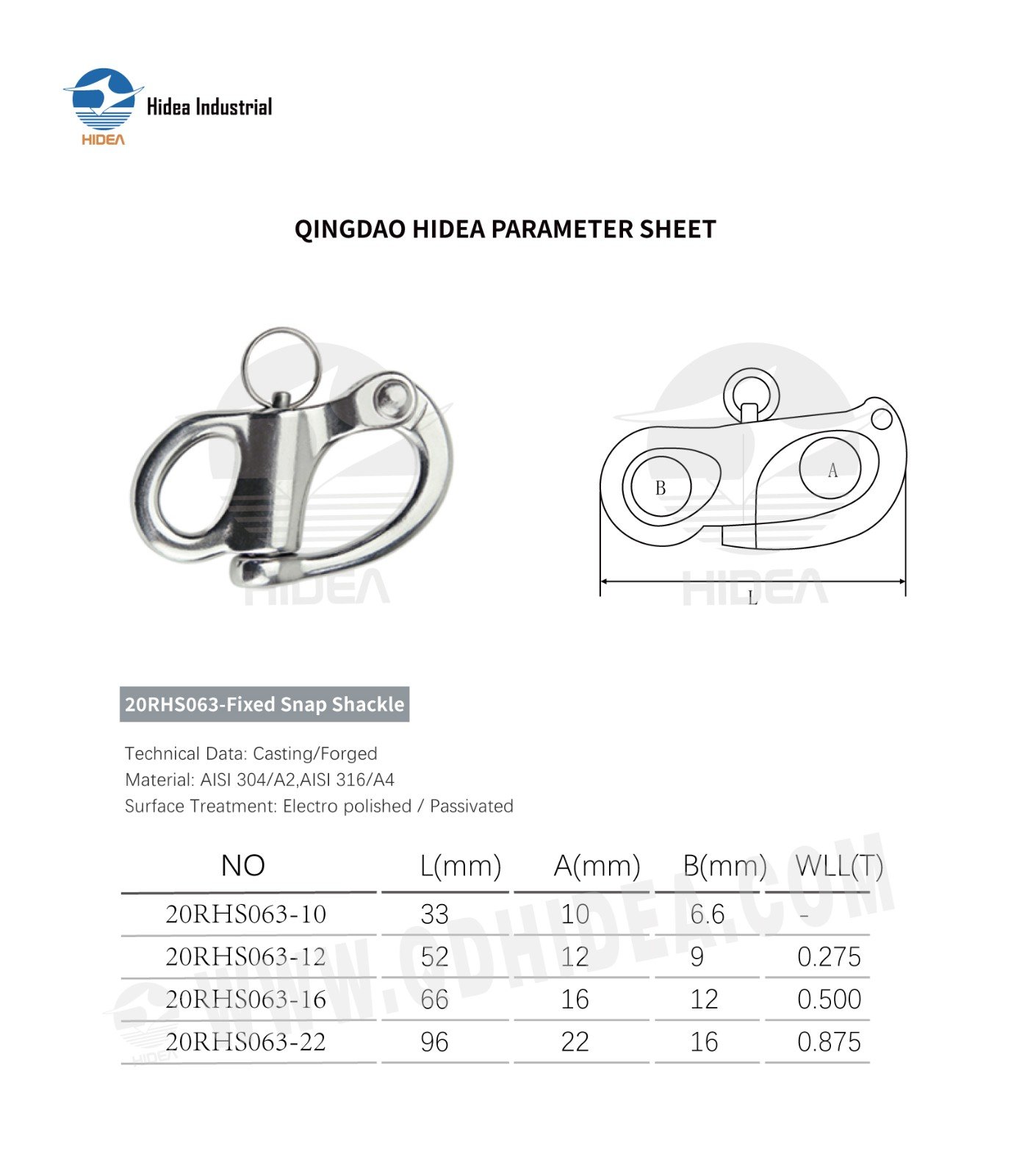

QINGDAO HIDEA PARAMETER SHEET FOR

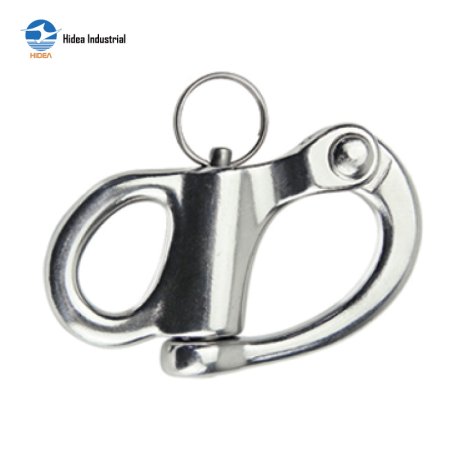

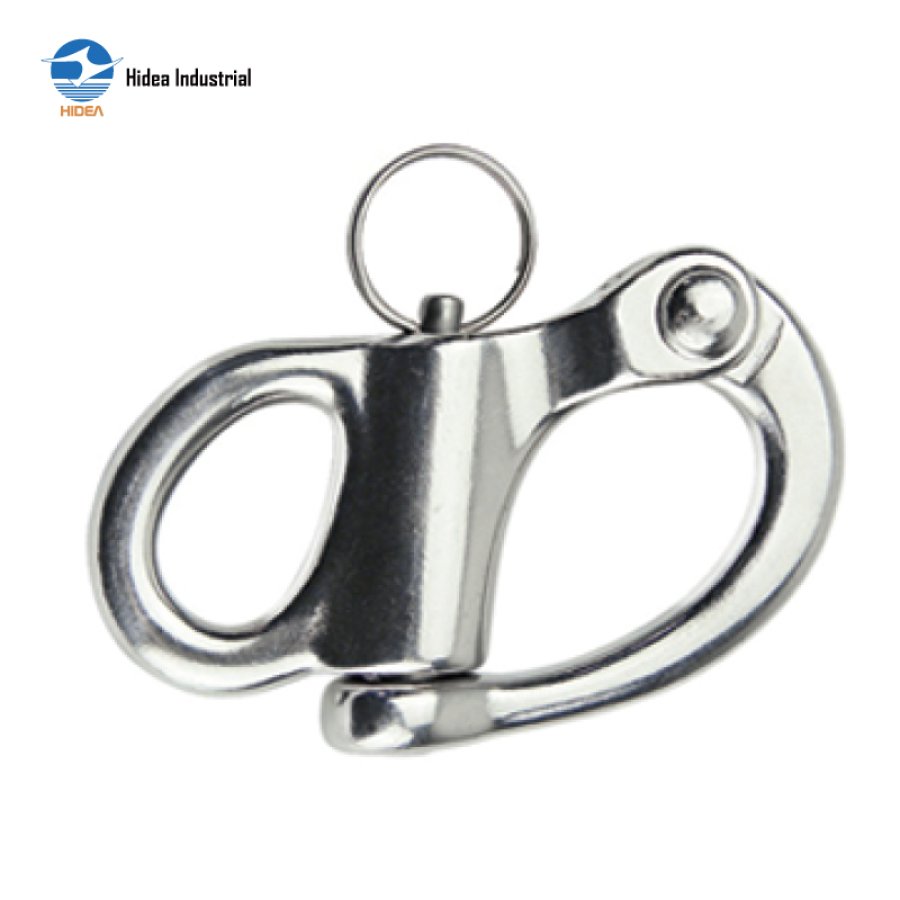

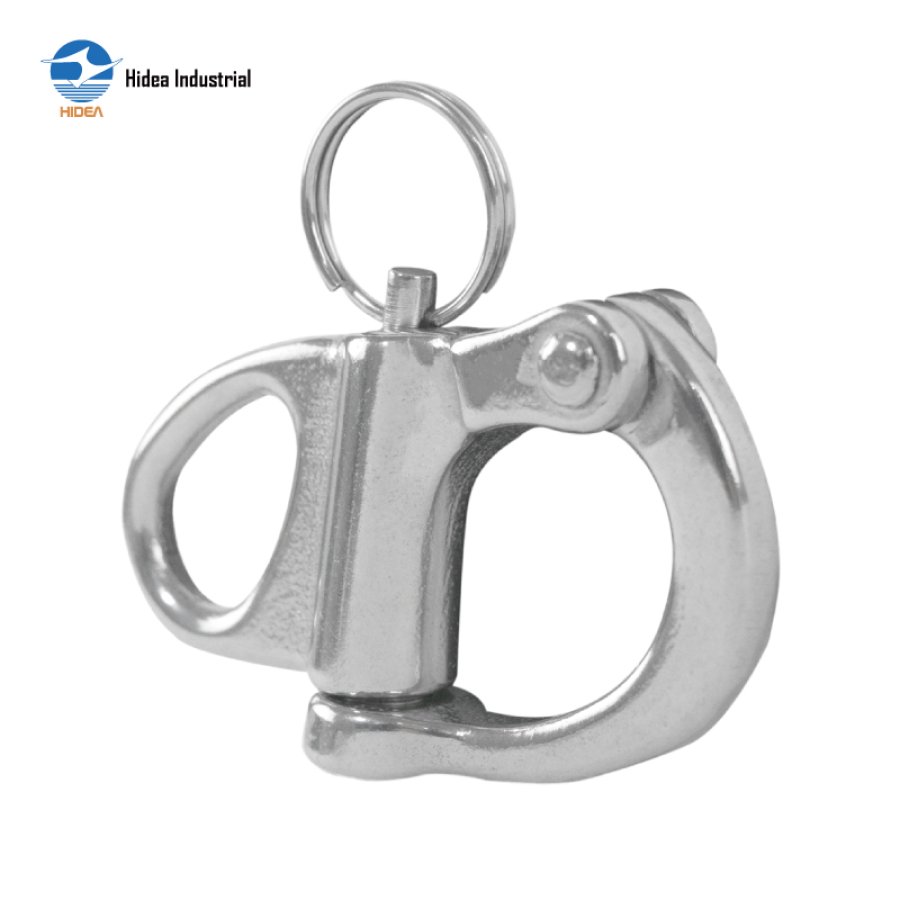

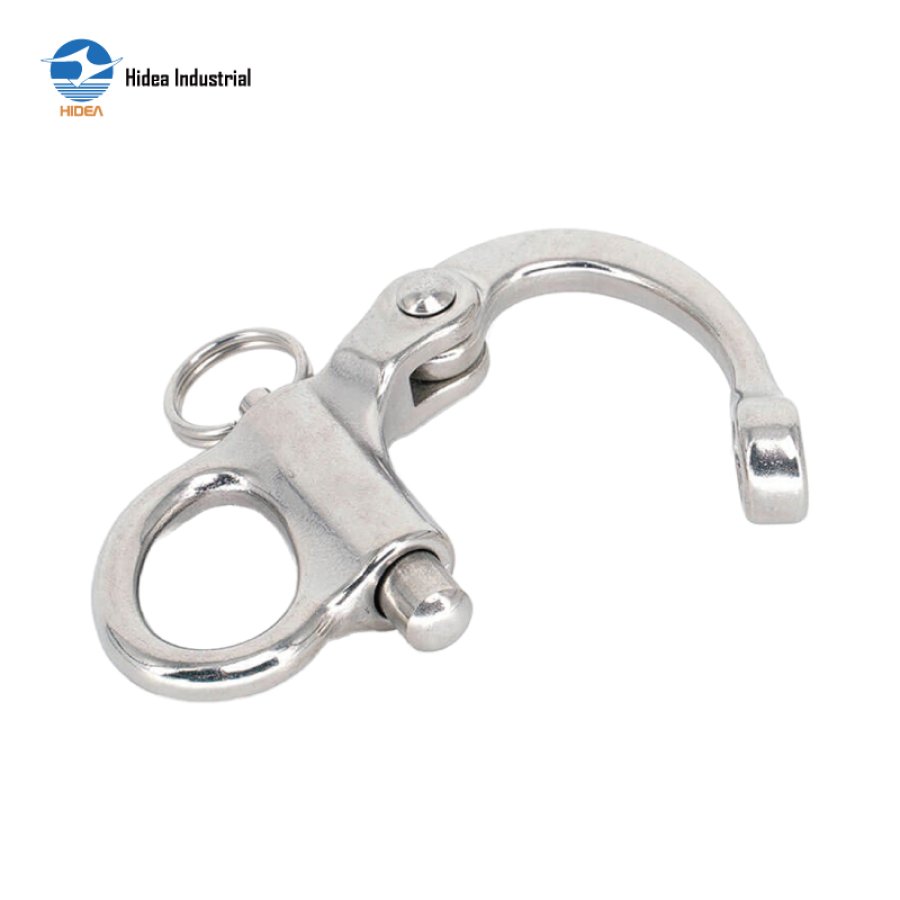

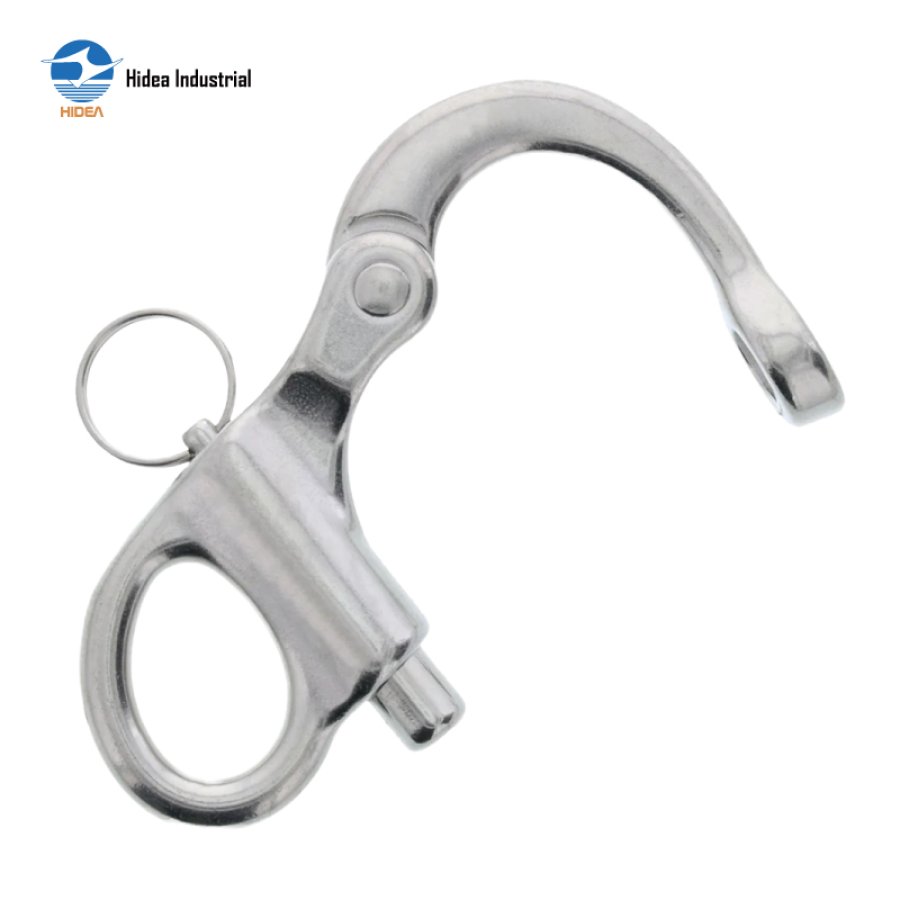

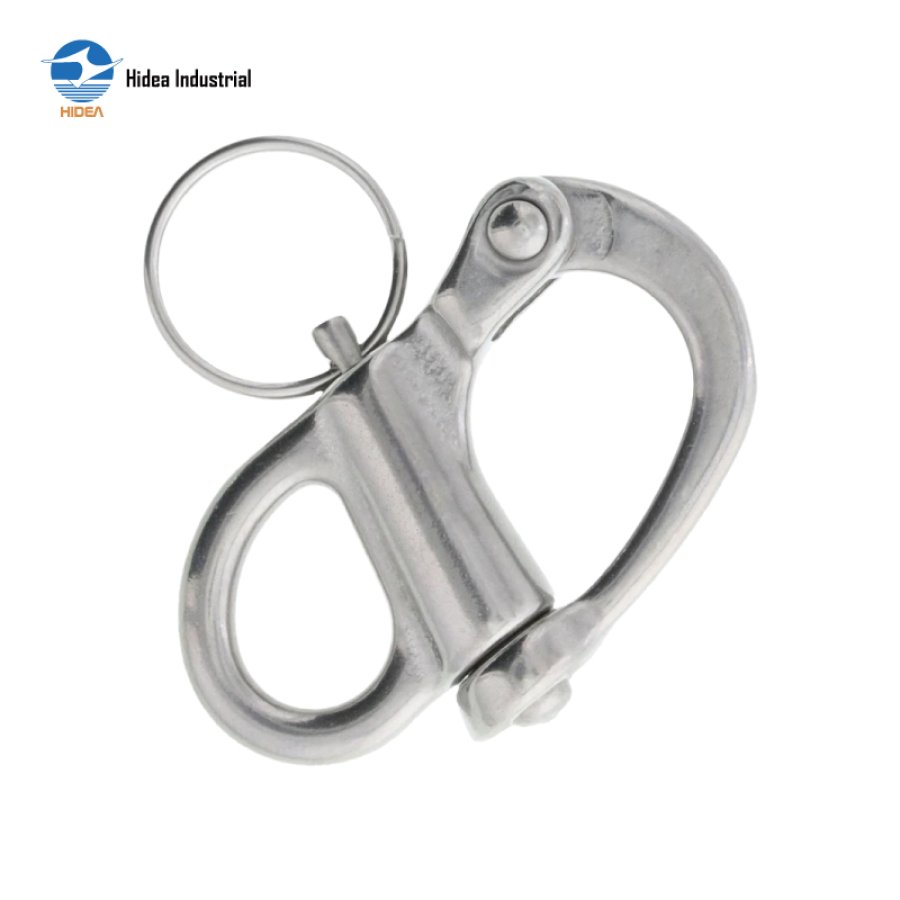

20RHS063-Fixed Snap Shackle
| NO | L(mm) | A(mm) | B(mm) | WLL(T) |
| 20RHS063-10 | 33 | 10 | 6.6 | 一 |
| 20RHS063-12 | 52 | 12 | 9 | 0.275 |
| 20RHSO63-16 | 66 | 16 | 12 | 0.500 |
| 20RHS063-22 | 96 | 22 | 16 | 0.875 |
Inquire Now
-
