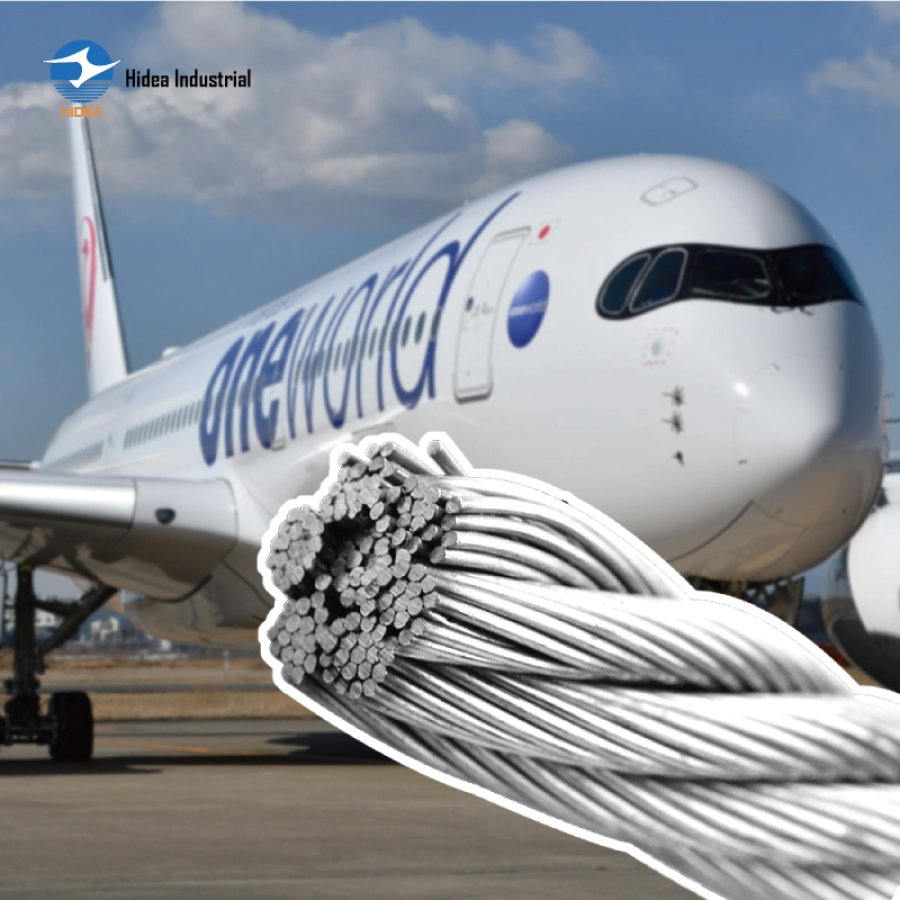

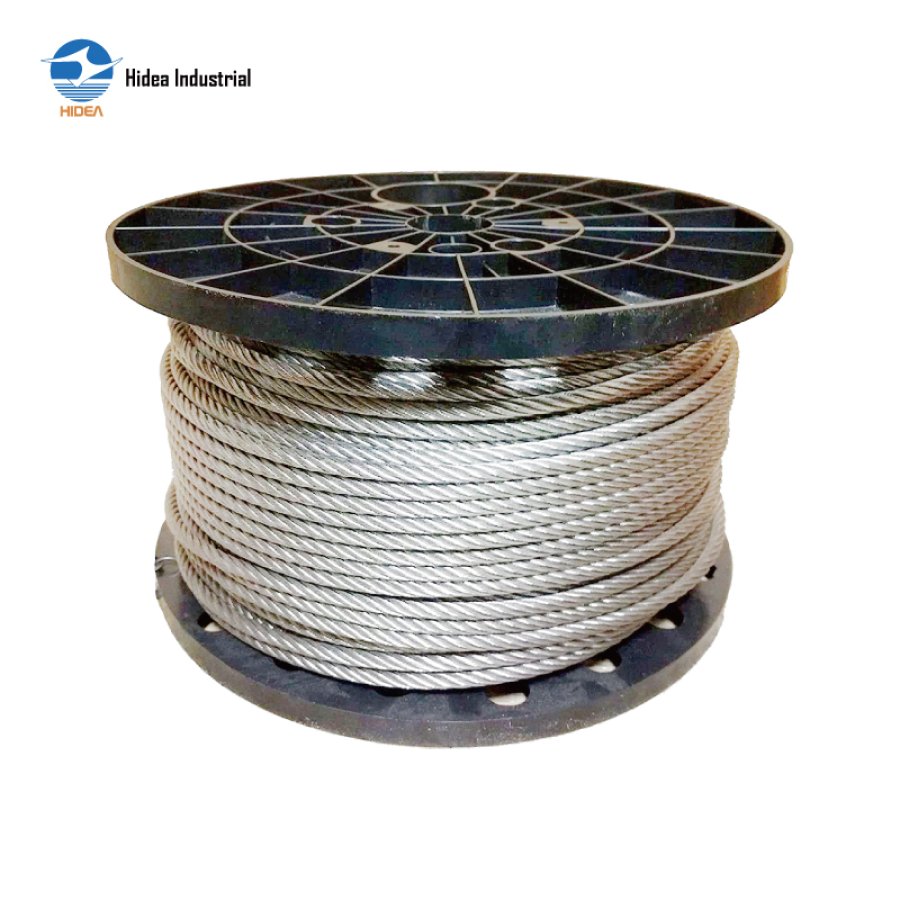

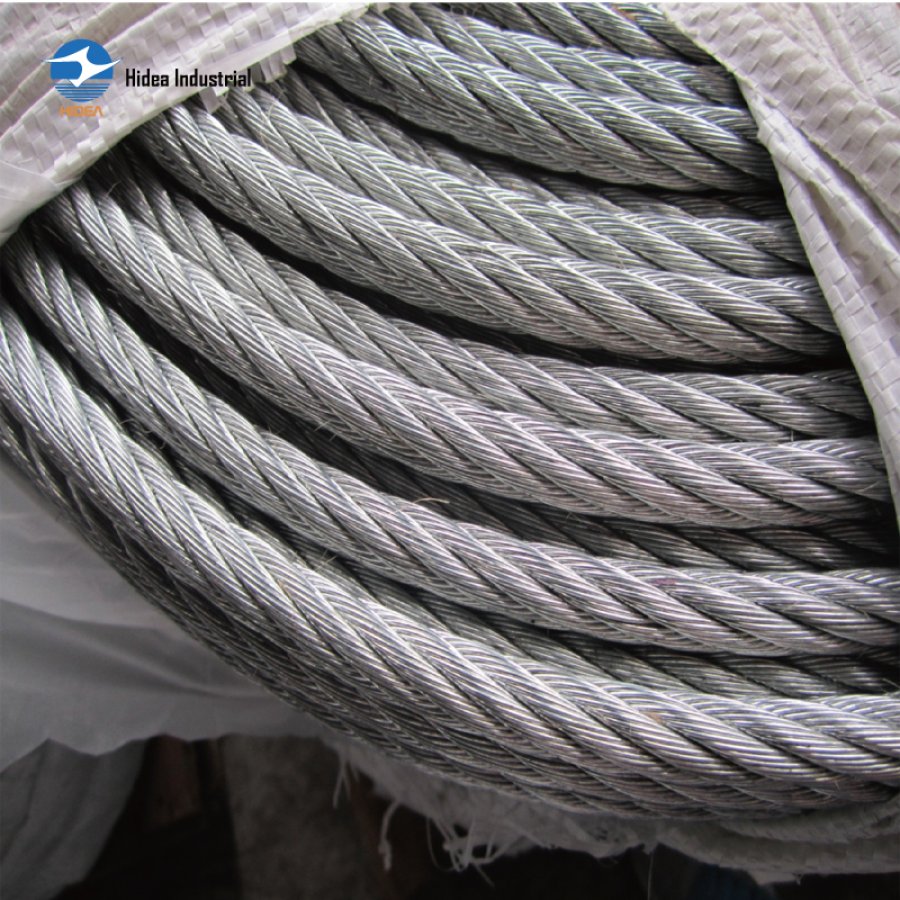

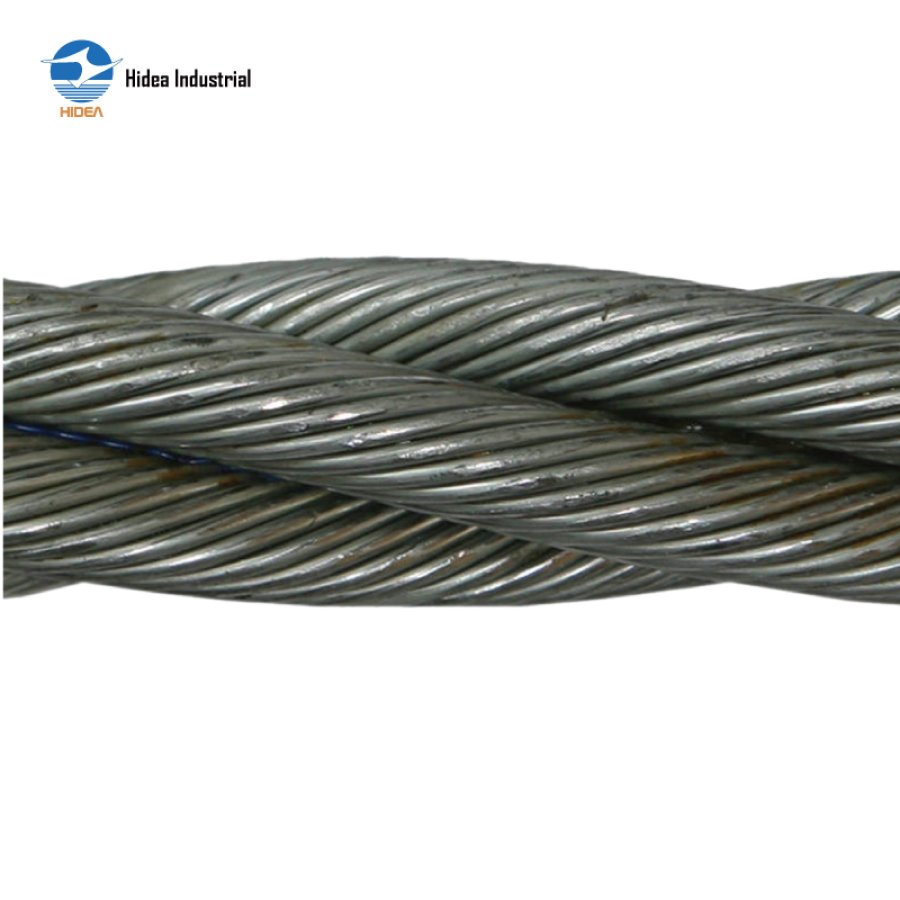

AirPlane / Airecraft Cable of GAC (Galvanized Aircraft Cable) or SSAC(Stainless Steel Aircraft Cable)

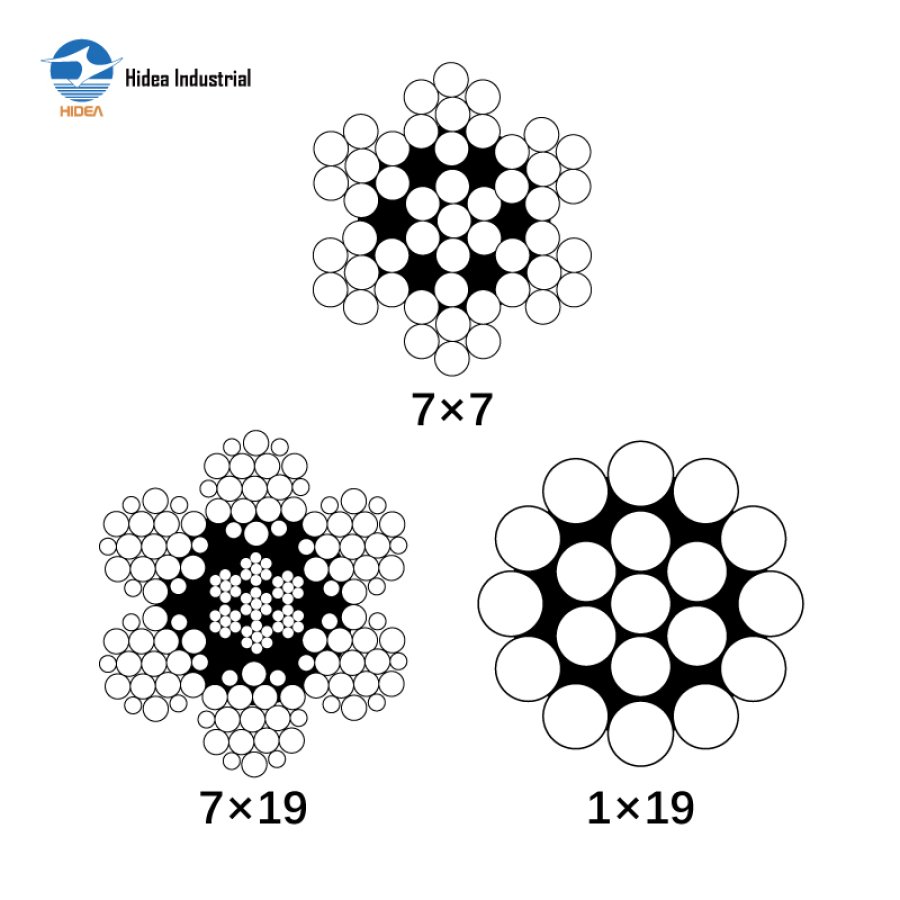

Constructions normallt 7X7, 7x19 or 1x19
Improved Plow Steel High Carbon Steel or Stainless Steel,Strong and Flexible as Control Cables, Rigging, and Suspension Systems
QINGDAO HIDEA PARAMETER SHEET FOR
AIRPLANE/AIRCRAFT CABLE GAC or SSAC
GAC(Galvanized Aircraft Cable)or SSAC(Stainless Steel Aircraft Cable)
| 7×7 | |||||||
| Diameter mm | Tolerance on Dia | Approx.Weight | Approx.Weight | Minimum Breaking Load(KN) | |||
| Galvanized | Stainless | ||||||
| in | in | kg/1000 | lb/1000 | Ib | Ib | ||
| 3/64" | 0.008 | 1.91 | 4.20 | 270 | 270 | ||
| 1/16" | 0.010 | 3.40 | 7.50 | 480 | 480 | ||
| 3/32" | 0.012 | 7.26 | 16.00 | 920 | 920 | ||
| 1/8" | 0.014 | 12.93 | 28.50 | 1700 | 1700 | ||
| 5/32" | 0.016 | 19.50 | 43.00 | 2600 | 2400 | ||
| 7×7 | 3/16" | 0.018 | 28.12 | 62.00 | 3700 | 3700 | |
| 1/4" | 0.018 | 48.10 | 106.00 | 6100 | 6100 | ||
| 5/16" | 0.022 | 75.80 | 167.00 | 9200 | 9000 | ||
| 3/8" | 0.026 | 107.10 | 236.00 | 13300 | 12600 | ||
| 7×19 | |||||||
| Diameter mm | Tolerance on Dia | Approx.Weight | Approx.Weight | Minimum Breaking Load(KN) | |||
| Galvanized | Stainless | ||||||
| in | in | kg/1000 | Ib/1000 | Ib | lb | ||
| 3/32" | 0.012 | 7.89 | 17.4 | 1000 | 920 | ||
| 1/8" | 0.014 | 13.15 | 29.00 | 2000 | 1760 | ||
| 5/32" | 0.016 | 20.40 | 45.00 | 2800 | 2400 | ||
| 3/16" | 0.018 | 29.48 | 65.00 | 4200 | 3700 | ||
| 7/32" | 0.018 | 39.00 | 86.00 | 5600 | 5000 | ||
| 1/4" | 0.018 | 49.90 | 110.00 | 7000 | 6400 | ||
| 7×19 | 9/32" | 0.020 | 63.00 | 139.00 | 8000 | 7800 | |
| 5/16" | 0.022 | 78.50 | 173.00 | 9800 | 9000 | ||
| 3/8" | 0.026 | 110.20 | 243.00 | 14400 | 12000 | ||
| 1×19 | |||||||
| Diameter mm | Tolerance on Dia | Approx.Weight | Approx.Weight | Minimum Breaking Load(KN) | |||
| Galvanized | Stainless | ||||||
| in | in | kg/1000 | Ib/1000 | Ib | Ib | ||
| 3/64" | 0.008 | 2.14 | 4.70 | 280 | 280 | ||
| 1/16" | 0.010 | 3.81 | 8.40 | 500 | 500 | ||
| 3/32" | 0.012 | 8.55 | 18.90 | 1200 | 1200 | ||
| 1/8" | 0.014 | 15.26 | 33.60 | 2100 | 2100 | ||
| 5/32" | 0.016 | 23.80 | 52.50 | 3300 | 3300 | ||
| 1×19 | 3/16" | 0.018 | 34.20 | 75.40 | 4700 | 4700 | |
| 1/4" | 0.018 | 60.80 | 134.00 | 8200 | 8200 | ||
| 5/16" | 0.022 | 95.10 | 210.00 | 12500 | 12500 | ||
| 3/8" | 0.026 | 137.00 | 302.00 | 18000 | 17500 | ||
