Hidea Square Sunken Hole Fishing Bow Shackle: Ideal for Marine Rigging

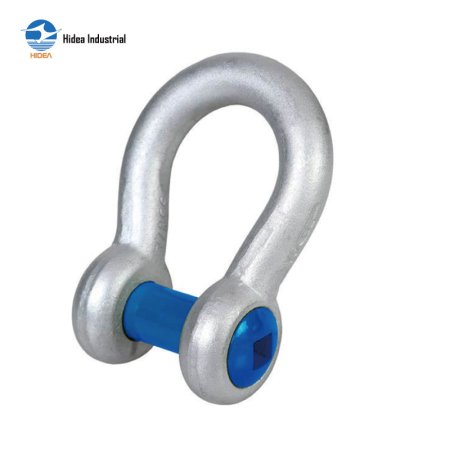

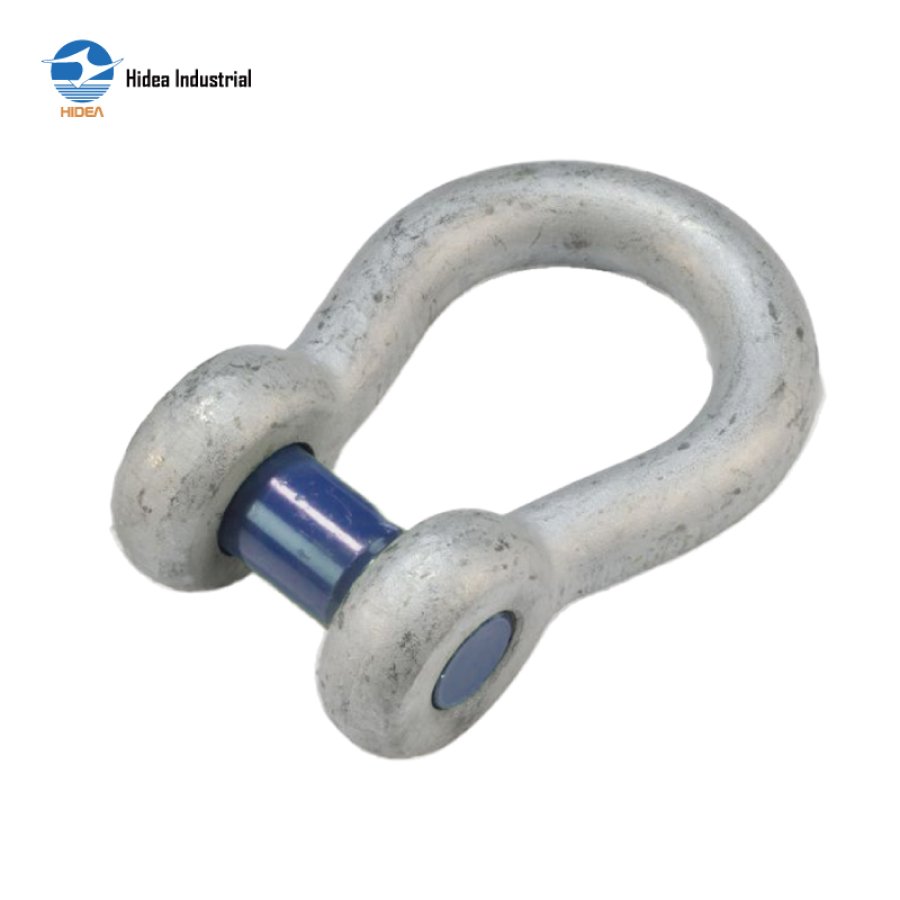

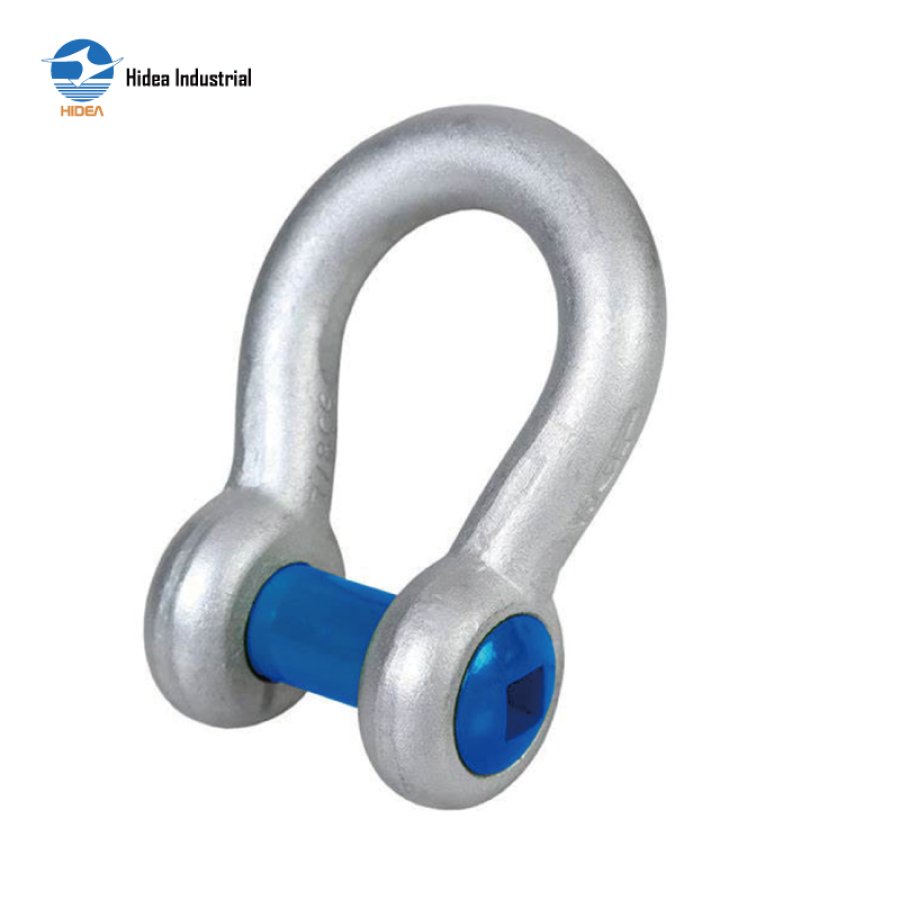

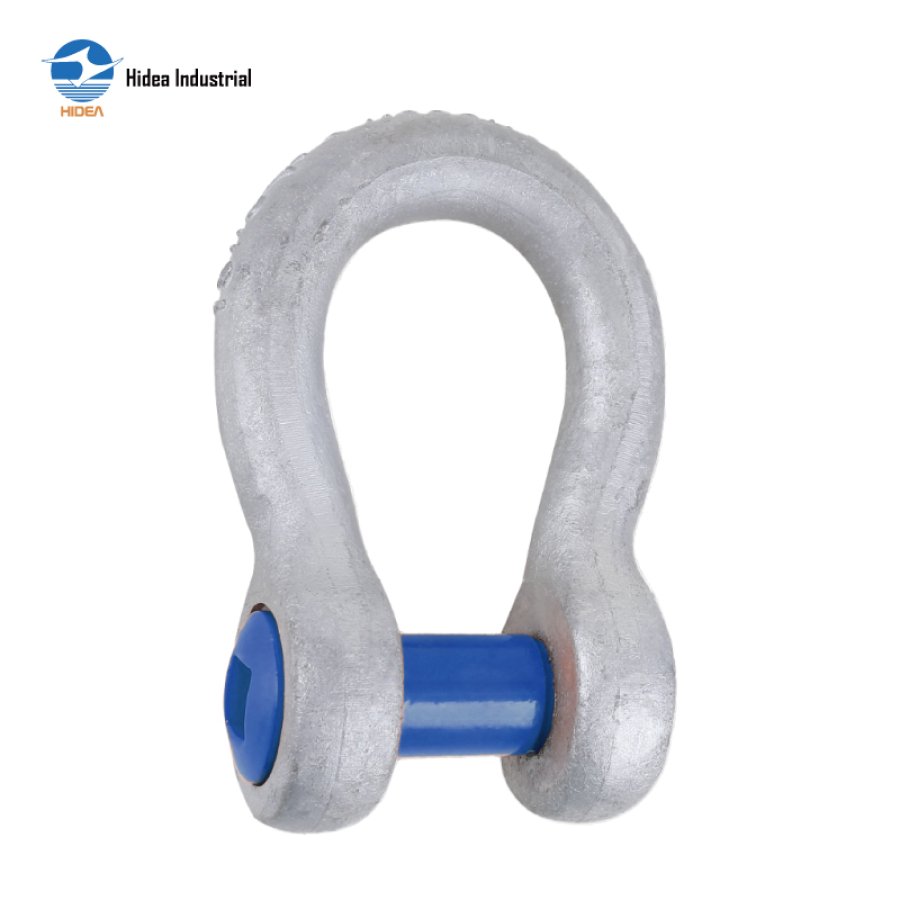

BOW SHACKLE WITH SUNKEN HEAD PIN

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271, Grade A

Inquire Now

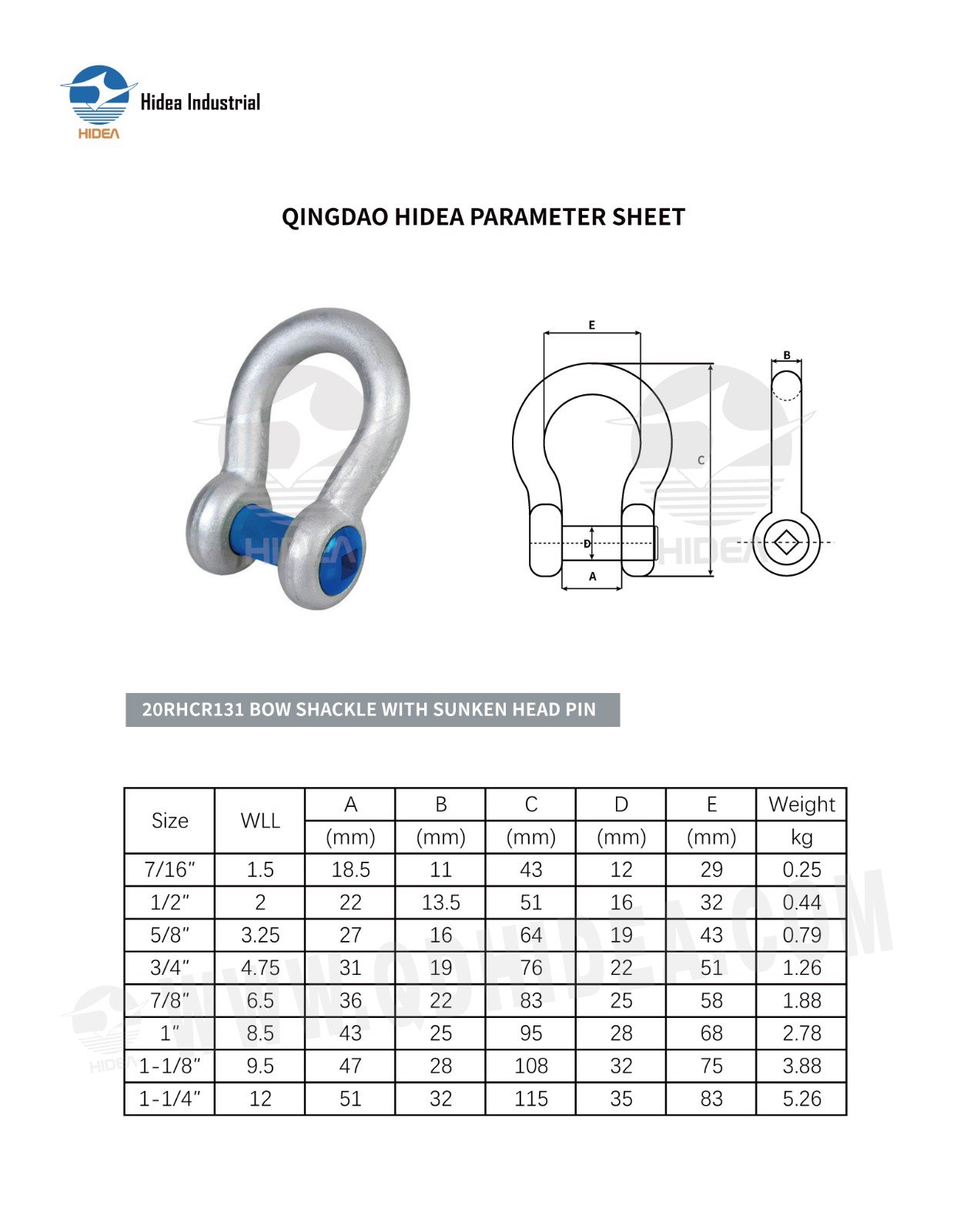

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR131 BOW SHACKLE WITH SUNKEN HEAD PIN

Size	WLL	A	B	C	D	E	Weight
Size	WLL	(mm)	(mm)	(mm)	(mm)	(mm)	kg
7/16"	1.5	18.5	11	43	12	29	0.25
1/2"	2	22	13.5	51	16	32	0.44
5/8"	3.25	27	16	64	19	43	0.79
3/4"	4.75	31	19	76	22	51	1.26
7/8"	6.5	36	22	83	25	58	1.88
1"	8.5	43	25	95	28	68	2.78
1-1/8"	9.5	47	28	108	32	75	3.88
1-1/4"	12	51	32	115	35	83	5.26
