Raw Material 100% high tenacity & high tensile strength polyester yarns of low elongation for lifting webbing slings
European Type usually different color codes, quantity of black lines and widths represent different M.B.S. per standard EN1492-1 in aspects of material selection and technical, design and construction, marking and identification.
US type usually yellow with different widths per ASME B30.9 Standard for lifting webbing slings in aspects of material selection and technical, design and construction, marking and identification.
M.B.S. = Minimum Breaking Strength

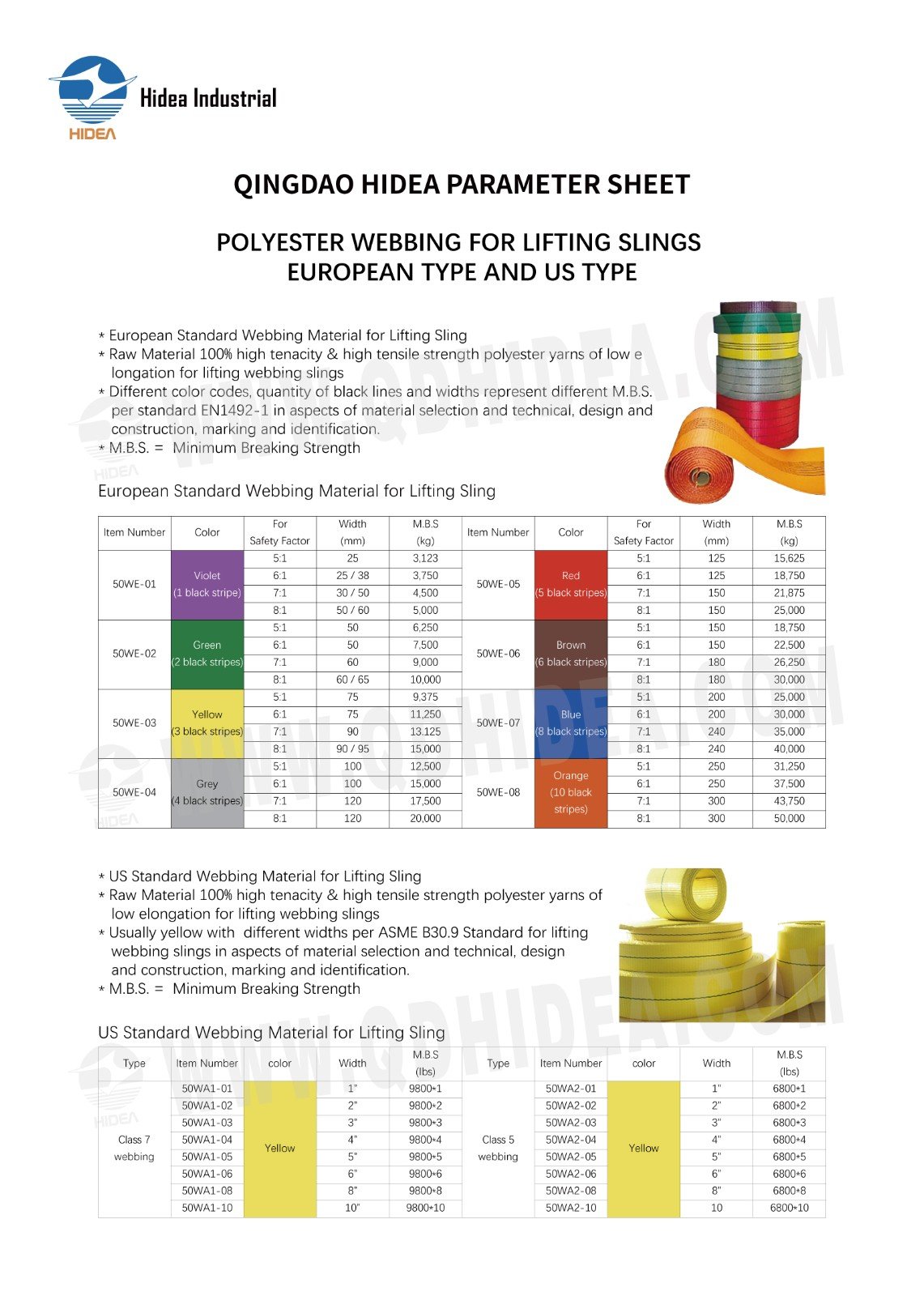

QINGDAO HIDEA PARAMETER SHEET FOR
POLYESTER WEBBING FOR LIFTING SLINGS
| European Standard Webbing Material for Lifting Sling | ||||||||||
| ltem Number | Color | For Safety Factor | Width (mm) | M.B.S (kg) | ltem Number | Color | For Safety Factor | Width (mm) | M.B.S (kg) | |
| 50WE-01 | Violet (1 black stripe) | 5:1 | 25 | 3,123 | 50WE-05 | Red (5 black stripes) | 5:1 | 125 | 15,625 | |
| 6:1 | 25/38 | 3,750 | 6:1 | 125 | 18,750 | |||||
| 7:1 | 30/50 | 4,500 | 7:1 | 150 | 21,875 | |||||
| 8:1 | 50/60 | 5,000 | 8:1 | 150 | 25,000 | |||||
| 50WE-02 | Green (2 black stripes) | 5:1 | 50 | 6,250 | 50WE-06 | Brown (6 black stripes) | 5:1 | 150 | 18,750 | |
| 6:1 | 50 | 7,500 | 6:1 | 150 | 22,500 | |||||
| 7:1 | 60 | 9,000 | 7:1 | 180 | 26,250 | |||||
| 8:1 | 60/65 | 10,000 | 8:1 | 180 | 30,000 | |||||
| 50WE-03 | Yellow (3 black stripes) | 51 | 75 | 9,375 | 50WE-07 | Blue (8 black stripes) | 5:1 | 200 | 25,000 | |
| 6:1 | 75 | 11,250 | 6:1 | 200 | 30,000 | |||||
| 7:1 | 90 | 13.125 | 7:1 | 240 | 35,000 | |||||
| 8:1 | 90/95 | 15,000 | 8:1 | 240 | 40,000 | |||||
| 50WE-04 | Grey (4 black stripes) | 5:1 | 100 | 12,500 | 50WE-08 | Orange (10 black stripes) | 5:1 | 250 | 31,250 | |
| 6.1 | 100 | 15,000 | 6:1 | 250 | 37,500 | |||||
| 7:1 | 120 | 17,500 | 7:1 | 300 | 43,750 | |||||
| 8:1 | 120 | 20,000 | 8:1 | 300 | 50,000 | |||||
| US Standard Webbing Material for Lifting Sling | ||||||||||
| Type | ltem Number | color | Width | M.BS (Ibs) | Type | ltem Number | color | Width | M.B.S (Ibs) | |
| Class 7 webbing | 50WA1-01 | Yellow | 1° | 9800*1 | Class 5 webbing | 50WA2-01 | Yellow | 1" | 6800*1 | |
| 50WA1-02 | 2° | 9800*2 | 50WA2-02 | 2” | 6800*2 | |||||
| 50WA1-03 | 3° | 9800+3 | 50WA2-03 | 3” | 6800+3 | |||||
| 50WA1-04 | 4° | 9800*4 | 50WA2-04 | 4" | 6800*4 | |||||
| 50WA1-05 | 5° | 9800*5 | 50WA2-05 | 5" | 6800*5 | |||||
| 50WA1-06 | 6° | 9800*6 | 50WA2-06 | 6" | 6800*6 | |||||
| 50WA1-08 | 8 | 9800*8 | 50WA2-08 | 8" | 6800*8 | |||||
| 50WA1-10 | 10" | 9800*10 | 50WA2-10 | 10 | 6800*10 | |||||
