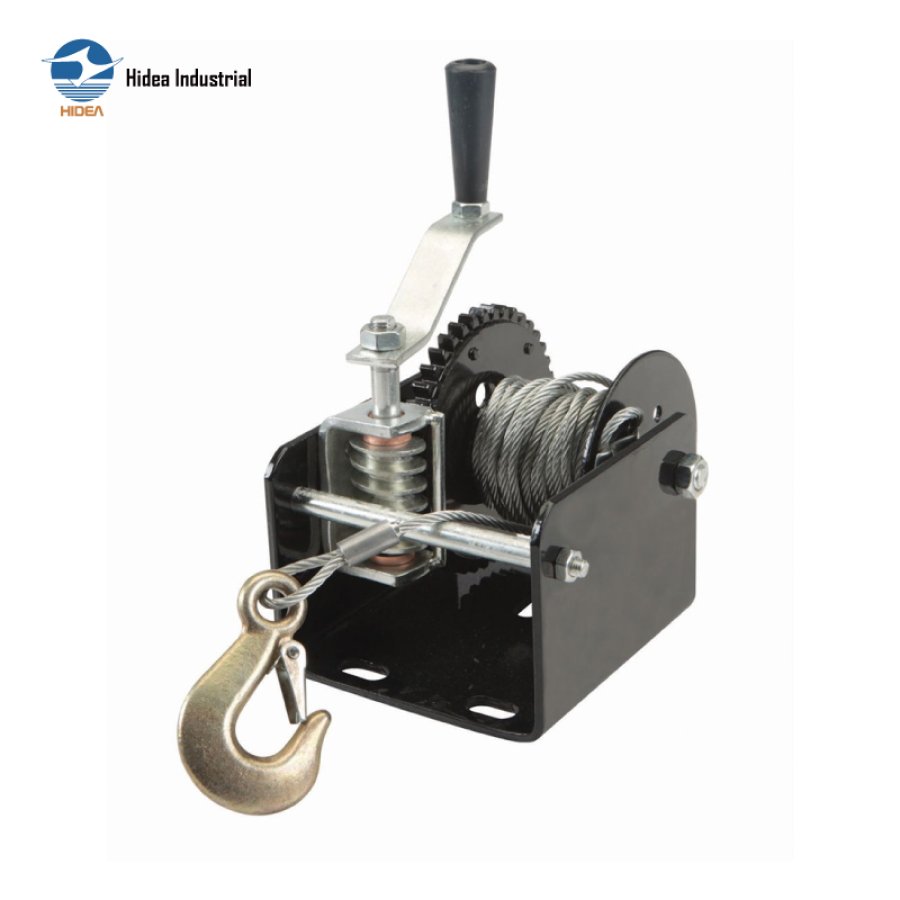

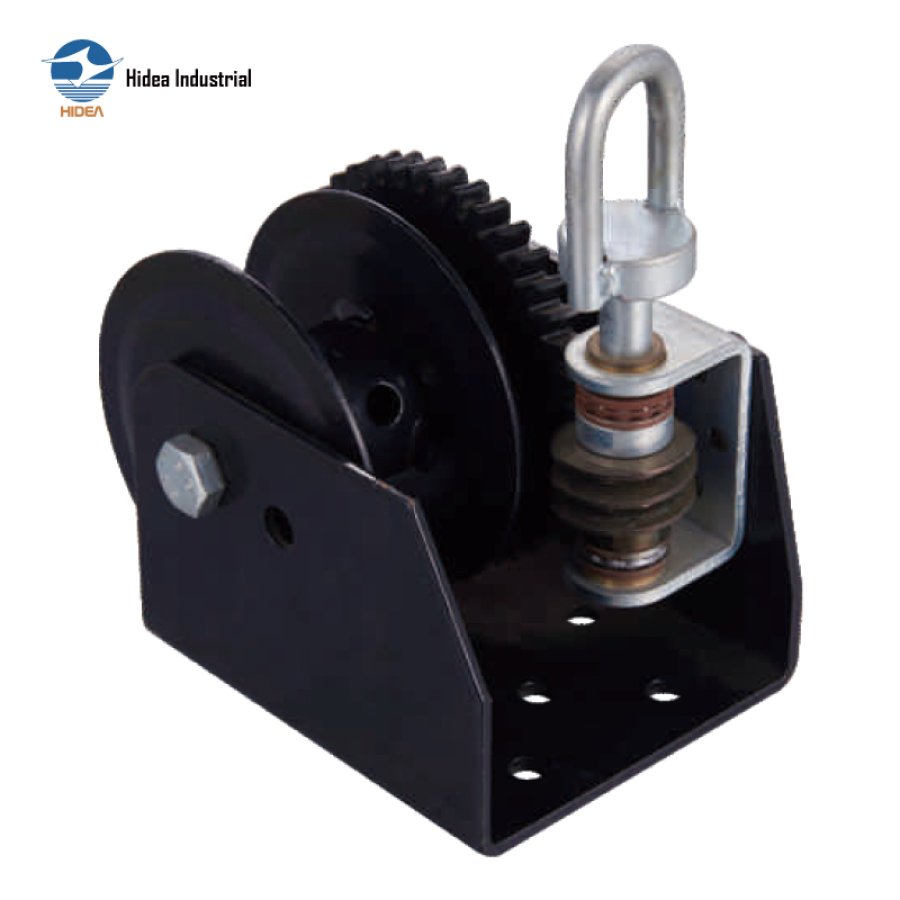

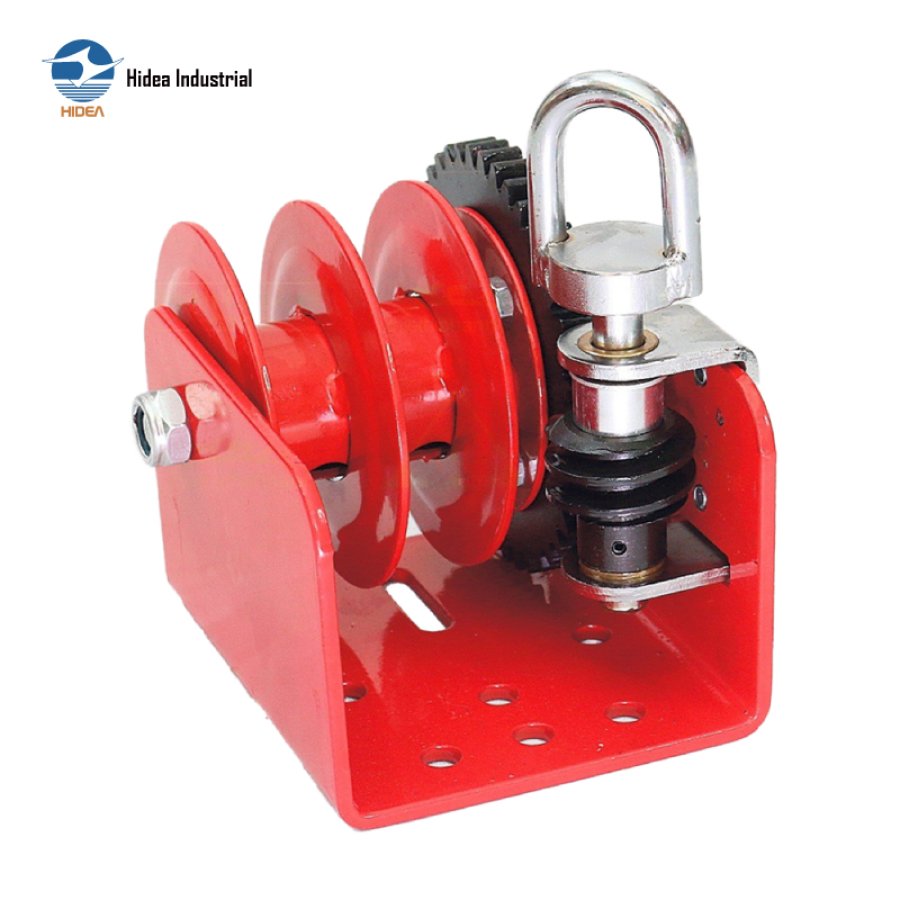

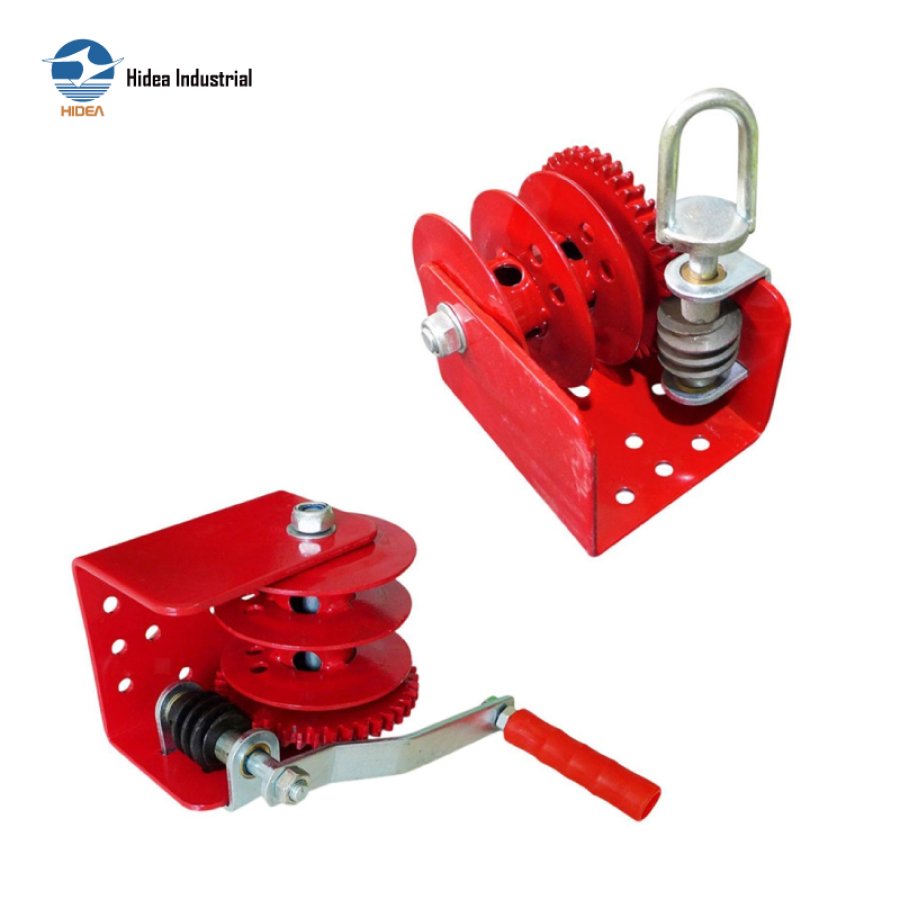

The worm gear winch or turbine winch utilizes a worm gear mechanism to provide control and power when lifting or pulling heavy loads, the worm gear mechanism consists of a worm of high torque ratio that rotates and meshes with the larger wheel gear, so the cable generate huge power with minimal input for greater control and stability when lifting heavy loads
The worm gear winch worms and wheel gears are made of high tensile steel and properly heat treated with gear ratio from 31:1 or 41:1 and rated from 680Kgs to 900Kgs, easy to handle heavy loads with high efficiency & safety, and accurate control over the speed and direction of the loads when lifting or pulling
The worm gear hand winch is usually equipped with high quality anti-twist wire ropes cables
The worm gear hand winches meeting standards of and in conformity with ASME B30.7, OSHA regulations & EN 13157
QINGDAO HIDEA PARAMETER SHEET FOR
WORM GEAR WINCH
| Part No. | Capacity(kg) | Gear Ratio | Hub Dia. (mm) | Reel | N.W. (Kg) | |||
| 60MT-WW1500A | 680 | 31:1 | 38 | 1 Reel | 4.3 | |||
| 60MT-WW2000A | 900 | 41:1 | 38 | 1 Reel | 4.5 | |||
| 60MT-WW1500B | 680 | 31:1 | 38 | Slipt Reel | 4.5 | |||
| 60MT-WW2000B | 900 | 41:1 | 38 | Slipt Reel | 4.7 | |||
| 60MT-WW1500C | 680 | 31:1 | 38 | 1 Reel | 4.2 | |||
| 60MT-WW2000C | 900 | 41:1 | 38 | 1 Reel | 4.4 | |||
| 60MT-WW1500D | 680 | 31:1 | 38 | Slipt Reel | 4.4 | |||
| 60MT-WW2000D | 900 | 41:1 | 38 | Slipt Reel | 4.6 | |||
