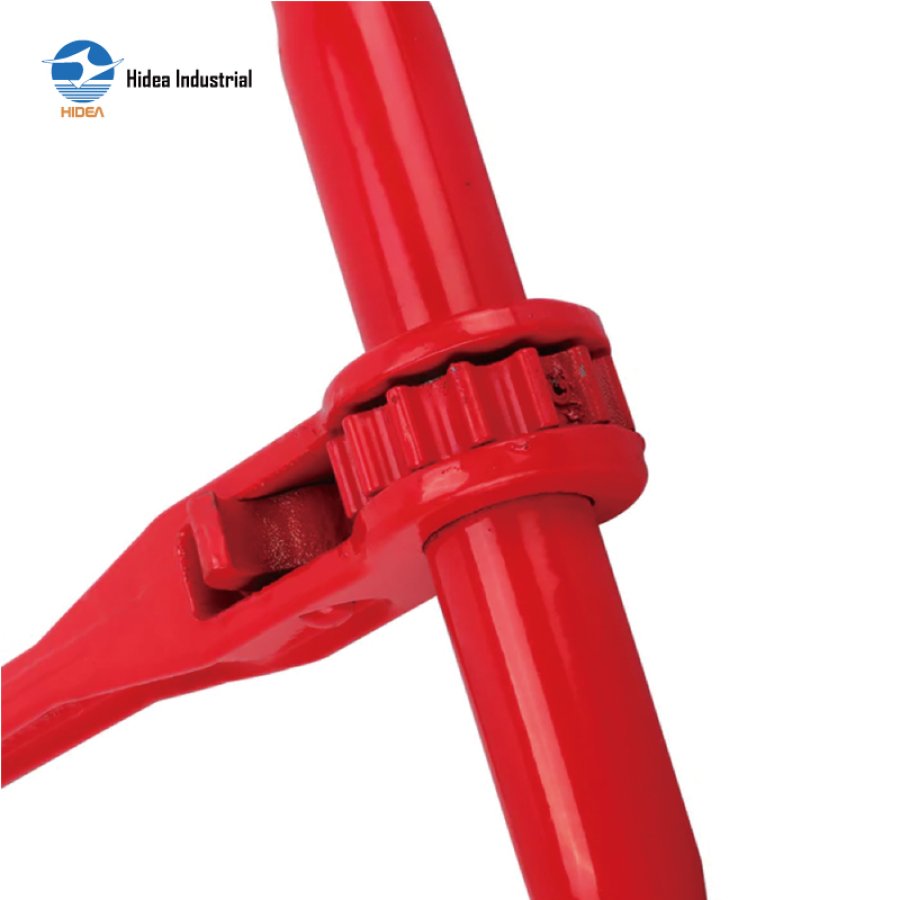

Hidea Ratchet Binders without Links or Hooks for Industrial Tasks

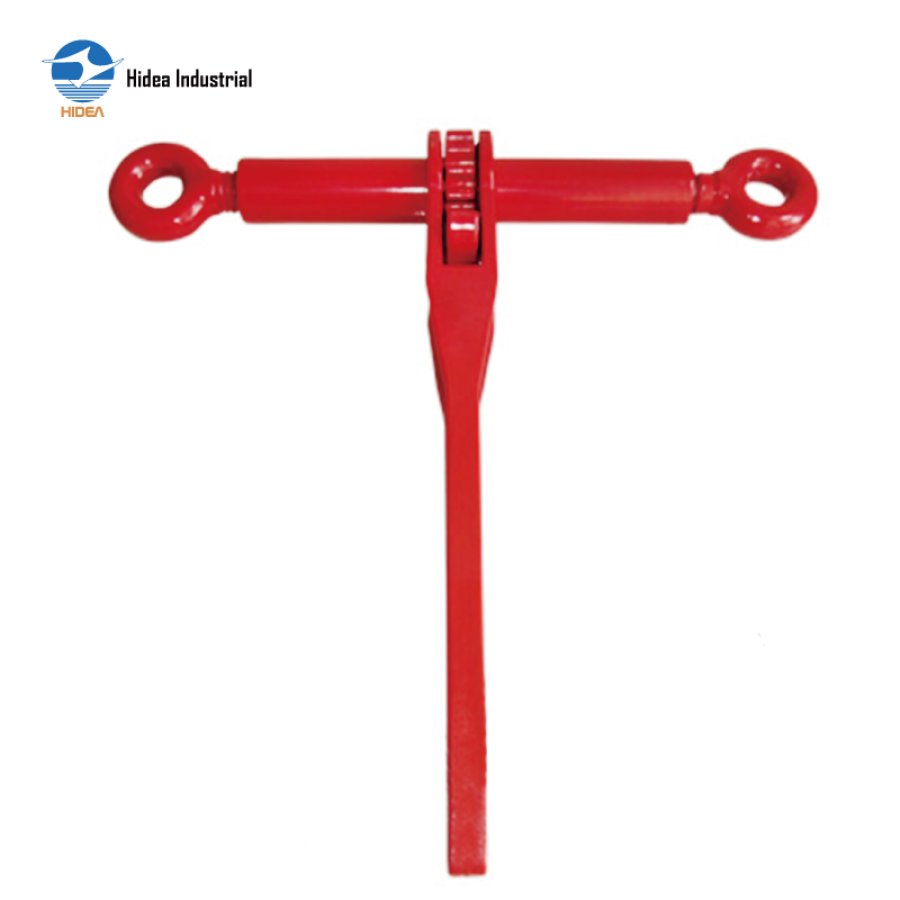

RATCHET TYPE LOAD BINDERS WITHOUT LINKS OR HOOKS

High tensile steel rated G70+
Drop forged, quenched & tempered
Proof tested individually
Surface: Powder coated OR as requested
Meets or exceeds requirements of US DOT FMGSA Part 393 Subpart I

Inquire Now

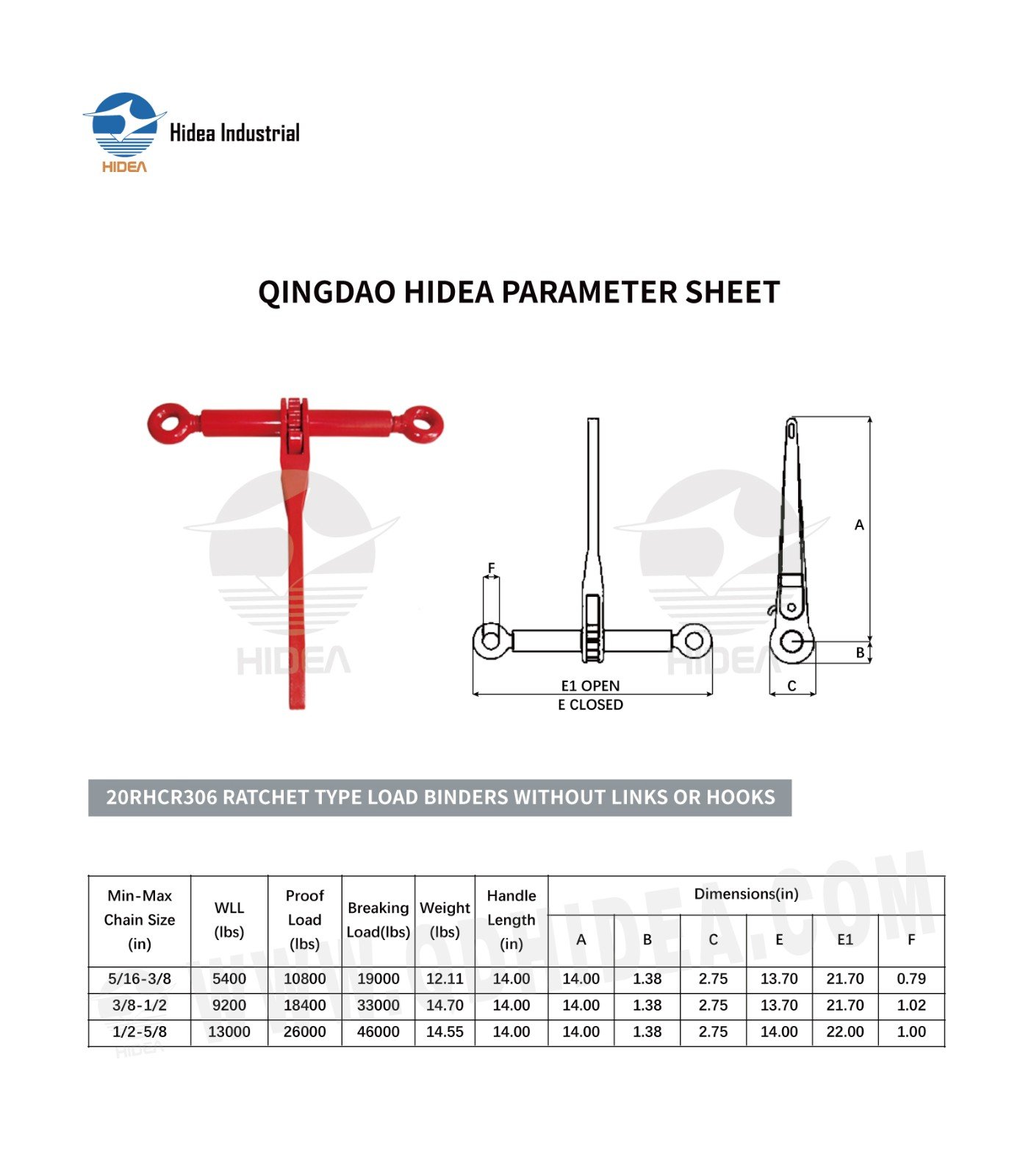

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR306 RATCHET TYPE LOAD BINDERS WITHOUT LINKS OR HOOKS

Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load(Ibs)	Weight (Ibs)	Handle Length (in)	Dimensions(in)
Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load(Ibs)	Weight (Ibs)	Handle Length (in)	A	B	C	E	E1	F
5/16-3/8	5400	10800	19000	12.11	14.00	14.00	1.38	2.75	13.70	21.70	0.79
3/8-1/2	9200	18400	33000	14.70	14.00	14.00	1.38	2.75	13.70	21.70	1.02
1/2-5/8	13000	26000	46000	14.55	14.00	14.00	1.38	2.75	14.00	22.00	1.00
