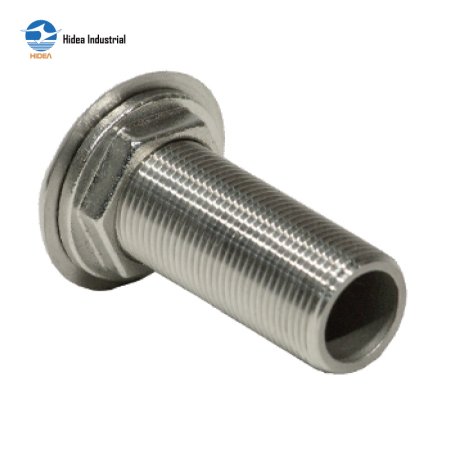

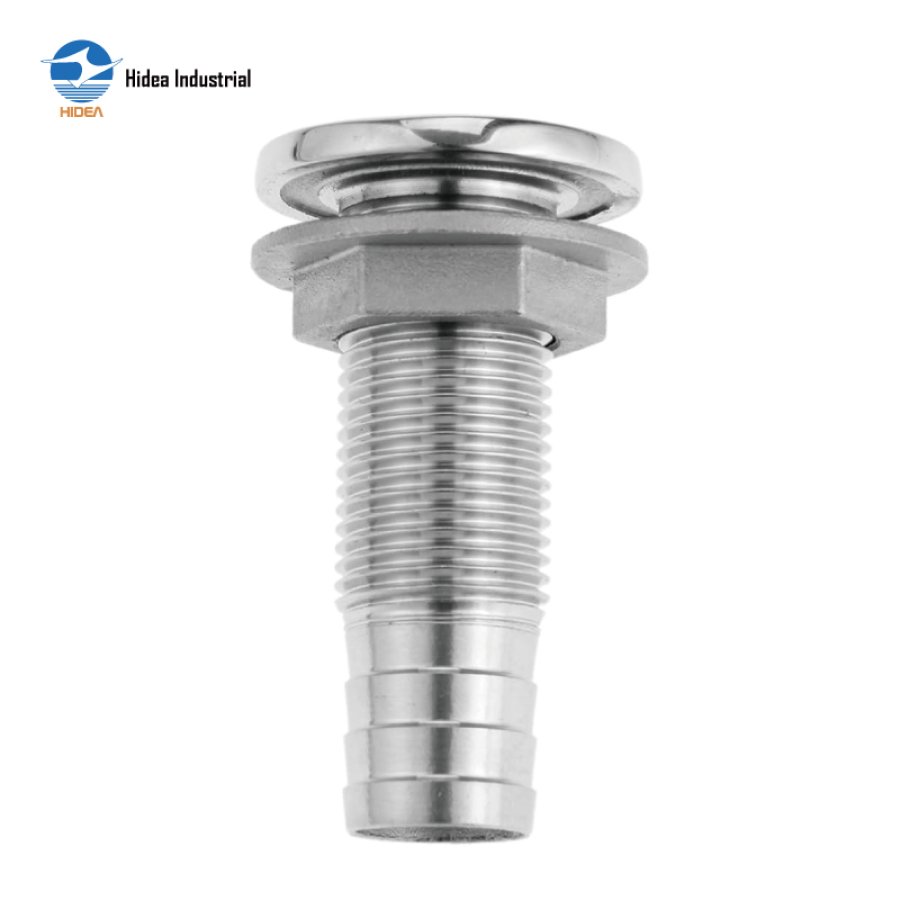

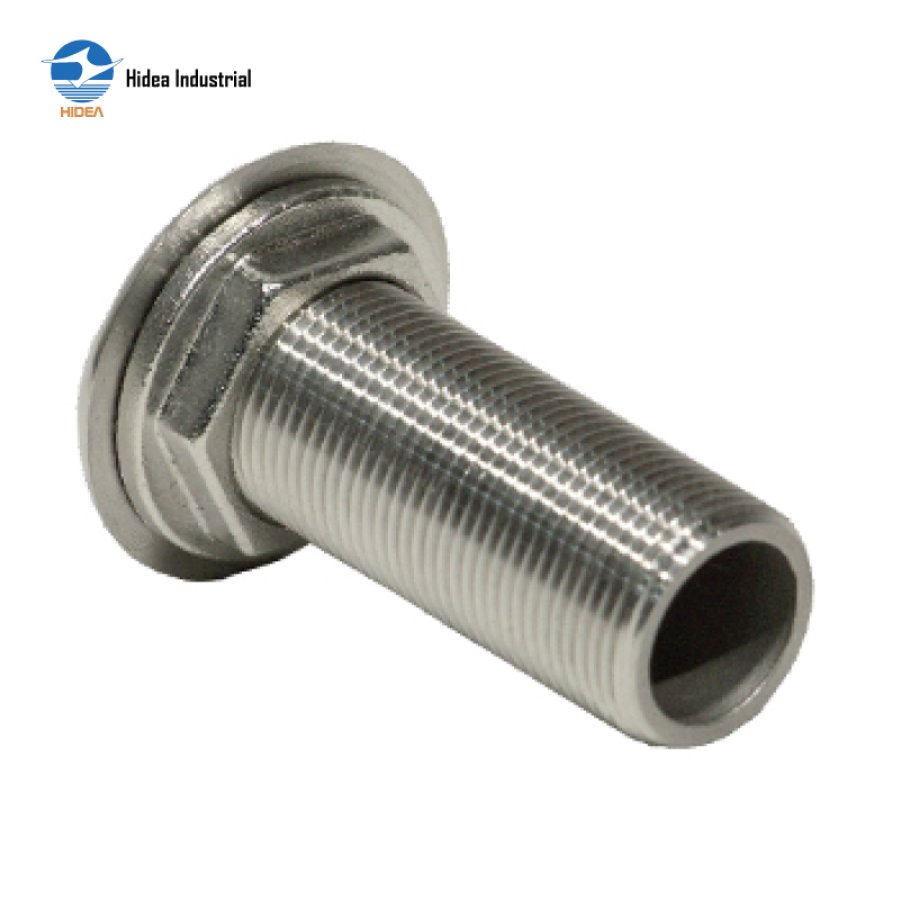

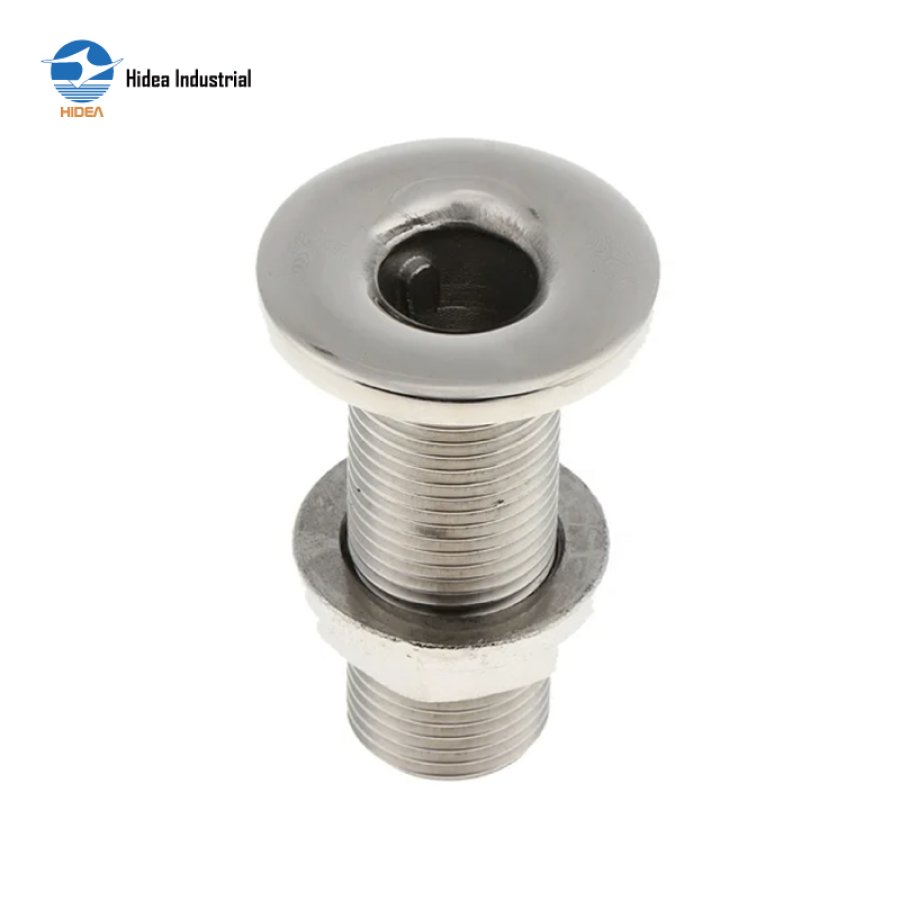

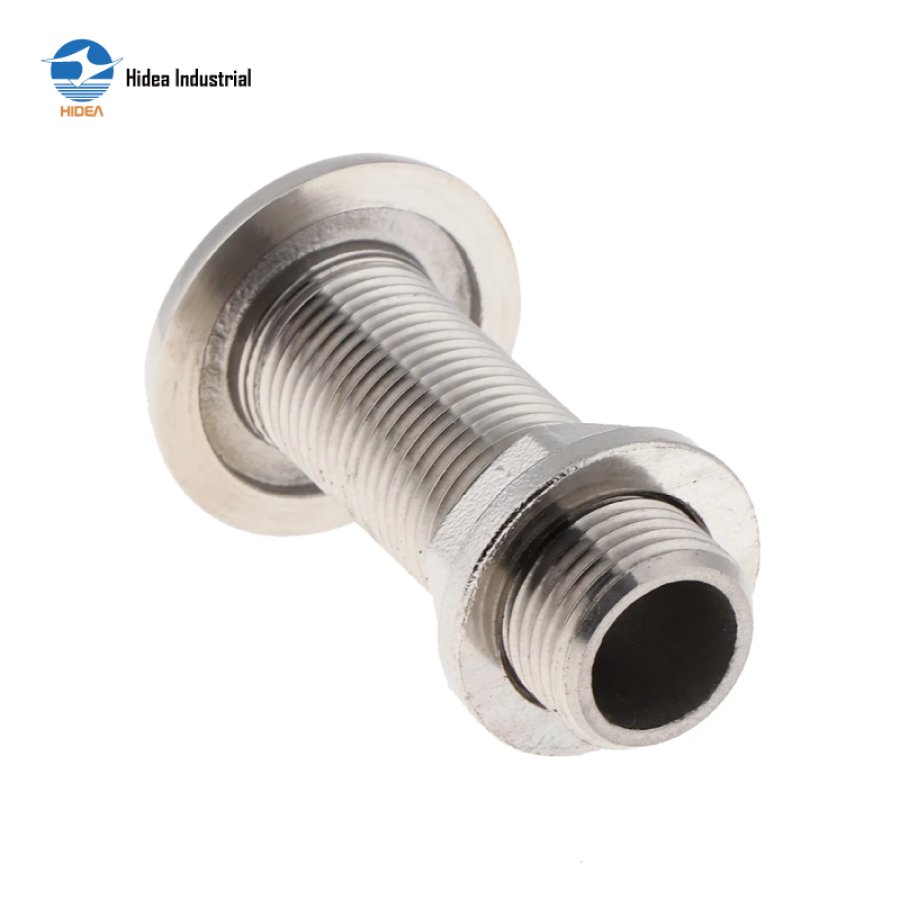

Hidea Boat Thru Hull Fittings with Nut– Durable, Leak-Free Connections for Marine Applications

THRU HULL FITTINGS

Technical Data: Investment Casting
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Mirror Polished

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

Thru-Hull Fittings

		Thtu-Hull Fittings
Art.No.	A(inch)		B(mm)	C(mm)	D(mm)	E(mm)
20RHS-0101A	3/8”		58	35.3	11.8	52.5
20RHS-0102A	1/2”		62	39.3	15.3	58
20RHS-0103A	3/4”		73	49	19	62
20RHS-0104A	1”		80	54	25	71
20RHS-0105A	1-1/4”		83	63	34	76
20RHS-0106A	1-1/2”		85	70	38	79
20RHS-0104A	2”		101	84	50.8	95
20RHS-0105A	2-1/2”
20RHS-0106A	3”		127	117	76	120
