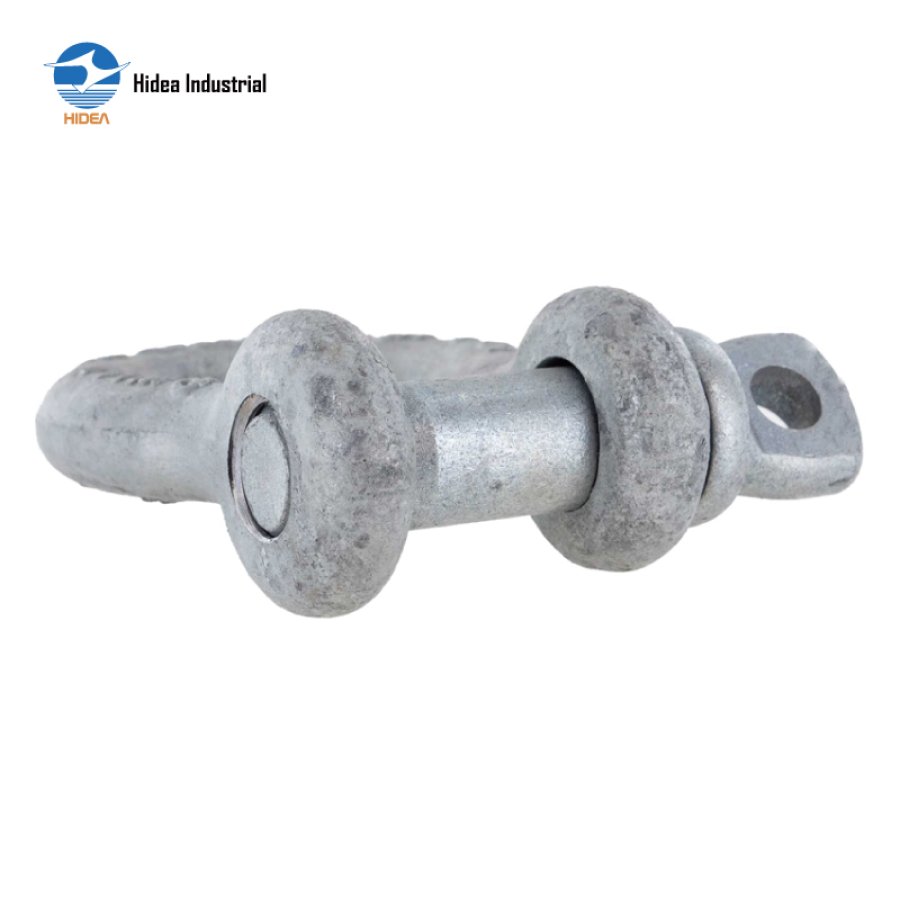

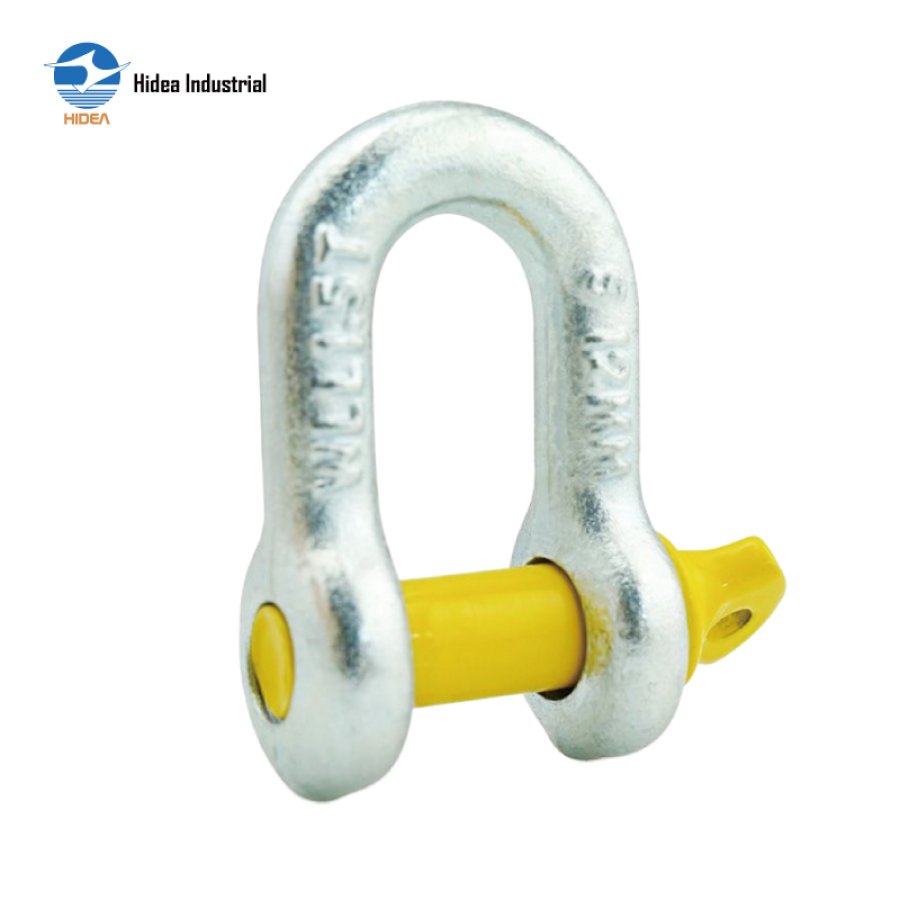

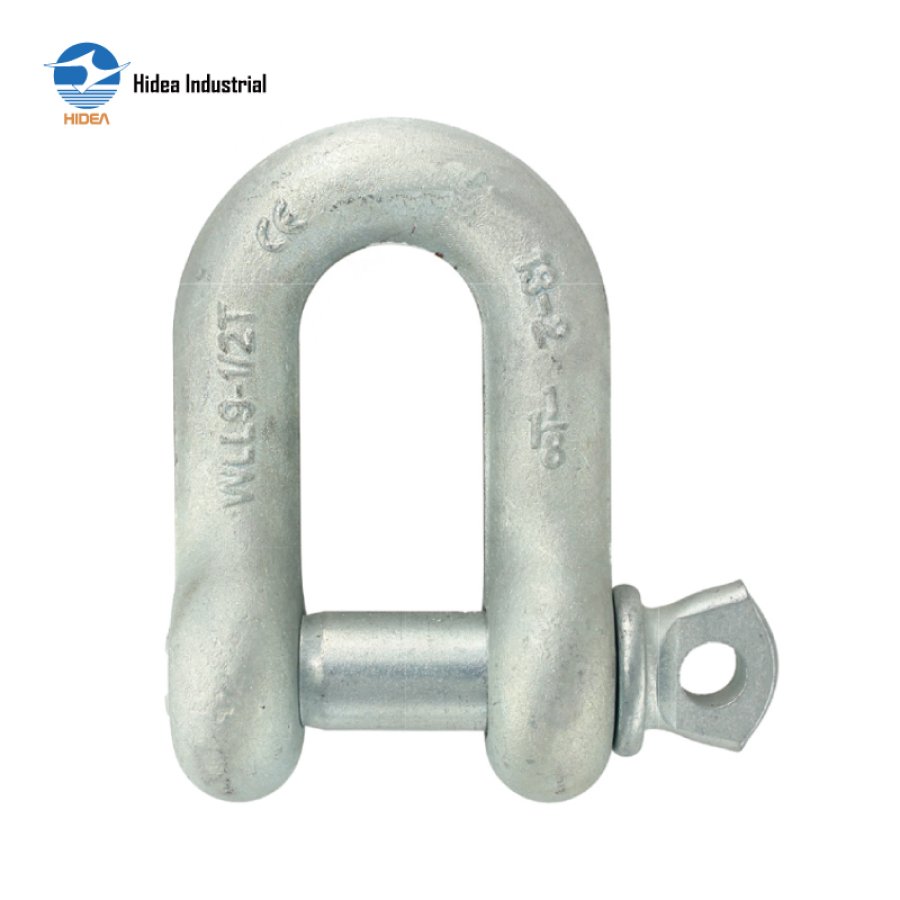

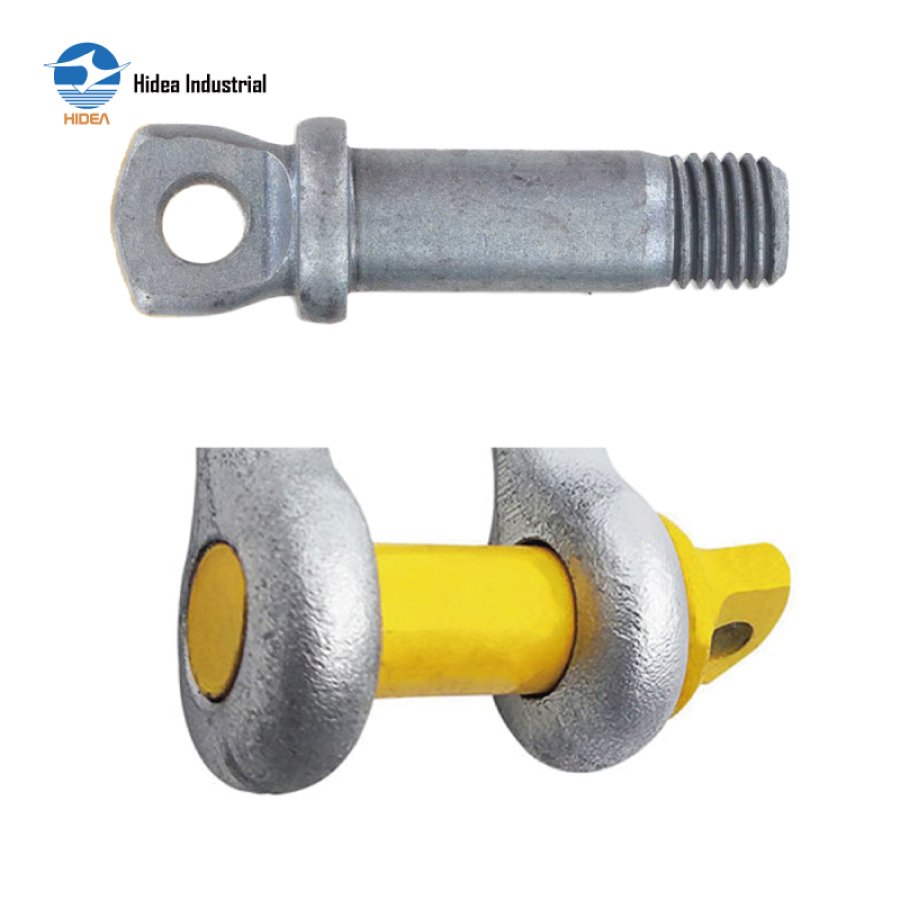

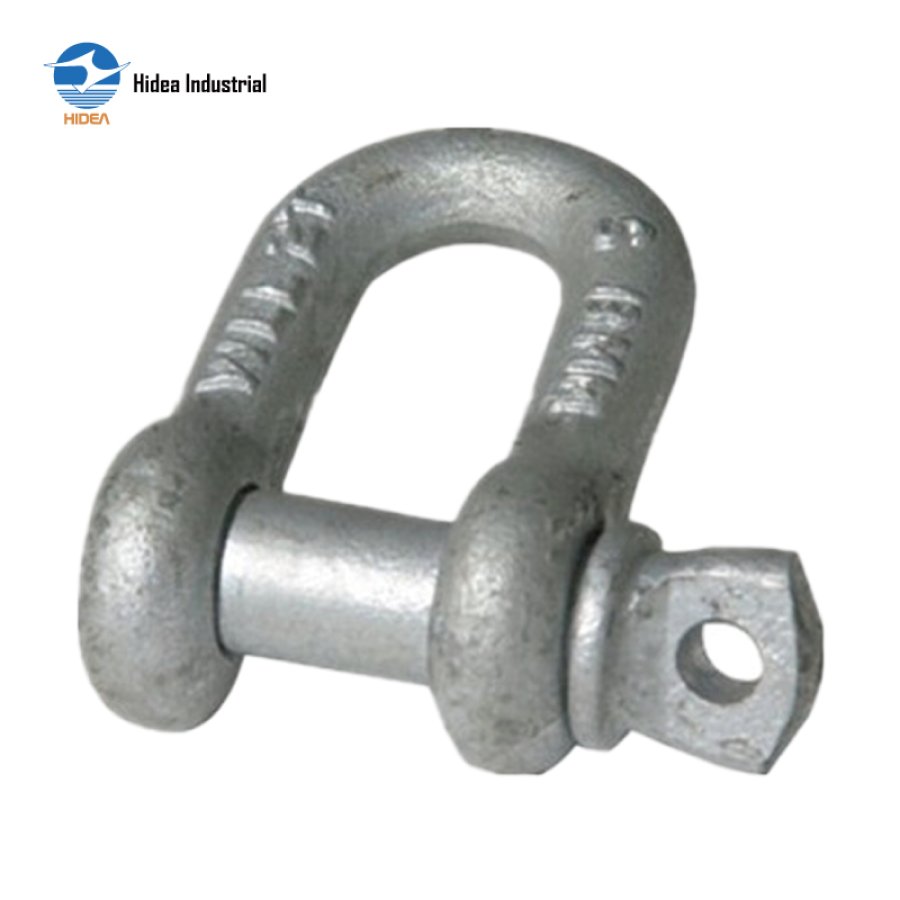

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard AS2741 by Standards Australia Committee ME-025/BS EN 13889:2003+A1:2008
Temperature range: -20 to 200 centigrade degrees

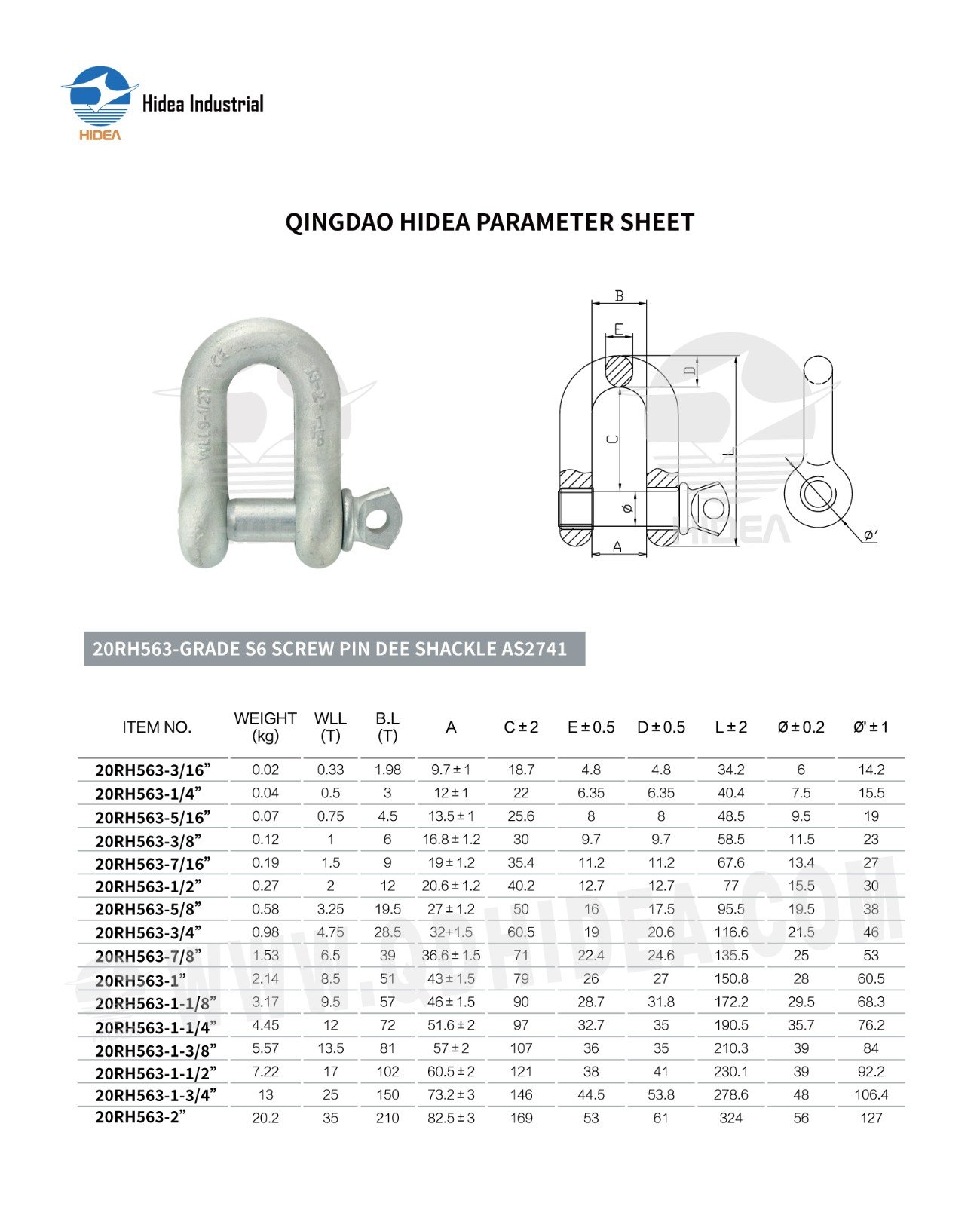

QINGDAO HIDEA PARAMETER SHEET FOR
20RH563-GRADE S6 SCREW PIN DEE SHACKLE AS2741
| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | A | C±2 | E±0.5 | D±0.5 | L±2 | ø±0.2 | ø'±1 |
| 20RH563-3/16” | 0.02 | 0.33 | 1.98 | 9.7±1 | 18.7 | 4.8 | 4.8 | 34.2 | 6 | 14.2 |
| 20RH563-1/4” | 0.04 | 0.5 | 3 | 12±1 | 22 | 6.35 | 6.35 | 40.4 | 7.5 | 15.5 |
| 20RH563-5/16” | 0.07 | 0.75 | 4.5 | 13.5±1 | 25.6 | 8 | 8 | 48.5 | 9.5 | 19 |
| 20RH563-3/8" | 0.12 | 1 | 6 | 16.8±1.2 | 30 | 9.7 | 9.7 | 58.5 | 11.5 | 23 |
| 20RH563-7/16” | 0.19 | 1.5 | 9 | 19±1.2 | 35.4 | 11.2 | 11.2 | 67.6 | 13.4 | 27 |
| 20RH563-1/2” | 0.27 | 2 | 12 | 20.6±1.2 | 40.2 | 12.7 | 12.7 | 77 | 15.5 | 30 |
| 20RH563-5/8” | 0.58 | 3.25 | 19.5 | 27±1.2 | 50 | 16 | 17.5 | 95.5 | 19.5 | 38 |
| 20RH563-3/4” | 0.98 | 4.75 | 28.5 | 32+1.5 | 60.5 | 19 | 20.6 | 116.6 | 21.5 | 46 |
| 20RH563-7/8” | 1.53 | 6.5 | 39 | 36.6±1.5 | 71 | 22.4 | 24.6 | 135.5 | 25 | 53 |
| 20RH563-1” | 2.14 | 8.5 | 51 | 43±1.5 | 79 | 26 | 27 | 150.8 | 28 | 60.5 |
| 20RH563-1-1/8” | 3.17 | 9.5 | 57 | 46±1.5 | 90 | 28.7 | 31.8 | 172.2 | 29.5 | 68.3 |
| 20RH563-1-1/4” | 4.45 | 12 | 72 | 51.6±2 | 97 | 32.7 | 35 | 190.5 | 35.7 | 76.2 |
| 20RH563-1-3/8” | 5.57 | 13.5 | 81 | 57±2 | 107 | 36 | 35 | 210.3 | 39 | 84 |
| 20RH563-1-1/2” | 7.22 | 17 | 102 | 60.5±2 | 121 | 38 | 41 | 230.1 | 39 | 92.2 |
| 20RH563-1-3/4” | 13 | 25 | 150 | 73.2±3 | 146 | 44.5 | 53.8 | 278.6 | 48 | 106.4 |
| 20RH563-2” | 20.2 | 35 | 210 | 82.5±3 | 169 | 53 | 61 | 324 | 56 | 127 |
