Hidea G80 European Type Master Link: The Strongest Connection for Your Rigging Needs

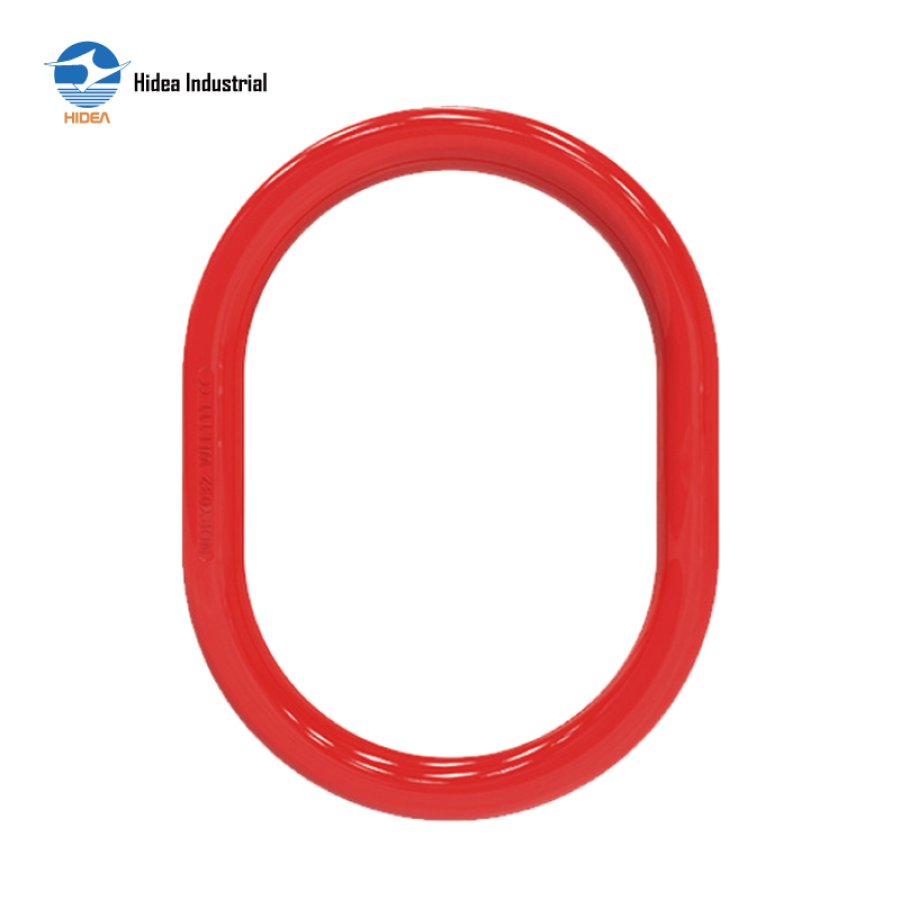

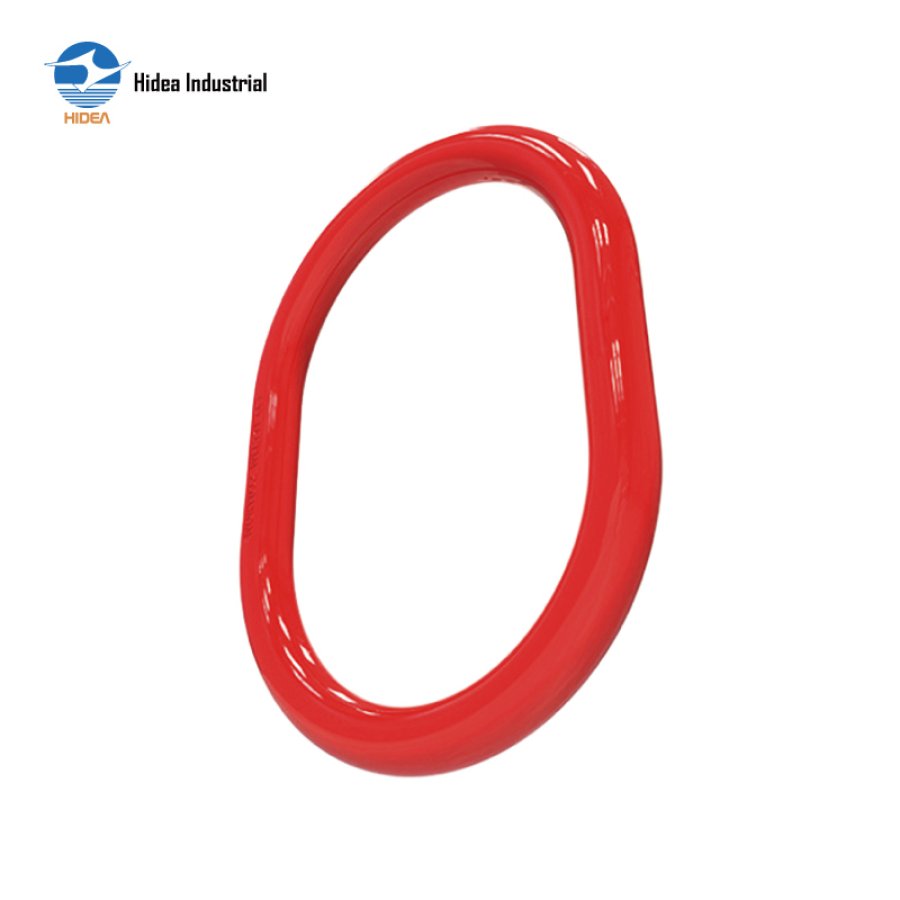

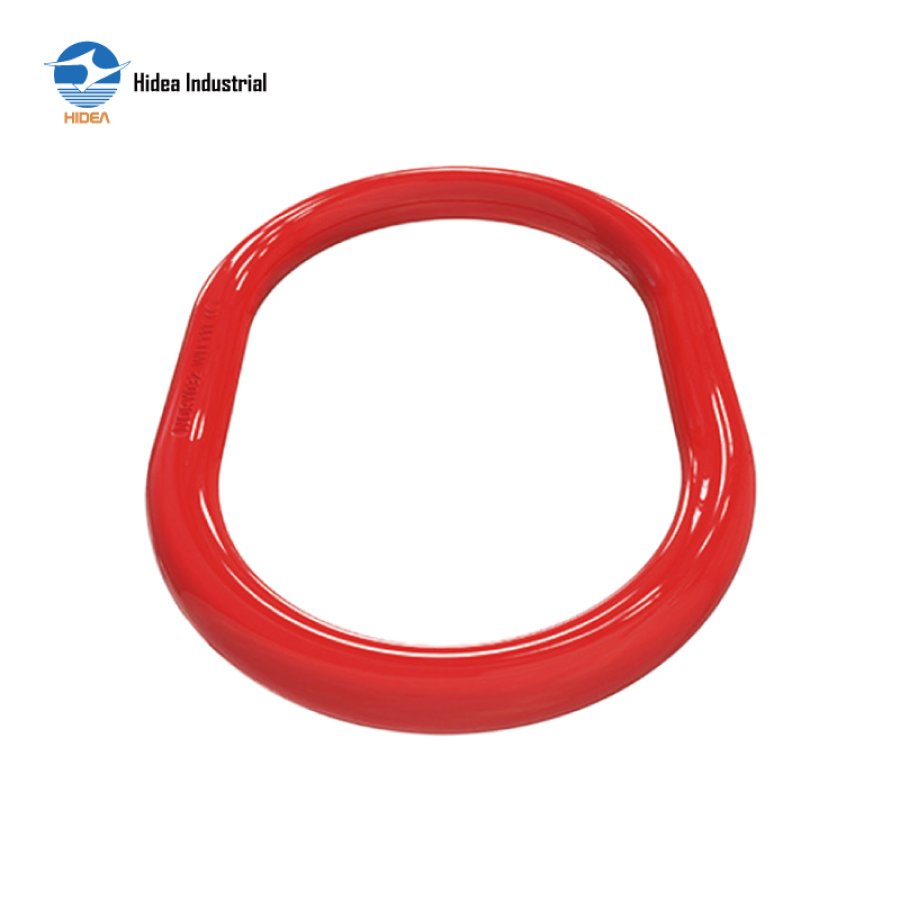

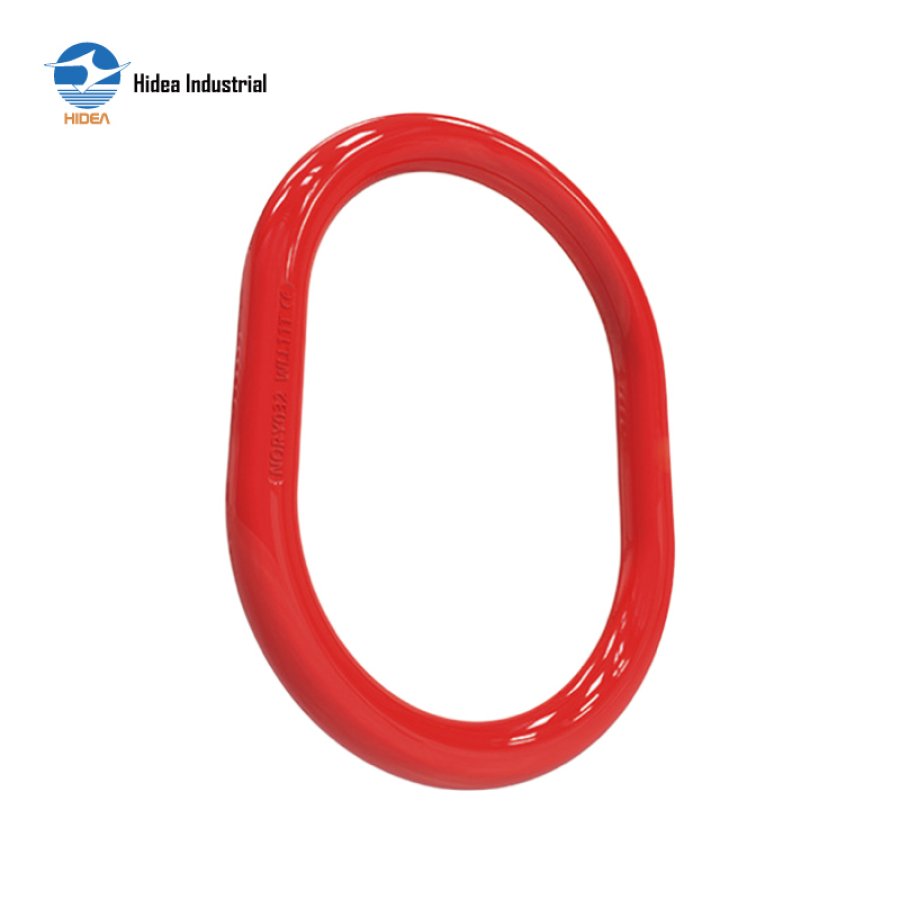

G80 EN-818 MASTER LINK

Super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Breakage test and fatigue test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
Suitable for 1 or 2 legs G80 chain sling as per EN818-4
All sizes are forged
Much bigger width for bigger crane hook
ALL SIZES: There will be pressing flat only on request

Inquire Now

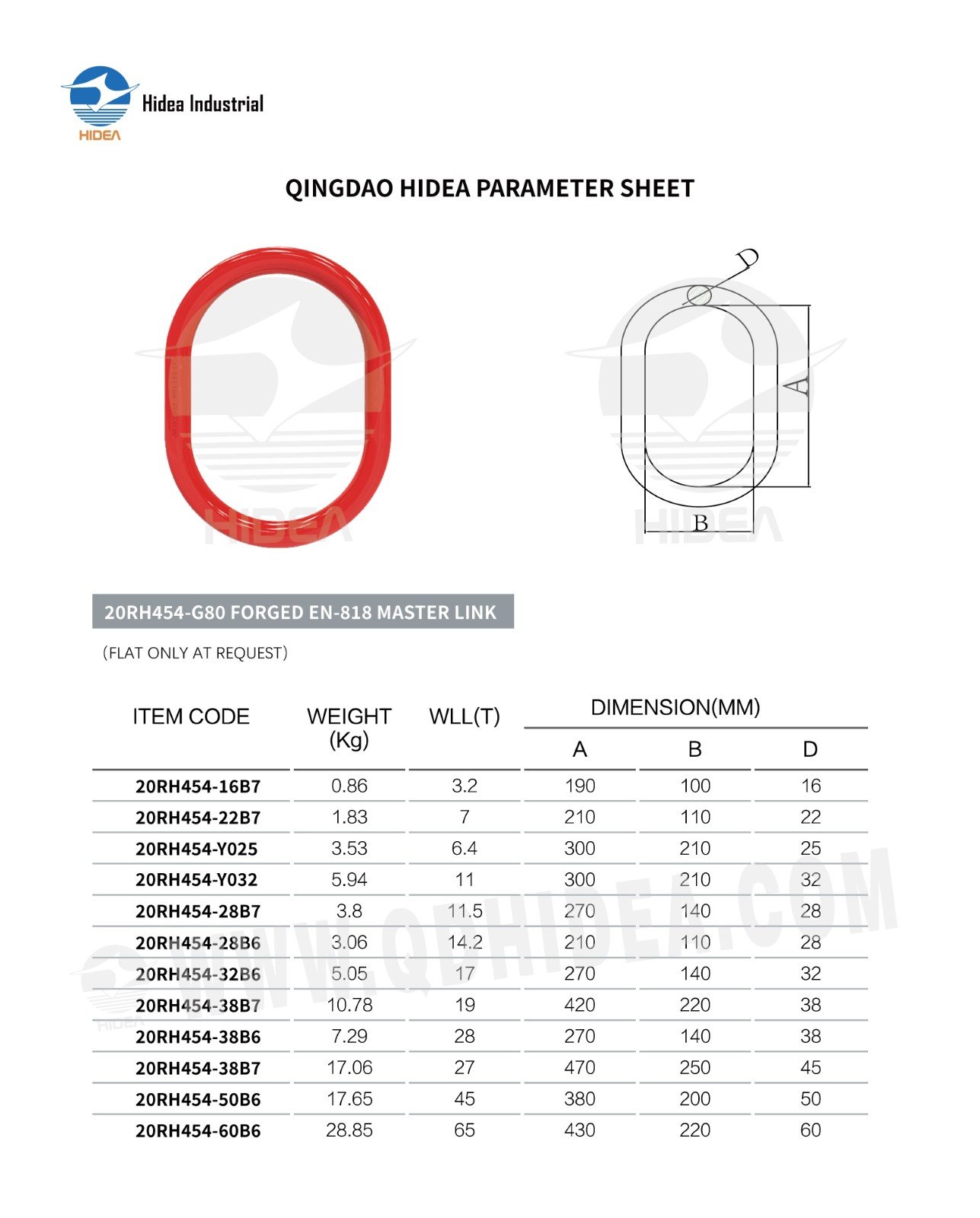

QINGDAO HIDEA PARAMETER SHEET FOR

20RH454-G80 FORGED EN-818 MASTER LINK

ITEM CODE	WEIGHT (Kg)	WLL (T)	DIMENSION(MM)
ITEM CODE	WEIGHT (Kg)	WLL (T)	A	B	D
20RH454-16B7	0.86	3.2	190	100	16
20RH454-22B7	1.83	7	210	110	22
20RH454-Y025	3.53	6.4	300	210	25
20RH454-Y032	5.94	11	300	210	32
20RH454-28B7	3.8	11.5	270	140	28
20RH454-28B6	3.06	14.2	210	110	28
20RH454-32B6	5.05	17	270	140	32
20RH454-38B7	10.78	19	420	220	38
20RH454-38B6	7.29	28	270	140	38
20RH454-38B7	17.06	27	470	250	45
20RH454-50B6	17.65	45	380	200	50
20RH454-60B6	28.85	65	430	220	60
