US TYPE DROP FORGED TURNBUCKLE BODY ONLY HG-2510

Material: High tensile carbon steel ASTM(AISI)1045
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface Hot Dip Galv. OR as requested
Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1

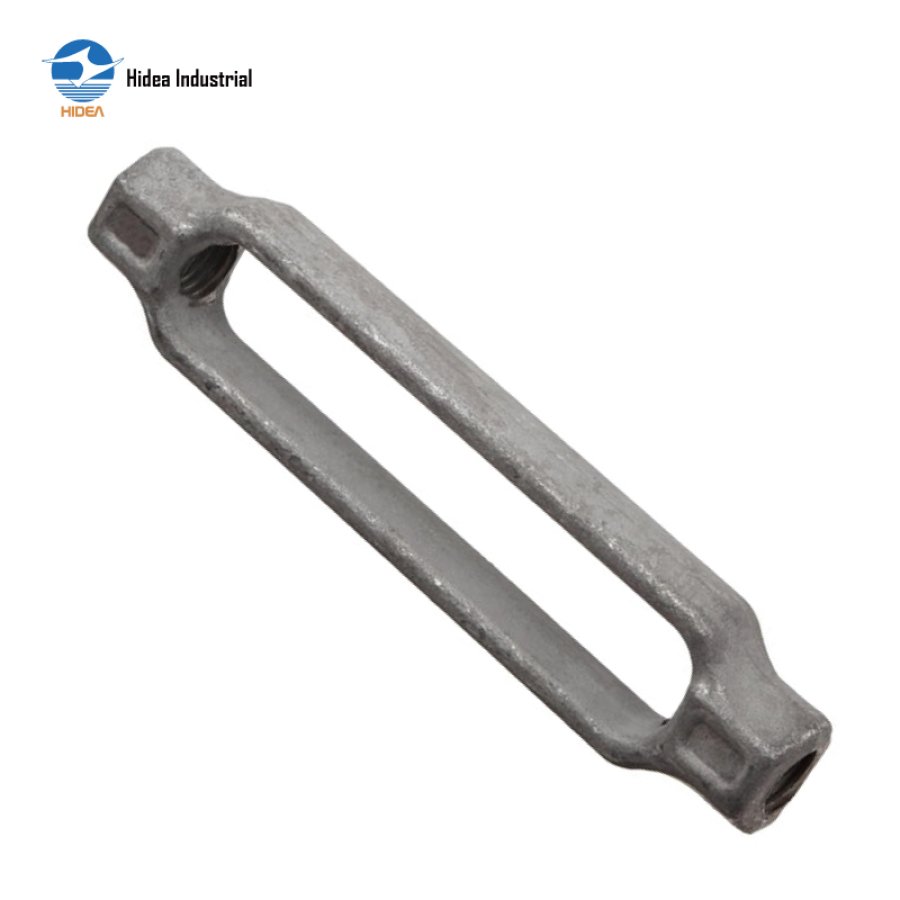

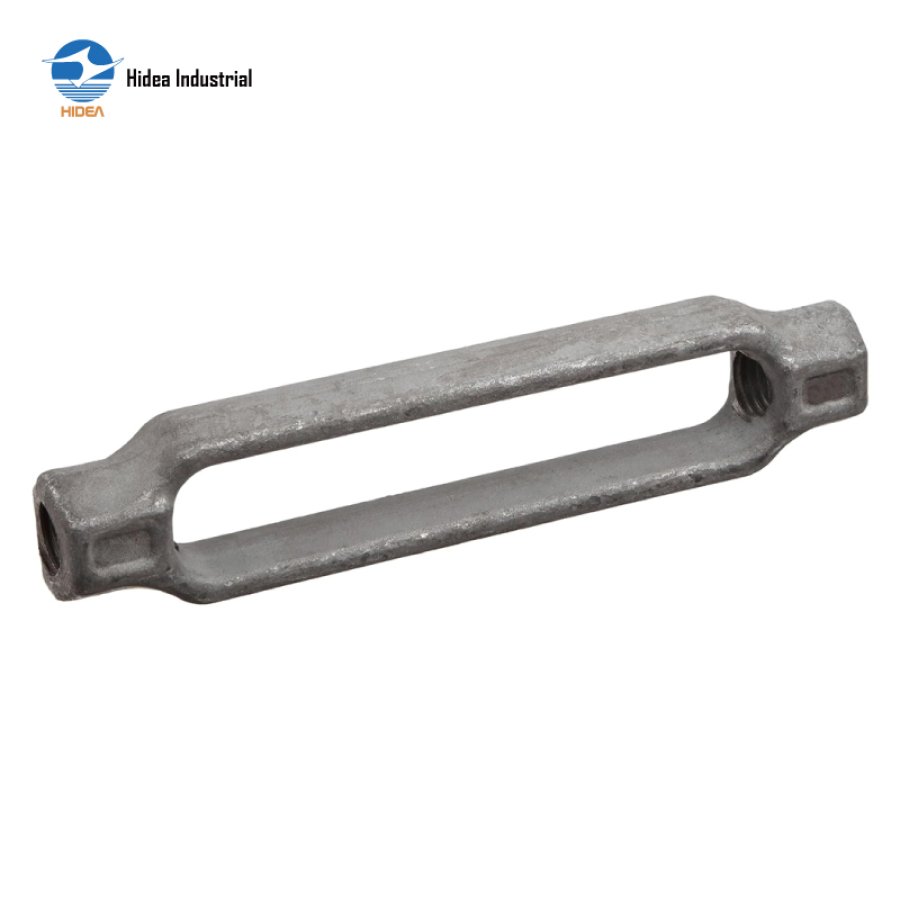

HG-2510 US type drop forged turnbuckle body

Inquire Now

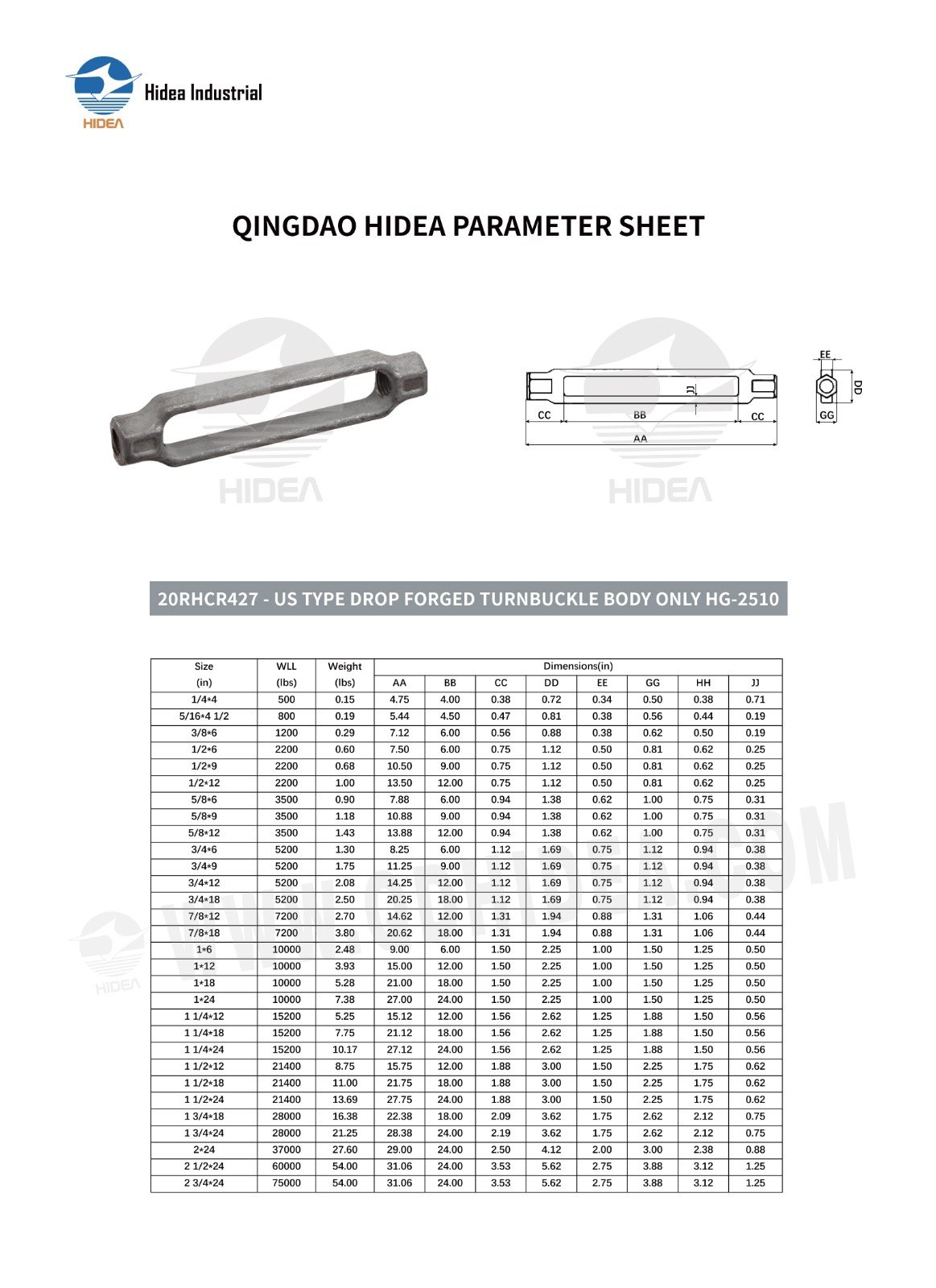

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR427-US TYPE DROP FORGED TURNBUCKLE BODY ONLY HG-2510

Size (in)	WLL (Ibs)	Weight (Ibs)	Dimensions(in)
Size (in)	WLL (Ibs)	Weight (Ibs)	AA	BB	CC	DD	EE	GG	HH	J]
*1/44**	500	0.15	4.75	4.00	0.38	0.72	0.34	0.50	0.38	0.71
*5/1641/2**	800	0.19	5.44	4.50	0.47	0.81	0.38	0.56	0.44	0.19
*3/86**	1200	0.29	7.12	6.00	0.56	0.88	0.38	0.62	0.50	0.19
*1/26**	2200	0.60	7.50	6.00	0.75	1.12	0.50	0.81	0.62	025
*1/29**	2200	0.68	10.50	9.00	0.75	1.12	0.50	0.81	0.62	0.25
*1/212**	2200	1.00	13.50	12.00	0.75	1.12	0.50	0.81	0.62	0.25
*5/86**	3500	0.90	7.88	6.00	0.94	1.38	0.62	1.00	0.75	0.31
*5/89**	3500	1.18	10.88	9.00	0.94	1.38	0.62	1.00	0.75	0.31
*5/812**	3500	1.43	13.88	12.00	0.94	1.38	0.62	1.00	0.75	0.31
*3/46**	5200	1.30	8.25	6.00	1.12	1.69	0.75	1.12	0.94	0.38
*3/49**	5200	1.75	11.25	9.00	1.12	1.69	0.75	1.12	0.94	0.38
*3/412**	5200	2.08	14.25	12.00	1.12	1.69	0.75	1.12	0.94	0.38
*3/418**	5200	2.50	20.25	18.00	1.12	1.69	0.75	1.12	0.94	0.38
*7/812**	7200	2.70	14.62	12.00	1.31	1.94	0.88	1.31	1.06	0.44
*7/818**	7200	3.80	20.62	18.00	1.31	1.94	0.88	1.31	1.06	0.44
*16**	10000	2.48	9.00	6.00	1.50	2.25	1.00	1.50	1.25	0.50
*112**	10000	3.93	15.00	12.00	1.50	2.25	1.00	1.50	1.25	0.50
*118**	10000	5.28	21.00	18.00	1.50	2.25	1.00	1.50	1.25	0.50
*124**	10000	7.38	27.00	24.00	1.50	2.25	1.00	1.50	1.25	0.50
*11/412**	15200	5.25	15.12	12.00	1.56	2.62	1.25	1.88	1.50	0.56
*11/418**	15200	7.75	21.12	18.00	1.56	2.62	1.25	1.88	1.50	0.56
*11/424**	15200	10.17	27.12	24.00	1.56	2.62	1.25	1.88	1.50	0.56
*11/212**	21400	8.75	15.75	12.00	1.88	3.00	1.50	2.25	1.75	0.62
*11/218**	21400	11.00	21.75	18.00	1.88	3.00	1.50	2.25	1.75	0.62
*11/224**	21400	13.69	27.75	24.00	1.88	3.00	1.50	2.25	1.75	0.62
*13/418**	28000	16.38	22.38	18.00	2.09	3.62	1.75	2.62	2.12	0.75
*13/424**	28000	21.25	28.38	24.00	2.19	3.62	1.75	2.62	2.12	0.75
*224**	37000	27.60	29.00	24.00	2.50	4.12	2.00	3.00	2.38	0.88
*21/224**	60000	54.00	31.06	24.00	3.53	5.62	2.75	3.88	3.12	1.25
*23/424**	75000	54.00	31.06	24.00	3.53	5.62	2.75	3.88	3.12	1.25
