HIDEA K2 Stub-End Heavy Duty Thimble – Durable & Reliable Steel Wire Rope Solutions

K2 Wire Rope Thimble

Material Mild Steel
Stamped & Bent to shape, Machined & polished
Surface Hot Dip Galv.,Electro Galv. / zinc plated OR as requested
Temperature range -20°C up to +200°C
K2 Heavy duty stub-end wire rope thimble / Steel wire rope thimbles: K2, K2-B, K4, and K5

Inquire Now

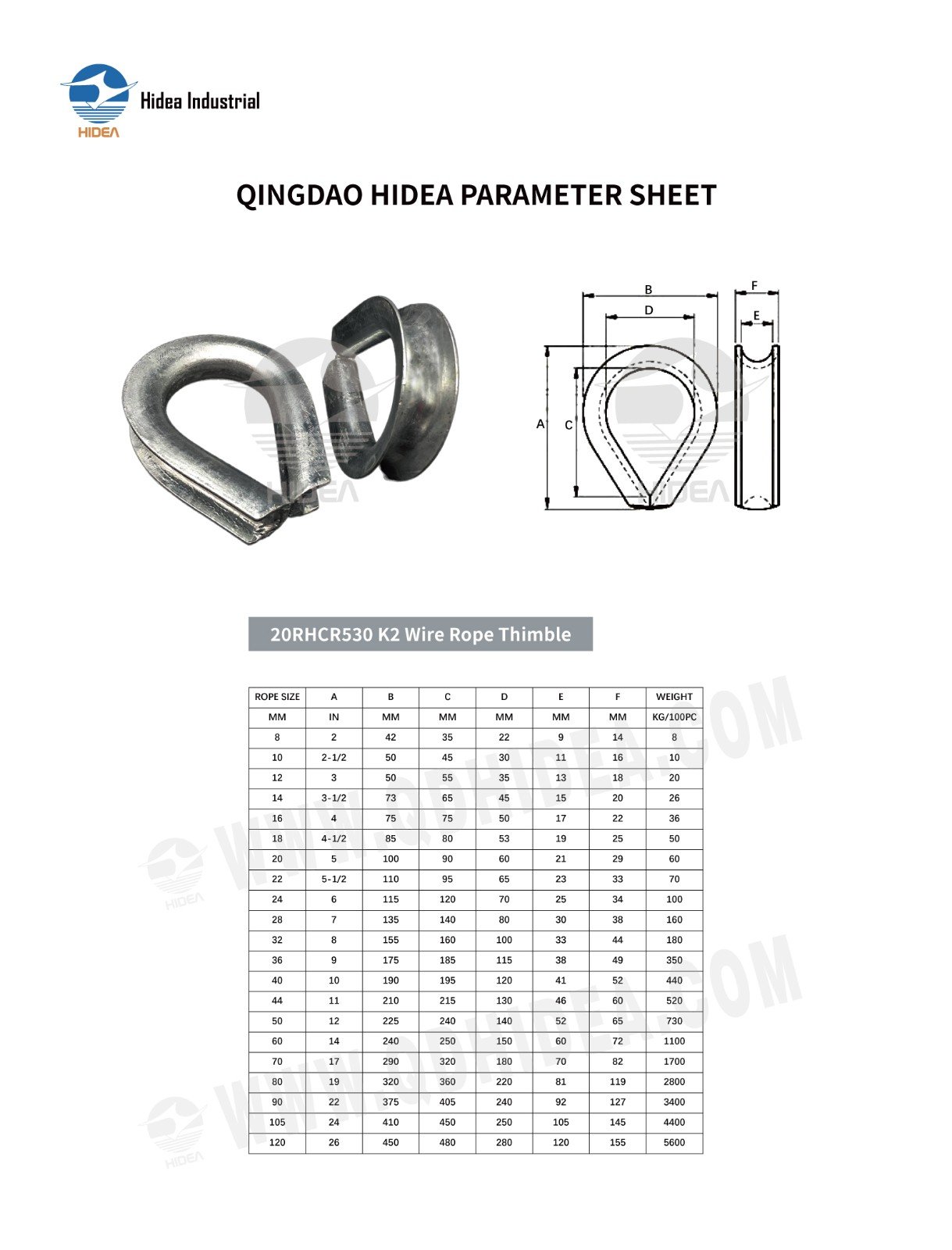

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR530 K2 Wire Rope Thimble

ROPE SIZE	A	B	C	D	E	F	WEIGHT
MM	IN	MM	MM	MM	MM	MM	KG/100PC
8	2	42	35	22	9	14	8
10	2-1/2	50	45	30	11	16	10
12	3	50	55	35	13	18	20
14	3-1/2	73	65	45	15	20	26
16	4	75	75	50	17	22	36
18	4-1/2	85	80	53	19	25	50
20	5	100	90	60	21	29	60
22	5-1/2	110	95	65	23	33	70
24	6	115	120	70	25	34	100
28	7	135	140	80	30	38	160
32	8	155	160	100	33	44	180
36	9	175	185	115	38	49	350
40	10	190	195	120	41	52	440
44	11	210	215	130	46	60	520
50	12	225	240	140	52	65	730
60	14	240	250	150	60	72	1100
70	17	290	320	180	70	82	1700
80	19	320	360	220	81	119	2800
90	22	375	405	240	92	127	3400
105	24	410	450	250	105	145	4400
120	26	450	480	280	120	155	5600
