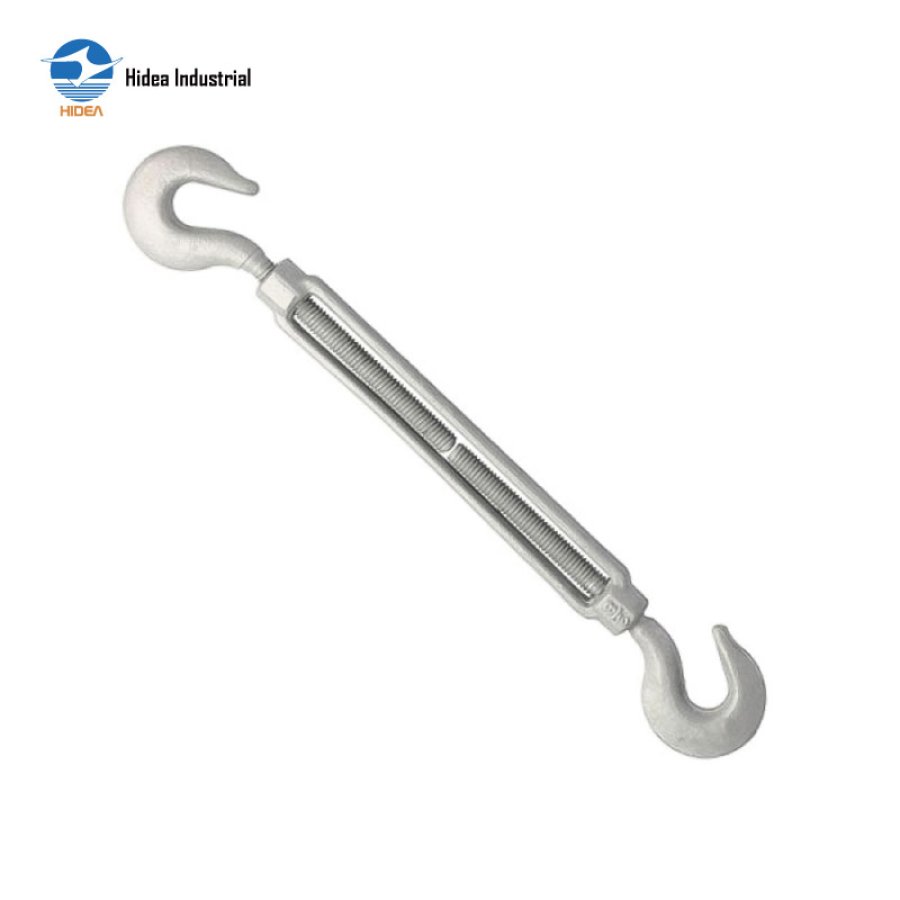

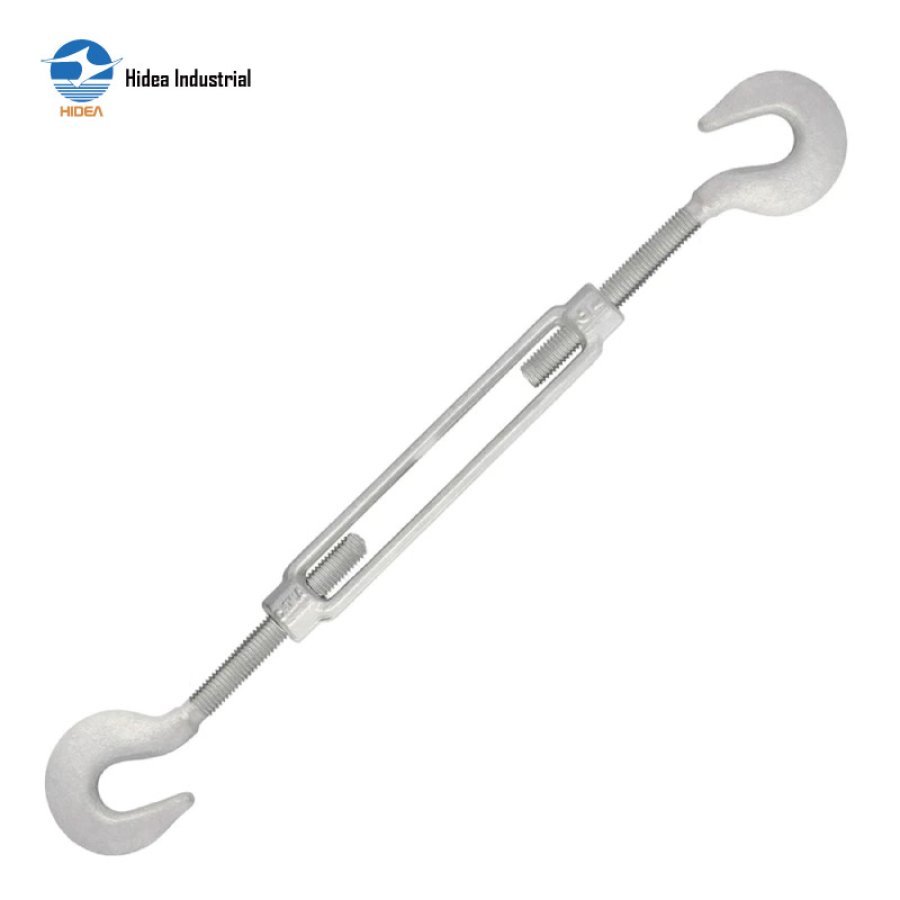

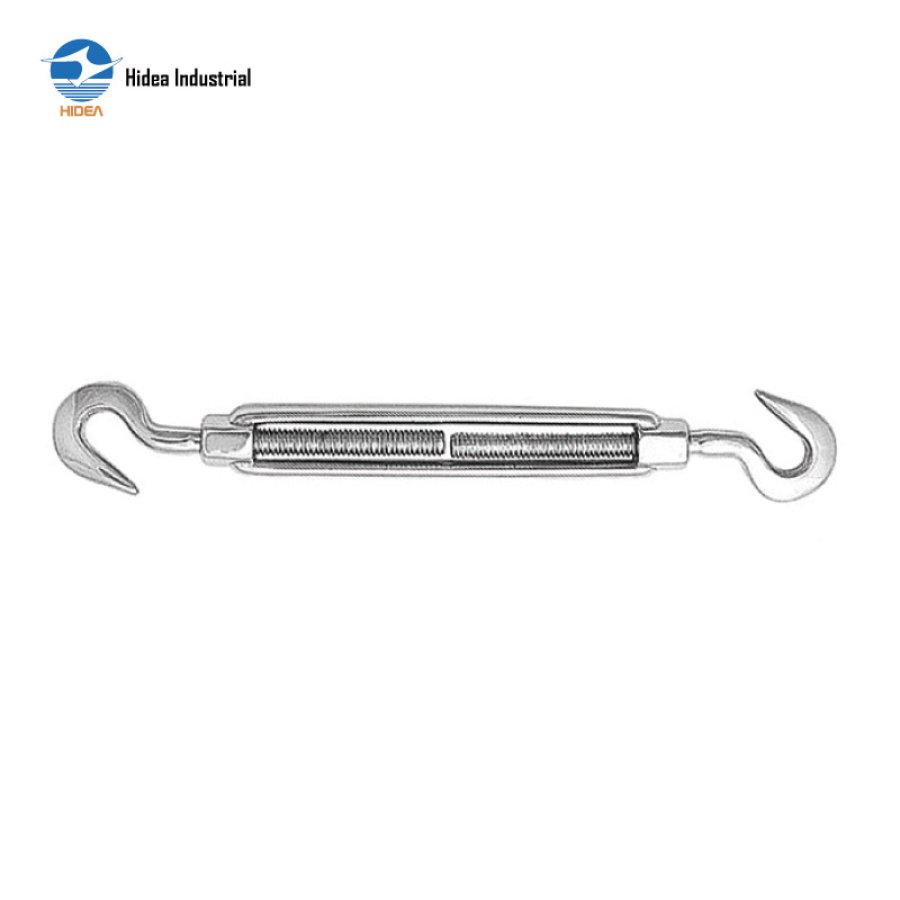

Hidea Forged Stainless Steel Hook Ends Turnbuckle – Ideal for Rigging, Lifting, and Tensioning

US TYPE TURNBUCKLE (HOOK AND HOOK)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

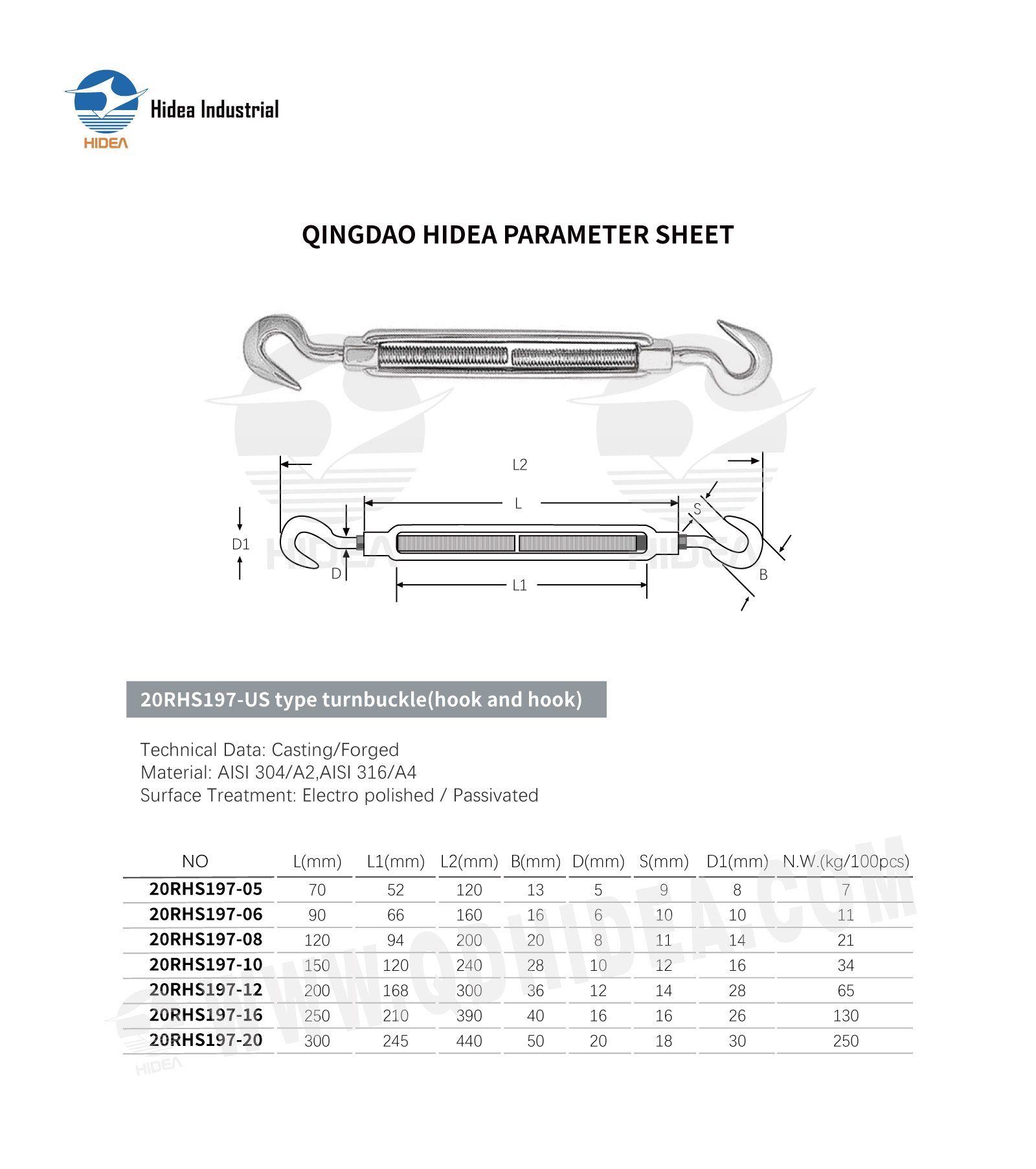

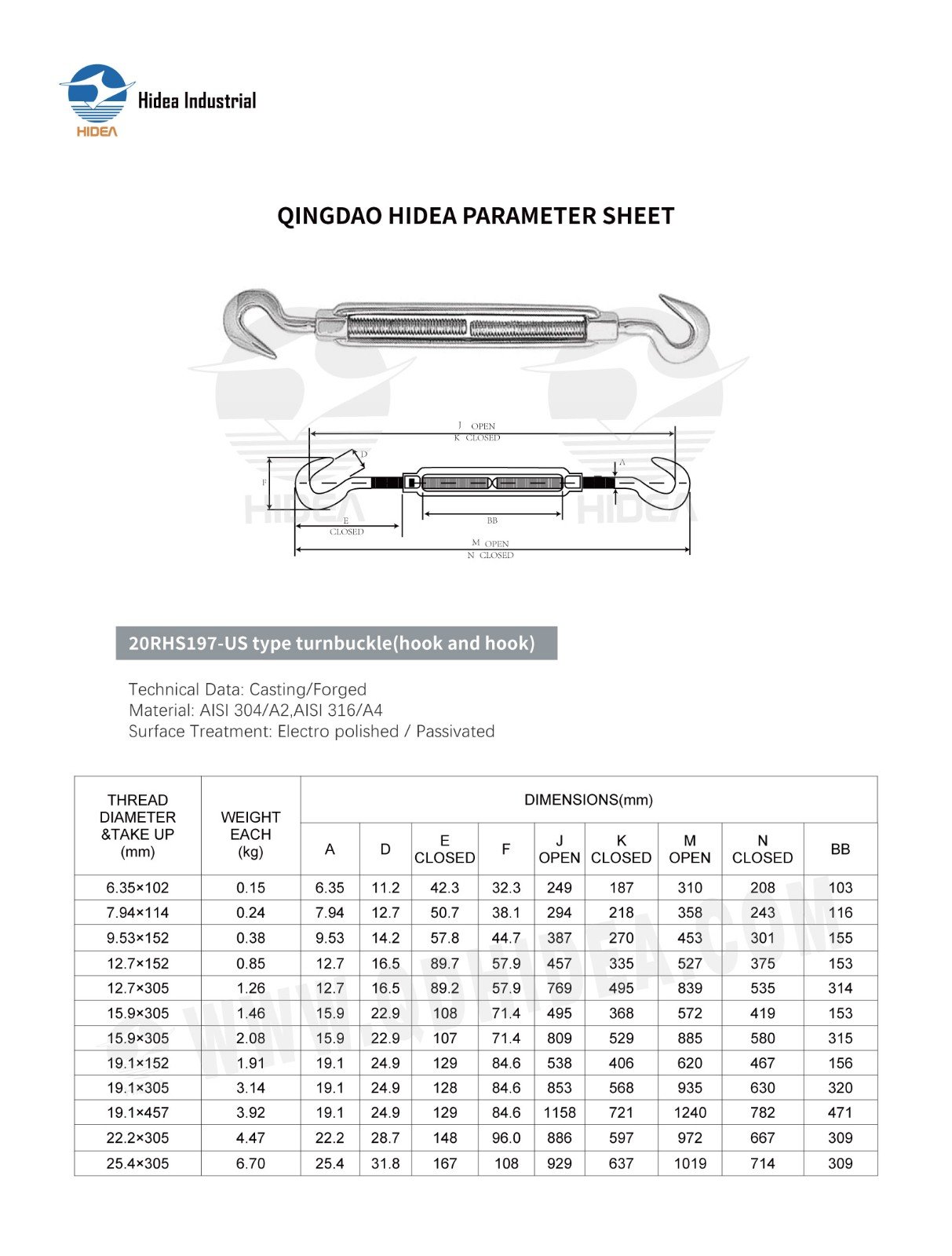

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS197-US type turnbuckle(hook and hook)

NO	L(mm)	L1(mm)	L2(mm)	B(mm)	D(mm)	S(mm)	D1(mm)	N.W.kg/1
20RHS197-05	70	52	120	13	5	9	8	7
20RHS197-06	90	66	160	16	6	10	10	11
20RHS197-08	120	94	200	20	8	11	14	21
20RHS197-10	150	120	240	28	10	12	16	34
20RHS197-12	200	168	300	36	12	14	28	65
20RHS197-16	250	210	390	40	16	16	26	130
20RHS197-20	300	245	440	50	20	18	30	250
