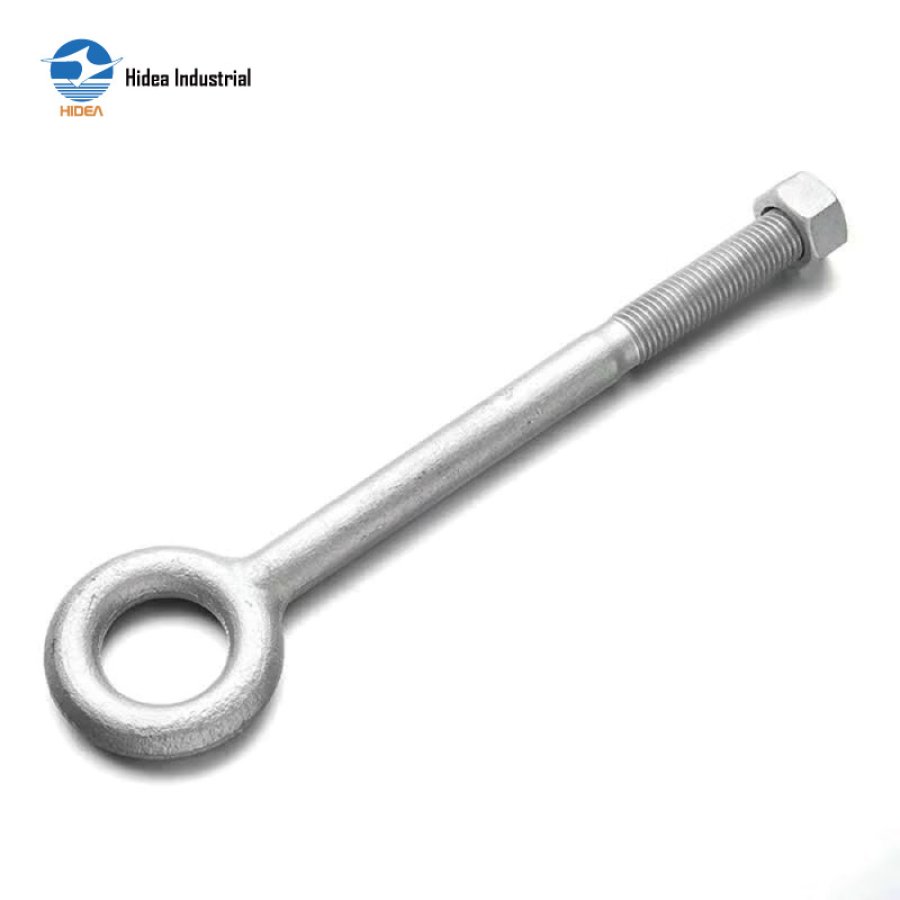

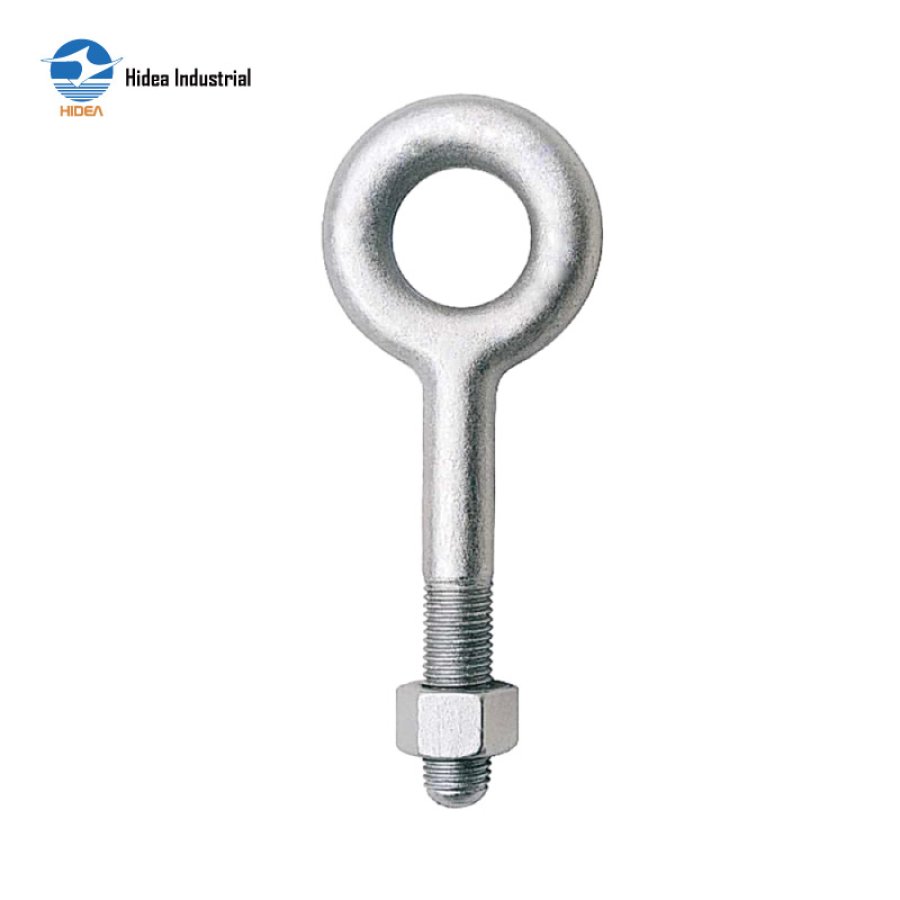

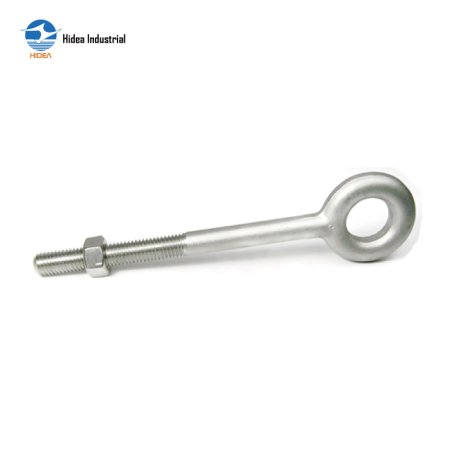

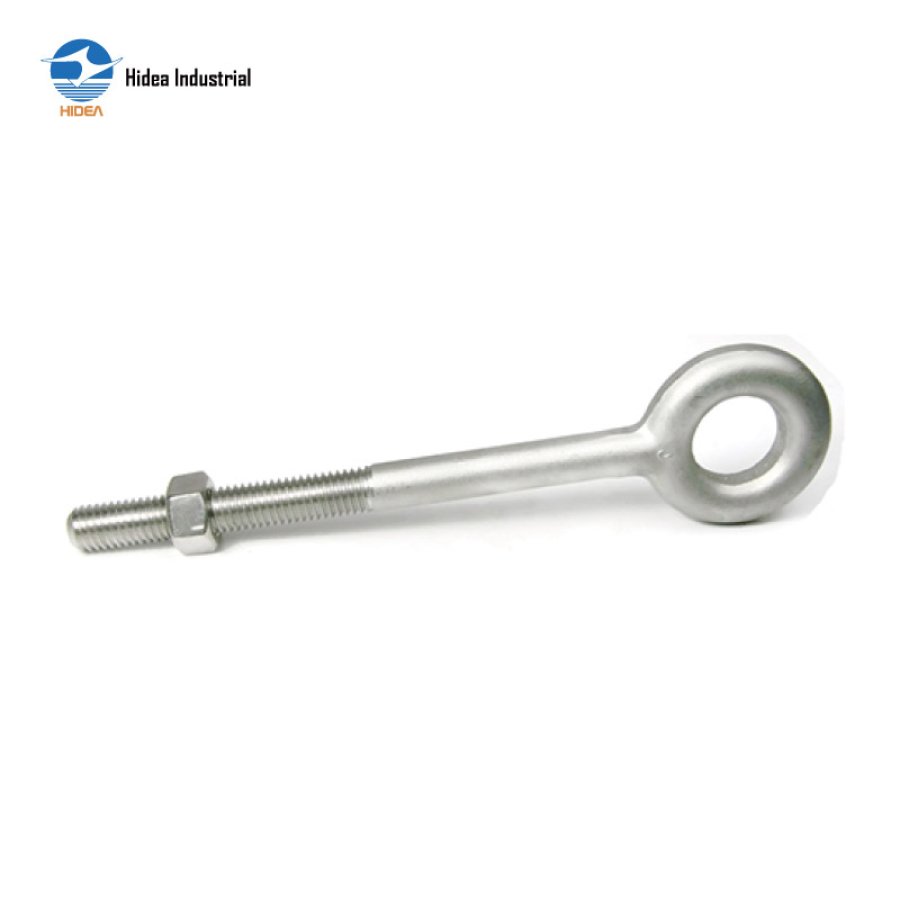

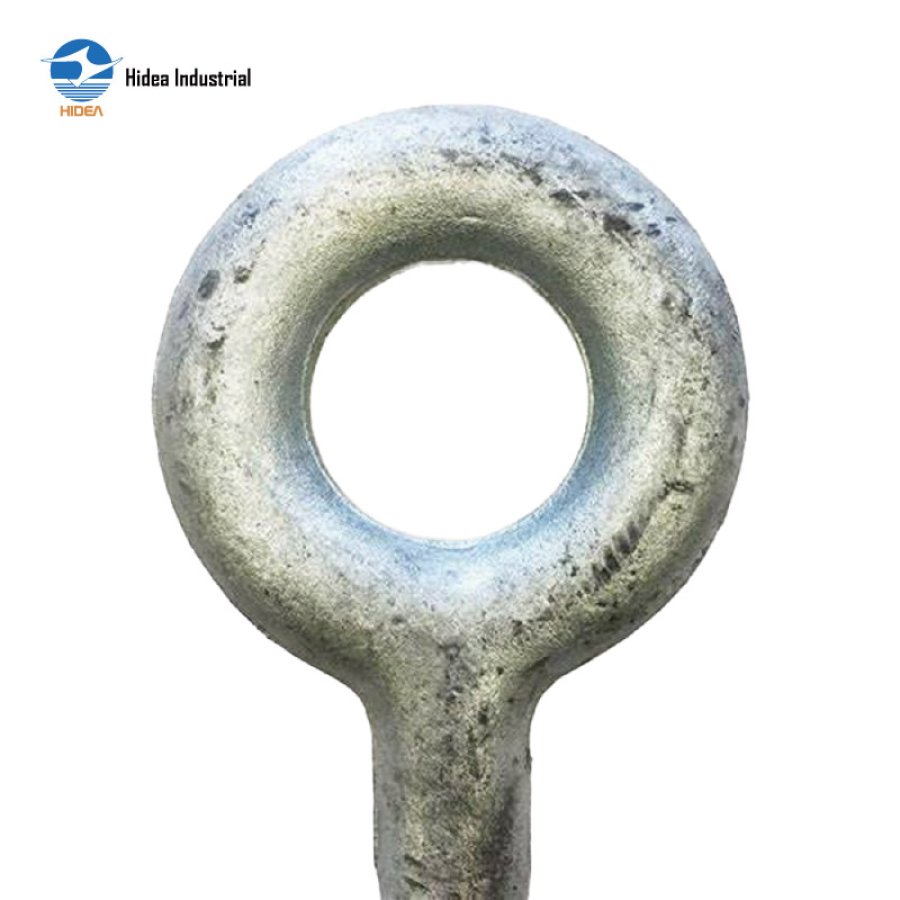

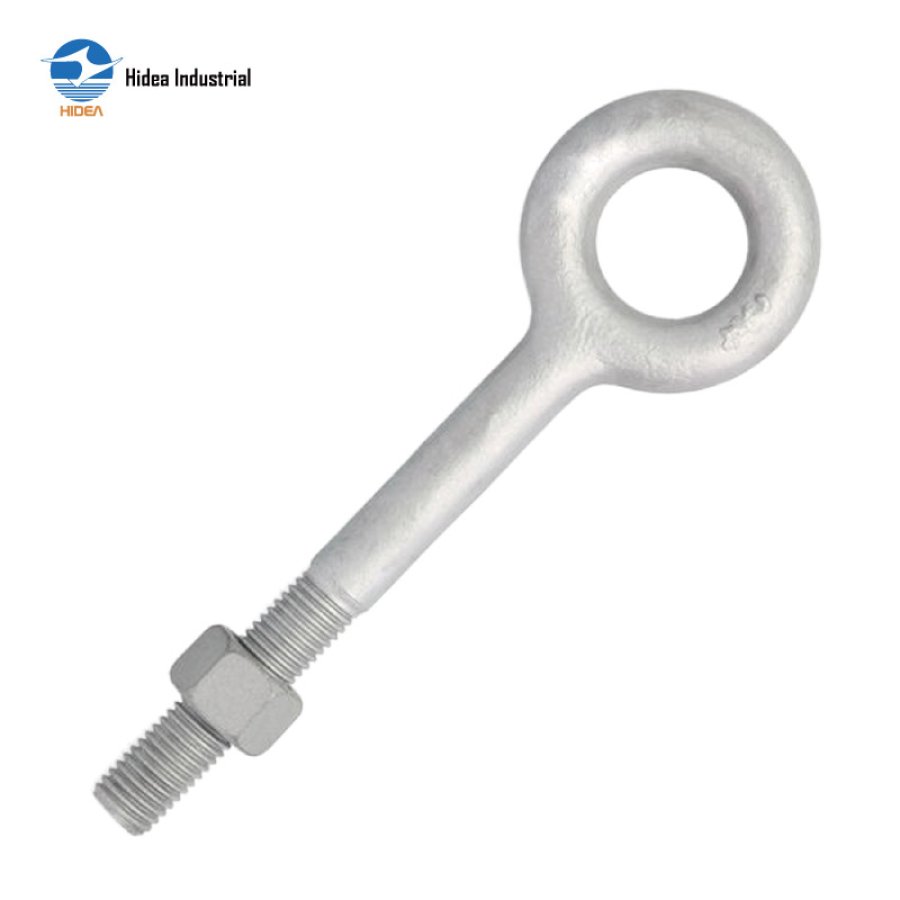

G-291 Regular Nut Eye Bolt | Stainless Steel Rigging Hardware

US EYE BOLT G-291

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

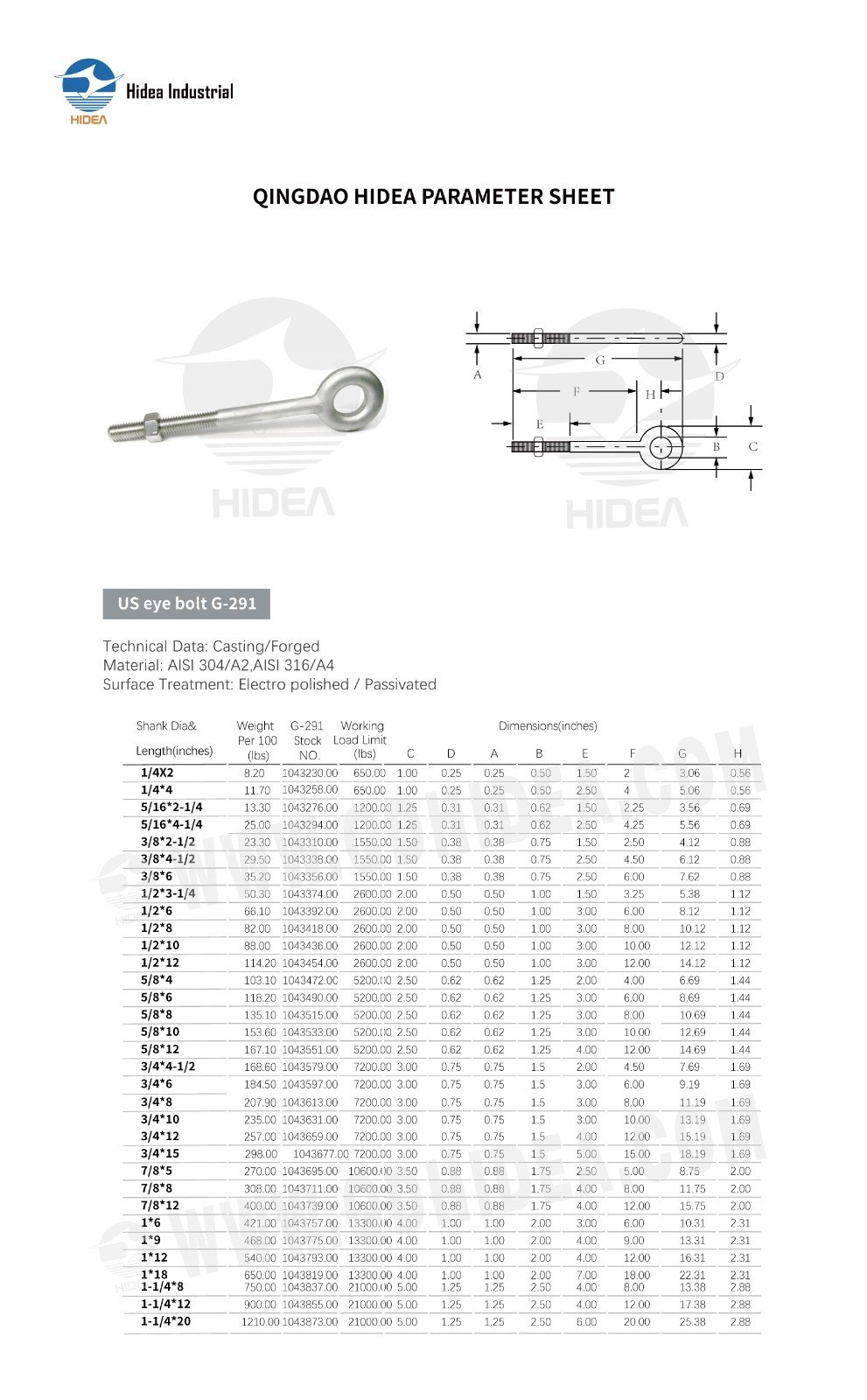

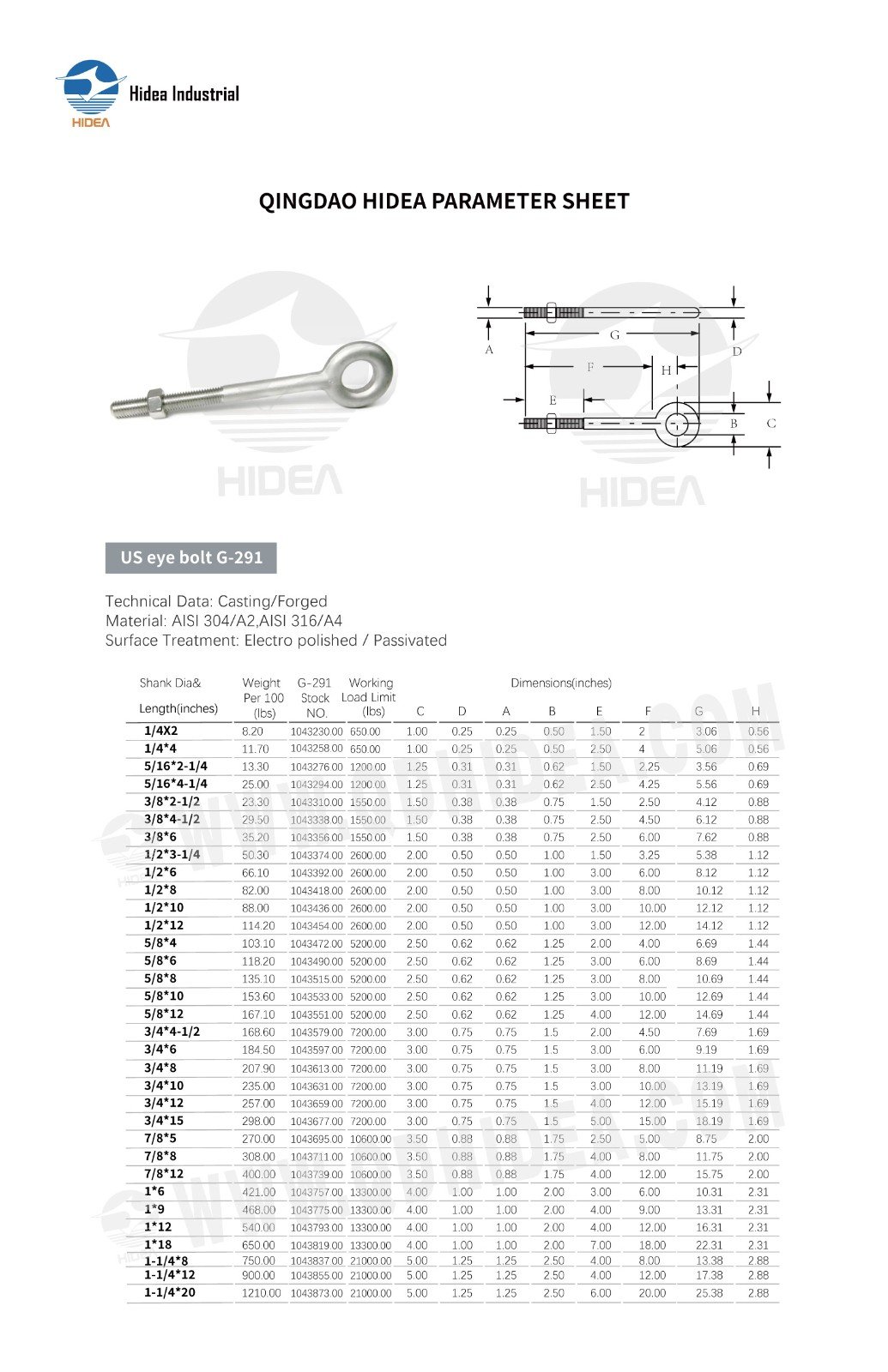

QINGDAO HIDEA PARAMETER SHEET FOR

US eye bolt G-291

Shank Dia& Length(inches)	Weight Per 100 (Ibs)	G-291 Working Stock Load Limit NO. (Ibs) C	Dimensions(inches)
Shank Dia& Length(inches)	Weight Per 100 (Ibs)	G-291 Working Stock Load Limit NO. (Ibs) C	D	A	B	E	F	G	H
1/4X2	8.20	1043230.00 650.00 1.00	0.25	0.25	0.50	1.50	2	3.06	0.56
*1/44**	11.70	1043258.00 65000 1.00	0.25	0.25	0.50	2.50	4	5.06	0.56
*5/162-1/4**	13.30	1043276.00 1200.00 1.25	0.31	0.31	0.62	1.50	2.25	3.56	0.69
*5/164-1/4**	25.00	1043294.00 1200.00 1.25	0.31	0.31	062	2.50	4.25	556	0.69
*3/82-1/2**	23.30	1043310.00 1550.00 1.50	0.38	0.38	0.75	1.50	2.50	4.12	0.88
*3/84-1/2**	29.50	1043338.00 1550.00 1.50	0.38	0.38	0.75	2.50	4.50	6.12	0.88
*3/86**	35.20	1043356.00 1550.00 1.50	0.38	0.38	0.75	2.50	6.00	762	0.88
*1/23-1/4**	50.30	1043374.00 2600.00 2.00	0.50	0.50	1.00	1.50	3.25	5.38	1.12
*1/26**	66.10	1043392.00 2600.00 2.00	0.50	0.50	1.00	3.00	6.00	8.12	1.12
*1/28**	82.00	1043418.00 2600.00 2.00	0.50	0.50	1.00	3.00	8.00	10.12	1.12
*1/210**	88.00	1043436.00 2600.00 2.00	0.50	0.50	1.00	3.00	10.00	12.12	1.12
*1/212**	114.20	1043454.00 2600.00 2.00	0.50	0.50	1.00	3.00	12.00	14.12	1.12
*5/84**	103.10	1043472.0C 5200.00 2.50	0.62	0.62	1.25	2.00	4.00	6.69	1.44
*5/86**	118.20	1043490.00 5200.00 2.50	0.62	0.62	1.25	3.00	6.00	8.69	1.44
*5/88**	135.10	1043515.00 5200.00 2.50	0.62	0.62	1.25	3.00	8.00	10.69	1.44
*5/810**	153.60	1043533.00 5200.00 2.50	0.62	0.62	1.25	3.00	10.00	12.69	1.44
*5/812**	167.10	1043551.00 5200.00 2.50	0.62	0.62	1.25	4.00	12.00	14.69	1.44
*3/44-1/2**	168.60	1043579.00 7200.00 3.00	0.75	0.75	1.5	2.00	4.50	7.69	1.69
*3/46**	184.50	1043597.00 7200.00 3.00	0.75	0.75	1.5	3.00	6.00	9.19	1.69
*3/48**	207.90	1043613.00 7200.00 3.00	0.75	0.75	1.5	3.00	8.00	1119	1.69
*3/410**	235.00	1043631.00 7200.00 3.00	075	0.75	1.5	3.00	10.00	13.19	1.69
*3/412**	257.00	1043659.00 7200.00 3.00	0.75	0.75	1.5	4.00	12.00	15.19	1.69
*3/415**	298.00	1043677.007200.00 3.00	0.75	0.75	1.5	5.00	15.00	18.19	1.69
*7/85**	270.00	1043695.00 10600.00 3.50	0.88	0.88	1.75	2.50	5.00	8.75	2.00
*7/88**	308.00	1043711.00 10600.00 3.50	0.88	0.88	1.75	4.00	8.00	11.75	2.00
*7/812**	400.00	104373900 10600.00 3.50	0.88	0.88	1.75	4.00	12.00	15.75	2.00
*16**	421.00	1043757.00 13300.00 4.00	1.00	1.00	2.00	3.00	6.00	10.31	2.31
*19**	468.00	1043775.00 13300.00 4.00	1.00	1.00	2.00	4.00	9.00	13.31	2.31
*112**	540.00	1043793.00 13300.00 4.00	1.00	1.00	2.00	4.00	12.00	16.31	2.31
*118**	650.00	1043819.00 13300.00 4.00 1043837.00 21000.00 5.00	1.00 1.25	1.00 1.25	2.00 2.50	7.00 4.00	18.00 8.00	22.31 13.38	2.31 2.88
*1-1/48**	750.00	1043819.00 13300.00 4.00 1043837.00 21000.00 5.00	1.00 1.25	1.00 1.25	2.00 2.50	7.00 4.00	18.00 8.00	22.31 13.38	2.31 2.88
*1-1/412**	900.00	1043855.00 21000.00 5.00	1.25	1.25	2.50	4.00	12.00	17.38	2.88
*1-1/420**	1210.00 1043873.00 21000.00 5.00		1.25	1.25	2.50	6.00	20.00	25.38	2.88
