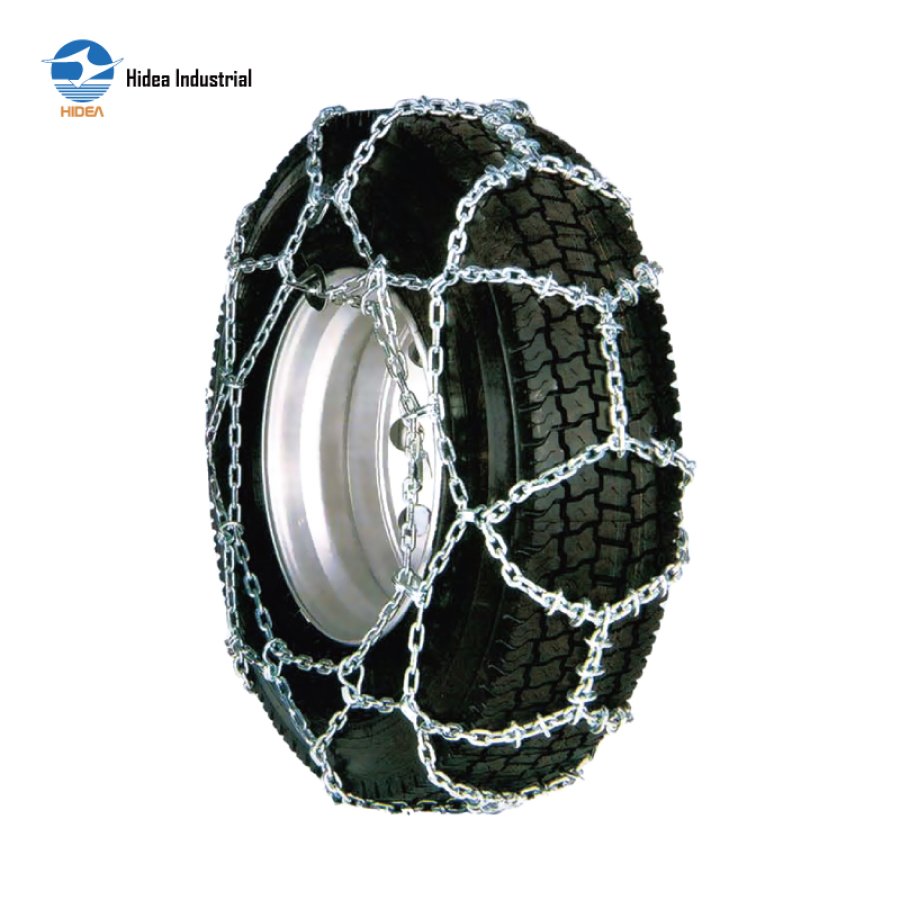

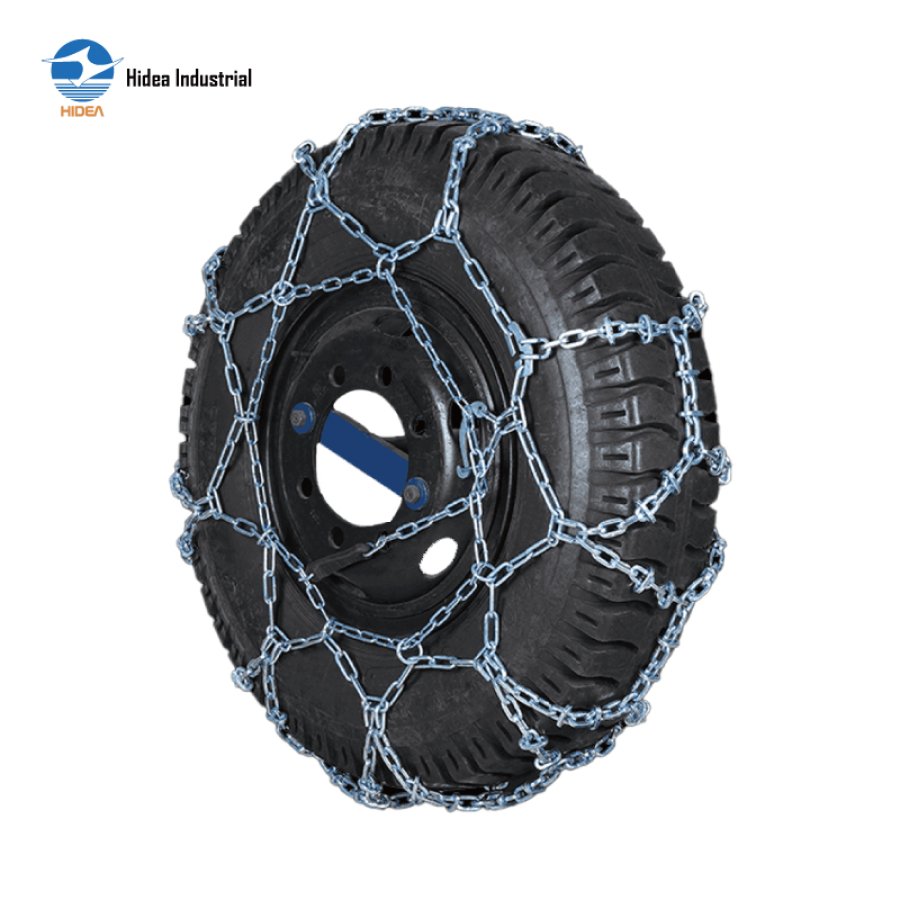

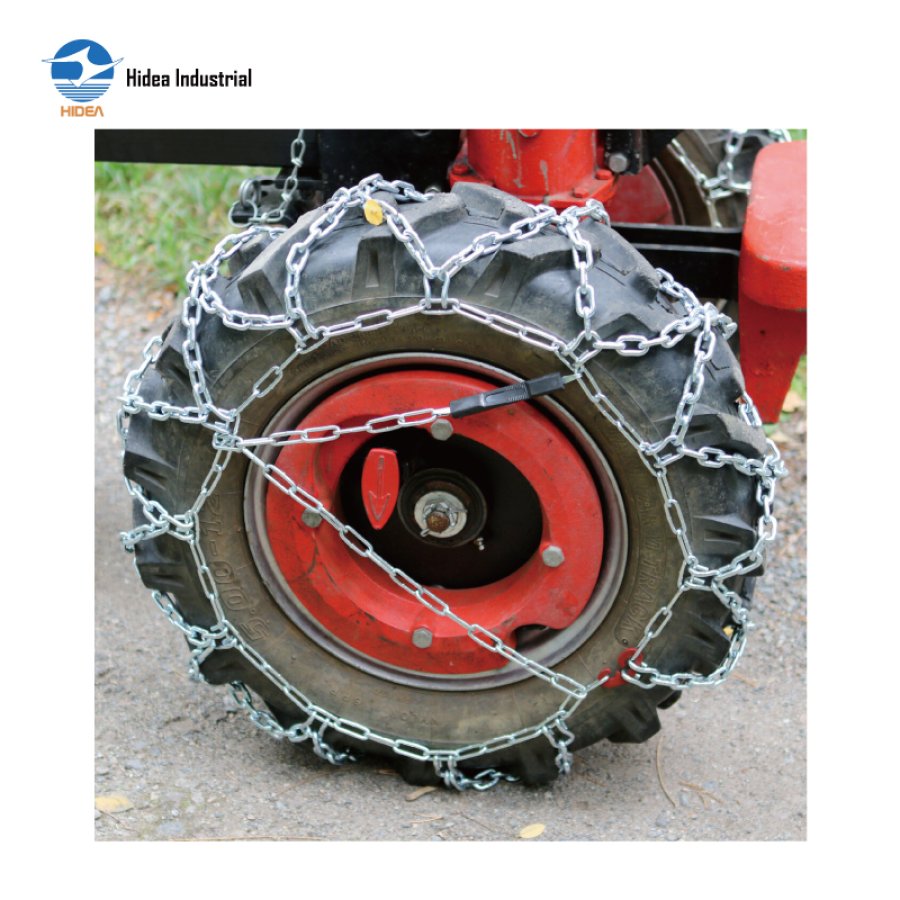

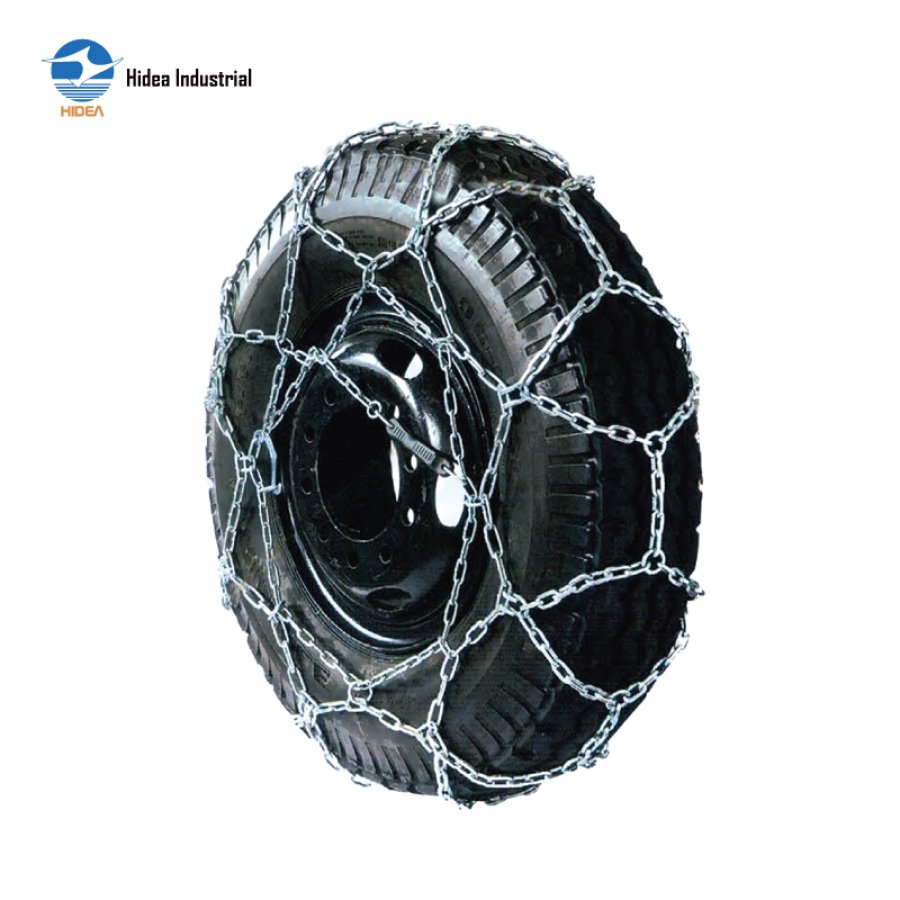

TN/TNP series snow chains of excellent anti-wearing abilities; well meets desired anti-slippery purposes

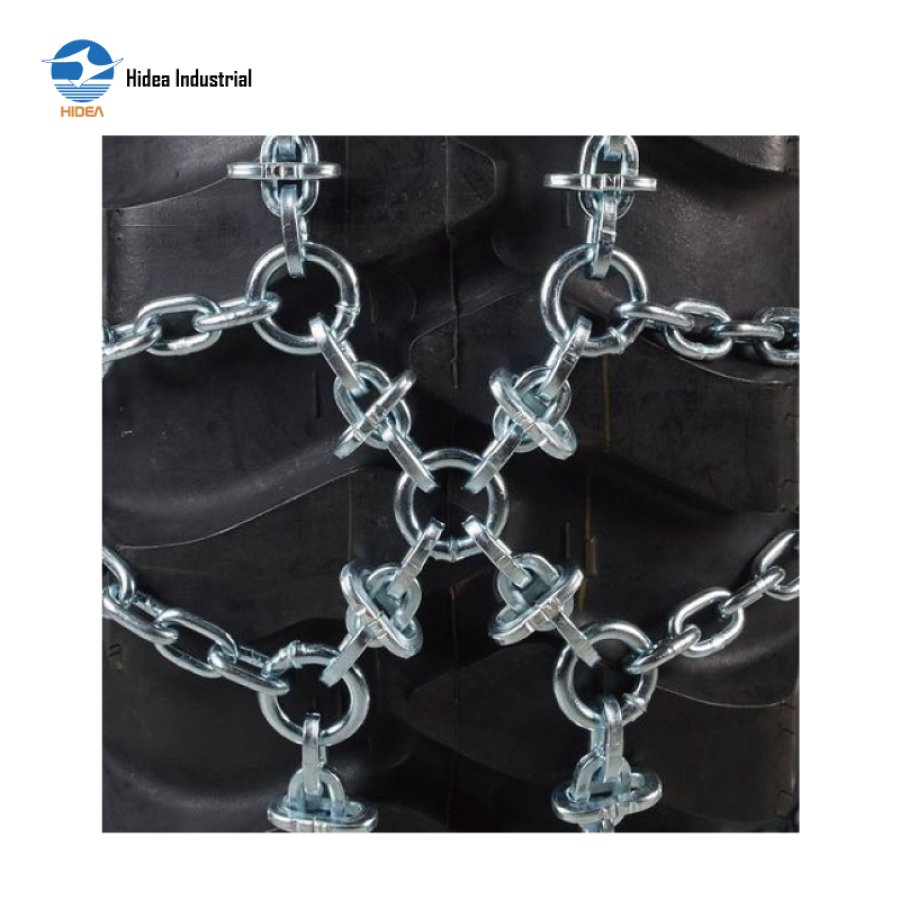

The TNP type with additional horizontal chain links embracing the originals for more powerful gripping force.
Intermediate frequency quenched & carburized to ensure hardness and anti-wearing
Working safely at low temperature of minus 40 degrees Celsius
Meeting and complying with NORMS of US NACM - 92805 (TC), NORMS OF European EN 16662-1, ÖNORM and TÜV
QINGDAO HIDEA PARAMETER SHEET FOR
TN/TNP SERIES SNOW CHIANS
| TN TYPE SNOW CHAIN TNP TYPE SNOW CHAIN | |||||
| TIRE SIZE TABLE FOR"TN"&"TNP" | |||||
| ITEM NO | TIRE SIZE | ITEM NO | TIRE SIZE | ||
| 190 | 165-14:165/75-14 | 280 | 900-16;825-17;10-17.5;9-19.5;750-20;800-20;8-22.5 | ||
| 200 | 175-14;650-14:175/75-14 | 285 | 300×15;315/70-15 | ||
| 205 | 6.70-13 | 290 | 11.00-16;825-20;9.5-20;9-22.5;8.3-24;225/90-20;255/70-22.5 | ||
| 210 | 185-14;700-14;640-15;185/75-14 | 295 | 12-16.5;33×12.5-15;11.5/80-15.3 | ||
| 220 | 195-14;670-14;185-15;175-16;185-380;17-380;195/75-14;175/75-16; | 296 | 305/70-19.5 | ||
| 225 | 205-14:195-15:205/75-14:205/75-15:185/75-16:205/70-15 | 300 | 900-20;10-22.5;C22.5Pilote;11/70-22.5;9.5-24;275/70-22.5;295/70-22.5 | ||
| 230 | 215-14;750-14:670-15;GR78-15;185-16;195-16;600-16;640-16;8.00-16,5; 215/75-14;195/75-16;215/70-15;225/70-15 | 310 | 1000-20;D20 Pilote;11-22.5;D22.5Pilote;12/80-20;275/80-22.5;305/70-22.5; 315/70-22.5 | ||
| 240 | 28×9-15;215-15;700-15;HR78-15;205-16;650-16;7-17.5;19-400;215/75-15; 225/75-15:205/75-16 | 320 | 1100-20;12-22.5;E22.5 Pilote:315/80-22.5;315/75-22.5;315/75-24.5; 305/70-24.5 | ||
| 245 | 215-16:235/70-15:235/75-15:215/85-16:215/75-16:225/75-16 | 330 | 1200-20;1100-22;13-22.5:1000-24 | ||
| 246 | 27×8.50-15 | 350 | 275/70-19.5:285/70-19.5 | ||
| 247 | 30×9.50-15;8.40-15:215-380 | 358 | 11.2-20;10.5-20;275/80-20 | ||
| 248 | 250-15:250/70-15 | 360 | 12.5-18;12.5/80-18:335/80-18 | ||
| 250 | 9-15;750-15;700-16;8-17.5;245/70-16;205/75-17.5;215/75-17.5;265/70-15 | 370 | 13.6-16,12.4-20;12.5-20;E20 Pilote;11.2-24;13/80-20;12/80-22.5;335/80-20; 295/80-22.5:13/75-22.5 | ||
| 255 | 10-15;255/75-15;265/75-15;31×10.5-15;31×10.5-16.5 | 380 | 1300-20 Pilote;14.75/80-20 | ||
| 258 | 10-16.5;10.0/80-12;10.0/75-15.3 | 390 | 1400-20 | ||
| 260 | 750-16;8.5-17.5;7-19.5;235/85-16;225/75-17.5 | 400 | 1200-24;F24 Pilote;14/80-24 | ||
| 265 | 31×11.50-15 | 520 | 14.5-20;F20Pilote;15-22.5;14/80-20;365/80-20;375/75-20;385/65-22.5;320/70-24 | ||
| 268 | 31×15.50-15 | 525 | 16.5-22.5;425/65-22.5 | ||
| 270 | 825-15;825-16;9.5-17.5;235/75-17.5;700-18;750-18;8-19.5;650-20;700-20 | 530 | 18-22.5;445/65-22.5 | ||
| 273 | 250/80-16 | 730 | 175-25 | ||
| 275 | 245/70-19.5:265/70-19.5 | 740 | 20.5-25 | ||
| 277 | 10.5-18:10.5/80-18;275/80-18 | 750 | 23.5-25 | ||
