Hidea G80 DV Hook: Maximum Load Security and Durability for Industrial Use

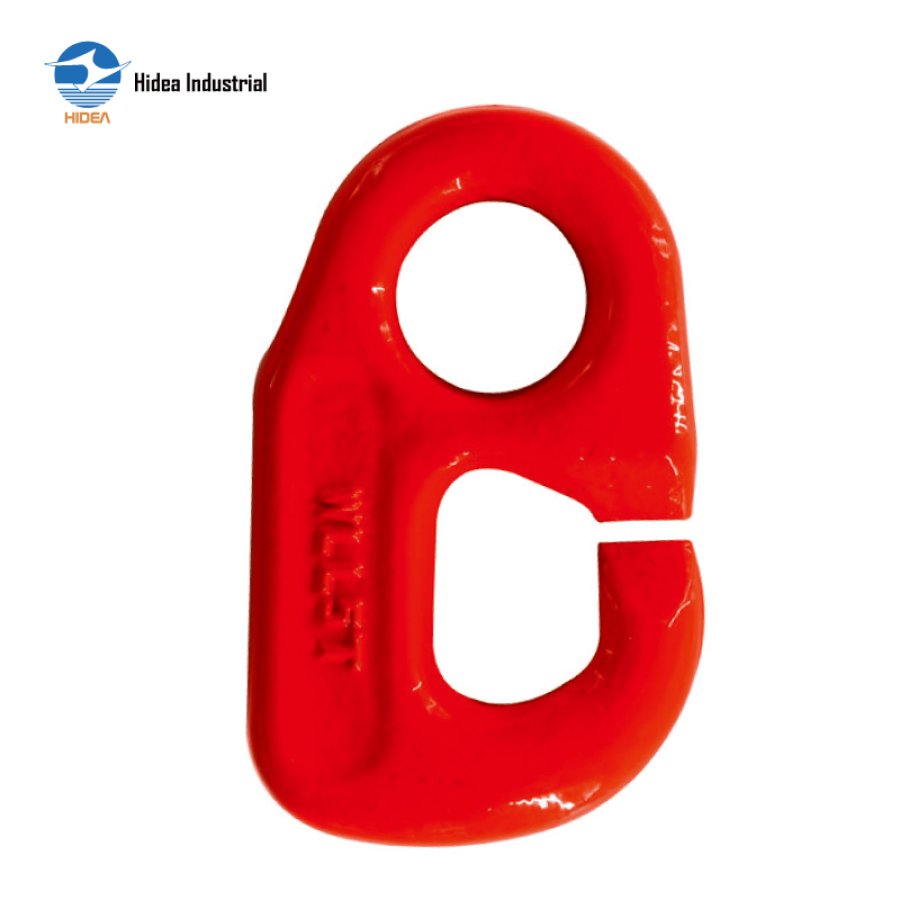

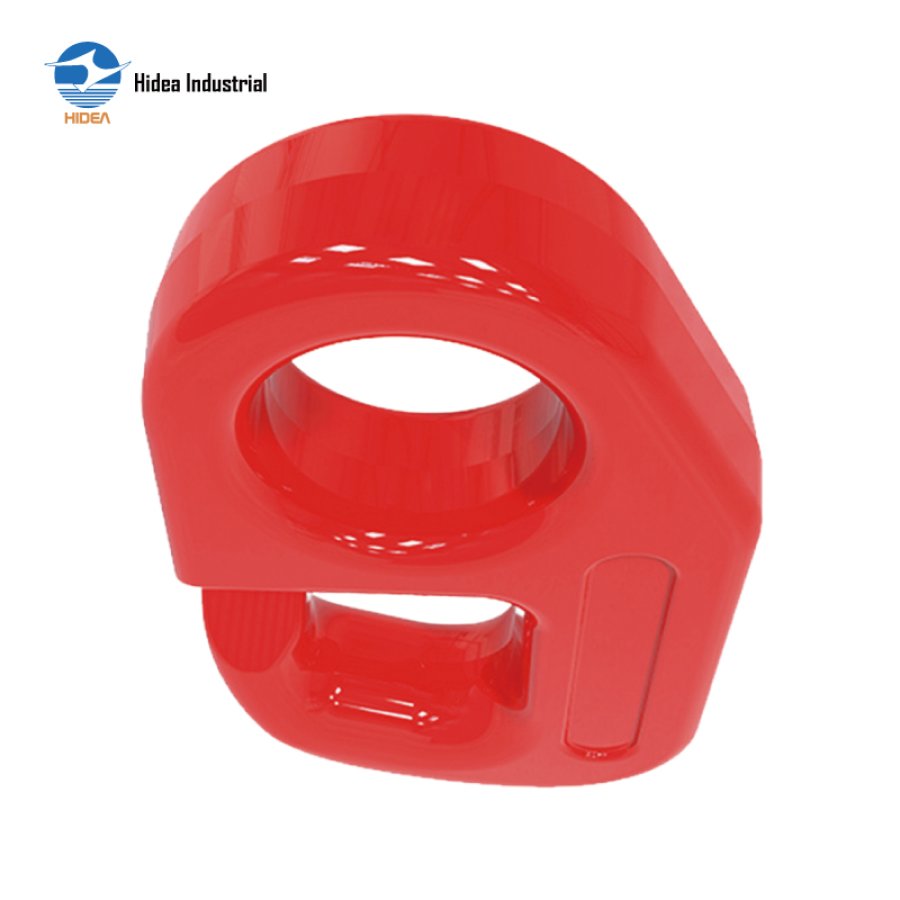

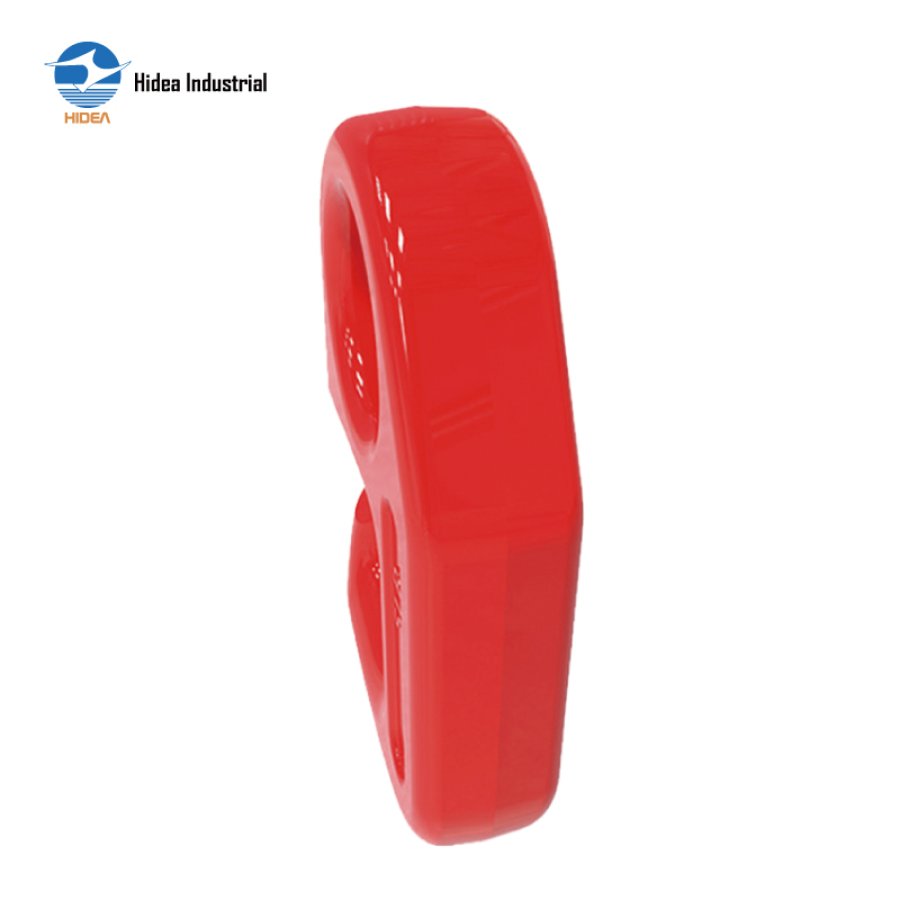

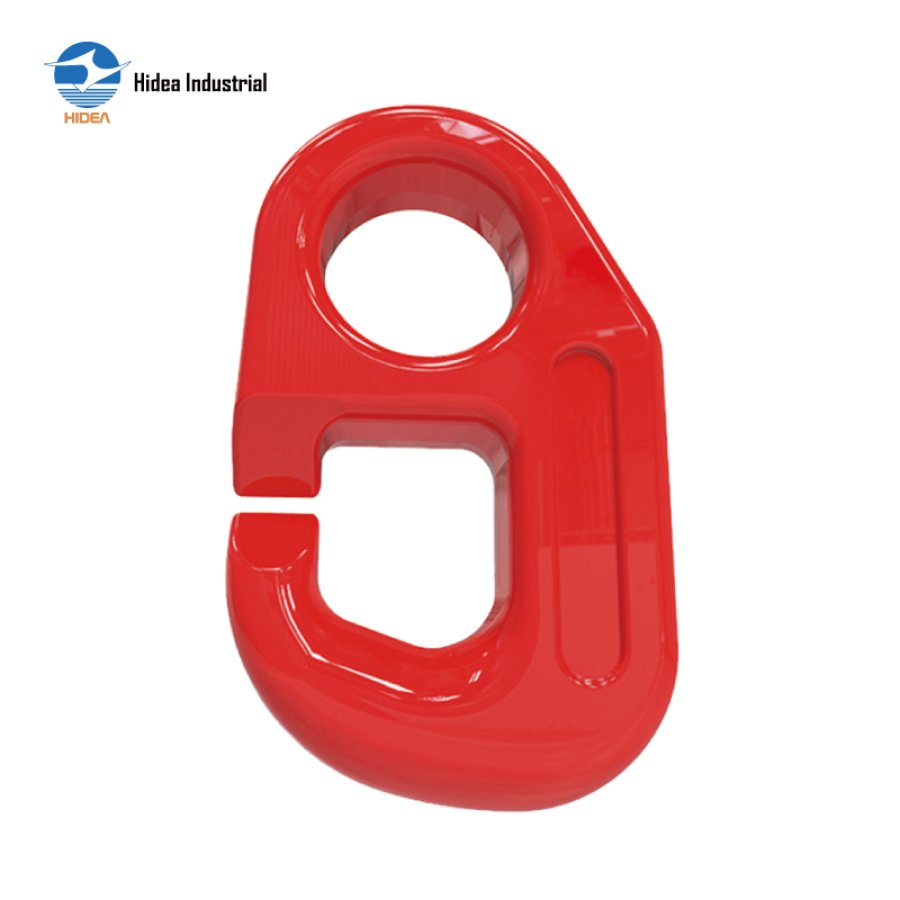

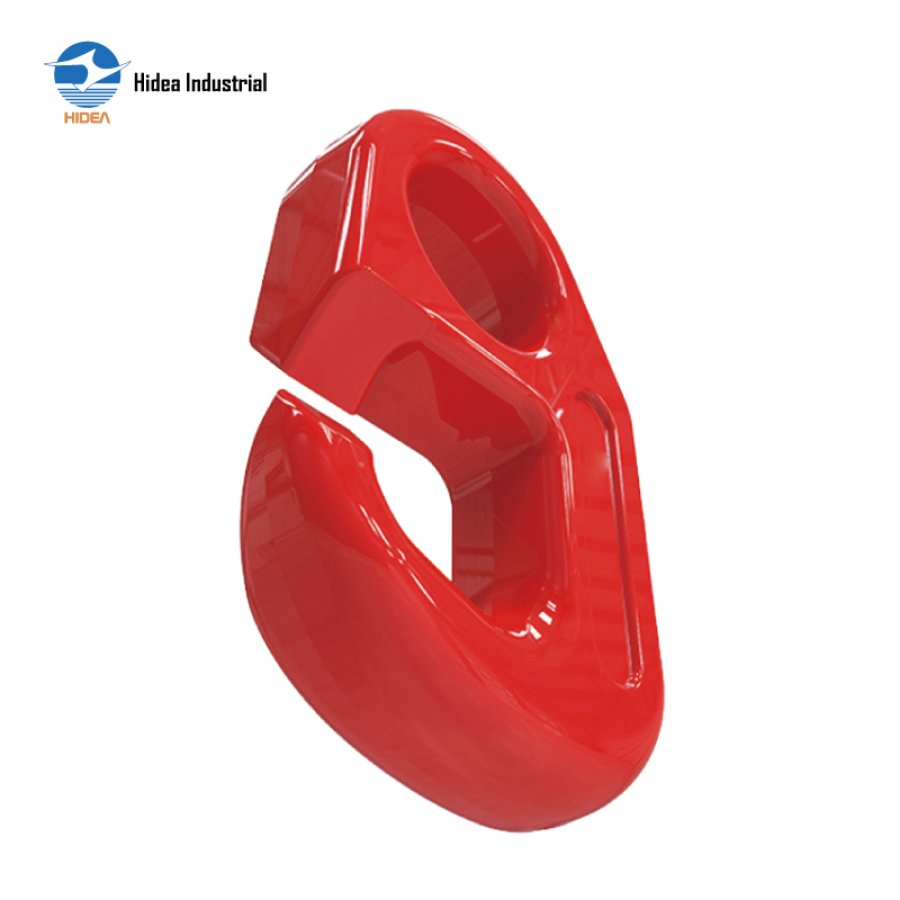

G80 DV HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

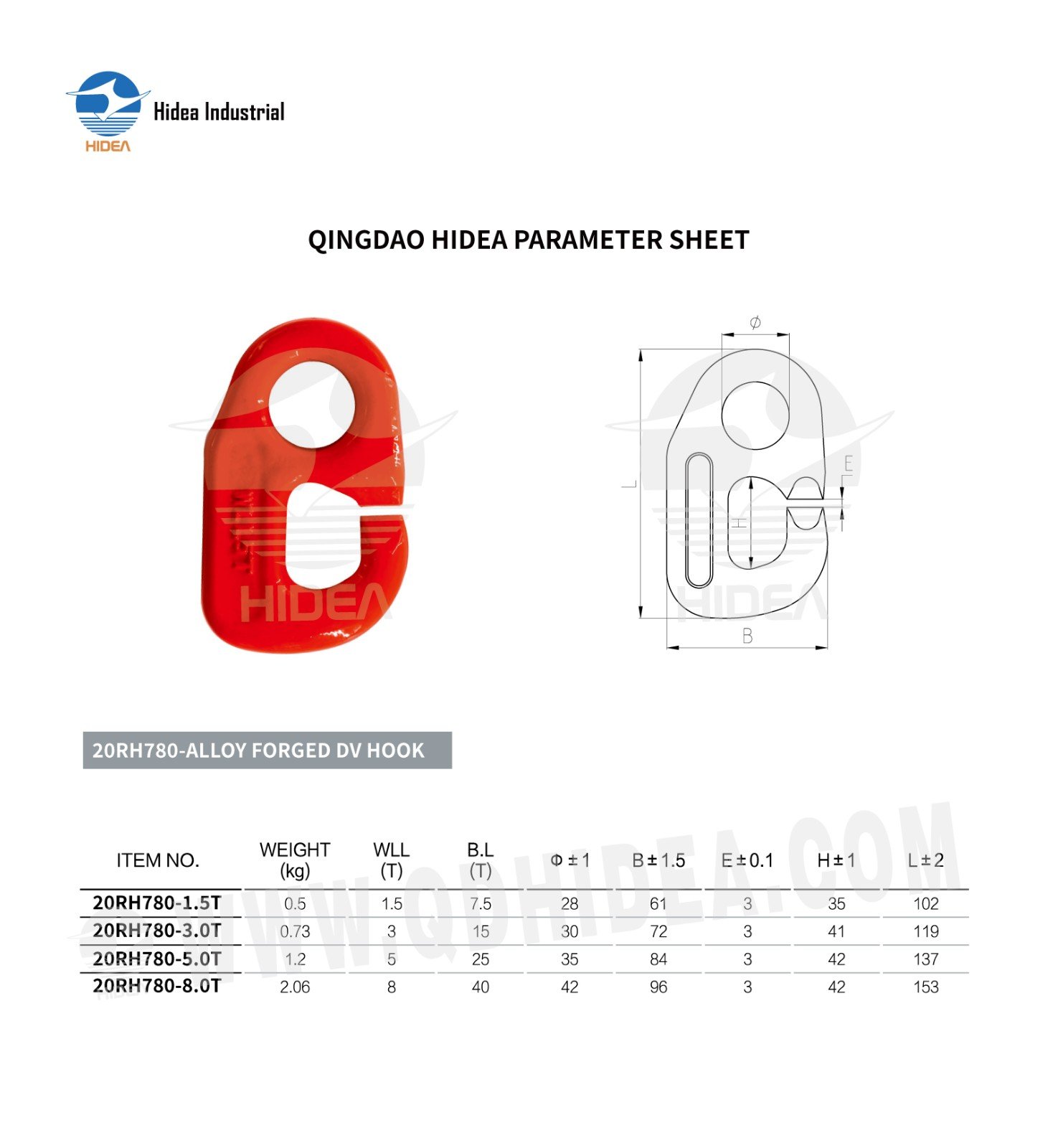

QINGDAO HIDEA PARAMETER SHEET FOR

20RH780-ALLOY FORGED DV HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	Ф±1	B±1.5	E±0.1	H±1	L±2
20RH780-1.5T	0.5	1.5	7.5	28	61	3	35	102
20RH780-3.0T	0.73	3	15	30	72	3	41	119
20RH780-5.0T	1.2	5	25	35	84	3	42	137
20RH780-8.0T	2.06	8	40	42	96	3	42	153
